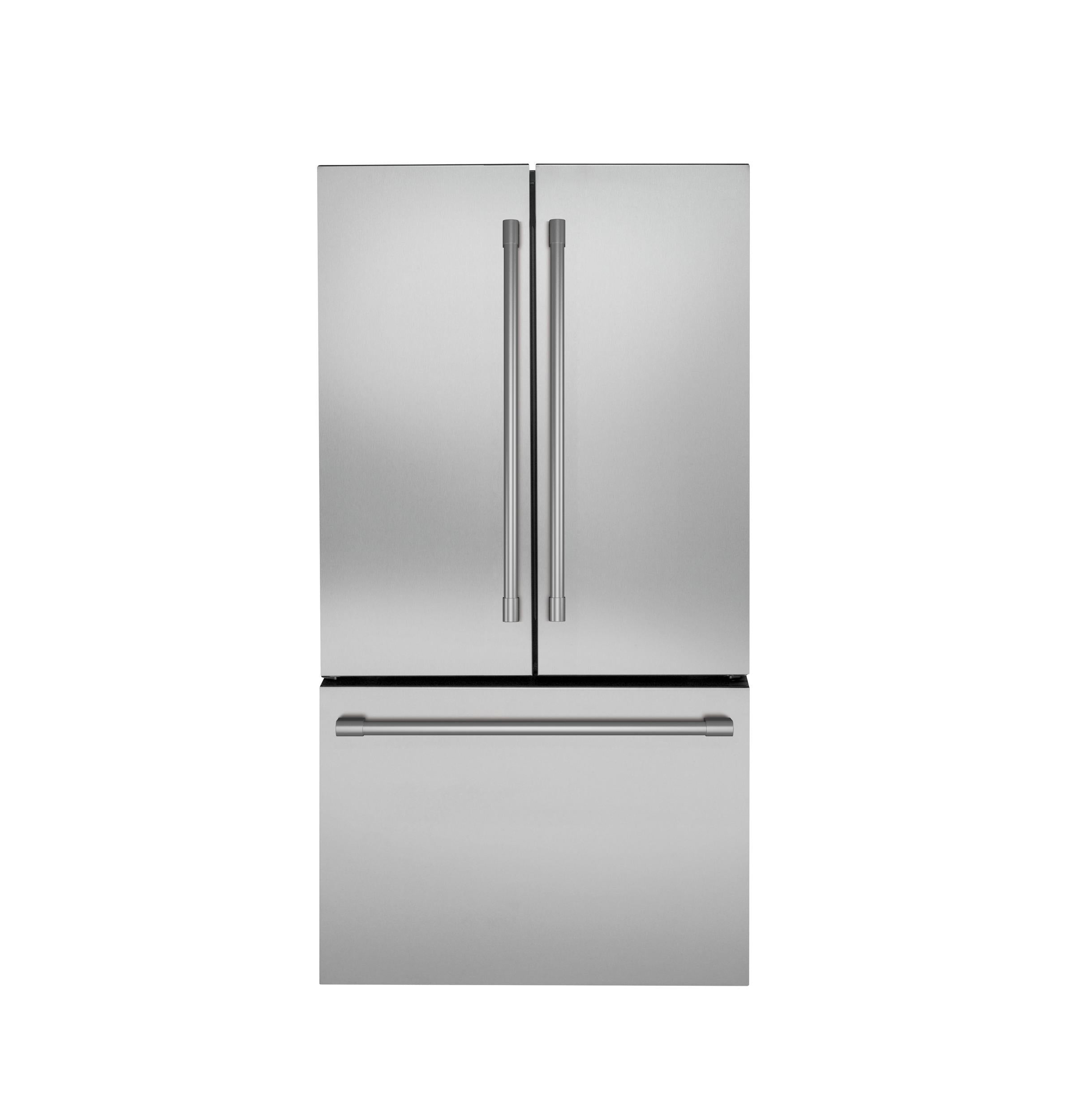

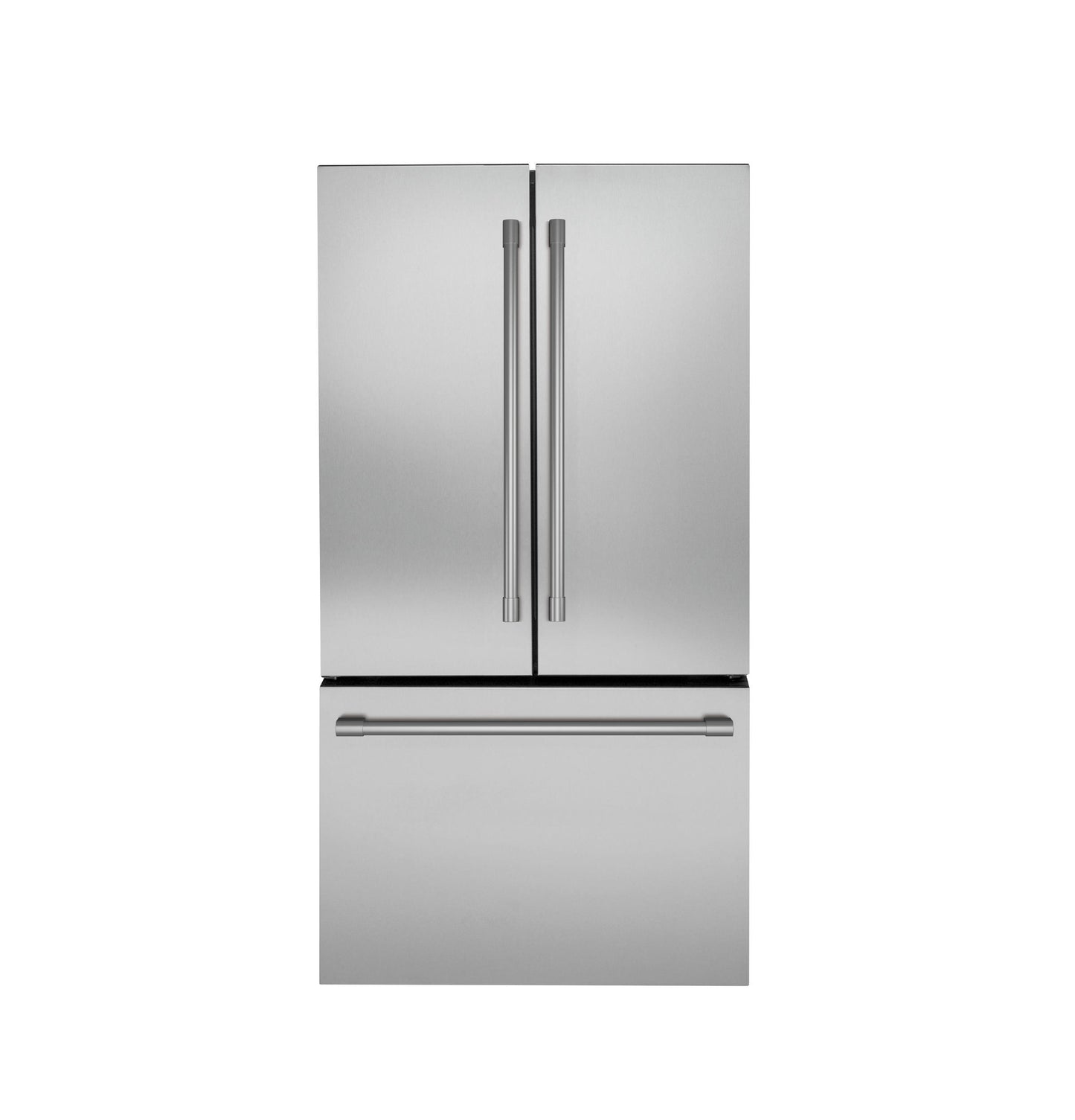

Monogram ZWE23NSYSS Monogram Counter-Depth French-Door Refrigerator
Rebates &
Promotions

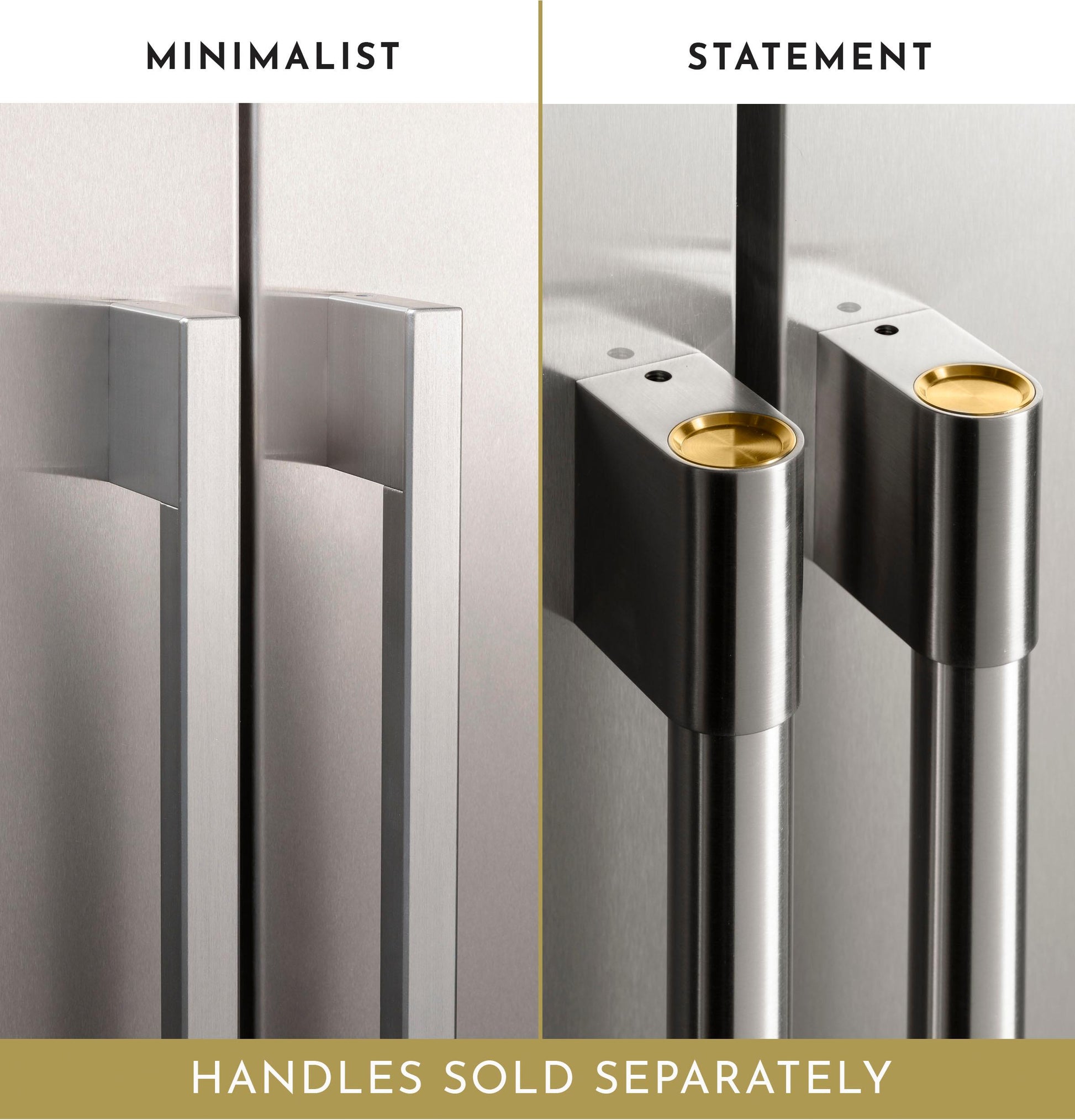

Statement and Minimalist Collection Refrigerator Handles (Sold Separately)

Designed to enhance choice and customization, Statement or Minimalist handle kits sold separately
Showcase LED lighting

Positioned throughout the interior and under fresh food doors to spotlight foods inside the refrigerator and in the freezer
Drop-down tray

Allows for extra door storage when you need it and tucks away when you don't
Quick Space shelf

Functions as a normal full-sized shelf when needed and easily slides down for instant storage flexibility
Advanced water filtration uses XWFE replacement filter

Reduces trace pharmaceuticals from water and ice* (* Removes 98% of ibuprofen, atenolol, fluoxetine, progesterone and trimethoprim. These pharmaceuticals are not necessarily in all users' water)
- Statement and Minimalist Collection Refrigerator Handles (Sold Separately)
- Showcase LED lighting
- Drop-down tray
- Quick Space shelf
- Advanced water filtration uses XWFE replacement filter
- Full-width electronic temperature-controlled drawer with LED lights
- TwinChill™ evaporators
- Enhanced Shabbos Mode
- Optional Stainless Steel Side Panels
CAPACITY | |
Fresh Food Capacity | 15.9 cu ft |
Total Capacity (cubic feet) | 23.1 cu ft |
Freezer Capacity | 7.2 cu ft |
APPEARANCE | |
Door Swing | French Door |
Handle Purchased Separately | Requires Statement Handle Kit (ZKLB3H3PTSS) or Minimalist Handle Kit (ZKLB3H3CTSS) |
Color Appearance | Stainless Steel |
Door Stops | Yes |
Counter-Depth Design | Yes |
Handle Color | Stainless Steel |
Hidden Door Hinge(s) | Yes |
WARRANTY | |
Labor Warranty | Limited 2-year entire appliance Limited 5-year sealed refrigerating system |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 2-year entire appliance Limited 5-year sealed refrigerating system |
POWER / RATINGS | |
Electrical Requirements | 115V; 60Hz; 20A |
ACCESSORIES | |
Optional Stainless Steel Side Panel | ZKLBLSCYSS ZKLBRSCYSS |
WEIGHTS & DIMENSIONS | |
Side Air Clearances | 0.125 in |
Overall Width | 36 in |
Approximate Shipping Weight | 375 lb |
Depth Without Handle | 28.75 in |
Height to Top of Case | 69 in |
Back Air Clearances | 2 in |
Overall Depth | 31.5 in |
Top Air Clearances | 1 in |
Height to Top of Hinge | 70.5 in |
Net Weight | 345 lb |
Depth with Door Open 90° | 43.375 in |
Width w/Door Open 90 Degrees Incl. Handle | 44.75 in |
Overall Height | 70.5 in |
Case Depth Without Door | 24.375 in |
FEATURES | |
Fresh Food Features | Deli Pan Showcase LED Lighting 7 |
Dispenser Features | Door Alarm Internal Dispenser Water Filter Indicator Light |
Control Type | Internal Electronic Digital Temperature Display |
Freezer Storage Baskets | 2 Full-Width (w/ Ice Bucket) |
Exterior Style | Counter-Depth |
Configuration | French Door |
Performance Features | Easily Removable Door Gaskets |
Refrigerant Type | R600a |
Icemaker | Factory-Installed |
WiFi Connect | Built-In |
Fresh Food Cabinet Shelves | 1 Quick Space Shelf 3 Spill Proof 4 Split Adjustable; 1 Full-Width 5 Total - Glass with Silver Trim |
Sabbath Mode | Yes |
Filter Location | Left wall |
Dispenser | Internal Water |
Temperature Management System | TwinChill™ Evaporators |
Connected Capabilities | Amazon Alexa Google Home IFTTT |
Collection | Minimalist Statement |
Defrost Type | Frost Guard |
Fresh Food Cabinet Drawers | 1 Full-Width, Adjustable Temperature with LED Light 2 Adjustable Humidity Drawers 3 Total |
Water Filtration | Advanced Filtration System (RPWFE) Removes Pharmaceuticals Water Filter Indicator Light |
Fresh Food Door Features | Dairy Compartment Drop Down Tray |
Leveling System | 2 Front Leveling Legs |
Fresh Food Door Bins | 4 Adjustable with Gallon Storage 6 Total |
Product Type | Bottom Freezer Refrigerator Counter Depth Refrigerator Free-Standing Refrigerator French-Door Refrigerator |
OU Certified | OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately |
Freezer Features | Interior Lighting - Showcase LED (2) |
