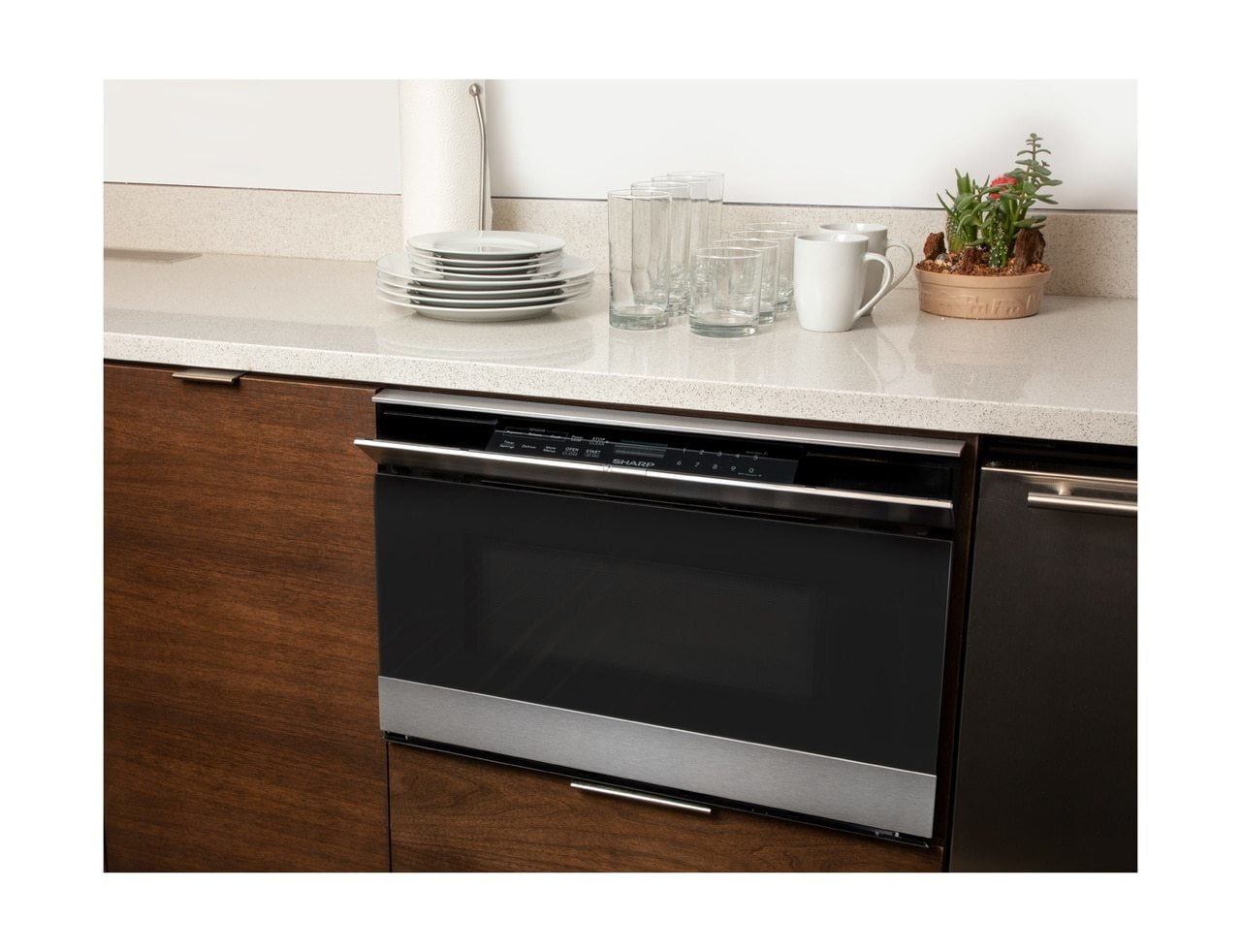

Sharp SMD2489ES 24 In. 1.2 Cu. Ft. 950W Sharp Stainless Steel Iot Easy Wave Open Microwave Drawer Oven
Sharp SMD2489ES built-in Smart Microwave Drawer™ OvenThe Sharp SMD2489ES is the first, built-in, Smart Microwave Drawer™ Oven. Over 35 convenient and simple voice commands help you make the most of what this smart microwave oven has to offer. What could be easier, than just asking, "Alexa, defrost 1 pound of chicken" to your Amazon Echo device? Our wide selection of Alexa commands and Sensor Cook & Defrost menu items take the guesswork out of cooking. Download the Sharp Kitchen app and pair with Alexa to enable the smart features.

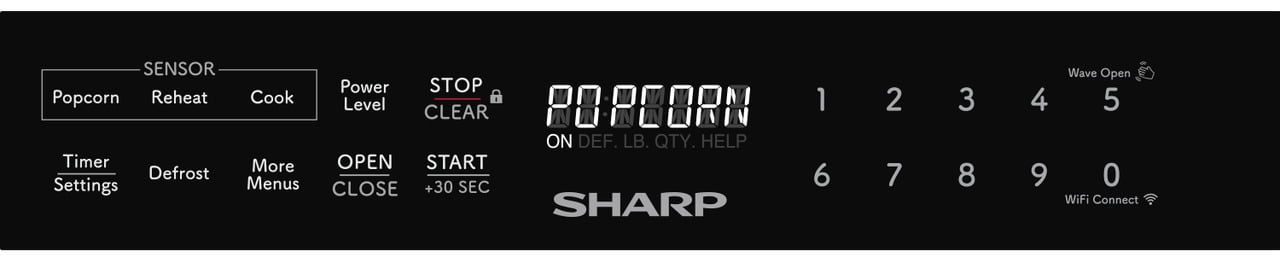

Concealed Touch Glass Controls
Easy-to-see and operate, the hidden control panel smoothly opens to a convenient 45° angle. The modern, touch glass panel wipes clean quickly and easily. The hidden control panel puts all of the controls at your fingertips when you need them, and out of sight when you don't.
Lighting Your Way
The LED indicator light and stylish floor pattern add a modern touch to your elegant and premium built-in appliance.
Designed To Give Your Kitchen the Attention It Deserves
Sharp's top-of-the-line 24" stainless steel Microwave Drawer Oven has been designed with discreet branding inside the hidden control panel to complement the widest range of kitchen styles and appliances. The sleek, low-profile design, edge-to-edge black glass and stainless-steel finish beautifully complement any kitchen.
Dimensions & Capacity
Width: 23.5"
Height: 15.625"
Depth: 23"
Microwave Power: 950 w
Height: 15.625"
Depth: 23"
Microwave Power: 950 w
- Mobile Application for iOS and Android Devices

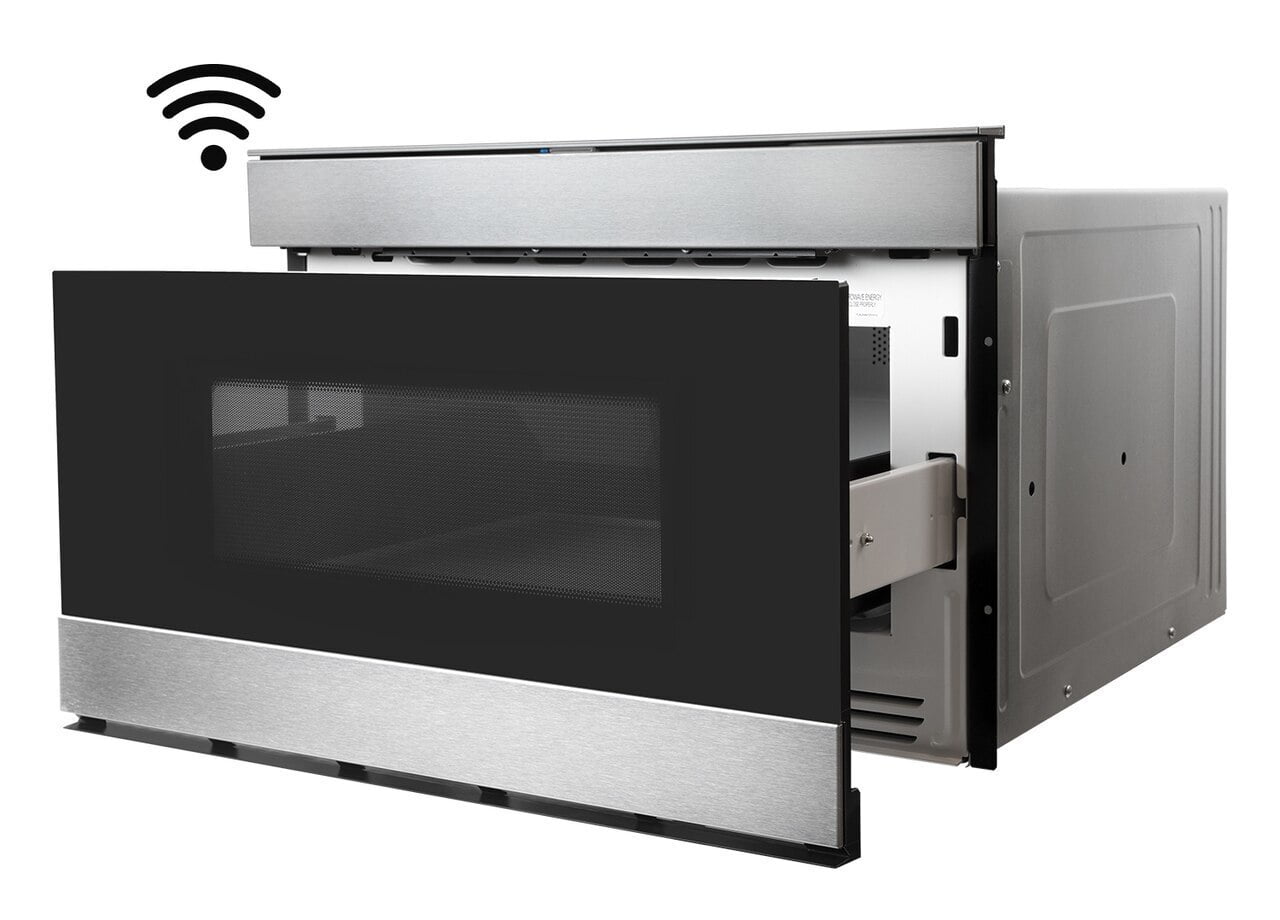

- "Easy Wave Open" for Quick, Touchless Opening of the Microwave Drawer Oven
- Concealed, Glass, Touch Controls are Easy-to-See and Operate at a Convenient 45(degree) Angle
- Modern Edge-to-Edge Black Glass with Convenient Viewing Window
- Includes Built-In Airflow Control for Flush Mounting
- A Popular Upgrade to the SMD2480CS
Features | |
Finish | Stainless Steel, Black Glass |
Drawer Opening | Mobile App, 'Easy Wave Open' Motion Sensor or Open/Close Button |
Width | 24' |
Capacity (cu. ft.) | 1.2 |
Output Power (watts) | 950 |
Interior Light | LED |
Timer / Setting | Yes |
Open / Close | Yes |
Start / +30 Sec | Yes |
Stop / Clear | Yes |
Power Level | 11 |
Clock | Yes |
Multi-Stage Cooking | 4 |
Control Lock | Yes |
Demo Mode | Yes |
Microwave ON Indicator | Yes |
End of Cooking Reminder | Yes |
Auto Start | Yes |
Standby Mode | Yes |
Control Panel | |
Control Panel Location | Center / Top |
Control Panel Type | Glass Touch, Drop-Down 45° Angle |
Display Type | LCD |
Display Color | White on Black Background |
Cooking / Menu Presets | |
Popcorn | Sensor |
Reheat | Sensor |
Defrost Setting | Ground Meat, Steaks/Chops, Boneless Poultry, Bone-in Poultry, Roast, Casserole or Soup |
Sensor Cook | Baked Potatoes, Sweet Potatoes, Fish/Seafood, Brown Rice, White Rice, Quick Fresh Vegetables, Longer Fresh Vegetables, Steamer Bags, Frozen Vegetables, Ground Meat, Frozen Entrées |
Melt, Soft & Warm Options | Butter, Chocolate, Ice Cream, Cream Cheese, Syrup, Dessert Topping |
Other Menus | Beverage Reheat, Hot Water, Hot Cereal |
Additional Features | |
Mobile Application | Yes, available for iOS and Android |
Voice Control | Yes, home assistant, not included. |
WiFi Connectivity | Yes |
Oven Floor | Patterned Glass |
Flush Mount Ready | Yes, Vent Built into the Bottom |
Additional Specifications | |
Power Source | 120V, 60Hz / 14.5A / 1.67 KW |
Dimensions & Weight ( in. / lbs. ) ( w x h x d ) | |

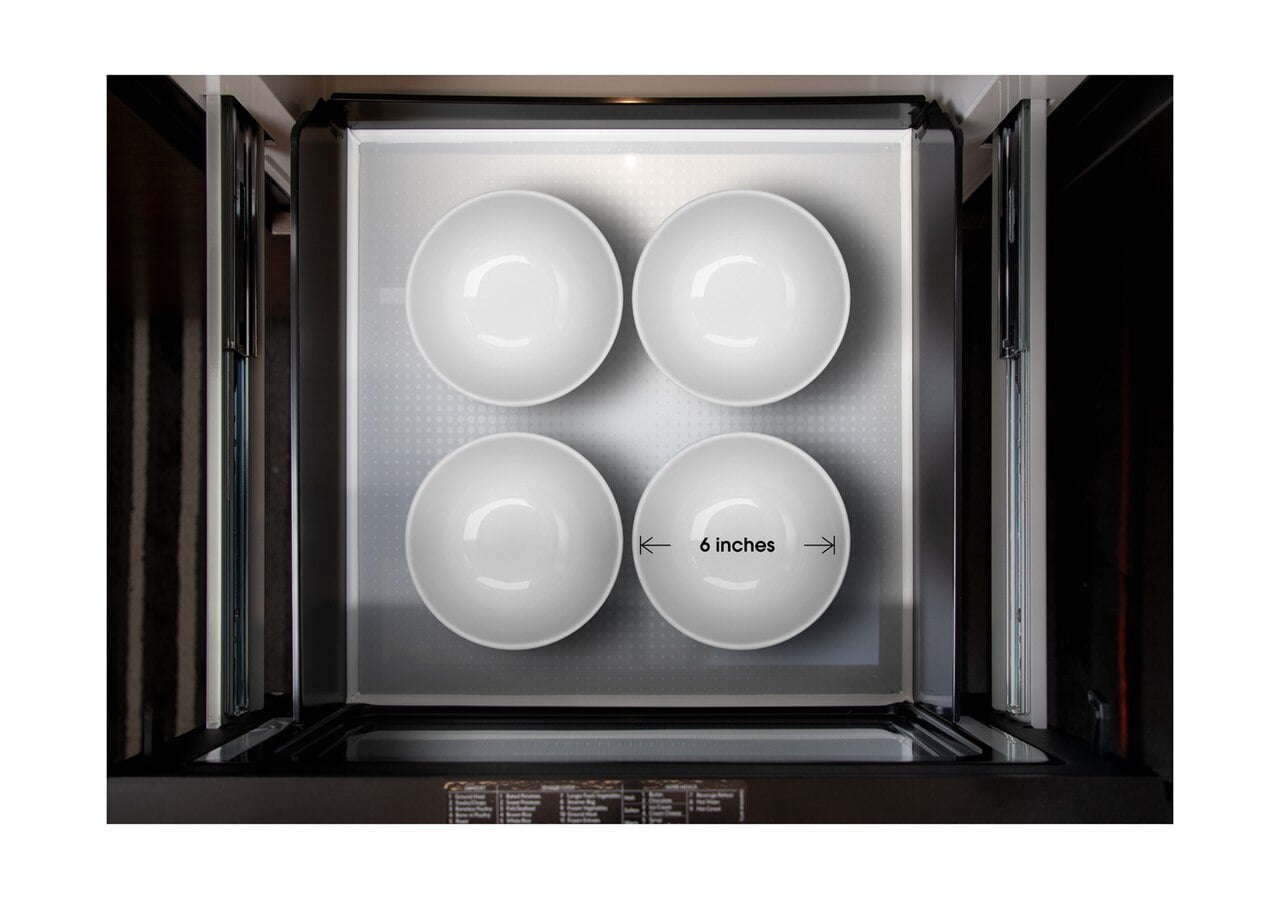

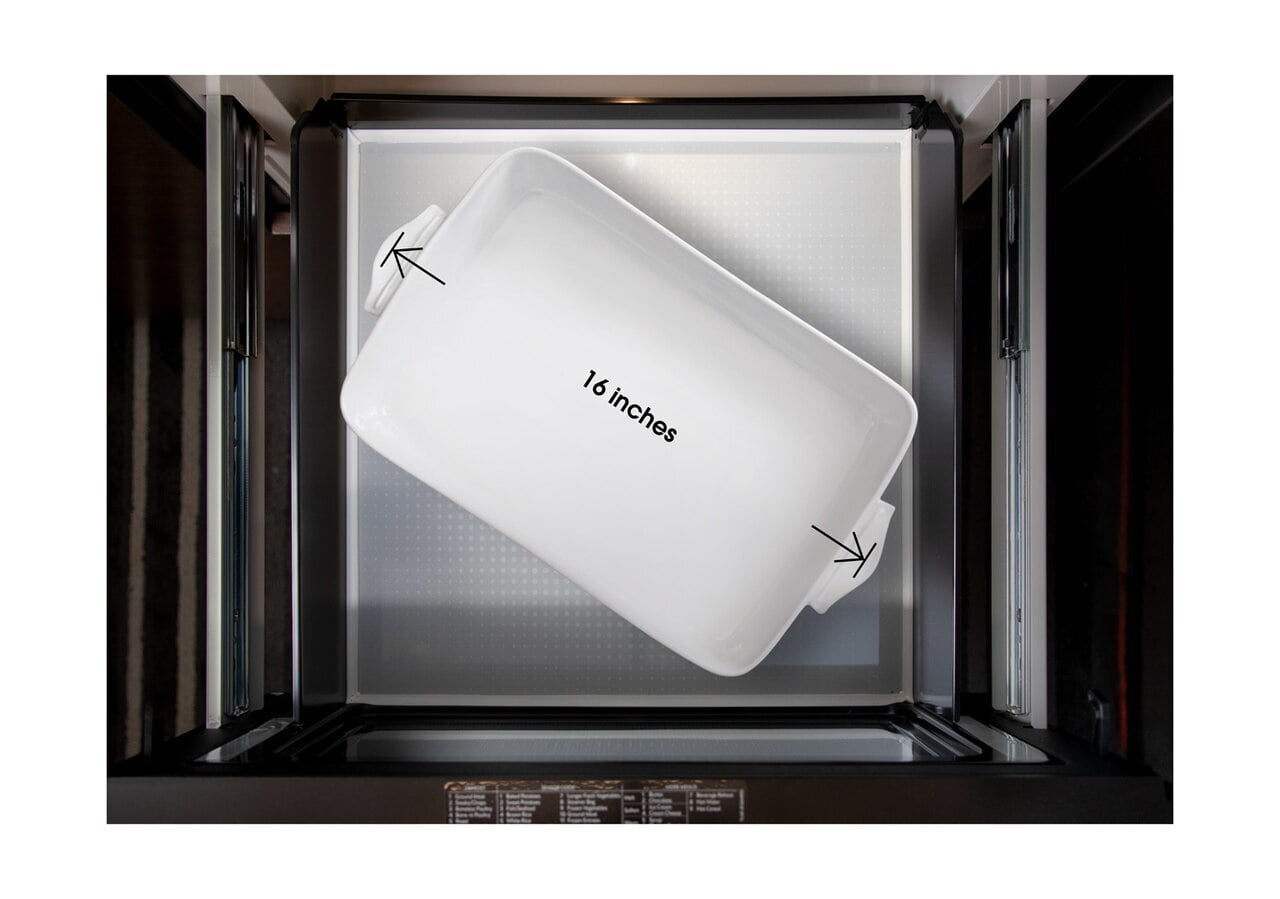

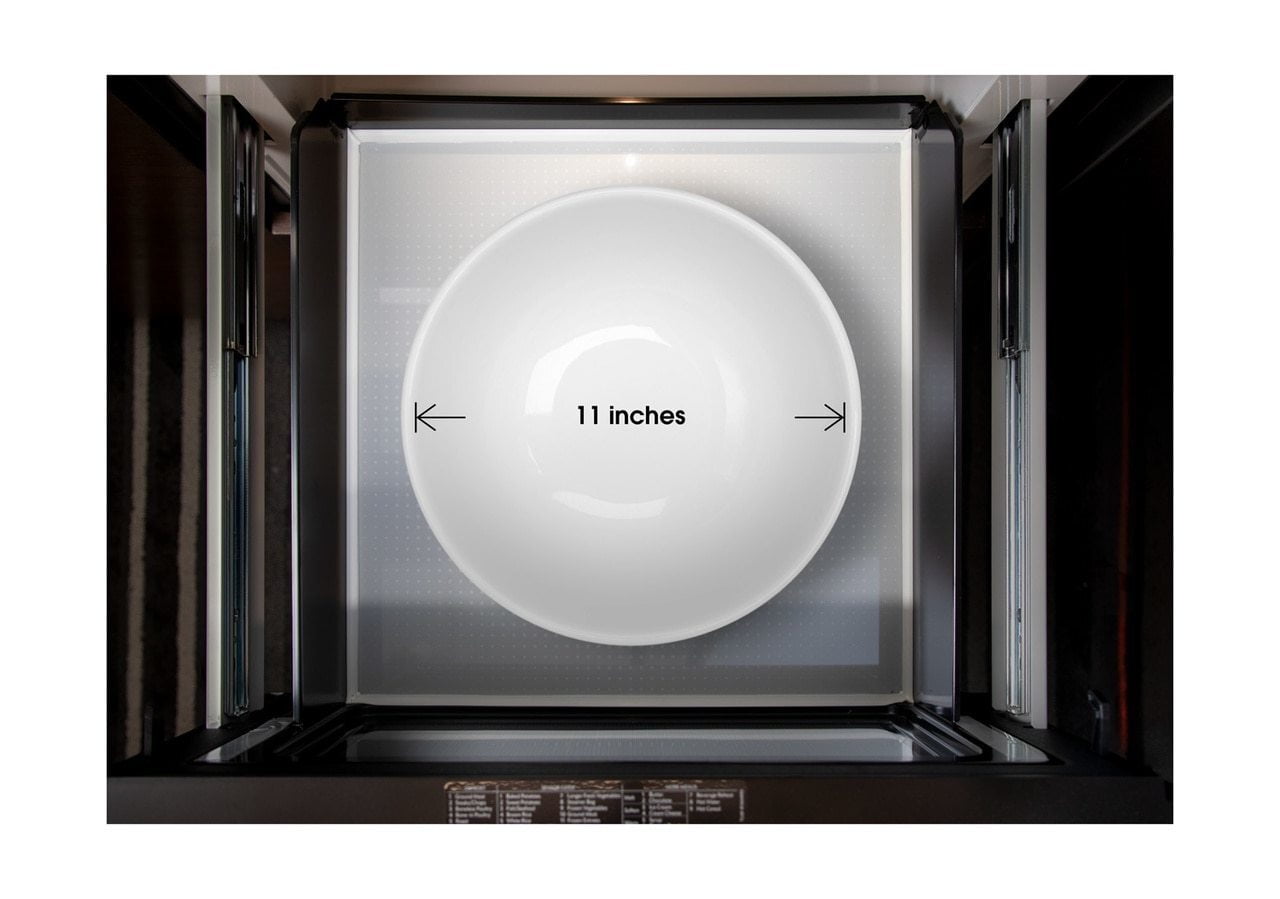

Cavity Interior | 17-5/16' x 7-1/8' x 16-9/16' |
Product Dimensions | 23-5/8' x 16.0' x 23-7/16' |
Shipping Dimensions | 29-1/4' x 21-1/2' x 27-7/8' |
Product Weight / Shipping Weight | 74.0 lbs. / 85.8 lbs. |
Standard Mount Cutout Dimensions | 22-1/8' x 15-9/16' x 23-1/2' |
Flush Mount Cutout Dimensions | 23-7/8' x 16-1/4' x 23-1/2' |
Warranty / UPC | |
Parts | 1 year |
Labor | 1 year |
Magnetron Tube | 5 years (parts only) |
UPC | 00074000620896 |
Optional Accessories | |
Model | SKMD30E9ES |
Product Name | Extension Kit for 30' Width |
Color | Stainless Steel with Black Glass |
UPC | 074000621039 |
Product Name | Drawer Pedestal |
Model | SKMD24U0ES |
Color | Stainless Steel or Custom Panel Ready |
UPC | 074000620865 |
