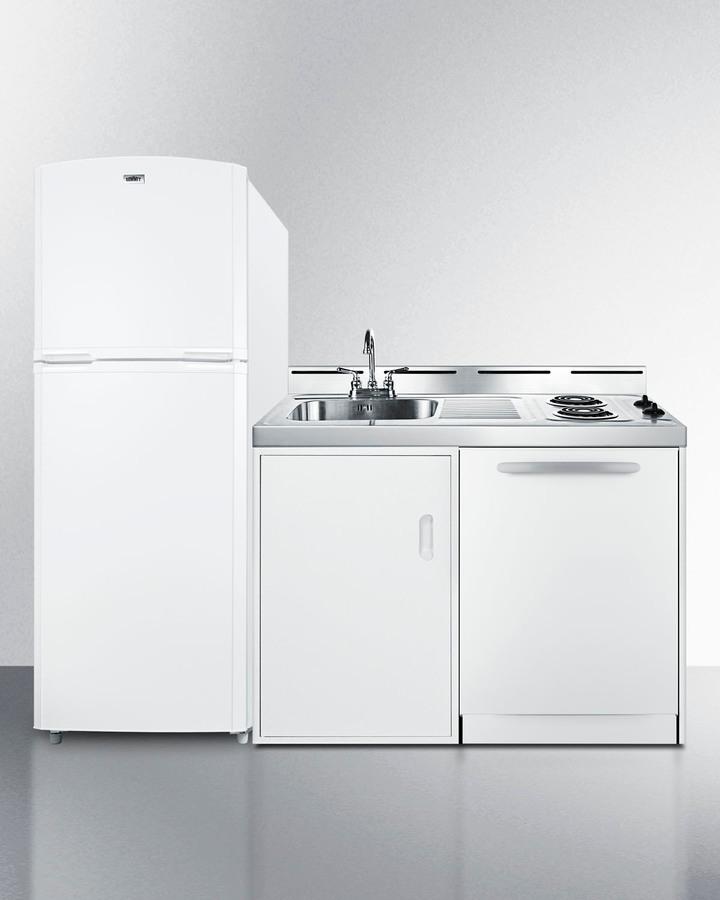

Summit ACKDW75 75" Wide All-In-One Kitchenette With Dishwasher
Summit Brings Innovative Value Into The Kitchen With All-In-One Combination Units For Full-Service Use. Our Ackdw Series Features A Full-Sized Refrigerator-Freezer, Dishwasher, 2-Burner Cooktop, Sink, And Storage Cabinet To Create A Complete One-Wall Kitchenette. Model Ackdw75 Is Comprised Of Three Pieces: Our North American Made Frost-Free Ff1427W Refrigerator-Freezer; Our C48El Kitchenette With Sink, Cabinet, And Cooktop; And Our Dw242Wada 24" Dishwasher. The Exterior Features A Clean White Finish, With Stainless Steel Accents On The Kitchenette Work Surface And Dishwasher Handle To Elevate Your Kitchen Style. The Ff1427W Refrigerator Offers 12.9 Cu.Ft. Of Storage Capacity. Frost-Free Operation Ensures Minimum User Maintenance. The Refrigerator Section Includes Adjustable Glass Shelves, A Large Crisper Drawer, And Door Storage, While The Large Freezer Includes A Removable Shelf And Two Door Racks. This Unit Has A User-Reversible Door Swing And Can Be Installed To The Left Or Right Of Your Kitchenette. The C48El Kitchenette Includes A 2-Burner Coil Cooktop With A Pre-Installed 115V 3-Prong Power Cord For Easy Setup. The Stainless Steel Sink Features A Hot And Cold Water Faucet. A Large Storage Cabinet Includes A Removable Shelf. The Ackdw75 Ships With Our European Dw242Wada Dishwasher, With An Energy Star Certified Ultra Quiet Performance That Runs At Just 47 Db. This Dishwasher Is Designed With A Fully Featured Stainless Steel Interior For Versatile Loading. The Intuitive Top-Located Digital Controls Let You Choose Between 8 Wash Programs With 5 Auxiliary Functions, Including A Half-Load Setting For Added Water Savings. The Dishwasher Also Includes Its Own Pre-Installed 3-Prong Cord. In Addition To The Ackdw75, Summit'S Expanded Selection Of All-In-One Kitchenettes Includes Choices With Full-Sized Ranges, Washer/Dryer Laundry Combos, Water Pumps For No-Plumbing Applications, And Much More. Explore The Full Lineup Or Contact Our Product Specialists For More Information.
- Includes a full-sized refrigerator-freezer, 24" dishwasher, 2-burner cooktop, sink with faucet, and storage cabinet
- Ships with Summit FF1427W, a frost-free refrigerator-freezer with an 12.9 cu.ft. capacity, adjustable glass shelves, door storage, and a large crisper
- Refrigerator and freezer door swing can be switched to best accommodate your setup
- Includes Summit DW242WADA, a European ENERGY STAR certified dishwasher with top-located digital controls, 8 wash programs, two slide-out racks, and an ultra quiet 47 dB performance
- Multiple options to meet all of your fabric needs, including specialty settings for babywear, wool, delicates, activewear, and more
- 120V coil elements for easy cooking
- Stainless steel sink comes ready to wash
- Large convenient cabinet with center shelf lets you store dry goods behind a door
- Easy to clean and built to last
- Each unit includes its own pre-installed power cord for easy setup. This item ships in three boxes
- Environmentally friendly design without ozone-damaging chemicals
Overview | |
Height of Cabinet | 40.0' (102 cm) |
Width | 74.75' (190 cm) |
Depth | 26.0' (66 cm) |
Depth with door at 90° | 49.5' (126 cm) |
Capacity | 12.9 cu.ft. (365 L) |
Dishwasher | Standard |
Defrost Type | Frost-Free |
Door | White |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 300.0 lbs. (136 kg) |
Shipping Weight | 350.0 lbs. (159 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101086934 |
Kitchenette | |
Refrigerator Included | FF1427W |
Refrigerator Door Swing | RHD |
Reversible | Yes |
Adjustable Shelves | Yes |
Shelf Type | Glass |
Shelf Qty | 3 |
Crisper Qty | 1 |
Crisper Finish | Transparent |
Crisper Cover | Glass |
Full Door Shelves | 5 |
Thermostat Type | Dial |
Interior Light | Yes |
Refrigerant Type | R134a |
Refrigerant Amount | 3.5 oz. |
Cooking Type | Coil Cooktop |
Number of Burners | 2 |
Cooktop Controls | Dial |
Interior Height 1 | 37.88' (96 cm) |
Interior Width 1 | 21.0' (53 cm) |
Interior Depth 1 | 19.63' (50 cm) |
Interior Height 2 | 18.5' (47 cm) |
Interior Width 2 | 20.75' (53 cm) |
Interior Depth 2 | 16.0' (41 cm) |
Compressor Step Height | 10.5' (27 cm) |
Compressor Step With | 21.0' (53 cm) |
Compressor Step Depth | 7.0' (18 cm) |
Sink Height | 5.88' (15 cm) |
Sink Width | 16.75' (43 cm) |
Sink Depth | 14.88' (38 cm) |
