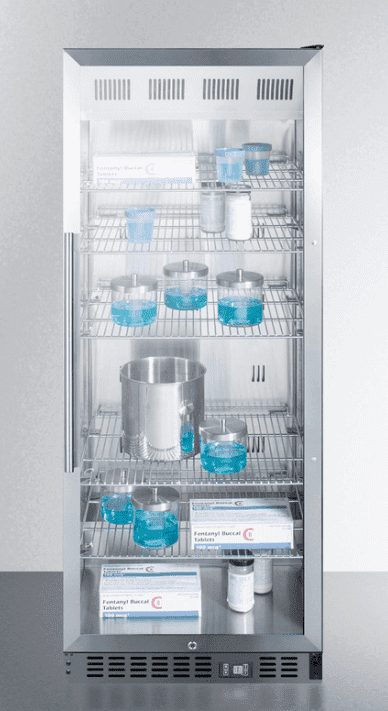

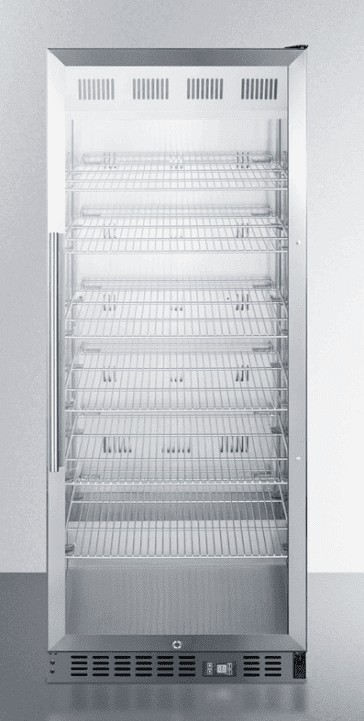

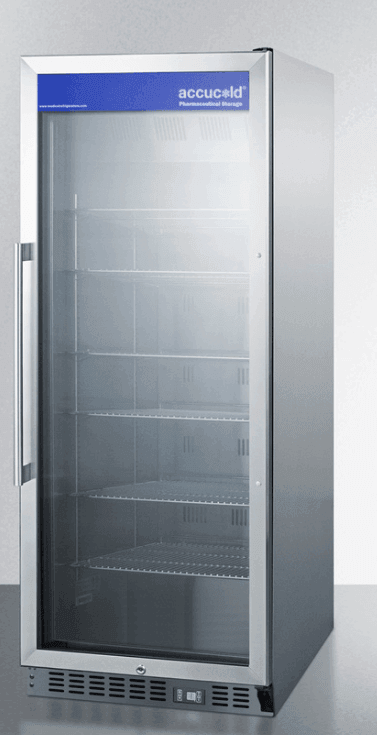

Summit ACR1151 Summit - Accucold Pharmaceutical Refrigerater Acr1151 - Stainless Steel
Accucold By Summit Appliance Carries A Quality Line Of Pharmaceutical Refrigeration For Temperature-Safe Storage Of Sensitive Material. The Acr1151 Is Conveniently Sized With A 24" Footprint For Space-Challenged Facilities, With A Front-Breathing System That Allows Built-In Or Freestanding Use. The Exterior And Interior Are Constructed From Stainless Steel For Easier Cleaning And Improved Sanitation. The Glass Door Provides A Full View Of The 11 Cu.Ft. Interior While Adding Protection With The Self-Closing Design. A Factory Installed Lock Offers Added Security. A Hospital Grade Cord With A 'Green Dot' Plug Offers Added Safety In High Traffic Facilities. Inside, The Acr1151 Includes Six Cantilevered Chrome Shelves That Can Easily Be Rearranged To Accommodate A Variety Of Sizes. Fan-Forced Cooling Ensures Cold Air Is Evenly Distributed Throughout The Interior. This Model Uses Frost-Free Operation For Easy User Maintenance, With An Audible Open Door Alarm That Will Sound If The Door Is Ajar For Over 60 Seconds. A Digital Thermostat Offers Intuitive Temperature Control That Can Be Viewable In Celsius Or Fahrenheit. Designed For Optimum Pharmaceutical Storage, The Temperature Range Is 2C To 8C. Note: Due To The Self-Closing Design Of The Door, This Unit Is Currently Only Available With A Right Hand Door Swing. Features Commercially Approved Etl-S Listed To Ansi-Nsf Standard 7 And Meets Ul-471 Frost-Free No-Frost Operation Ensures Minimum User Maintenance Glass Door Tempered Glass Door With Stainless Steel Trim Provides Heat-Safe View Of Interior Contents Factory Installed Lock Keyed Lock For A Secure Interior Fan-Cooled Interior Internal Fan Ensures The Interior Is Evenly Cooled From Top To Bottom F/C Display Temperature Set Point Can Be Viewed In Celsius Or Fahrenheit At The Touch Of A Button Temperature Memory Function Unit Will Retain Its Last Settings When Power Is Restored In The Event Of Power Loss Professional Handle Stainless Steel Handle Adds A Professional Touch Stainless Steel Interior And Exterior Finish Cabinet And Interior Walls Are Constructed From Stainless Steel Self-Closing Door Door Will Automatically Close When Left Ajar, Preventing Items From Accidentally Being Exposed To Ambient Temperatures Recessed Led Lighting Energy Efficient Lighting Offers Full View Of Interior Adjustable Cantilevered Shelves Adjustable Shelving Accommodates Virtually Any Size With Convenient Cantilevered System Operates Between 2 And 8C Designed To Maintain Temperatures As Recommended By The Cdc Open Door Alarm Audible Alarm Will Sound If The Door Is Left Ajar For Over A Minute Sealed Back Space Saving Design With Easier Cleanability Built-In Capable Front-Breathing System Allows The Unit To Be Used Built-In With 1/4" Of Clearance Around The Sides And 2" At The Rear 100% Cfc Free Environmentally Friendly Design With No Ozone-Damaging Chemicals Specifications Overview Height Of Cabinet 58.38" (148 Cm) Width 23.63" (60 Cm) Depth 22.88" (58 Cm) Depth With Handle 24.0" (61 Cm) Depth With Door At 90 45.0" (114 Cm) Capacity 11.0 Cu.Ft. (311 L) Defrost Type Frost-Free Door Glass Cabinet Stainless Steel Us Electrical Safety Etl Canadian Electrical Safety Etl-C Sanitation Etl-S Amps 1.7 Voltage/Frequency 115 V Ac/60 Hz Weight 141.0 Lbs. (64 Kg) Shipping Weight 160.0 Lbs. (73 Kg) Parts & Labor Warranty 1 Year Compressor Warranty 5 Years Refrigerator Features Door Swing Rhd Reversible No Shelf Type Chrome Shelf Qty 6 Adjustable Shelves Yes Thermostat Type Digital Fan Type Interior And Exterior Refrige
Overview | |
Height of Cabinet | 58.38' (148 cm) |
Width | 23.63' (60 cm) |
Depth | 22.88' (58 cm) |
Depth with Handle | 24.0' (61 cm) |
Depth with door at 90° | 45.0' (114 cm) |
Capacity | 11.0 cu.ft. (311 L) |
Defrost Type | Frost-Free |
Door | Glass |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 1.7 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 141.0 lbs. (64 kg) |
Shipping Weight | 146.0 lbs. (66 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Refrigerator Features | |
Door Swing | RHD |
Reversible | No |
Shelf Type | Chrome |
Shelf Qty | 6 |
Adjustable Shelves | Yes |
Thermostat Type | Digital |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 1.66oz. |
High Side PSI | 270.0 |
Low Side PSI | 105.0 |
Level Legs Qty | 4 |
Interior Light | Yes |
Temperature Range | 2° to 8°C |
Dimensions | |
Interior Height | 50.25' (128 cm) |
Interior Width | 19.38' (49 cm) |
Interior Depth | 17.75' (45 cm) |
Compressor Step Height | 4.75' (12 cm) |
Compressor Step Width | 19.38' (49 cm) |
Compressor Step Depth | 5.75' (15 cm) |
Interior | |
LockBoxW Interior drop-down locking compartment with combination lock and two windows for use in 24' wide Pharma-Vac and Med-Lab units, SCR610BL, SCR1156, SCR1401, FFAR12W, or FFAR121SS | LockBoxSS - Interior locking compartment Interior drop-down compartment with combination lock for use in SCR610BL, SCR1156, FFAR12W, or FFAR121SS |
Exterior | |
Extra key Extra keys available for purchase | PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices |
Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations | TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order |
DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac | DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
Door | |
T2F Door Tint Tinted door in reflective deep blue finish with high energy savings | T3F Door Tint Reflective door tint in light blue finish for medium energy savings |
T1SF Door Tint Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models | T4F Door Tint Neutral door tint in light smoke finish for moderate energy savings |
