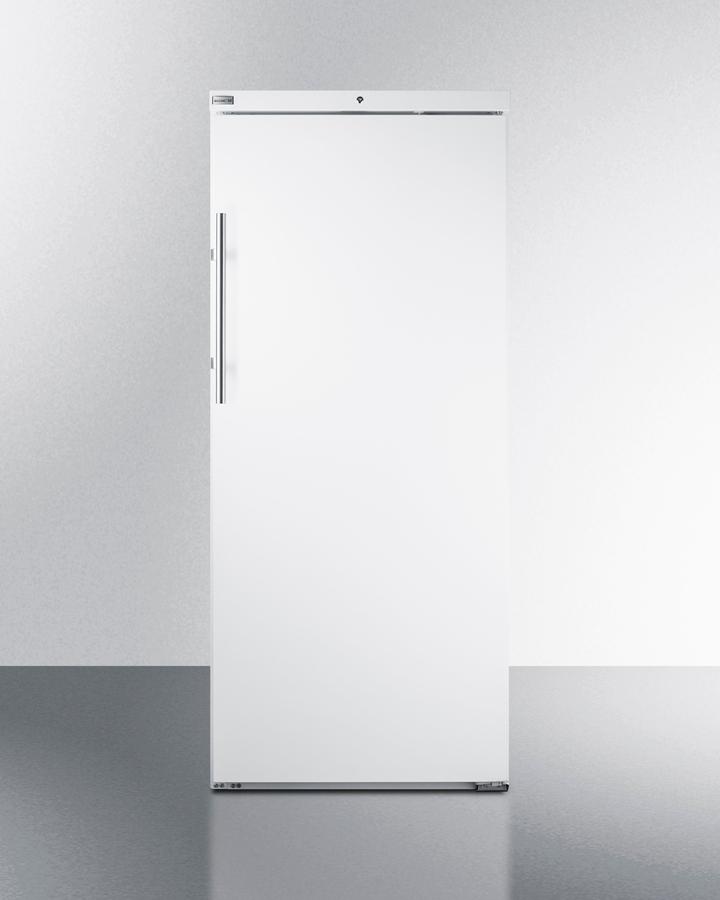

Summit AFM19W 18 Cu.Ft. Upright Manual Defrost Freezer
Summit Commercial Manufactures A Wide Range Of Full-Sized Refrigeration Choices Approved To Nsf-7 Standards, Including Upright Freezers. Model Afm19W Is A Large Capacity Front-Opening Freezer With An 18.3 Cu.Ft. Interior. It Is Etl-S Listed To Nsf-7 For Commercial Storage Applications. This Freezer Utilizes A Static Manual Defrost Cooling System That Offers More Stabilized Temperature Than Traditional No-Frost Units. The Dial Thermostat Is Located Inside To Prevent Accidental Temperature Adjustments. Cantilevered Shelving With Epoxy-Coated Wire Shelves Allows You To Adjust The Interior To Best Accommodate A Variety Of Sizes, While The Flat Door Liner Helps To Fit Deeper Trays Than Units Equipped With Door Racks. An Automatic Led Light Makes It Easy To See The Full Interior. This Freezer Comes In A White Exterior Finish. The Keyed Lock Is Conveniently Located Towards The Top Of The Unit For Easier User Access. The Reversible Door Includes An Easy-Grip Handle In A Brushed Aluminum Finish. This Unit Includes A 9'5" Long Power Cord With A Hospital Grade 'Green Dot' Plug For A More Secure Connection, Ideal For High Traffic Commercial Environments. The Cooling System Utilizes Hydrocarbon Refrigerant For A Greener Footprint That Meets Carb Regulations. For Advanced Insulation, The Door Features A Vacuum Seal That Keeps All Cold Air Inside. In Addition To This Freezer, Summit Commercial Manufactures A Full Lineup Of Full-Sized Commercial Refrigerators And Freezers, Including Reach-In Style And Frost-Free Options. Browse The Full Lineup To Explore Our Catalog.
- ETL-S listed to ANSI-NSF Standard 7 for commercial use
- Front-opening commercial freezer
- Over 18 cu.ft. of storage inside
- Static cooling system with no fans or warming cycles
- Intuitive and reliable mechanical thermostat located inside the unit to prevent unnecessary adjustments
- Preset to -20 C with a temperature range of -18 to -24 C
- Tight pilaster spacing throughout the interior allows you to adjust the shelf positions to meet your exact storage needs
- Four heavy duty shelves included
- Conveniently located towards the top of the door for easier user access (2 keys included)
- No door storage to allow for the interior to accommodate deeper trays
- User-reversible door swing for added flexibility to best accommodate your setting
- Automatic interior lighting for an efficient presentation
- Extra long power cord with hospital grade 'green dot' plug for a more secure connection
- Easy-grip handle in brushed aluminum
- Adjustable front legs allow you to ensure a straight fit, even on uneven surfaces
- Vacuum seal gasket design ensures no cold air escapes (NOTE: seal activates when door is closed, so you must allow a few minutes to pass before re-opening)
- Environmentally friendly design does not contain ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Overview | |
Height of Cabinet | 70.75' (180 cm) |
Width | 30.5' (77 cm) |
Depth | 27.0' (69 cm) |
Depth with Handle | 29.75' (76 cm) |
Depth with door at 90° | 54.13' (137 cm) |
Capacity | 18.3 cu.ft. (518 L) |
Defrost Type | Manual |
Door | White |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 2.7 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 215.0 lbs. (98 kg) |
Shipping Weight | 230.0 lbs. (104 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101077314 |
Freezer | |
Door Swing | RHD |
Reversible | Yes |
Interior Height | 64.0' (163 cm) |
Interior Width | 25.0' (64 cm) |
Interior Depth | 20.88' (53 cm) |
Shelf Type | Wire |
Shelf Qty | 4 |
Adjustable Shelves | Yes |
Thermostat Type | Dial |
Interior Light | Yes |
Refrigerant Type | R290a |
Refrigerant Amount | 3.88 oz. |
High Side PSI | 280.0 |
Low Side PSI | 145.0 |
Level Legs | 2 |
Compressor Step Height | 9.38' (24 cm) |
Compressor Step Width | 25.0' (64 cm) |
Compressor Step Depth | 7.25' (18 cm) |
Temperature Range | -18 to -24 C (Preset to -20 C) |
