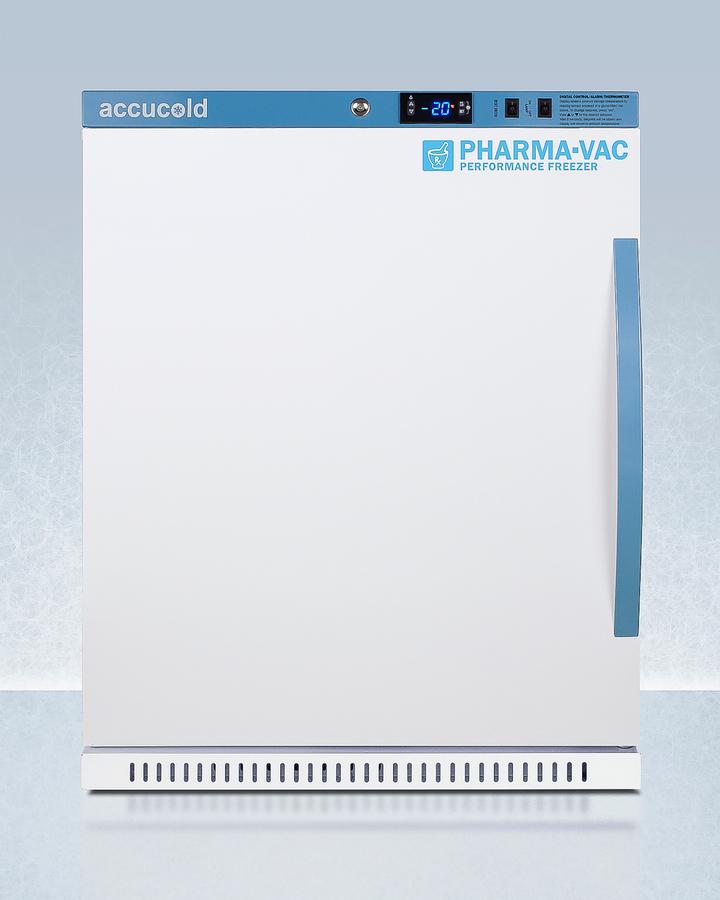

Summit AFZ5PVBIADALHD 4 Cu.Ft. Vaccine Freezer, Ada Height

Accucold'S Pharma-Vac Performance Series Are Upright Freezers Are Designed And Purpose-Built For Pharmacy, Medication, And Vaccine Applications To Support Meeting Cdc/Vfc Guidelines. The Afz5Pvbiadalhd Is A 3.88 Cu.Ft. All-Freezer With A Temperature Range Of -30(Degree)C To -10(Degree)C As Recommended For A Variety Of Vaccines And Pharmaceuticals. It Is Designed For Freestanding Or Recessed Installation And Sized Just Under 32" High To Fit Under Lower Counters Complying With Ada Guidelines For Accessibility. The Microprocessor Temperature Controller Is Externally Located To Minimize Door Openings, Helping To Protect Stored Contents From Ambient Temperature. The Buffered Temperature Probe Is Encased In A Glycol-Filled Bottle To Better Simulate Temperature Of The Stored Product, With An Additional Sensor That Reads Air Temperature To Ensure Superior Temperature Control. The Current And Min/Max Temperature Display Is Viewable In Celsius Or Fahrenheit To The Nearest Tenth Of A Degree. The Audible And Visual Temperature Alarm Sounds If The Unit'S Interior Goes Out Of Range. Additional Alarms Include A Power Failure Alert, Door Open Alarm, And Sensor Failure Alarm. This Model Is Equipped With Remote Alarm Contacts In The Rear And A 1/2" Probe Port On The Right Side To Accept Additional Monitoring Devices. A Hospital Grade Cord With 'Green Dot' Plug Is Also Included For Added Safety In High Traffic Areas. Inside, This Freezer Features Adjustable Plastic-Coated Wire Shelves That Can Be Positioned At 1/2" Increments To Accommodate Virtually Any Sized Item. This Unit Includes Led Internal Lighting With An On/Off Rocker Switch. The Interior Is Constructed From White Powder Coated Metal To Ensure Added Durability And Better Temperature Retention. Static Manual Defrost Cooling Helps To Ensure Stable Temperature Conditions. The Afz5Pvbiadalhd Comes In A White Cabinet Finish With A Blue Accented Control Panel. The Factory-Installed Antimicrobial Handle Is Powder-Coated With Naturally Occurring Silver Ions, Which Help To Reduce The Spread Of Germs, Allowing For A Safer, Cleaner User Experience. The Door Ships With A Left Hand Swing And Self-Closing Function, While A Factory-Installed Lock Provides Security As Needed, With Two Keys For Staff Use. Powerful Magnetic Gaskets Ensure A Positive Seal. Designed With Hydrocarbon Refrigerant, Accucold Performance Series Freezers Provide An Energy Efficient Solution To Vaccine Storage. This Unit Is Pyxis, Omnicell, And Acudose Rx Compatible. Additional Sizes, As Well As Solid Door Options, Are Also Available. Explore The Full Pharma-Vac Series At Accucold.Com/Pharmavac. Note: Accucold Freezers Are Purpose-Built To The Support Meeting The Current Cdc (Centers For Disease Control) Guidelines For The Storage Of Vaccines. For Additional Temperature Assurance, The Cdc Recommends A Calibrated Digital Data Logger (Ddl), Which Can Be Added With The Factory-Installed Option Dl2B Or Addition Of The Dl2Bkit Accessory.

• Purpose-built all-freezer for vaccine storage in medical, pharmaceutical, and life science applications
• Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines
• Just under 32" tall designed to fit under ADA compliant counters
• Versatile design allows recessed installation under counters or freestanding use
• The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
• Meets UL-471 commercial standards
• Intuitive controls let you adjust the interior temperature between -30(degree)C to -10 C
• Visual and audible alarms alert if the interior temperature rises or falls out of set range
• Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
• Static cooling system for an efficient and stable interior
• Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
• Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
• Battery-powered alarm sounds if the power connection is interrupted
• Audible and visual alarm warns if the sensor is disrupted
• Control panel requires password entry to adjust the parameters beyond the set point
• Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
• Control panel provides a readout of the low and high temperatures in 15 minute increments
• Keyed lock conveniently located towards the top of the door for added security (2 keys included)
• Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs
• Shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size
• Secure three-pronged cord for added unit safety
• Walls are constructed from white powder coated metal for added strength and improved temperature retention
• Energy efficient LED lighting with internal on/off switch
• Added protection in busy settings
• For this unit with the door opening from the other side, see model AFZ5PVBIADA
• Quality door gaskets ensure a tight seal for energy savings and improved performance
• Allows the unit to be used freestanding
• 2 years parts and labor/5 years compressor
• Using environmentally friendly hydrocarbons refrigerants for a greener footprint
• Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
• Pair with Accucold ARS62PVBIADA (solid door) or ARG61PVBIADA (glass door) as a stackable or side-by-side set
• Compatible with Pyxis®, Omnicell®, and AcuDose RX®
• Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
• Environmentally friendly design without ozone-damaging chemicals
