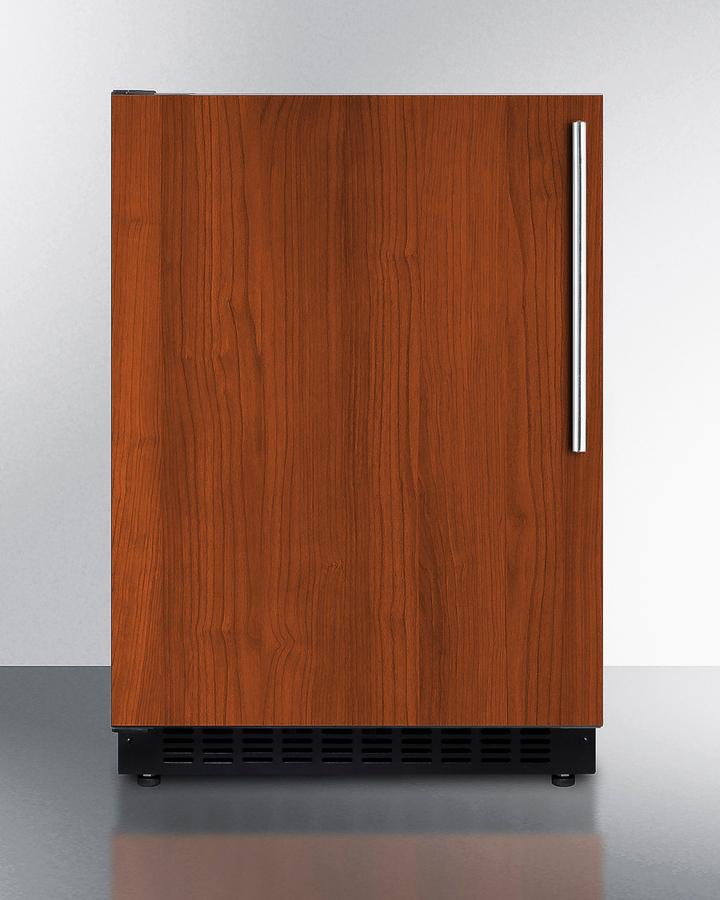

Summit AL54IFLHD 24" Wide Built-In All-Refrigerator, Ada Compliant (Panel Not Included)
Summit'S Al54 Series Features Built-In Undercounter All-Refrigerators Designed For Installation Under Lower Ada Compliant Counters, With Advanced Features For User Convenience. Sized With A Convenient 24" Footprint, The Al54If Is Just 32" High To Fit Under Lower Counters Complying With Ada Guidelines For Accessibility. The Fully Finished Black Cabinet Allows Freestanding Use, While The Front-Breathing System Also Allows This Unit To Be Built-In With Minimum Clearance. The Door Features A European-Style Fully Articulating Hinge For Smooth Opening. This Also Allows The Door To Accept Full Panel Overlays, Allowing Users To Seamlessly Blend The Unit Into Their Own Cabinetry Design (Panel Size: 28.38" H X 23.4" W; Maximum Weight: 10 Lbs.). This Unit Has A Flush Back For Easy Cleaning And A Right Angle Cord For A Better Fit. It Ships With A Left Hand Door Swing. Inside, The Al54Iflhd Utilizes Frost-Free Operation With Fan-Forced Cooling To Ensure Low Maintenance And Even Temperature Distribution. Recessed Led Lighting Offers An Attractive Yet Efficient Look. The Digital Thermostat Makes It Easy To Manage The Interior Temperature. This Unit Includes Adjustable Glass Shelves For Flexible, Spill-Proof Storage And Two Large Door Racks Ideal For Keeping Condiments In Easy Reach. The Floor Is Specially Slotted To Hold Bottles In Place. Additional Features Include An Open Door Alarm, High Temperature Alarm, And Sabbath Mode Setting That Lets You Disable Some Of The Electrical Elements During Periods Of Observance. The Al54Iflhd Refrigerator Is Etl-S Listed To Nsf-7 Commercial Standards But Can Also Be Used In The Home. With Its Deluxe Style And User-Friendly Features, This Unit Is The Perfect Choice For Home Or Commercial Kitchens. Additional Styles Are Available, As Well A Matching Frost-Free Freezer (Model Alfz53If). Browse The Full Summit Line To Explore Your Endless Options.
- 32" height allows easy installation under lower ADA compliant counters
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- European style articulating door hinge allows the installation of overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; (panel size: 23.4" W x 28.38" H at 3/4" thick and 10 lbs. maximum)
- No-frost operation for minimum user maintenance
- Electronic controls located inside the unit for precise temperature management
- Efficient and attractive presentation with LED lighting
- Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
- Two door racks offer convenient storage for condiments and bottles
- Floor is specially slotted to store wine and other bottles safely in place
- Fan-forced cooling ensures the unit is evenly cooled from top to bottom
- Audible alarm will sound if the door is left open longer than one minute
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Optional setting lets you disable the lighting and alarm for up to 48 hours
- Unit will retain its last settings when power is restored in the event of power loss
- Space-saving design that offers easier cleanability
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Pair with the ALFZ53IF frost-free freezer to create a complete refrigerator/freezer set under the counter
- ETL-S listed to NSF-7 Standards for use in commercial establishments
- Allows the unit to be used freestanding
- Environmentally friendly design with no ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Overview | |
Height of Cabinet | 32.0' (81 cm) |
Width | 23.38' (59 cm) |
Depth | 22.63' (57 cm) |
Capacity | 4.8 cu.ft. (136 L) |
Defrost Type | Frost-Free |
Door | Panel-Ready |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Energy Usage/Year | 270.0kWh/year |
Amps | 1.0 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 100.0 lbs. (45 kg) |
Shipping Weight | 130.0 lbs. (59 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101091143 |
Refrigerator Features | |
Sabbath Mode | Yes |
Door Swing | LHD |
Reversible | No |
Shelf Type | Glass |
Shelf Qty | 3 |
Full Door Shelf Qty | 2 |
Adjustable Shelves | Yes |
Thermostat Type | Digital |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 0.99oz. |
High Side PSI | 270.0 |
Low Side PSI | 105.0 |
Level Legs Qty | 4 |
Interior Light | Yes |
Temperature Range | 36 to 43 F |
Sound Level | 33.3dB |
Dimensions | |
Interior Height | 25.0' (64 cm) |
Interior Width | 20.0' (51 cm) |
Interior Depth | 17.5' (44 cm) |
Compressor Step Height | 3.25' (8 cm) |
Compressor Step Width | 20.0' (51 cm) |
Compressor Step Depth | 5.25' (13 cm) |
