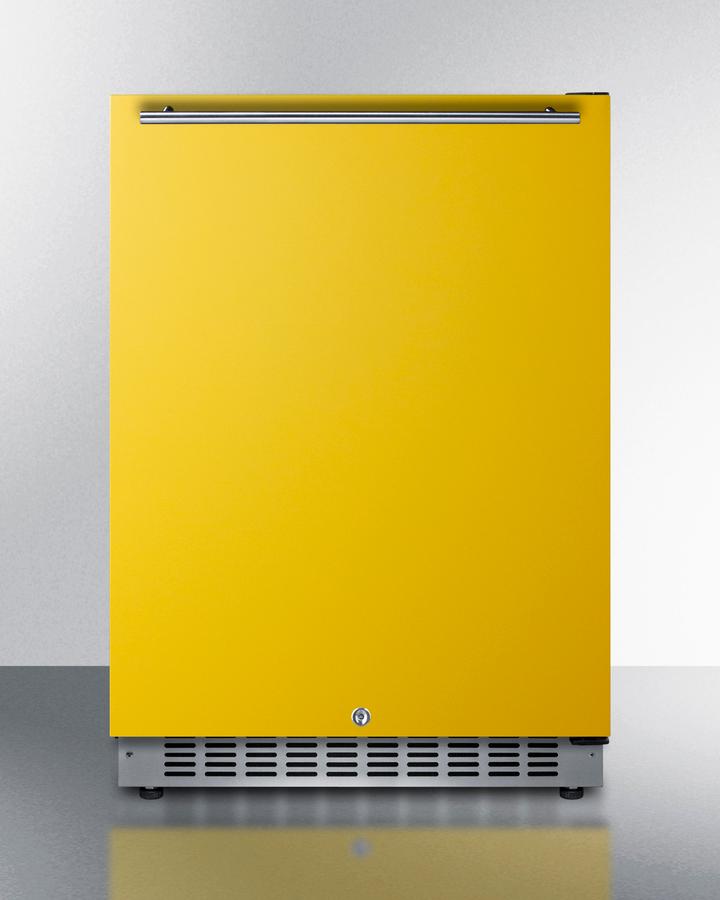

Summit AL54Y 24" Wide Built-In All-Refrigerator, Ada Compliant
Make A Statement Under The Counter With Summit'S Exclusive Collection Of Boldly Colored Refrigerators And Matching Freezers. Model Al54Y Is A 24" Wide Refrigerator Sized At Just 32" High For Easy Installation Under Lower Ada Compliant Counters. The Front-Breathing Cooling System Allows Built-In Use, While The Fully Finished Black Cabinet Also Enables Freestanding Applications. The Door Comes In A Bright Saffron Gold Hue, With A Sleek Horizontally Mounted Stainless Steel Handle And Matching Stainless Steel Kickplate To Complete The Unique Look. Inside, The Al54Y Utilizes Frost-Free Operation With Fan-Forced Cooling To Ensure Low Maintenance And Even Temperature Distribution. Recessed Led Lighting Offers An Attractive Yet Efficient Look. The Digital Thermostat Makes It Easy To Manage The Interior Temperature. This Unit Includes Adjustable Glass Shelves For Flexible, Spill-Proof Storage And Two Large Door Racks Ideal For Keeping Condiments In Easy Reach. The Floor Is Specially Slotted To Hold Bottles In Place. An Open Door Alarm And High Temperature Alarm Audibly Warn If Stored Items Are Being Exposed. An Optional Sabbath Mode Setting Lets You Disable Some Of The Electrical Elements During Periods Of Observance. Additional Features Include A Factory-Installed Lock For Optional Security, User-Reversible Door Swing To Best Fit Your Space, Right Angle Plug To Save On Depth, And Sealed Rear To Ensure Easier Cleaning. The Al54Y Can Be Paired With The Alfz53B Frost-Free Freezer To Create A Matching Undercounter Ada Compliant Set. Additional Colors Are Available, Including Cobalt Blue, Emerald Green, And Lavender. Browse The Full Summit Selection To Find The Perfect Addition To Your Kitchen.
- 32" height allows easy installation under lower ADA compliant counters
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Bright yellow door finish with a slight gloss to elevate your undercounter space
- Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look
- Keyed lock offers added security
- No-frost operation for minimum user maintenance
- Electronic controls located inside the unit for precise temperature management
- Efficient and attractive presentation with LED lighting
- Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
- Two door racks offer convenient storage for condiments and bottles
- Floor is specially slotted to store wine and other bottles safely in place
- Fan-forced cooling ensures the unit is evenly cooled from top to bottom
- Audible alarm will sound if the door is left open longer than one minute
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Optional setting lets you disable the lighting and alarm for up to 48 hours
- Unit will retain its last settings when power is restored in the event of power loss
- Space-saving design with no exposed coils for easier cleanability
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Added touch of style to complement the handle and complete the look
- Allows the unit to be used freestanding
- Pair with the ALFZ53Y frost-free freezer to create the perfect set
- Environmentally friendly design with no ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Overview | |
Height of Cabinet | 32.0' (81 cm) |
Width | 23.63' (60 cm) |
Depth | 22.63' (57 cm) |
Depth with Handle | 24.13' (61 cm) |
Depth with door at 90° | 45.0' (114 cm) |
Capacity | 4.8 cu.ft. (136 L) |
Defrost Type | Frost-Free |
Door | Yellow |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Energy Usage/Year | 270.0kWh/year |
Amps | 1.0 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 110.0 lbs. (50 kg) |
Shipping Weight | 130.0 lbs. (59 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101087603 |
Refrigerator Features | |
Sabbath Mode | Yes |
Door Swing | RHD |
Reversible | Yes |
Shelf Type | Glass |
Shelf Qty | 3 |
Full Door Shelf Qty | 2 |
Adjustable Shelves | Yes |
Thermostat Type | Digital |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 0.99oz. |
High Side PSI | 270.0 |
Low Side PSI | 105.0 |
Level Legs Qty | 4 |
Interior Light | Yes |
Temperature Range | 36 to 43 F |
Sound Level | 33.3 dB |
Dimensions | |
Interior Height | 25.0' (64 cm) |
Interior Width | 20.0' (51 cm) |
Interior Depth | 17.5' (44 cm) |
Compressor Step Height | 3.25' (8 cm) |
Compressor Step Width | 20.0' (51 cm) |
Compressor Step Depth | 5.25' (13 cm) |
