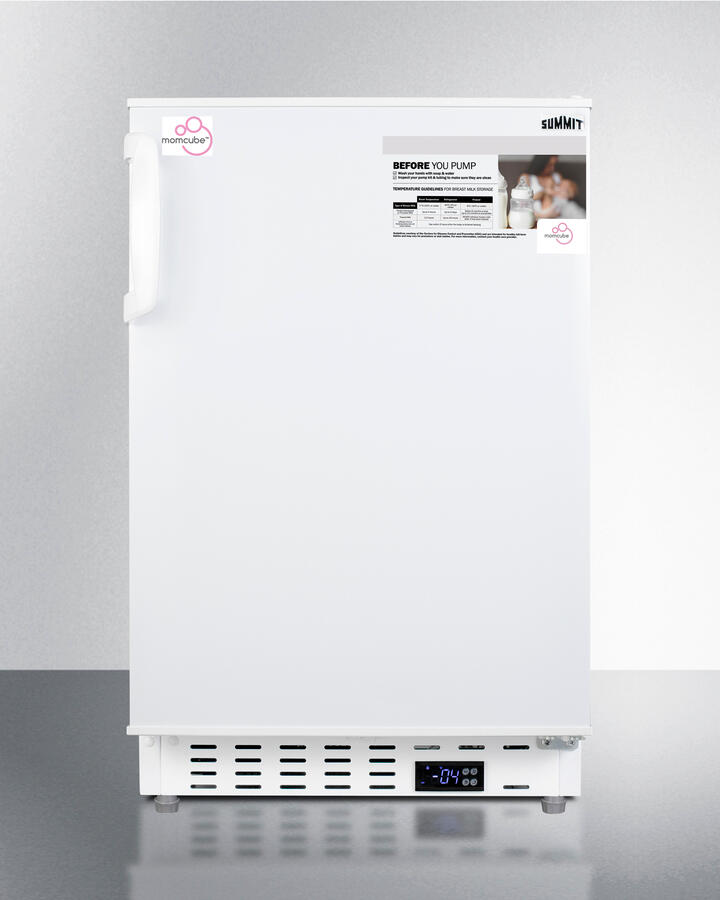

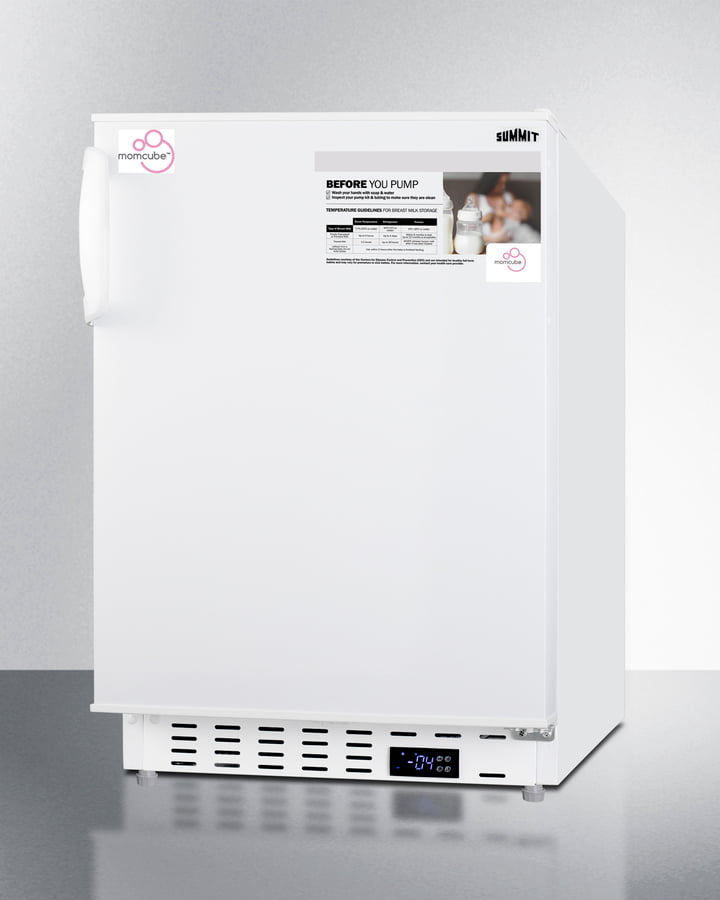

Summit ALFZ36MC Built-In Undercounter Momcube Residential All-Freezer In White With Door Storage And Manual Defrost Operation, Ada Compliant
Summit Appliance Offers A Quality Selection Of Momcube All-Freezers Designed For Reliable Long-Term Storage Of Breast Milk In Residential Settings, With Advanced Features For User Convenience. The Alfz36Mc Is A Momcube All-Freezer With A Flexible Design That Can Be Built-In Under Lower Ada Compliant Counters Or Used Freestanding. Sized At 32" High And Just Under 20" Wide, It'S Perfect For Homes, Offices, And Other Settings In Need Of Extra Storage Space For Nursing Mothers. The User-Reversible Door Is 3" Thick For Efficient Insulation, With A Handle Included For Added Convenience. This Unit Comes With A Right Angle Cord To Allow For Easier Placement Without Added Depth. A Digital Thermostat, Located In The Kickplate, Makes For Easy Temperature Management With A Readout In Fahrenheit Or Celsius. Inside, The Alfz36Mc Features An All-White Interior For Easy Cleaning And Viewing Of Contents. Static Manual Defrost Operation Provides Efficient Cooling Inside The 2.68 Cu.Ft. Interior. Three Adjustable Wire Shelves Afford Optimal Storage Options For Mothers Storing Ice Packs, Milk, Or Similar Nursing-Related Items. Three Removable Door Racks Accommodate Additional Storage As Needed. The User-Set High And Low Temperature Alarms Provide Added Security Should The Temperature Go Beyond The Setpoint, While The Open Door Alarm Sounds If The Door Is Ajar Over One Minute For Added Peace-Of-Mind. These Alarms Can Be Disabled Depending On Your Needs. With Its Convenient Size And User-Friendly Features, The Alfz36Mc Is The Perfect Solution For Nursing Mothers Seeking Dependable Long-Term Breast Milk Storage In The Home. For A Locking Version, See The Alfz36Lmctbc.
- Designed for breast milk storage: MOMCUBE series is designed for the safe storage of frozen breast milk as recommended by the CDC guidelines
- ADA compliant design: 32" height allows easy installation under lower ADA compliant counters
- Built-in capable: Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Adjustable thermostat: Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius

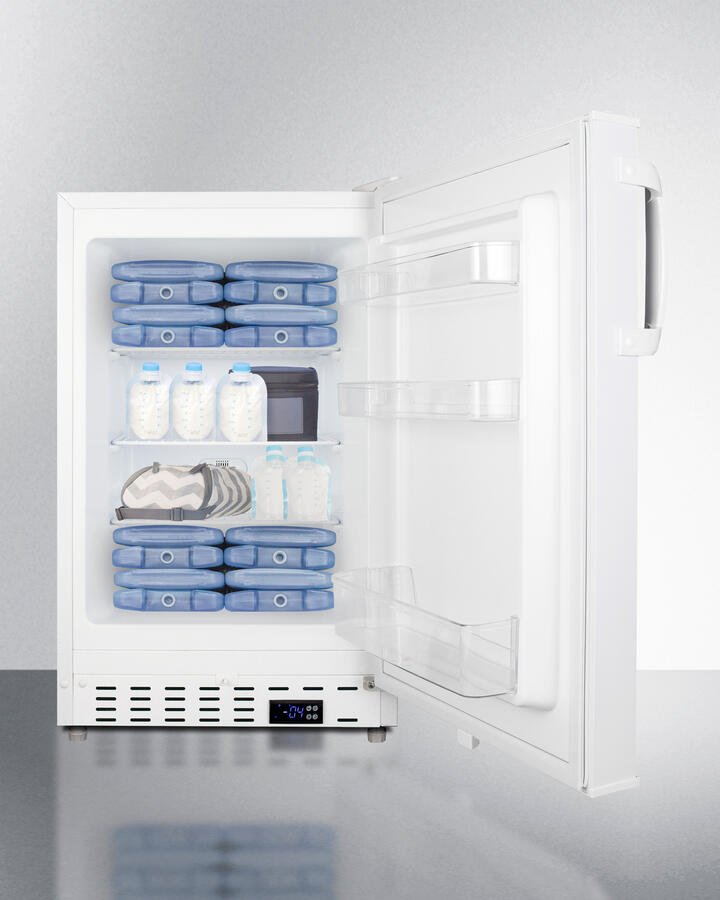

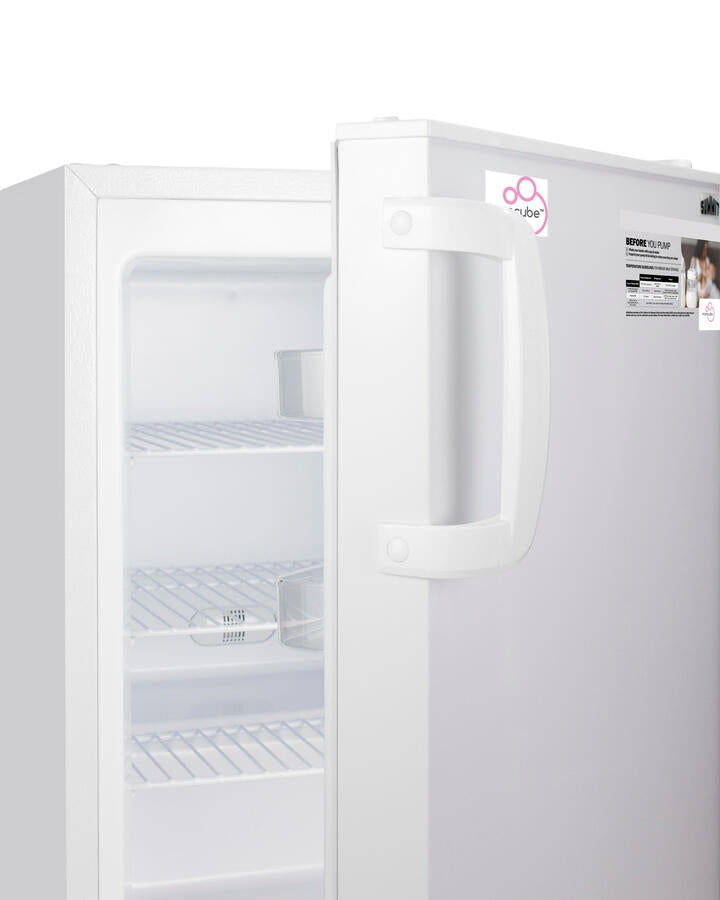

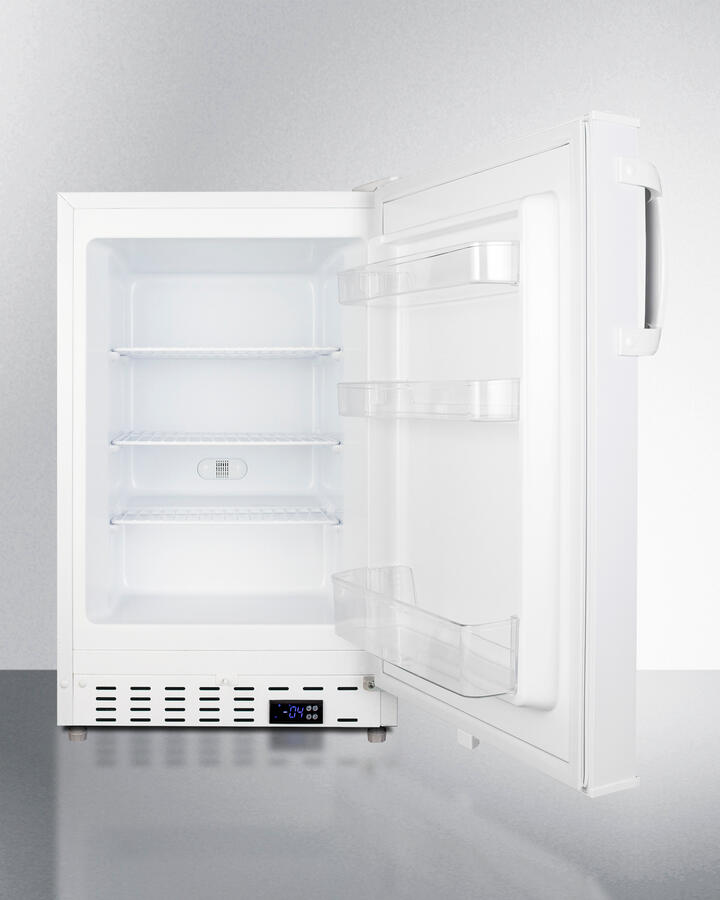

- Adjustable shelves: Three adjustable wire shelves for optimal storage of breast milk, ice packs, or similar nursing-related items in the 2.68 cu.ft. interior

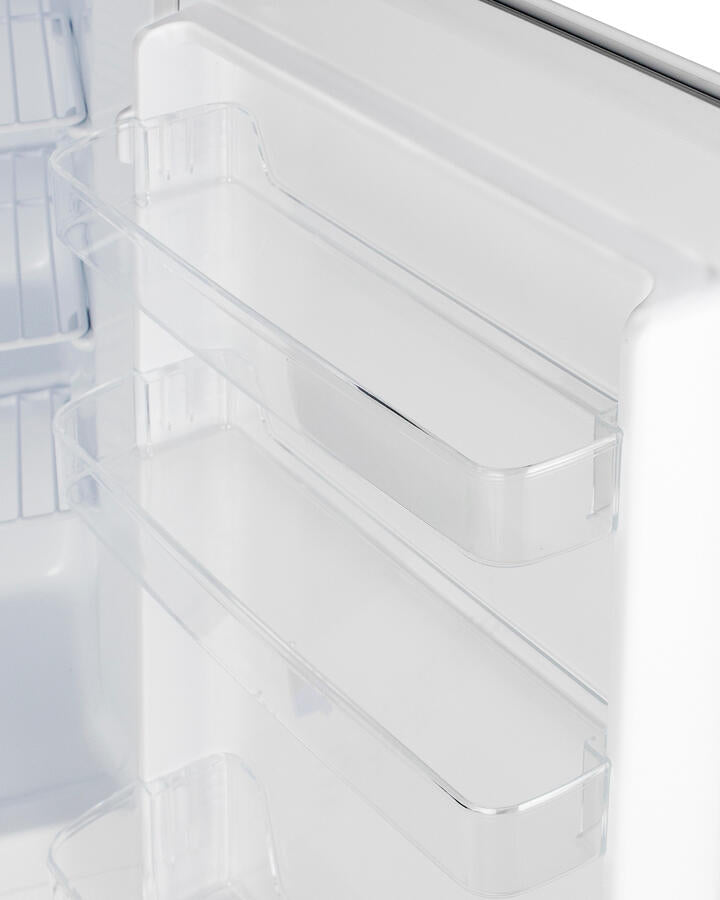

- Door shelves: Three removable door racks for additional storage of larger items
- Reversible door: User-reversible door swing for added flexibility to best accommodate your setting
- 3" thick door: Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
- Temperature alarms: User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
- Open door alarm: Audible alarm will sound if the door is left ajar for over a minute
- Sealed back: Space-saving design that offers easier cleanability
- Right-angle plug: Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Manual defrost: More temperature stability with an energy efficient manual defrost system
- Fully finished white cabinet: Allows the unit to be used freestanding
- Extended warranty: 2-year parts and labor / 5-year compressor
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
Overview | |
Height of Cabinet | 31.75' (81 cm) |
Height to Hinge Cap | 32.0' (81 cm) |
Width | 19.75' (50 cm) |
Width with Door Open | 20.25' (51 cm) |
Depth | 22.5' (57 cm) |
Depth with Handle | 24.38' (62 cm) |
Depth with door at 90° | 40.25' (102 cm) |
Capacity | 2.68 cu.ft. (76 L) |
Defrost Type | Manual |
Door | White |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Energy Usage/Year | 266.0kWh/year |
Amps | 0.6 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 65.0 lbs. (29 kg) |
Shipping Weight | 70.0 lbs. (32 kg) |
Parts & Labor Warranty | 2 Years |
Compressor Warranty | 5 Years |
UPC | 761101076904 |
Freezer | |
Door Swing | RHD |
Reversible | Yes |
Interior Height | 23.75' (60 cm) |
Interior Width | 14.5' (37 cm) |
Interior Depth | 17.0' (43 cm) |
Shelf Type | Wire |
Shelf Qty | 3 |
Full Door Shelves | 3 |
Adjustable Shelves | Yes |
Thermostat Type | Digital |
Fan Type | Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 1.83 oz. |
High Side PSI | 180.0 |
Low Side PSI | 80.0 |
Level Legs | 2 |
Wheels | 2 |
Compressor Step Height | 5.75' (15 cm) |
Compressor Step Width | 14.5' (37 cm) |
Compressor Step Depth | 6.0' (15 cm) |
Temperature Range | -13 to 5 F |
Lock | |
L-Installed Lock Add a single key lock to the door with the L option | KEYPAD Battery-powered keypad door lock installed for keyless security |
AC Keypad Keypad door lock powered by appliance power cord for keyless security | AC Keypad Keypad door lock powered by appliance power cord for keyless security |
Exterior | |
TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order | CAS3 3' casters 3' high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish |
Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations | LHD - Left hand door swing Door reversal to left hand swing |
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user | set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
Handle | |
TBC Copper Towel Bar Handle Factory-installed handle made from pure copper for antimicrobial protection | CP Full-Length Copper Pipe Handle Factory-installed full-length handle made from pure copper for antimicrobial protection |
