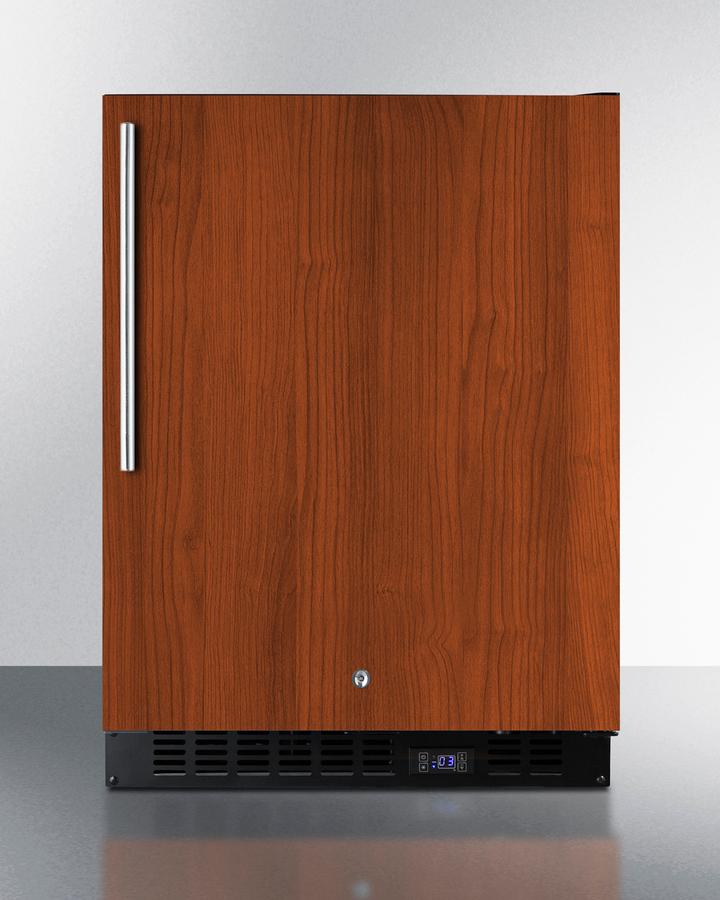

Summit ALFZ53IF 24" Wide Built-In All-Freezer, Ada Compliant (Panel Not Included)
Summit Manufactures The Industry'S Largest Selection Of Built-In Appliances Sized For Use Under Lower Ada Compliant Counters, Including Frost-Free Freezers Specially Designed To Match Our Popular Ada Compliant Refrigerators. Model Alfz53If Is A 24" Wide All-Freezer That Can Be Paired With Our Al54 All-Refrigerator. Sized At Just 32" High, It Can Easily Be Installed Under An Ada Compliant Counter. The Door Features An Integrated Stainless Steel Frame Designed To Accept Full Panel Overlays, Allowing Users To Seamlessly Blend The Unit Into Their Own Cabinetry Design (Panel Size: 28 3/16" H X 23 5/16" W; Maximum Weight: 10 Lbs.). This Unit Has A Flush Back For Easy Cleaning And A Right Angle Cord. Inside, The Alfz53If Utilizes Frost-Free Operation With Fan-Forced Cooling To Ensure Low Maintenance And Even Temperature Distribution. Recessed Led Lighting Offers An Attractive Yet Efficient Look Inside The Black Interior. Three Adjustable Chrome Shelves Can Be Set At Five Different Positions To Best Accommodate Your Storage Needs. Additional User-Friendly Features Include An Open Door Alarm, High Temperature Alarm, And Sabbath Mode Setting That Lets You Disable Some Of The Electrical Elements During Periods Of Observance. This Unit Features Intuitive Digital Controls Located In The External Kickplate. The Alfz53If Freezer Is Approved For Residential Use And Also Etl-S Listed To Nsf-7 Standards For Commercial Applications. With Its Deluxe Style And User-Friendly Features, This Unit Is The Perfect Choice For Home Or Commercial Kitchens. It'S A Perfect Match For Our Al54If All-Refrigerator, Both Panel-Ready To Create A Truly Custom Refrigerator/Freezer Set Under Ada Compliant Counters. Additional Door Finishes Are Available, Including Stainless And Black Stainless Steel, And Our New Vibrant Colors. Browse The Full Selection To Explore Your Options.
- 32" height allows easy installation under lower ADA compliant counters
- Make the best use of space by installing your freezer under the counter and flush with other cabinets
- Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 23 5/16" W x 28 3/16" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles
- No-frost convenience eliminates the need to manually defrost the unit
- Electronic controls offer easy and intuitive temperature management
- Elegant lighting with an on/off switch located on the control panel
- Right hand door swing by default; if you require the door to open from the other direction, add upgrade "LHD" upon order
- Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Audible alarm will sound if the door is left open longer than one minute
- Optional setting lets you disable the lighting and alarm for up to 48 hours
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Unit will retain its last settings when power is restored in the event of power loss
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Space-saving design with no exposed coils for easier cleanability
- Pair with the AL54IF for a matching side-by-side set under lower ADA compliant counters
- ETL-S listed to NSF-7 commercial standards
- Allows the freezer to be used as a freestanding model
- Environmentally friendly design without ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Overview | |
Height of Cabinet | 32.0' (81 cm) |
Width | 23.63' (60 cm) |
Depth | 22.63' (57 cm) |
Depth with Handle | 24.63' (63 cm) |
Depth with door at 90° | 45.0' (114 cm) |
Capacity | 3.7 cu.ft. (105 L) |
Defrost Type | Frost-Free |
Door | Panel-Ready |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Energy Usage/Year | 345.0kWh/year |
Amps | 1.5 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 90.0 lbs. (41 kg) |
Shipping Weight | 105.0 lbs. (48 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101088037 |
Freezer | |
Door Swing | RHD |
Reversible | Factory Reversible |
Interior Height | 23.5' (60 cm) |
Interior Width | 18.75' (48 cm) |
Interior Depth | 15.5' (39 cm) |
Shelf Type | Chrome |
Shelf Qty | 3 |
Adjustable Shelves | Yes |
Thermostat Type | Digital |
Interior Light | Yes |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 1.31 oz. |
High Side PSI | 270.0 |
Low Side PSI | 105.0 |
Level Legs | 4 |
Compressor Step Height | 3.75' (10 cm) |
Compressor Step Width | 18.75' (48 cm) |
Compressor Step Depth | 4.5' (11 cm) |
Temperature Range | -11°F to 11°F |
Sabbath Mode | Yes |
Sound Level | 33.7 dB |
