Summit ALWC15 15" Wide Built-In Wine Cellar, Ada Compliant
32" Height Allows Installation Under Lower Ada Compliant Counters (Bull)Flexible Design Allows Built-In Or Freestanding Use (Bull)Digital Thermostat Offers Precise And Convenient Temperature Control (Bull)Factory Installed Lock Provides Security You Can Count On (Bull)Just Under 15" Wide For An Easy Fit, With A Flush Back Design Summit Offers The Industry'S Largest Selection Of 32" High Ada Compliant Appliances, With Quality Choices For Built-In Or Freestanding Use In 15" Wide Spaces. The Alwc15 Is A Wine Cellar Sized Just Under 15" Wide And 32" High To Fit Under Lower Ada Compliant Counters. The Front-Breathing System Allows Built-In Installation, While The Fully Finished Black Cabinet Also Makes It Safe For Freestanding Use. This Unit Features A User-Reversible Double Pane Tempered Glass Door Complete With Stainless Steel Trim And A Pro Style Handle. The Front Lock Offers Added Security. For Added Space Savings, The Alwc15 Is Designed With A Sealed Back, Integrated Hinge, And Right Angle Cord. Five Wooden Shelves Let You Store Up To 23 Bottles Of Your Favorite Wine. The Shelves Are Specially Designed To Store Either Standard Bordeaux Style Or Wider Burgundy Style Bottles. Recessed Led Lighting Offers An Attractive And Energy Efficient Presentation For Your Collection. This Model Utilizes Automatic Defrost For Easy Maintenance And Includes An Internal Fan To Ensure More Even Temperature Distribution. An Audible Alarm Sounds If The Door Has Been Left Open For Over One Minute, Or If The Temperature Has Risen Out Of The Recommended Storage Range. This Unit Is Also Equipped With Sabbath Mode To Allow Users The Option Of Disabling Certain Electrical Functions During Periods Of Religious Observance. With Its Unique Size And User-Friendly Features, The Alwc15 Is The Perfect Choice For Bringing Quality Wine Storage To Ada Compliant Settings. Additional Ada Compliant Choices Are Available In 6", 18", 24", And 36" Wide Sizes.
- ADA Compliant : Sized at 32" high for use under lower ADA compliant counters
- Built-in capable : Make the best use of space by installing your appliance under the counter
- Commercial design : Meets UL-471 commercial standards
- Stainless steel trimmed glass door : Provides a full display of your stored collection with a heat-safe double tempered design
- Factory installed lock : Keyed lock for a secure interior, with two keys included
- Digital thermostat : Electronic controls for precise temperature management, with indicator lights for red, white, and sparkling wines
- Digital display : Temperature readout can be shown in Celsius or Fahrenheit
- Recessed LED lighting : Gentle illumination with an on/off switch

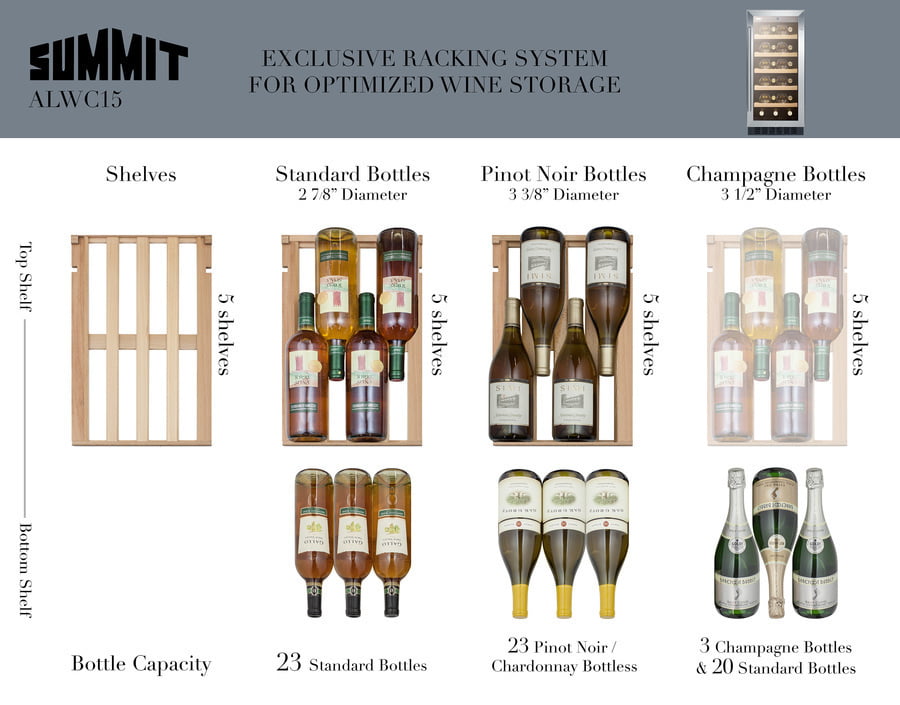

- Wooden shelves : Classic look holds up to 23 Bordeaux or Burgundy style bottles
- Slotted floor : Floor includes slots to hold bottles in place, and can store up to three champagne bottles
- Automatic defrost : Reduced maintenance and steady temperature performance
- Professional handle : Stainless steel handle completes the professional look
- Reversible door : User-reversible door swing on the refrigerator for added flexibility
- Sabbath mode setting : Optional setting lets you disable the lighting and alarm for up to 96 hours
- Open door alarm : Alarm sounds if the door is left open for more than 60 seconds
- High temperature alarm : Audible alarm sounds if the interior temperature rises out of set range
- Temperature memory function : In the event of power loss, unit will return to its last settings when power is restored
- Right angle cord : Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Integrated hinge : Door hinge adds no additional height, making it easier to install under a counter
- Flush back : Space saving design makes it easier to install flush against the wall
- Matching beverage center available : Pair with the ALBV15 for a perfectly matched ADA compliant set
- Fully finished black cabinet : Allows the unit to be used freestanding
- 100% CFC Free : Environmentally friendly design with no ozone-damaging chemicals
Overview | |
Height of Cabinet | 31.5' (80 cm) |
Width | 14.75' (37 cm) |
Depth | 23.5' (60 cm) |
Depth with Handle | 25.25' (64 cm) |
Depth with door at 90° | 37.13' (94 cm) |
Capacity | 2.2 cu.ft. (62 L) |
Bottles | 23 bottles |
Defrost Type | Automatic |
Door | Glass |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Amps | 1.0 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 65.0 lbs. (29 kg) |
Shipping Weight | 70.0 lbs. (32 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Wine Cellar | |
Number of Zones | 1 |
Door Swing | RHD |
Reversible | Yes |
Shelf Type | Wood |
Shelf Qty | 5 |
Thermostat Type | Digital |
Interior Light | Yes |
Refrigerant Type | R600a |
Refrigerant Amount | 0.78 oz. |
High Side PSI | 270.0 |
Low Side PSI | 105.0 |
Interior Height 1 | 21.25' (54 cm) |
Interior Width 1 | 10.5' (27 cm) |
Interior Depth 1 | 17.5' (44 cm) |
Level Legs | 4 |
Temperature Range | 41 to 64 F |
Sabbath Mode | Yes |
Exterior | |
SSK | Extra key |
LHD - Left hand door swing | Latch for door |
Door | |
T1S Door Tint | T4 Door Tint |
T3 Door Tint | T2 Door Tint |
T1 Door Tint | - |
