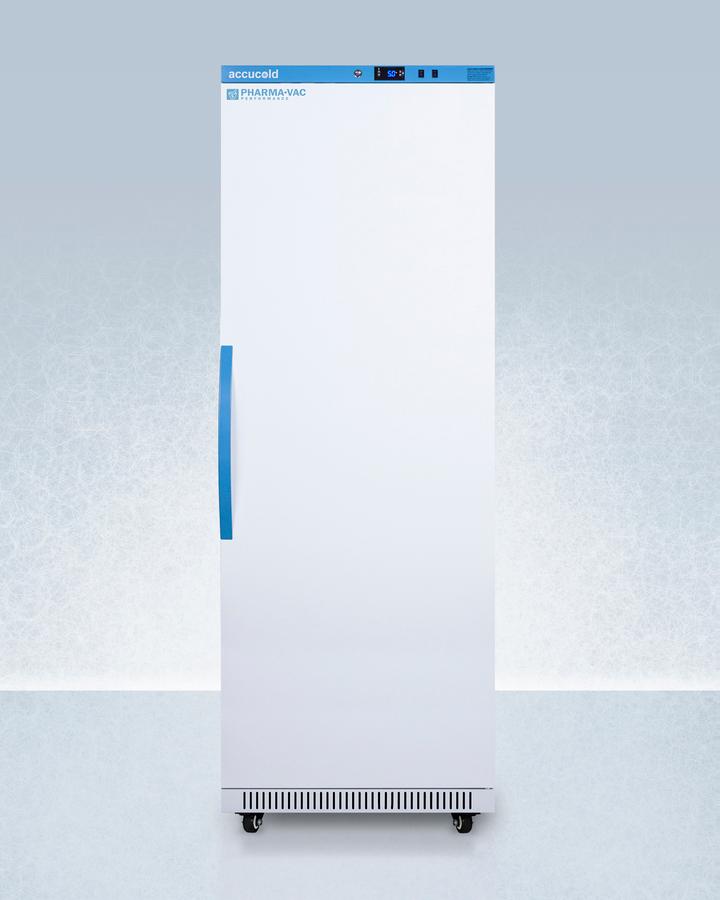

Summit ARS18PV 18 Cu.Ft. Upright Vaccine Refrigerator

Accucold'S Pharma-Vac Performance Series Are Upright All-Refrigerators Designed And Purpose-Built For Pharmacy, Medication, And Vaccine Applications To Support Meeting Cdc/Vfc Guidelines, With A Powder-Coated Silver Ion Handle That Helps Prevent Germ Spread. The Ars18Pv Is A 18 Cu.Ft. All-Refrigerator With An Adjustable Control Range From +2 To +8 C. The Microprocessor Temperature Controller Is Externally Located To Minimize Door Openings, Helping To Protect Stored Contents From Ambient Temperature. The Buffered Temperature Probe Is Encased In A Glycol-Filled Bottle To Better Simulate Temperature Of The Stored Product, With An Additional Sensor That Reads Air Temperature To Ensure Superior Temperature Control. The Current And Min/Max Temperature Display Is Viewable In Celsius Or Fahrenheit To The Nearest Tenth Of A Degree. The Audible And Visual Temperature Alarm Sounds If The Unit'S Interior Goes Out Of Range. Additional Alarms Include A Power Failure Alert, Door Open Alarm, And Sensor Failure Alarm. This Unit Is Equipped With Remote Alarm Contacts In The Rear And A 1/2" Probe Port On The Right Side To Accept Additional Monitoring Devices. A Hospital Grade Cord With 'Green Dot' Plug Is Also Included For Added Safety In High Traffic Areas. Inside, The Ars18Pv Utilizes Adjustable Cycle Defrost Operation To Avoid Temperature Spikes. Optimized Forced Air Cooling With One Internal Fan Ensures Excellent Temperature Stability And Uniformity With Rapid Recovery After Door Openings. The Adjustable Plastic-Coated Wire Shelves Can Be Positioned At 1/2" Increments To Accommodate Virtually Any Sized Item. We Include Seven Shelves, More Than Competitor Products Providing To Maximize Interior Shelving Storage Area. This Unit Includes Led Internal Lighting With An On/Off Rocker Switch. The Interior Is Constructed From White Powder Coated Metal To Ensure Added Durability And Better Temperature Retention. The Ars18Pv Comes In A White Exterior Finish With A Blue Accented Control Panel And User-Reversible Door. The Factory-Installed Antimicrobial Handle Is Powder-Coated With Naturally Occurring Silver Ions, Which Help To Reduce The Spread Of Germs, Allowing For A Safer, Cleaner User Experience. This Model Includes A Factory-Installed Lock And Ships With Two Keys For Staff Use. Powerful Magnetic Gaskets Ensure A Positive Seal. Four Pre-Installed 3" High Casters With Brakes Make It Easier To Move As Needed. Designed With Hydrocarbon Refrigerant, The Ars18Pv Provides An Energy Efficient Solution To Vaccine Storage. This Unit Is Pyxis, Omnicell, And Acudose Rx Compatible. Additional Sizes, As Well As Glass Door Options, Are Also Available. Explore The Full Pharma-Vac Series At Accucold.Com/Pharmavac. Note: Accucold Refrigerators Are Purpose-Built To The Support Meeting The Current Cdc (Centers For Disease Control) Guidelines For The Storage Of Vaccines. Units That End In Suffix "456" Have Been Certified To The New Nsf 456 Standard. As Referenced In The Current Vaccine Storage And Handling Toolkit, These Units Incorporate Microprocessor Controls And Forced Air Circulation For Stable Operation Between 2 And 8 C. For Additional Temperature Assurance, The Cdc Recommends A Calibrated Digital Data Logger (Ddl), Which Can Be Added With The Factory-Installed Option Dl2B Or Addition Of The Dl2Bkit Accessory.

• Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines
• The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
• Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs
• Intuitive controls let you adjust the interior temperature between +2 to +8 C
• Visual and audible alarms alert if the interior temperature rises or falls out of set range
• Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
• Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
• Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
• Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
• Battery-powered alarm sounds if the power connection is interrupted
• Audible and visual alarm warns if the sensor is disrupted
• Control panel requires password entry to adjust the parameters beyond the set point
• Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
• Control panel provides a readout of the low and high temperatures in 15 minute increments
• Keyed lock conveniently located towards the top of the door for added security (2 keys included)
• Shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size
• Secure three-pronged cord for added unit safety
• Walls are constructed from white powder coated metal for added strength and improved temperature retention
• Energy efficient LED lighting with internal on/off switch
• User-reversible door swing for added flexibility
• Quality door gaskets ensure a tight seal for energy savings and improved performance
• Four pre-installed 3" wheels with brakes ensure smooth mobility, making it easier to clean around and underneath the unit as needed
• 2 years parts and labor/5 years compressor
• Using environmentally friendly hydrocarbons refrigerants for a greener footprint
• Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
• Solid and glass door choices available from 1 to 15 cu.ft. Browse the Pharma-Vac series for more information
• Compatible with Pyxis®, Omnicell®, and AcuDose RX®
• Environmentally friendly design without ozone-damaging chemicals
• Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
