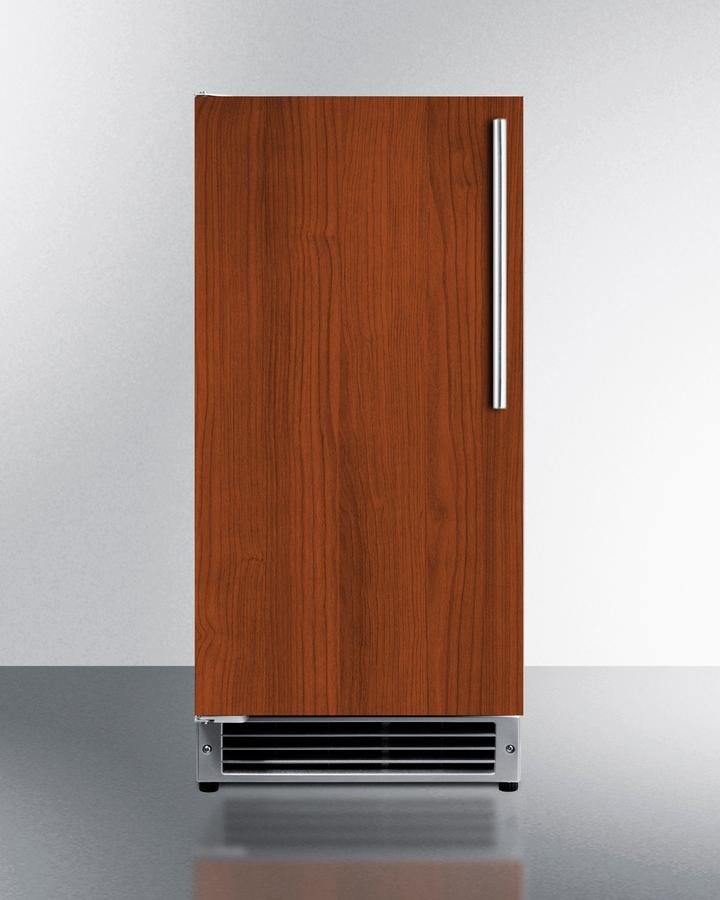

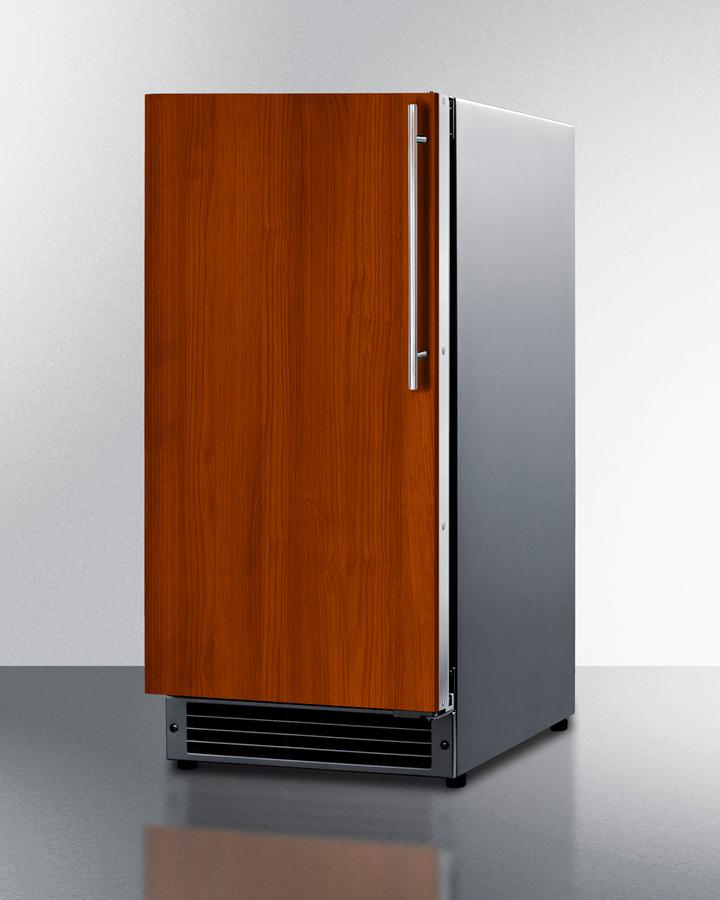

Summit BIM26H32IFLHD 15" Wide 25 Lb. Drain-Free Icemaker, Ada Compliant (Panel Not Included)
Summit Combines Convenience And Luxury To Craft The Bim26H32If - An Undercounter Icemaker Finished In Complete 304-Grade Stainless Steel. Sized At Just Under 15" Wide, The Bim26H32Iflhd Features A Front-Breathing Design For Built-In Installation But Also Has A Fully Finished Cabinet To Allow Freestanding Use. With A Height Just Under 32", Summit Designed This Icemaker To Be Compatible With Ada-Compliant Counters. This Unit Can Be Raised To 34". A Taller Kickplate Is Included For A Streamlined And Cohesive Look. This Model Features A Panel-Ready Door With An Integrated Stainless Steel Frame That Lets You Install Your Own Overlay Panel And Handle To Match Or Complement Surrounding Cabinetry (Recommended Panel Dimensions: 27 9/16" H X 14 13/16" W At 3/4" Thick). The Sealed Back Design Allows More Flush Installation. An Optional Water Filter Is Included And Designed To Be Mounted In The Rear. A Look Inside The Bim26H32Iflhd Shows It Can Produce 25 Lbs Of Crescent-Shaped Ice Daily. The Static Manual Defrost Cooling System Allows Ice To Stay Solid Longer. No Drain Or Pump Is Required, Offering More Placement Flexibility. For Optimal Convenience, Summit Has Pre-Installed The Connection Hose. Plus, This Icemaker Comes With A Removable Ice Bucket, Ice Scoop, And A Holder For The Scoop. With Its Customizable Exterior, Stainless Steel Cabinet, And Low Maintenance Design, The Bim26H32Iflhd Drain-Free Icemaker Is A Great Way To Finish Any Undercounter Kitchen Space And Allows You To Maintain An Entire Supply Of Ice With Less Waste. This Icemaker Is An Ada-Compliant Model. Alternative Units Are Also Available In Different Sizes, Colors, And Makes. Browse The Full Summit Product Line To Explore Your Options.
- No drain is required for more flexibility in placing the icemaker indoors or outside
- 31.75" height allows installation under lower ADA-compliant counters
- This unit can be raised to 34", with a taller kickplate included for a seamless aesthetic

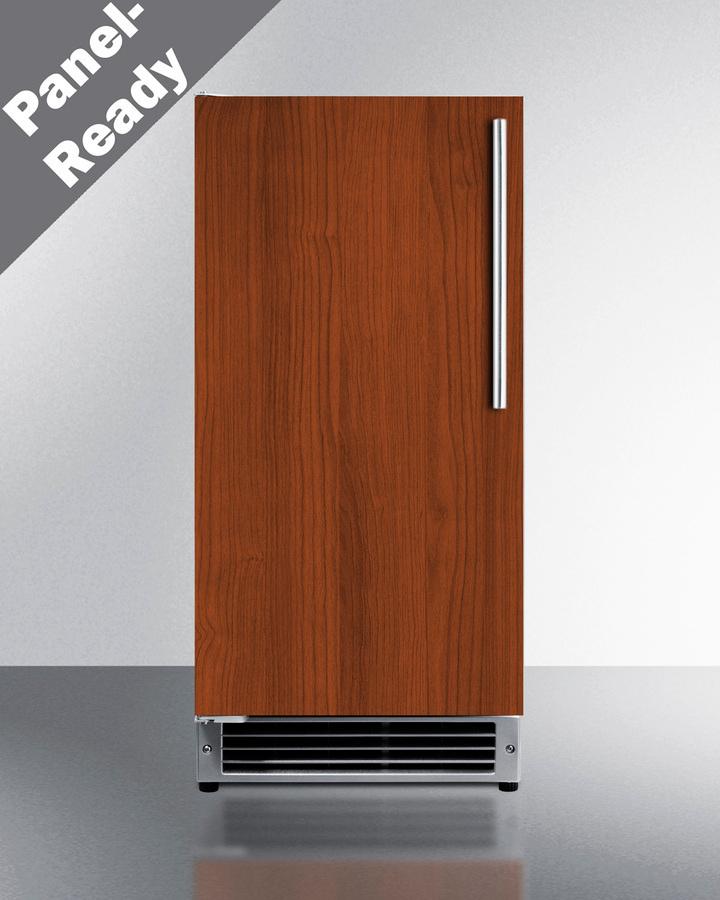

- Integrated door frame allows you to install overlay panels for a custom look that blends into your cabinetry (panel size: 27 9/16" H x 14 13/16" W at 3/4" thick)
- Produces and stores more than 20 lbs of ice per day cycle
- Convenient design allows more flexibility in positioning the unit
- Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
- 304-grade stainless steel allows the icemaker to be used freestanding
- Make the best use of space by installing your ice maker under the counter
- Space-saving design with easier cleanability
- Operates with a standard 1/4 OD water supply line

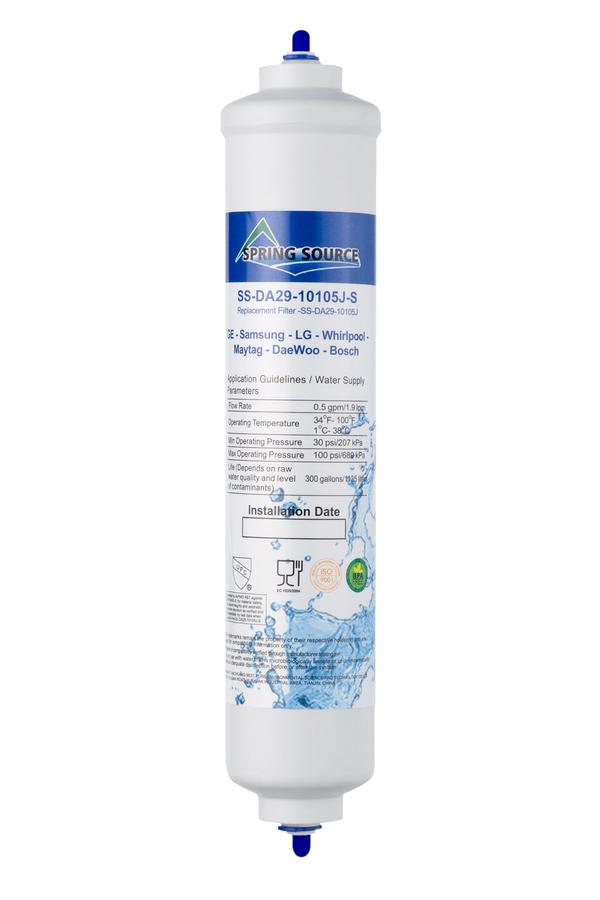

- Water filter is included for optional use
- Large ice scoop and holder included for your convenience
- Crescent-shaped ice provides a harder and longer-lasting ice

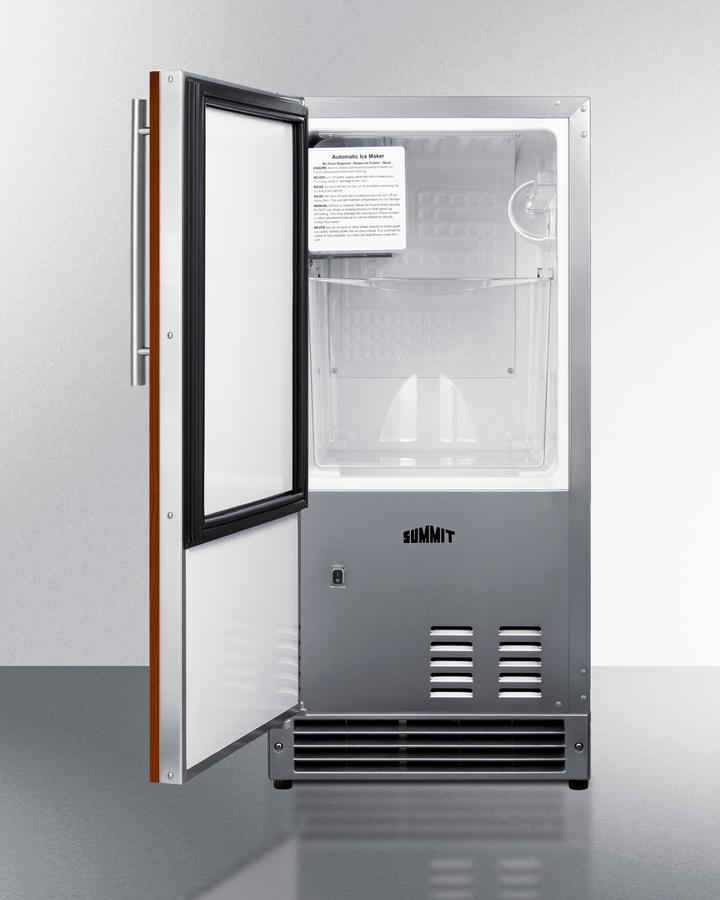

- Users can remove the ice bucket for fast and easy cleaning
- Ice stays solid longer in this cold-protected bin
- For this unit with the door opening from the other side, see model BIM26H32IF
- Environmentally friendly design without ozone-damaging chemicals
- Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
Overview | |
Height of Cabinet | 31.75' (81 cm) |
Width | 14.88' (38 cm) |
Depth | 20.13' (51 cm) |
Depth with door at 90° | 34.38' (87 cm) |
Defrost Type | Manual |
Door | Panel-Ready |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Amps | 1.9 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 65.0 lbs. (29 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101108414 |
Icemaker | |
Door Swing | LHD |
Height Adjustable | Yes |
Daily Ice Production | 25.0 lbs. (11 kg) |
Ice Storage Capacity | 22.0 lbs. (10 kg) |
Ice Shape | Crescent |
Size of Cube | 1/2' x 3/4' x 2 3/8' |
Number of Ice Cube Sizes | 1 |
Refrigerant Type | R600a |
Refrigerant Amount | 1.58 oz. |
High Side PSI | 120.0 |
Low Side PSI | 55.0 |
Interior Height | 15.88' (40 cm) |
Interior Width | 11.88' (30 cm) |
Interior Depth | 12.38' (31 cm) |
Level Legs | 4 |
