Summit BIM26LHD 15 Lb. Drain-Free Built-In Icemaker
Summit Combines Convenience And Luxury To Craft The Bim26 - A Freestanding Or Built-In Capable Drain-Free Icemaker. Sized At Just Under 15" Wide, The Bim26 Features A Front-Breathing Design For Built-In Installation But Also Has A Fully Finished Cabinet To Allow Freestanding Use. Its Petite 25" Height Makes This The Optimal Unit For Use In Kitchen Islands, Home Bars, Break Rooms, Rvs, And Even Boat Kitchens. The Factory-Reversible Door Features A Stainless Steel Finish For A Professional Style Built To Last, Paired With A Sleek Handle Mounted Horizontally To Finish The Look. There'S A Sealed Back To Allow More Flush Installation. This Unit Comes With A Left-Hand Door Swing. For A Right-Hand Version, See The Bim26. A Look Inside The Bim26 Shows It Can Produce 15 Lbs Of Crescent-Shaped Ice Daily. The Static Manual Defrost Cooling System Allows Ice To Stay Solid Longer. No Drain Or Pump Is Required, Offering More Placement Flexibility. For Optimal Convenience, Summit Has Pre-Installed The Connection Hose. Plus, This Icemaker Comes With A Removable Ice Bucket, Ice Scoop, And A Holder For The Scoop. With Its Large Capacity, The Bim26 Produces 15 Lbs Of Crescent-Shaped Ice And Stores Up To 12 Lbs. With Its Stainless Steel Door, Black Cabinet, And Low Maintenance Design, The Bim26 Is A Great Way To Finish Any Undercounter Kitchen Or Home Bar Space And Allows You To Maintain An Entire Supply Of Ice With Less Waste. Alternative Units Are Also Available In Different Sizes, Colors, And Makes. Browse The Full Summit Product Line To Explore Your Options.
- Built-in or undercounter capable icemaker designed for kitchen islands, home bars, break rooms, health offices, RVs, and even boat kitchens.
- Make the best use of space by installing your icemaker under the counter
- Produces 15 lbs of crescent-shaped ice and stores up to 12 lbs
- Convenient design allows more flexibility in positioning the unit
- Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
- User-reversible door swing for flexible placement
- Space-saving design with easier cleanability
- Operates with a standard 1/4 OD water supply line
- Horizontally mounted towel bar style handle in stainless steel
- Large ice scoop and holder included for your convenience
- Crescent-shaped ice provides a harder and longer-lasting ice

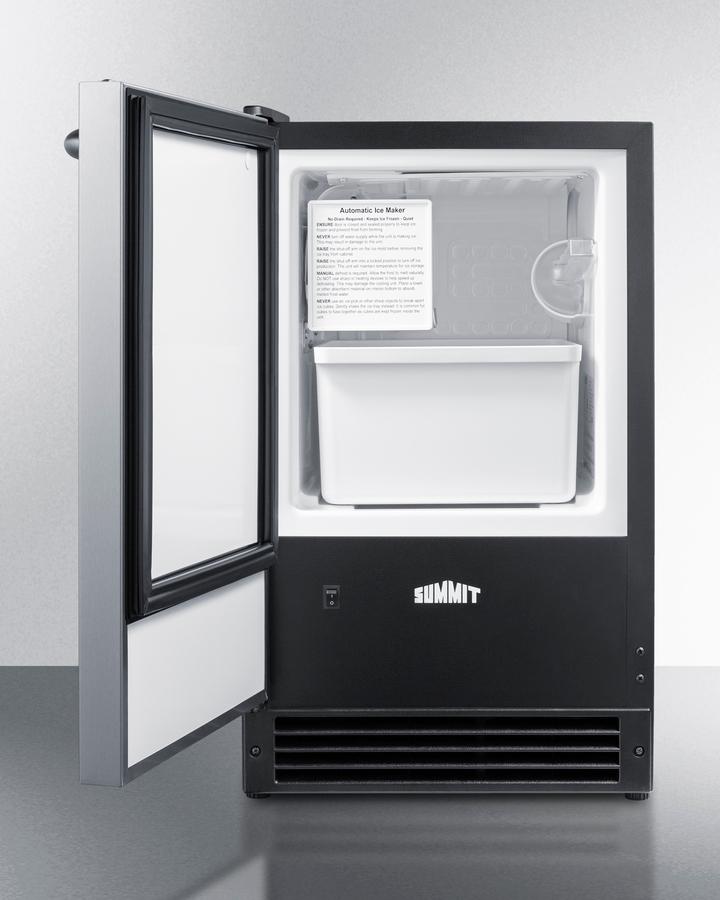

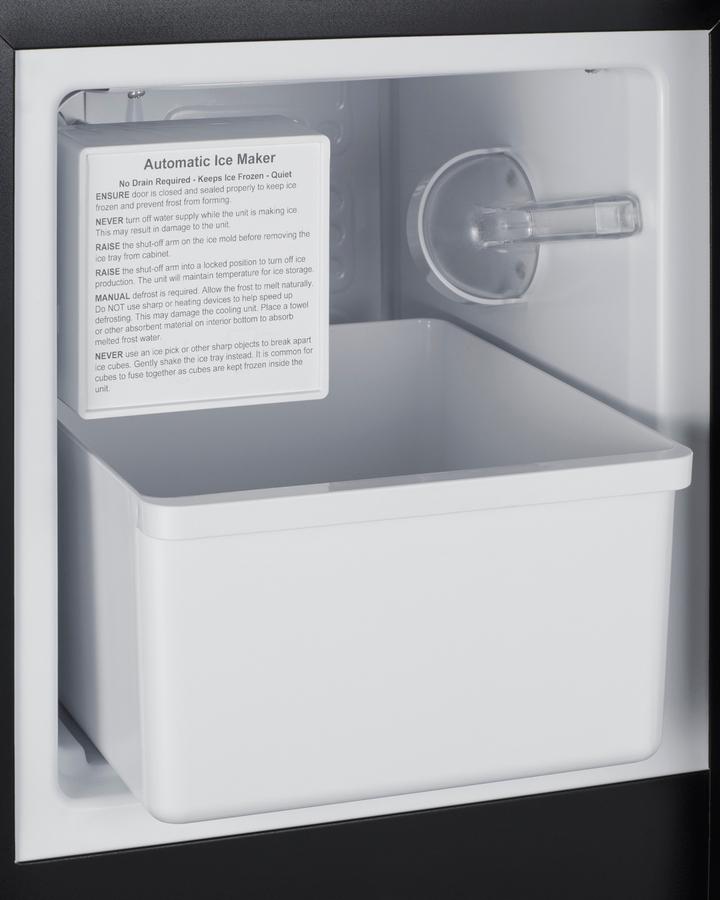

- Users can remove the ice bucket for fast and easy cleaning
- Ice stays solid longer in this cold-protected bin
- For this unit with a standard right hand door swing, see model BIM26
- Environmentally friendly design without ozone-damaging chemicals
- Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
Overview | |
Height of Cabinet | 25.0' (64 cm) |
Height to Hinge Cap | 25.5' (65 cm) |
Width | 14.88' (38 cm) |
Width with Door Open | 15.13' (38 cm) |
Depth | 16.75' (43 cm) |
Depth with door at 90° | 32.25' (82 cm) |
Defrost Type | Manual |
Door | Stainless Steel |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Amps | 1.2 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 50.0 lbs. (23 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101108452 |
Icemaker | |
Door Swing | LHD |
Reversible | Yes |
Height Adjustable | No |
Drain Required | Yes |
Daily Ice Production | 15.0 lbs. (7 kg) |
Ice Storage Capacity | 12.0 lbs. (5 kg) |
Ice Shape | Crescent |
Size of Cube | 7/8' x 7/8' x 2-3/8' |
Number of Ice Cube Sizes | 1 |
Refrigerant Type | R600a |
Refrigerant Amount | 1.69 oz. |
High Side PSI | 120.0 |
Low Side PSI | 55.0 |
Interior Height | 12.25' (31 cm) |
Interior Width | 11.0' (28 cm) |
Interior Depth | 12.25' (31 cm) |
Level Legs | 4 |
