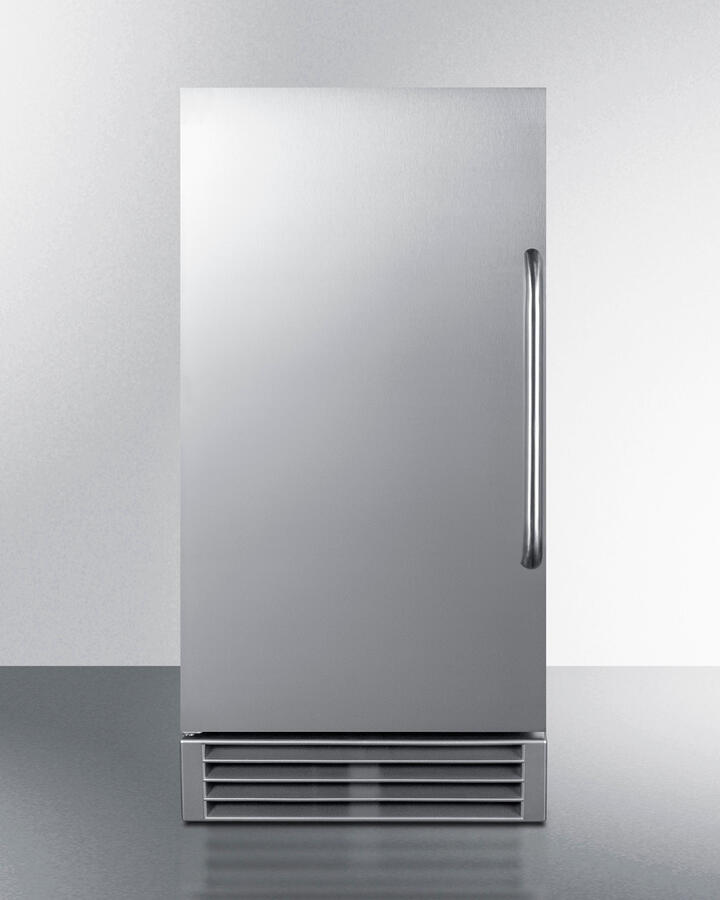

Summit BIM44GCSS 15" Wide 50 Lb. Built-In Undercounter Commercially Listed Clear Icemaker With Automatic Defrost, Internal Pump, And Complete Stainless Steel Exterior
Summit'S Commercially Approved Icemakers Are An Attractive And Durable Solution To Keeping A Continuous Supply Of Clear Ice On Hand In Virtually Any Kitchen Space. Energy Star Certified For Commercial Use, Bim44Gcss Features A Complete Stainless Steel Exterior For Added Durability And Long-Term Use. The Front-Breathing Design Allows Built-In Use Under Counters, While The Fully Finished Stainless Steel Cabinet Also Allows Freestanding Use, With A Sealed Back For Easier Cleanup. The User-Reversible Stainless Steel Door Includes A Curved Towel Bar Handle For A Professional Look. Note: This Unit Ships With A Left Hand Door Swing That Can Be Reversed Before Delivery (Add Suffix Rhd) Or At Home. Inside, The Bim44Gcss Has A Touch Control Panel For Easy Operation. Indicator Lights Alert Users To Each Step In The Production Process, As Well As To When The Bin Is Full. This Unit Can Produce Up To 50 Lbs. Of Clear Cube-Shaped Ice, With An Adjustable Bin Capacity That Can Hold Up To 25 Lbs. The Ice Is Produced In Sheets And Can Easily Be Broken Into Cubes With The Provided Stainless Steel Scoop, Which Can Be Mounted On Brackets Inside For Easy Use. An Interior Light In A Blue Hue Allows For Easy Viewing Of The Interior, While Automatic Defrost Operation Makes Maintenance Simple And Stress-Free. This Model Comes Equipped With An Internal Pump, While Four Adjustable Leveling Legs Keep The Unit Level On Uneven Surfaces. Sized At 15" Wide, Bim44Gcss Is Etl-S Listed To Nsf-12 For Use In Foodservice Settings And Can Also Be Installed In Any Kitchen Or Wet Bar. An Ada Compliant Version (See Bim44Gcssada) And A Panel-Ready Version (See Bim44Gcssif) Are Also Available.
- Commercially approved: ETL-S listed to NSF-12 commercial standards

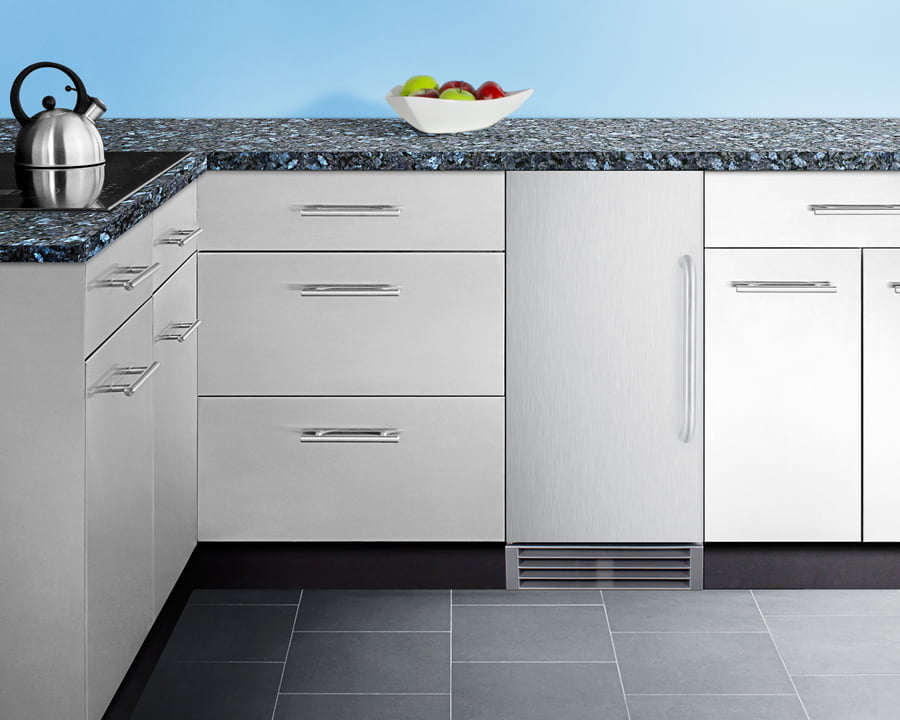

- Built-in capable: Make the best use of space by installing your icemaker under the counter
- 50 lb. production capacity: Can make up to 50 lbs. of clear ice cubes in a day cycle and store up to 25 lbs. per day (Note: ice is produced in sheets and can easily be broken into cubes using the provided scoop.)
- ENERGY STAR certified commercial performance: Efficient performance saves on energy use and costs
- Built-in pump: Internal pump affords more flexibility in placing the unit
- Automatic defrost: Reduced maintenance with auto defrost system
- Clear ice cube production: Produces 3/4" x 3/4" x 1" clear ice cubes

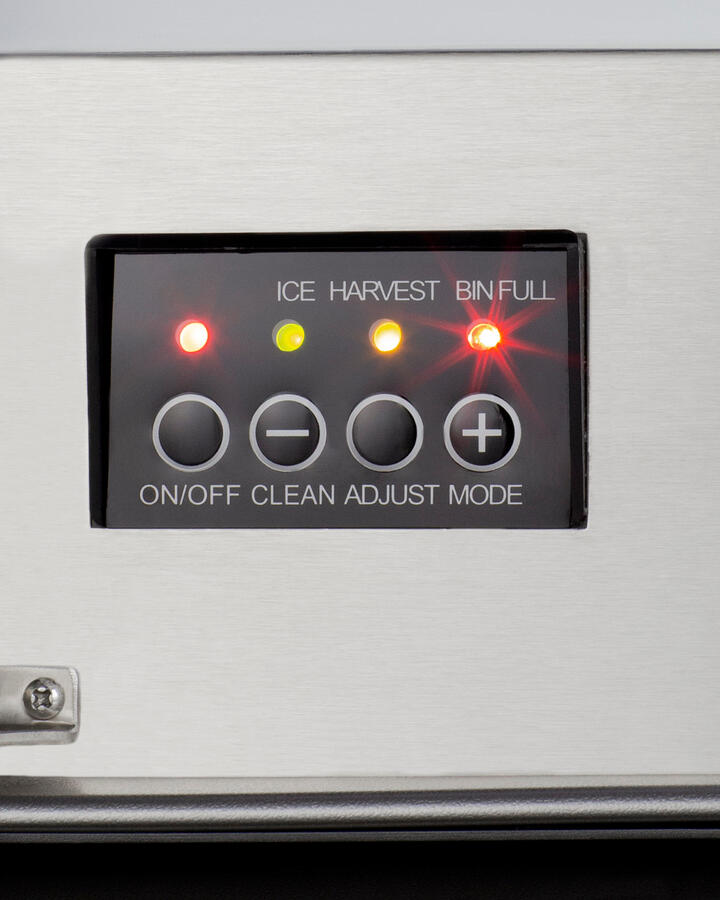

- Touch control panel: Provides easy operation of the unit with indicator lights for each stage of the production process
- Reversible stainless steel door: User-reversible door swing for flexible placement
- Professional towel bar handle: A curved handle in brushed stainless steel offers an easy grip
- Insulated storage bin: Ice stays solid longer in this cold-protected bin

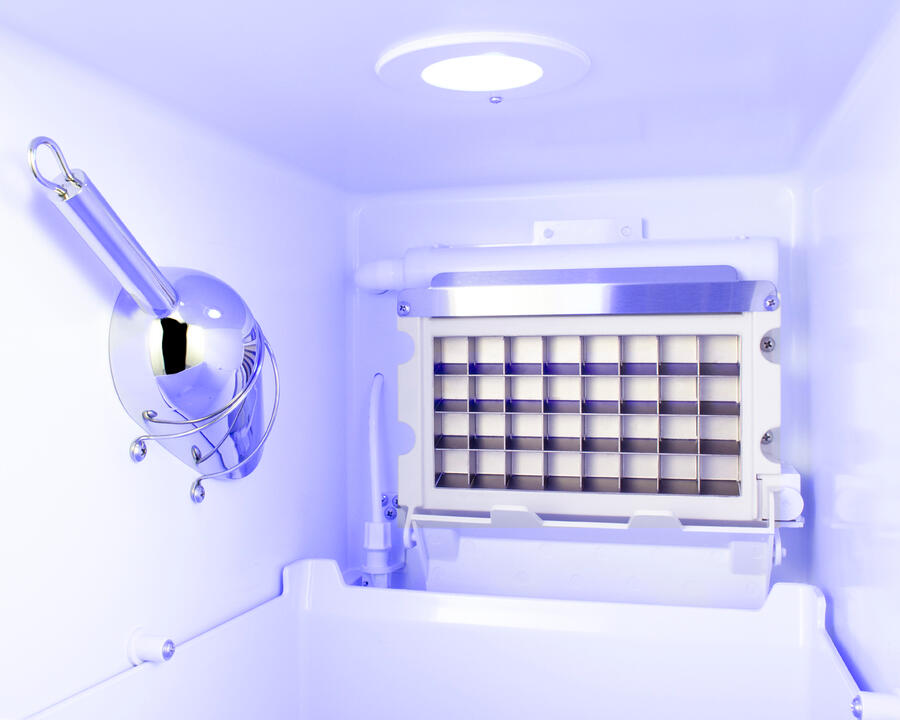

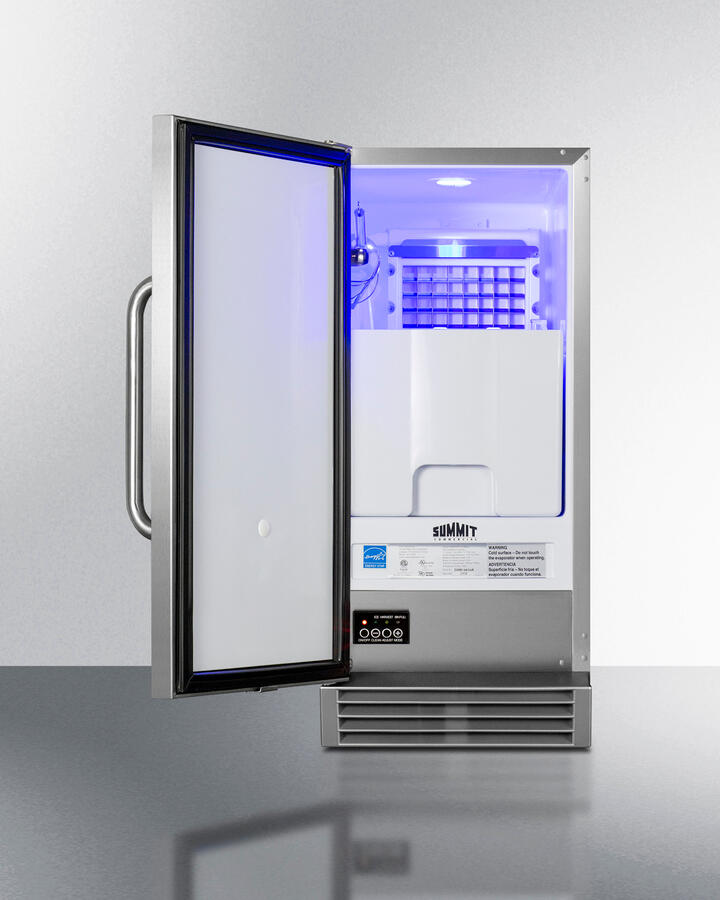

- Interior light: Lighting in a soft blue hue for easy viewing of the interior

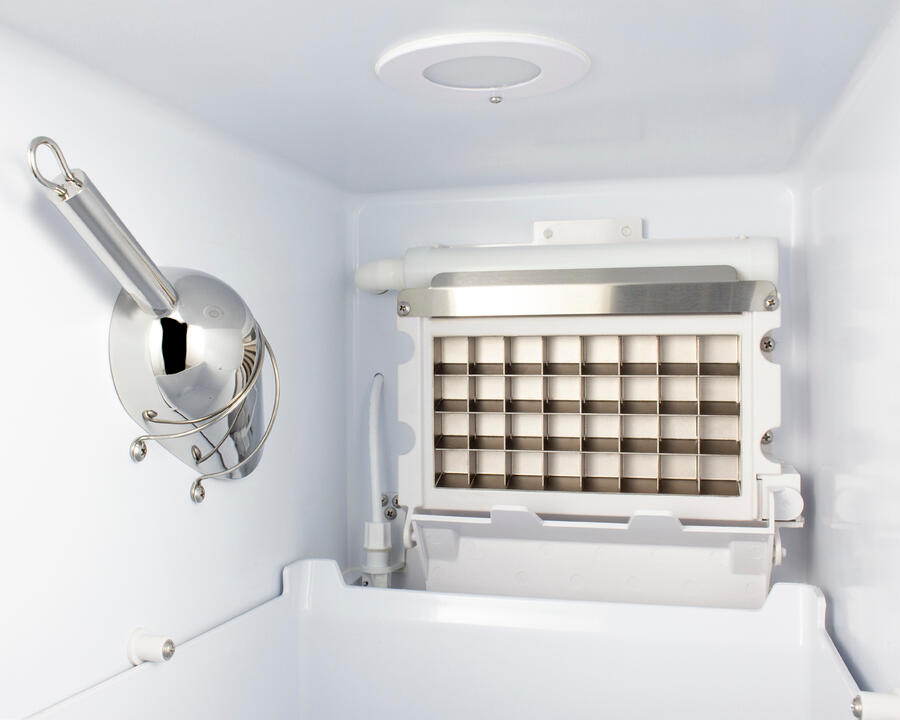

- Ice scoop included: Interior wall includes brackets to hang for easy storage
- Fully finished stainless steel cabinet: Allows the unit to be used freestanding
- Sealed back: Space saving design for easier cleanability
- Leveling legs: Four leveling legs help to keep the unit level on uneven surfaces
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
Overview | |
Height of Cabinet | 33.0' (84 cm) |
Width | 14.5' (37 cm) |
Depth | 23.5' (60 cm) |
Depth with Handle | 25.0' (64 cm) |
Depth with door at 90° | 37.0' (94 cm) |
Defrost Type | Automatic |
Door | Stainless Steel |
Cabinet | Stainless Steel |
US Electrical Safety | UL |
Canadian Electrical Safety | ULC |
Sanitation | ETL-S |
Amps | 4.8 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 100.0 lbs. (45 kg) |
Shipping Weight | 105.0 lbs. (48 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101067759 |
Icemaker | |
Door Swing | LHD |
Reversible | Yes |
Drain Required | Yes |
Daily Ice Production | 50.0 lbs. (23 kg) |
Ice Storage Capacity | 25.0 lbs. (11 kg) |
Ice Shape | Cube |
Size of Cube | 3/4' x 3/4' x 1' |
Number of Ice Cube Sizes | 1 |
Fan Type | Exterior |
Refrigerant Type | R134a |
Refrigerant Amount | 3.88 oz. |
High Side PSI | 350.0 |
Low Side PSI | 130.0 |
Interior Height | 18.5' (47 cm) |
Interior Width | 12.0' (30 cm) |
Interior Depth | 16.0' (41 cm) |
Level Legs | 4 |
Exterior | |
RHD - Right hand door swing Door reversal to right hand door swing | Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. |
