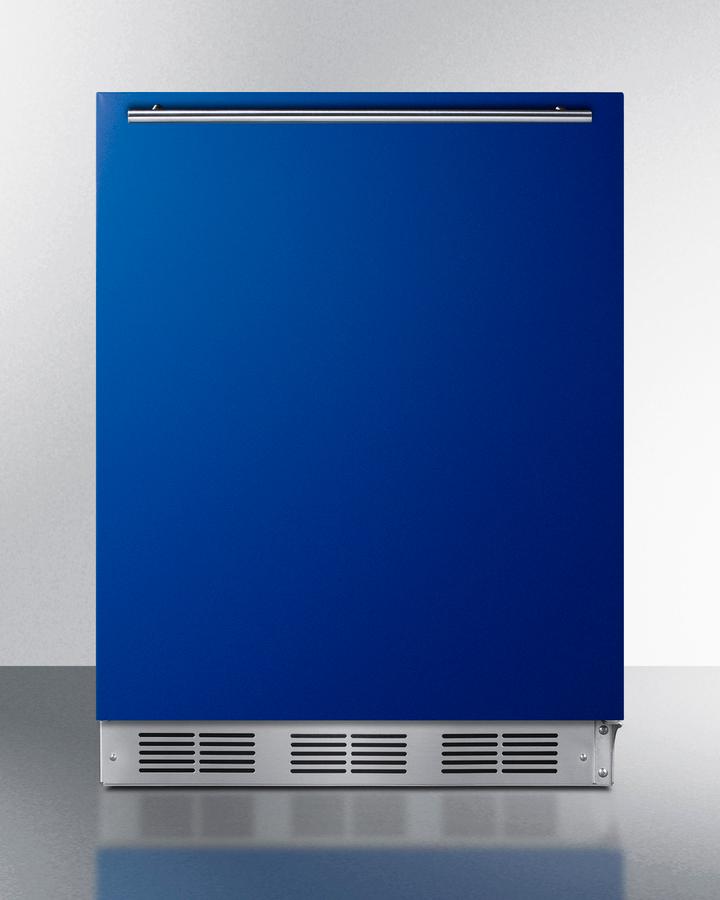

Summit BRF611WHBADA 24" Wide Refrigerator-Freezer, Ada Compliant
Make A Statement Under The Counter With Summit'S Exclusive European Collection Of Boldly Colored Refrigerators, Available In Standard Or Ada Compliant Height. Model Brf611Whbada Is A 24" Wide Refrigerator-Freezer Sized At Just 32" High For Use In Ada Compliant Settings, With A Generous Capacity Of More Than 5 Cu.Ft. To Meet General Storage Needs. The Door Finish Comes In A Striking Cobalt Blue, With A Sleek Horizontally Mounted Stainless Steel Handle And Matching Stainless Steel Kickplate To Complete The Unique Look. This Unit Has A White Exterior Cabinet. It Is Manufactured In Europe And Modified In The United States With Domestic Steel Finishing. Inside, The Brf611Whbada Features A Dual Evaporator To Allow Separated Cooling Of The Fresh And Frozen Food Sections. The Refrigerated Compartment Utilizes Low Maintenance Automatic Defrost, While The Interior Freezer Compartment Is Manual Defrost To Achieve Lower Storage Temperatures Ideal For Ice Cream And Other Frozen Food. The Deluxe Interior Includes Adjustable Glass Shelves For Spill-Proof Storage And Easier Cleaning, As Well As A Scalloped Wine Shelf To Hold Wine And Champagne Bottles Safely In Place. Door Racks Offer Additional Convenience For Tall Bottles And Condiments And A Clear Crisper Drawer Ensures Your Produce Is Stored Under The Ideal Conditions. This Model Includes Automatic Interior Lighting And An Adjustable Dial Thermostat. Additional Colors Are Available, Including Saffron Gold, Cobalt Blue, And Lavender. Browse The Full Summit Selection To Find The Perfect Addition To Your Kitchen.
- Designed for freestanding or recessed installation in 24" wide spaces
- 32" height for use in settings complying with ADA guidelines for lower counter height
- Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
- Deep blue finish with a slight gloss to elevate your undercounter space
- Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look
- This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
- Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
- Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup
- Store tall bottles and condiments right on the door for convenient access
- Removable scalloped wine shelf is included to store champagne and wine bottles
- Get the longest life and best taste out of produce by storing greens in lower slide drawer
- Automatically illuminates when the door is opened
- Cold wall design with hidden evaporator creates a seamless, easy to clean interior
- Dial thermostat located inside for easy and intuitive temperature management
- User-reversible door swing for added flexibility
- Added touch of style to complement the handle and complete the look
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Environmentally friendly design does not contain ozone-damaging chemicals
Overview | |
Height of Cabinet | 32.13' (82 cm) |
Height to Hinge Cap | 32.38' (82 cm) |
Width | 23.63' (60 cm) |
Depth | 23.0' (58 cm) |
Depth with Handle | 24.5' (62 cm) |
Depth with door at 90° | 45.25' (115 cm) |
Capacity | 5.1 cu.ft. (144 L) |
Defrost Type | Cycle |
Door | Blue |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Energy Usage/Year | 365.0kWh/year |
Amps | 1.2 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 110.0 lbs. (50 kg) |
Shipping Weight | 130.0 lbs. (59 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101087740 |
Refrigerator-Freezer | |
Door Swing | RHD |
Reversible | Yes |
Adjustable Shelves | Yes |
Crisper Qty | 1 |
Crisper Finish | Transparent |
Crisper Cover | Glass |
Wine Bottle Shelving | Yes |
Interior Light | Yes |
Refrigerator - Interior Height | 18.0' (46 cm) |
Refrigerator - Interior Width | 21.0' (53 cm) |
Refrigerator - Interior Depth | 18.0' (46 cm) |
Refrigerator - Capacity | 4.5 cu.ft |
Refrigerator - Shelf Type | Glass |
Refrigerator - Shelf Qty | 2 |
Refrigerator - Full Door Shelves | 3 |
Freezer - Interior Height | 5.25' (13 cm) |
Freezer - Interior Width | 19.0' (48 cm) |
Freezer - Interior Depth | 11.5' (29 cm) |
Freezer - Capacity | 0.6 cu.ft |
Thermostat Type | Dial |
Refrigerant Type | R600a |
Refrigerant Amount | 0.92 oz. |
High Side PSI | 180.0 |
Low Side PSI | 80.0 |
Compressor Step Height | 5.5' (14 cm) |
Compressor Step Width | 21.0' (53 cm) |
Compressor Step Depth | 6.0' (15 cm) |
