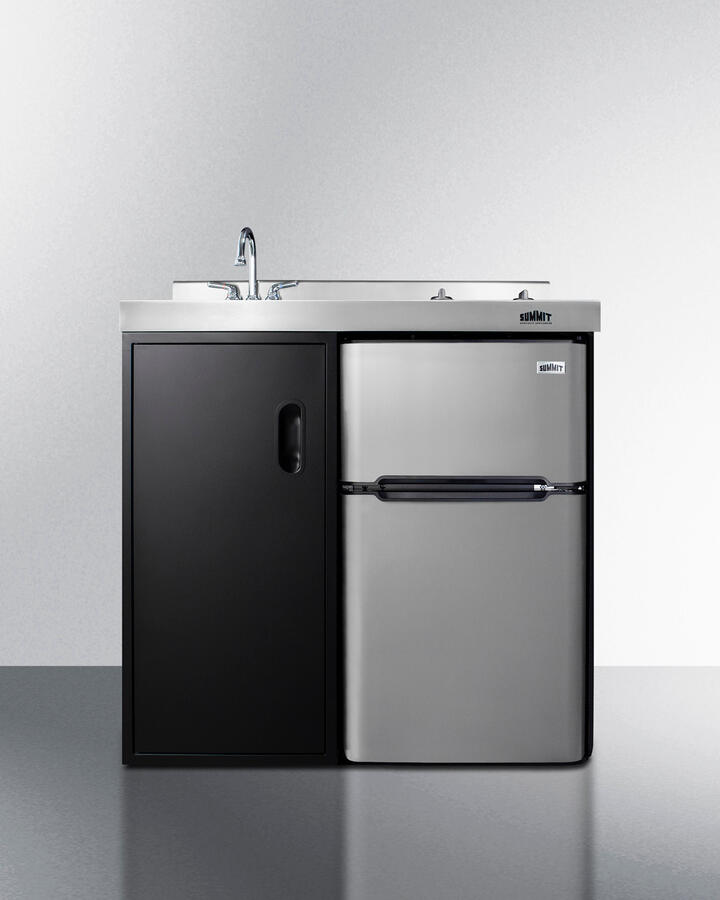

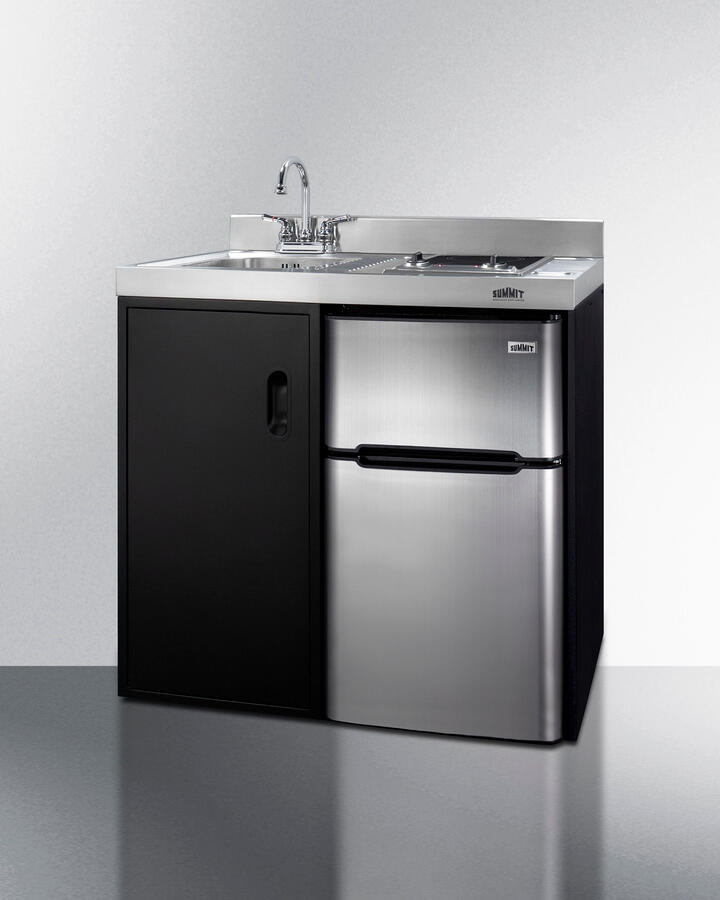

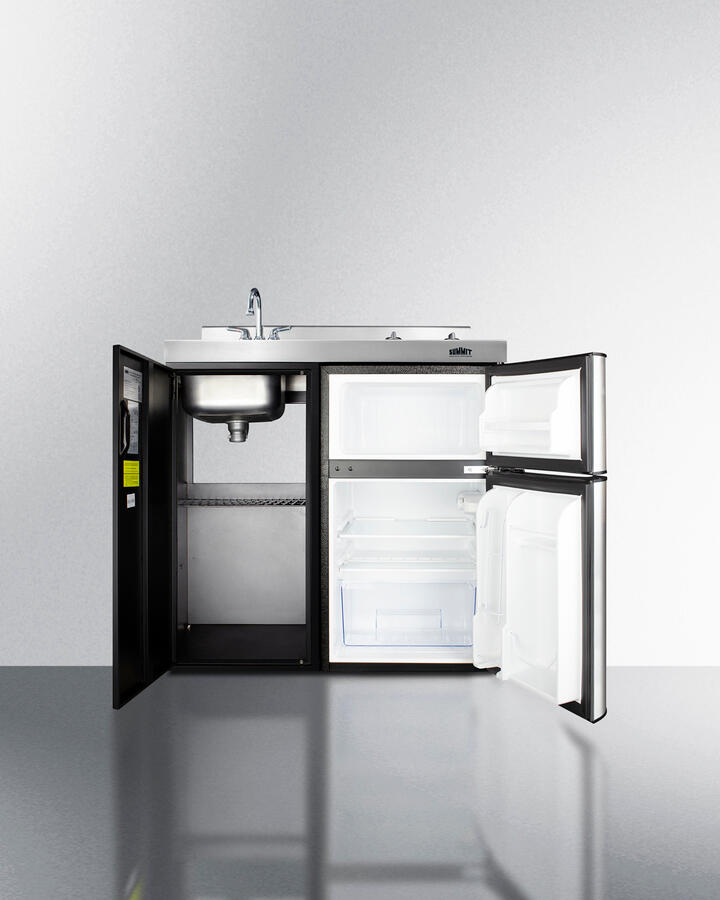

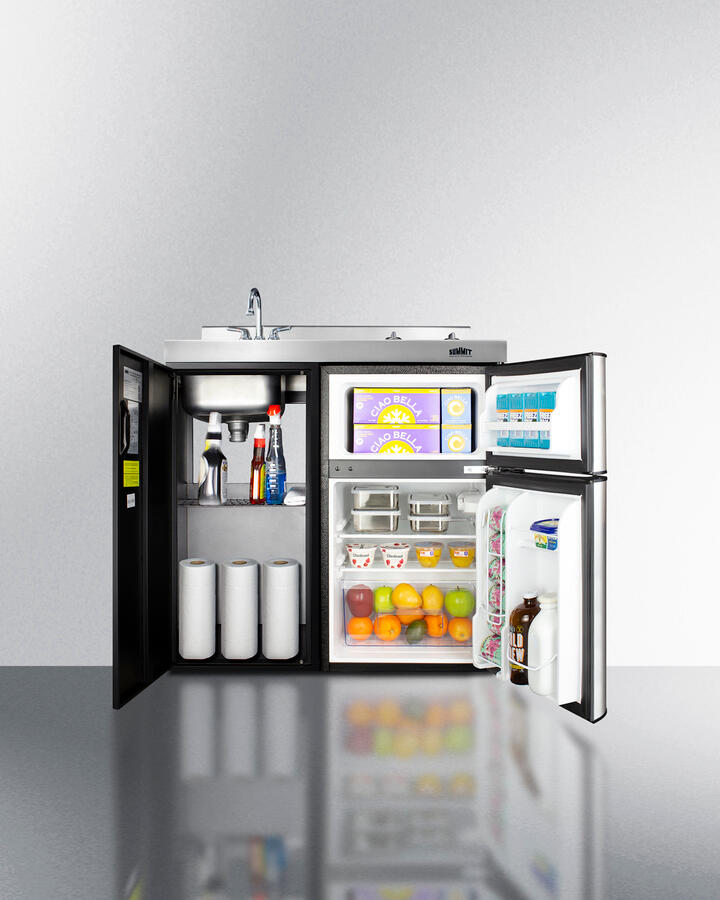

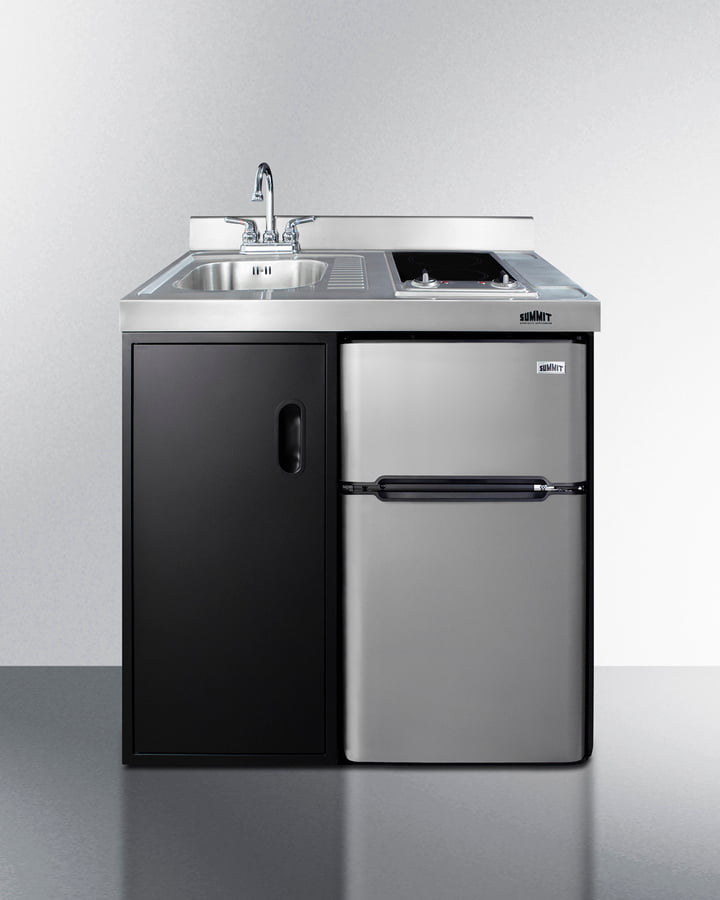

Summit CK36ELGLASS 36" Wide All-In-One Kitchenette
36" Wide All-In-One Kitchenette with cooktop and refrigerator.
- Complete one-piece kitchenette : All-in-one kitchen is built with virtually everything you need for meal preparation
- 2-door refrigerator-freezer included : CP34BSS is packaged inside the kitchenette. This 3.2 cu.ft. ENERGY STAR certified refrigerator includes adjustable glass shelves, door storage, and a freezer compartment
- Sink and faucet : Stainless steel sink with ready-to-use faucet included

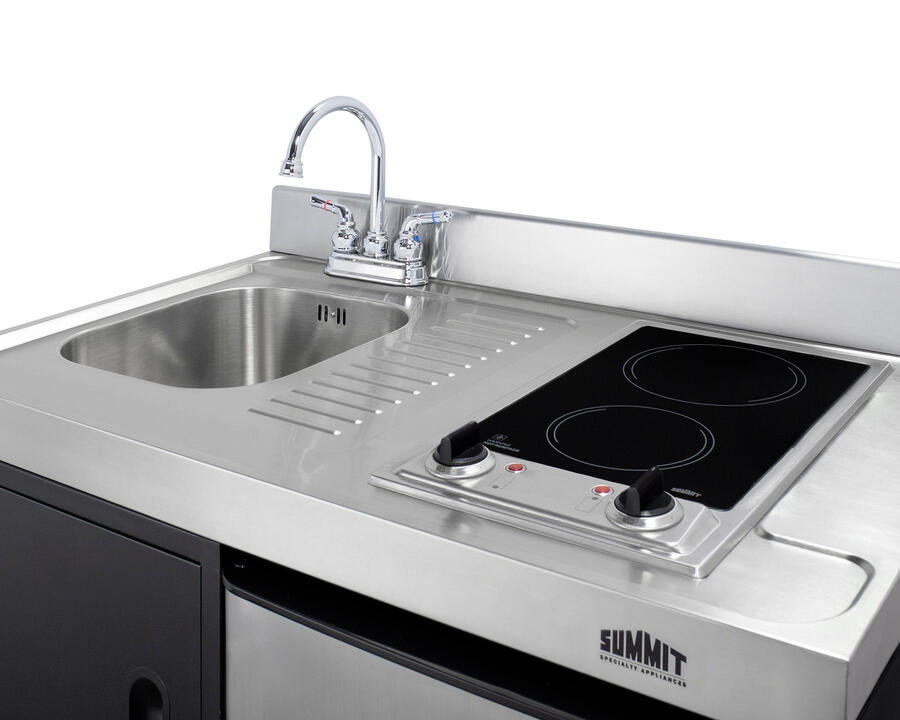

- 2-burner smooth-top cooktop : Includes a 5 3/4" 600W front element and 7" 900W rear element in a smooth black finish for easier cleanup and safer cooking
- 115V operation with pre-installed cords : Both the cooktop (12 amps) and refrigerator (1.1 amps) include 3-pronged cords for easy setup
- Push-to-turn knobs : Cooktop knobs require a small amount of force to turn the elements on, helping to prevent accidents
- Indicator lights : Operating indicators light up to show which burner is in use
- Black and stainless steel exterior finish : Modern design with a jet black powder-coated metal cabinet, stainless steel surface, and stainless steel refrigerator doors
- One piece stainless steel countertop : Easy-to-clean surface with a professional look
- Storage compartment : Convenient lower cabinet with adjustable shelf lets you store dry goods
- Ships fully assembled in one box : Kitchenette is shipped in one piece, with reinforced packaging for added protection
- Stainless steel backguard : Includes a 4" high backguard to complete the look and offer added protection to your walls
- Reversible doors : User-reversible door swings on the refrigerator-freezer for added flexibility
- Optional storage cabinet : Add more storage convenience with Summit wall cabinets, 12" or 18" wide choices with powder-coated metal construction in white or black finishes
- 100% CFC free : Environmentally friendly design without ozone-damaging chemicals
Overview | |
Height of Cabinet | 40.0' (102 cm) |
Width | 36.13' (92 cm) |
Depth | 23.63' (60 cm) |
Depth with Handle | 24.63' (63 cm) |
Depth with door at 90° | 41.88' (106 cm) |
Capacity | 3.2 cu.ft. (91 L) |
Defrost Type | Cycle |
Door | Black/SS |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Amps | 13.1 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 116.0 lbs. (53 kg) |
Shipping Weight | 121.0 lbs. (55 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101033709 |
Kitchenette | |
Refrigerator Included | CP34BSS |
Refrigerator Door Swing | RHD |
Reversible | Yes |
Shelf Type | Glass |
Shelf Qty | 1 |
Crisper Qty | 1 |
Crisper Finish | Transparent |
Crisper Cover | Glass |
Full Door Shelves | 2 |
Can Storage | Yes |
Thermostat Type | Dial |
Interior Light | Yes |
Refrigerant Type | R600a |
Refrigerant Amount | 1.16 oz. |
High Side PSI | 250.0 |
Low Side PSI | 88.0 |
Cooking Type | Smooth-Top Cooktop |
Number of Burners | 2 |
Cooktop Controls | Dial |
Interior Height 1 | 18.5' (47 cm) |
Interior Width 1 | 15.75' (40 cm) |
Interior Depth 1 | 15.0' (38 cm) |
Interior Height 2 | 7.5' (19 cm) |
Interior Width 2 | 14.0' (36 cm) |
Interior Depth 2 | 14.0' (36 cm) |
Sink Height | 7.25' (18 cm) |
Sink Width | 12.0' (30 cm) |
Sink Depth | 12.0' (30 cm) |
