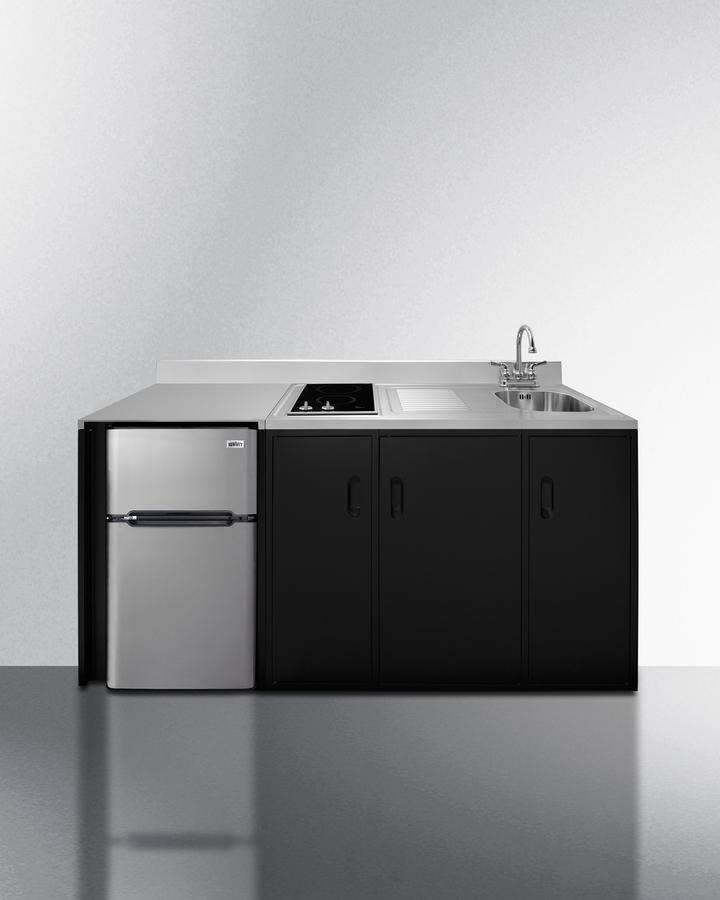

Summit CK72ADASINKR 72" Wide All-In-One Kitchenette, Ada Counter Height
Summit Brings True Convenience To Smaller Spaces With All-In-One Combination Kitchenettes. Available In A Variety Of Sizes And Finishes, These Units Come Fully Featured With Everything You Need For The Home Foodservice Experience, Including A 2-Burner Smooth-Top Cooktop, Sink, Storage Cabinets, And Refrigerator With A Freezer Compartment. The Ck72Adasinkr Is 72" Wide With A 34" Ada Counter Height For Added Accessibility. Its Black Exterior Brings A Modern Look To Efficiency Spaces, With Added Touches Of Stainless Steel On The Kitchenette Work Surface And Refrigerator Doors. This Unit Includes A Built-In 115V Smooth-Top Cooktop With A Rear 7" 900W And A Front 5 1/2" 500W Heating Element. The Power Cord Comes Pre-Installed For Easy Setup. The Right Side Of The Kitchenette Features A Compact Sink With Ready-To-Use Faucet, While The Left Side Has A Stainless Steel Counter Area For Food Prep. Two Single-Door Cabinets Include A Removable Wire Shelf, Perfect For Storing Cleaning Supplies, While A French-Door Style Cabinet Has A Sold Removable Shelf, Ideal For Dry Storage. Two Grooved Handles On Each Side Allow For Easy Movement Of The Unit. Unlike Many Other Brands' Kitchenettes, All Summit Units Include A Refrigerator With A Freezer Compartment To Cover All Of Your Cold Storage Needs. The Ck72Adasinkr Includes The Two-Door, Energy Star Certified Cp34Bss, With 3.2 Cu.Ft. Of Storage Space. A Dual Evaporator System Separately Cools The Auto Defrost Refrigerator Section And Manual Defrost Freezer Compartment For Improved Overall Performance. This Model Also Includes An Adjustable Glass Shelf, Door Storage, And A Crisper. The Ck72Adasinkr Is Packaged And Shipped In One Box. Perfect For Studio Apartments, Hotel Rooms, Dormitories, Assisted Living Facilities, Temporary Kitchen Facilities, And Any Other Location In Need Of A Low Maintenance, Fully-Featured Compact Kitchenette. For This Unit With A Sink Located On The Left Of The Kitchenette, See The Ck72Adasinkl. Note: For Users Who Prefer A Gas Connection, Summit Model Gc22Ss Can Fit Inside The Existing 11" W X 19 1/4" D Cooktop Cutout. Additionally, Users Can Remove The Center Storage Cabinet And Install An 18" Wide Ada Compliant Dishwasher, Such As Summit Model Dw18Ss4Ada.
- All-in-one kitchen is built with virtually everything you need for meal preparation
- 34" counter height helps to comply with the guidelines set by the Americans with Disabilities Act (ADA) for improved accessibility
- CP34BSS is packaged inside the kitchenette. This 3.2 cu.ft. ENERGY STAR certified refrigerator includes adjustable glass shelves, door storage, and a freezer compartment
- Stainless steel sink with ready-to-use gooseneck faucet included
- Includes a 5 1/2" 500W front element and a 7" 900W rear element in a smooth black finish for easier cleanup and safer cooking
- Both the cooktop (20amps) and refrigerator (1.1amps) include 3-pronged cords for easy setup
- Cooktop knobs require a small amount of force to turn the elements on, helping to prevent accidents
- Operating indicators light up to show which burner is in use
- Modern design with a jet black powder-coated metal cabinet, stainless steel surface, and stainless steel refrigerator doors
- Easy-to-clean surface with a professional look
- Single and double-door lower cabinet storage compartments with removable shelves provide ample storage capacity for cleaning supplies, dry goods, and similar contents
- Kitchenette is shipped in one piece, with reinforced packaging for added protection
- Includes a 4" high backguard to complete the look and offer added protection to your walls
- User-reversible door swings on the refrigerator-freezer for added flexibility
- Side indents afford easy movement of the unit for added portability
- Pre-installed radiant cooktop can be removed in the field to substitute another cooktop option (cutout: 11" W x 19 1/4" D); Compatible with Summit GC22SS 2-burner gas cooktop (LP convertible with included kit)
- Pre-installed center storage cabinet can be removed by users to install an 18" wide dishwasher; Compatible with the ENERGY STAR certified DW18SS4ADA dishwasher
- For this unit with a sink on the left of the kitchenette, see the CK72ADASINKL. Also, additional models are available in a variety of widths and finishes. Visit summitappliance.com to view the entire line
- Environmentally friendly design without ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Overview | |
Height of Cabinet | 34.0' (86 cm) |
Width | 71.75' (182 cm) |
Depth | 23.75' (60 cm) |
Depth with door at 90° | 42.0' (107 cm) |
Capacity | 3.2 cu.ft. (91 L) |
Defrost Type | Cycle |
Door | Black/SS |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Energy Usage/Year | 322.0kWh/year |
Other Energy Info | Cooktop is 20 Amps; Refrigerator-Freezer is 1.1 Amps |
Amps | 21.1 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 174.0 lbs. (79 kg) |
Shipping Weight | 195.0 lbs. (88 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101066882 |
Kitchenette | |
Refrigerator Included | CP34BSS |
Refrigerator Door Swing | LHD |
Reversible | Yes |
Adjustable Shelves | Yes |
Shelf Type | Glass |
Shelf Qty | 1 |
Crisper Qty | 1 |
Crisper Finish | Transparent |
Crisper Cover | Glass |
Full Door Shelves | 2 |
Can Storage | Yes |
Thermostat Type | Dial |
Refrigerant Type | R600a |
Refrigerant Amount | 1.16 oz. |
High Side PSI | 250.0 |
Low Side PSI | 88.0 |
Cooking Type | Smooth-Top Cooktop |
Number of Burners | 2 |
Cooktop Controls | Dial |
Interior Height 1 | 18.5' (47 cm) |
Interior Width 1 | 15.75' (40 cm) |
Interior Depth 1 | 15.0' (38 cm) |
Interior Height 2 | 7.5' (19 cm) |
Interior Width 2 | 14.0' (36 cm) |
Interior Depth 2 | 14.0' (36 cm) |
Sink Height | 7.0' (18 cm) |
Sink Width | 12.25' (31 cm) |
Sink Depth | 13.75' (35 cm) |
