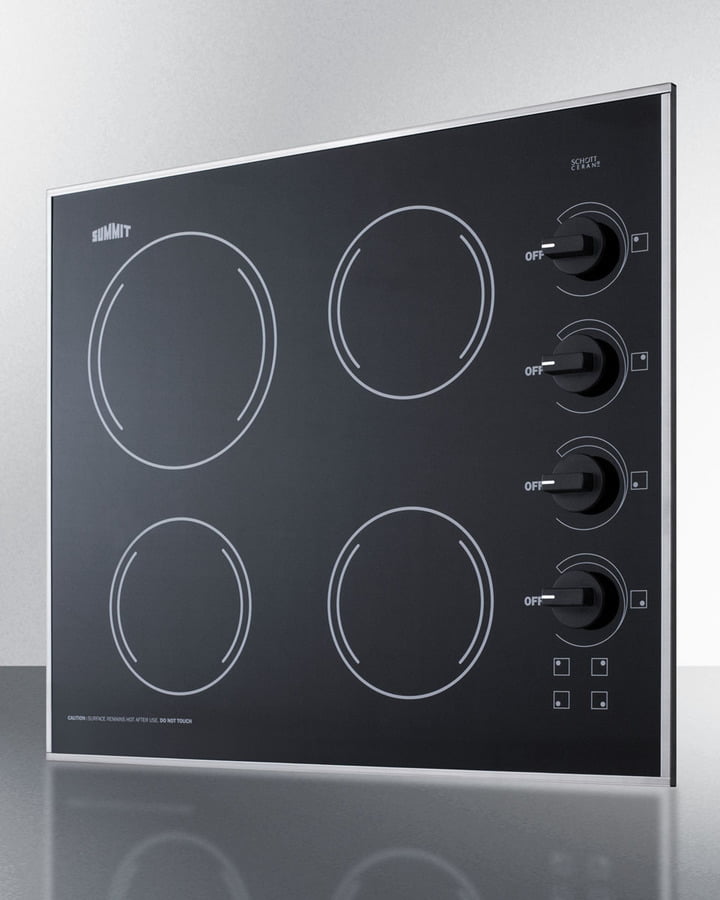

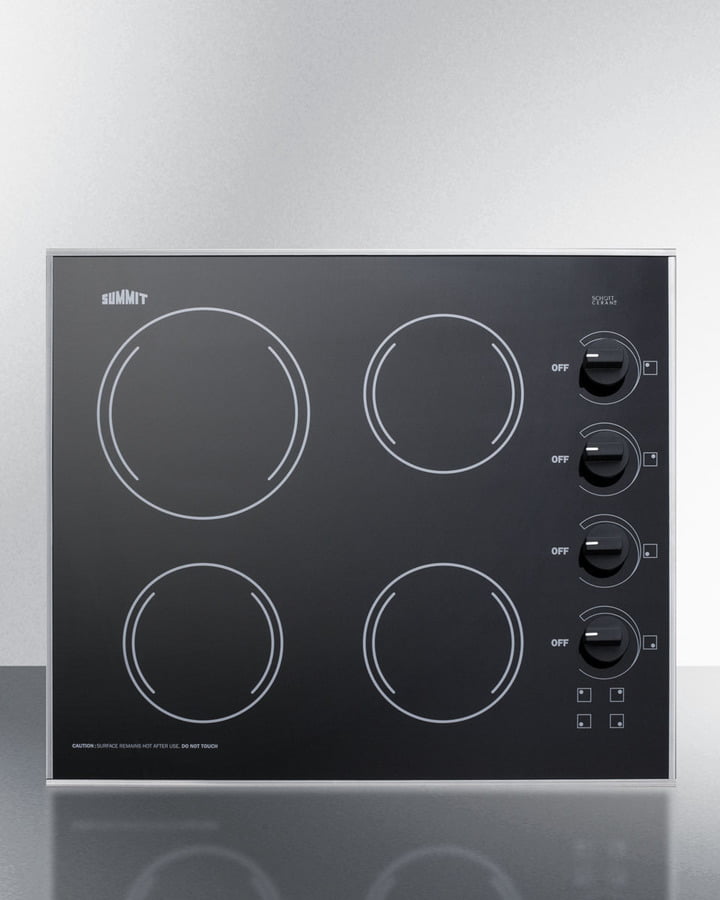

Summit CR425BL 24" Wide 230V 4-Burner Radiant Cooktop
24" Width Is Ideally Sized For Many Hard-To-Fill Cutouts. Smooth Black Finish In Schott Ceran Glass Offers Easy Cleanup. Includes One Large 8" 1800W Burner For Faster Heating. 304 Grade Stainless Steel Trim Completes The Look. Designed And Manufactured In The USA Summit Introduces A New Series Of Smooth-Top Electric Cooktops Sized For 24" Wide Kitchen Counter Spaces, All Made In The USA With The Industry's Best Elements. The Cr425Bl Is A 230V 5400W Cooktop, With All Burner Elements Made By E.G.O In Germany. This Unit Includes One Large 8" 1800W Element To Accommodate Large Cooking Vessels And Three 1200W 6 1/2" Burners To Meet Most Heating Needs. Push-To-Turn Safety Knobs Offer Added Safety, With An Attractive Black Finish To Complete The Look. Each Burner Includes An Indicator Light. The Smooth Surface Is Made From Ceramic Schott Glass In A Jet Black Finish, Offering Easier Cleanup Than Traditional Coil Elements. The Unit Is Finished With A Sleek Trim In 304 Grade Stainless Steel For Added Durability. The Cr425Bl Is Designed To Fit Common Cutouts Sized At 22 1/8" W X 18 5/8" D Designed And Manufactured In The USA, The Cr425Bl Is The Perfect Way To Finish Any Small Kitchen Space. For This Unit In A White Glass Finish, See The Cr425Wh.
- 24" width : Designed to fit 22.13" W x 18.63" D cutouts
- Schott Ceran surface : Smooth ceramic glass cooking surface in a sleek black finish
- High output burner : Rear left burner features an 8" diameter for 1800W of cooking power, ideal for larger cooking vessels
- Standard burners : Three 6.5" 1200W burners meet most heating needs
- E.G.O. burners : Considered by many to be the industry's best cooking technology

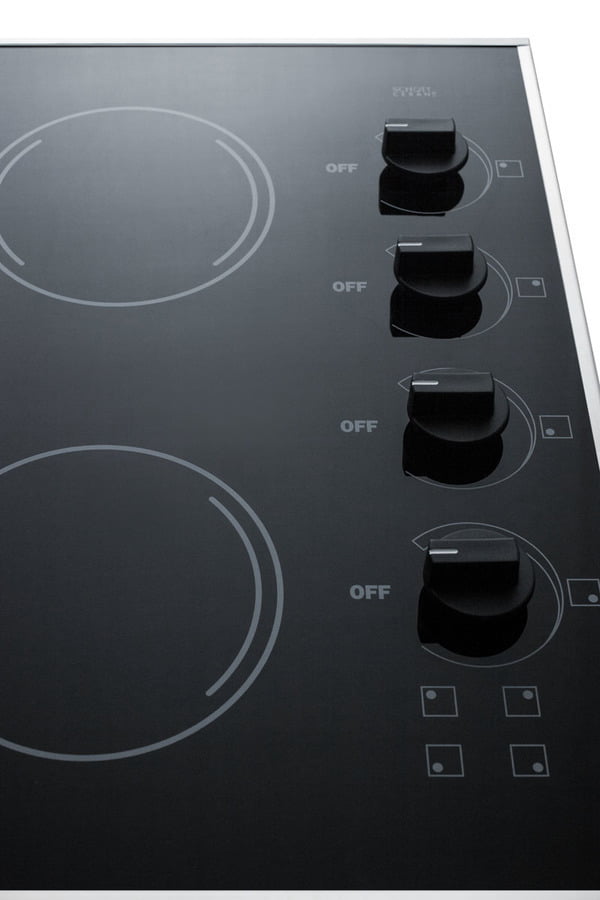

- Push-to-turn knobs : Controls require a gentle push to help prevent cooking accidents
- Indicator lights : Each burner includes an indicator light to show when the unit is on
- Stainless steel trim : Stainless steel border adds an extra touch of style
- 230V operation : Requires professional hardwired installation to 230V power supply
Overview | |
Height of Cabinet | 3.13' (8 cm) |
Width | 24.0' (61 cm) |
Depth | 20.5' (52 cm) |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Amps | 21.0 |
Voltage/Frequency | 230 V AC/60 Hz |
Weight | 30.0 lbs. (14 kg) |
Shipping Weight | 35.0 lbs. (16 kg) |
Parts & Labor Warranty | 1 Year |
Electric Cooktop | |
Heating Type | Radiant |
Surface | Glass |
Element Type | Glasstop |
Number of Elements | 4 |
controls | Dial |
Countertop Cutout Height | 3.5' (9 cm) |
Countertop Cutout Width | 22.13' (56 cm) |
Countertop Cutout Depth | 18.63' (47 cm) |
Element #1 Size | 8.0' (20 cm) |
Element #1 Wattage | 1800.0 |
Element #2 Size | 6.5' (17 cm) |
Element #2 Wattage | 1200.0 |
Element #3 Size | 6.5' (17 cm) |
Element #3 Wattage | 1200.0 |
Element #4 Size | 6.5' (17 cm) |
Element #4 Wattage | 1200.0 |
