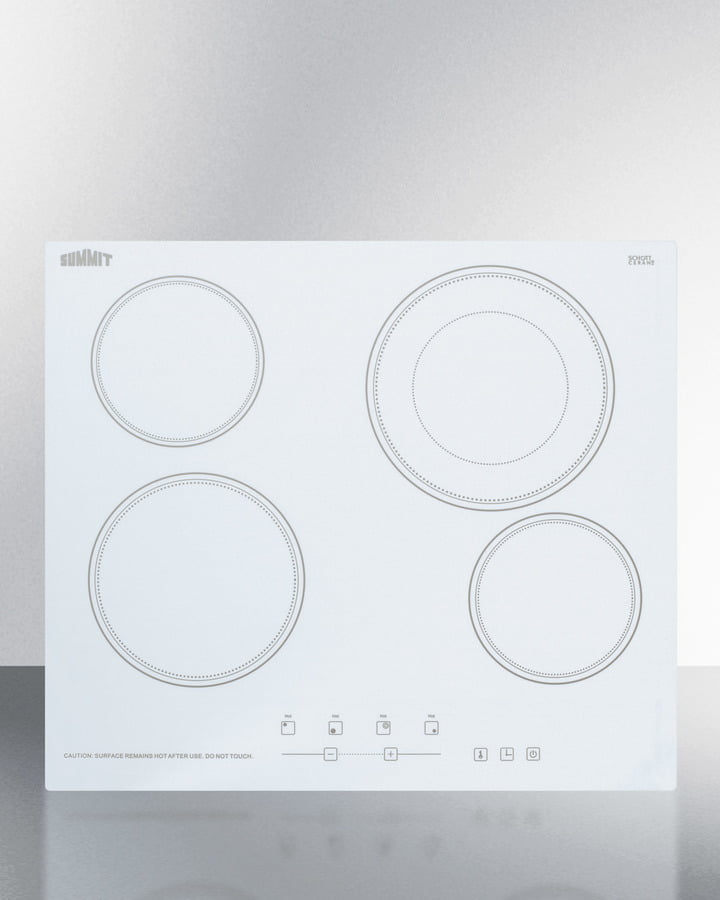

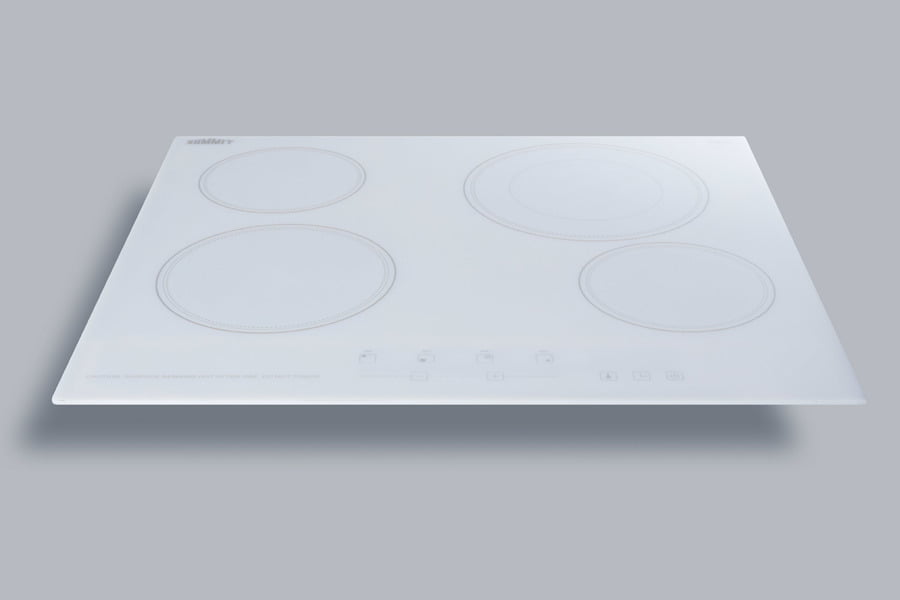

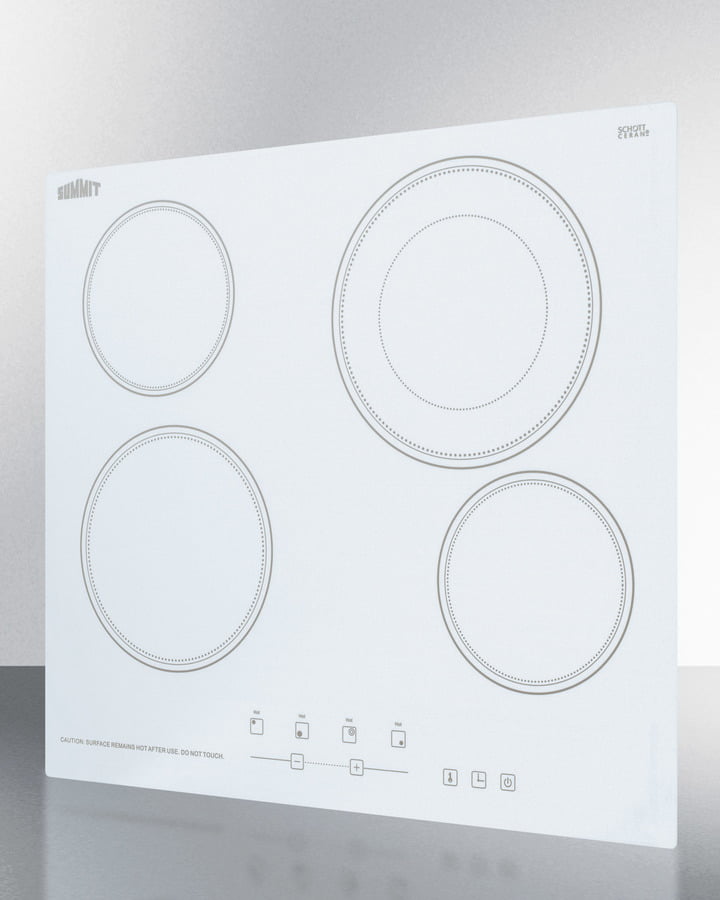

Summit CR4B23T6W 230V 4-Burner Cooktop In White Ceramic Schott Glass With Digital Touch Controls And An Extra Large 8" Dual Cooking Element

Summit's Collection Of Smooth-Top Radiant Cooktops Offers An Easy-To-Clean Design With Modern Style Built For Smaller Kitchen Spaces. The Cr4B23T6W Is A 24" Wide 230V Radiant Cooktop Designed To Fit Popular 22" W X 19 1/2" D Counter Cutouts. The Surface Is Made From Smooth Schott Ceramic Glass In A Classic White Finish For A Durable, Modern Look. This Unit Does Not Ship With A Power Cord And Must Be Hard-Wired By A Professional. Unlike Many Other 24" Wide Cooktops, The Cr4B23T6W Includes An Extra Large 2200W 8" Element To Accommodate Large Cooking Vessels And Offer Faster Heating When Boiling Water. For Added Versatility, This Dual Zone Element Can Also Be Used At A 5" Diameter For Smaller Pots And Pans. The Front Right And Rear Left 5 1/2" Elements Cook At 1200W, While The Front Left Zone Is 7" Wide With An 1800W Operation To Handle Larger Meals. The Digital Touch Controls Are Located In The Front For Easier Accessibility, Preventing Users From Reaching Over Hot Burners When Cooking. The Temperature Is Easy To Adjust At The Touch Of A Button, With 9 Power Levels For Each Burner. This Unit Also Includes A Timer Function That Lets You Program A Power Level And Cook Time (Up To 99 Minutes). The Burner Turns Off Automatically When The Cooking Duration Has Finished. Safety Features Include A Child Lock Function, Automatic Shutoff After Two Hours, And Residual Heat Indicators For All Four Elements. With Its Attractive Design, Smartly Designed Burner Configuration, And Intuitive Touch Controls, The Cr4B23T6W Brings A User-Friendly Cooking Performance With Reliable Safety To Small Kitchen Spaces.

• Schott glass surface: Made in Germany, the white Schott glass offers easier cleanup and lasting durabilty
• Extra large 2200W burner: Burner located on the rear right corner has an 8" diameter and powerful 2200W cooking power to handle large pots and help boil water with more speed
• Large 1800W burner: Burner located on the front left corner is 7" in diameter to handle larger cooking vessels
• 2 Standard 1200W burners: Front right and rear left burners are 5.5" in diameter to meet most cooking needs
• Dual cooking zone: Rear right burner includes an inner 5" burner, allowing you to save energy when heating smaller cookware

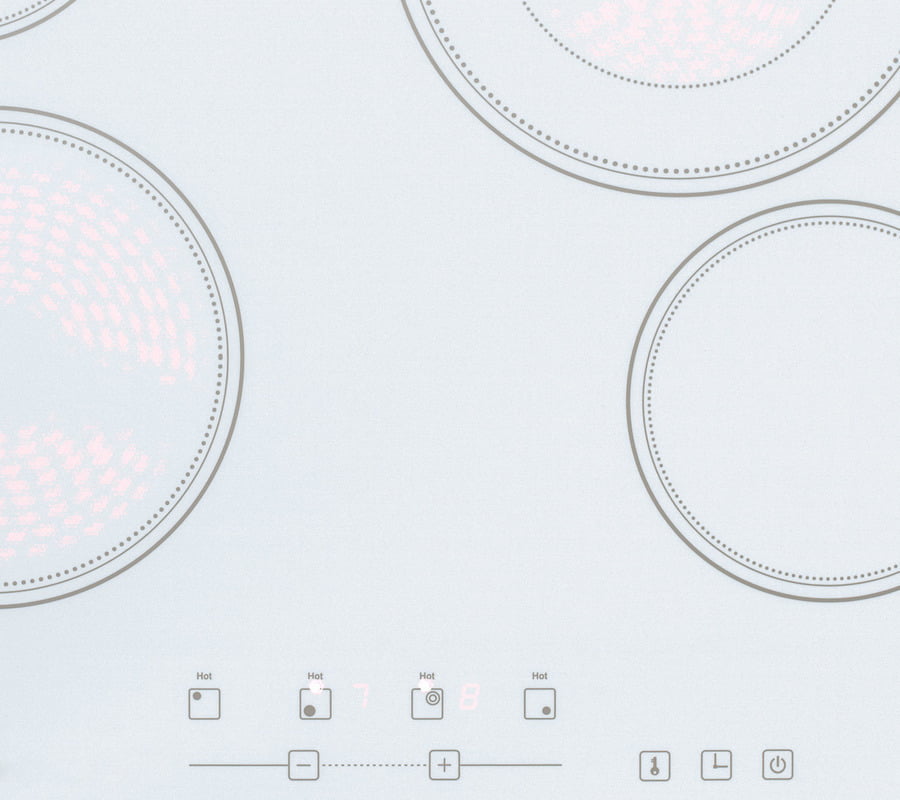

• Digital touch controls: Easy operation with a digital control panel and digital display
• 9 power levels: Select and adjust your heating levels at the touch of a button
• Timer: Allows you to program either burner to heat at a specified level for up to 99 minutes
• Residual heat indicator lights: Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch
• Designed for built-in installation: Fits counter cutout sizes that are 22" wide by 19.5" deep
• ADA compliant design: Upfront controls meet ADA guidelines for easier accessibilty
• Child lock: Safety feature lets you lock the cooktop to prevent unsupervised heating
• Safety cut-off function: If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off
• Automatic shutoff: If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating
• 230V operation: Requires professional hardwired installation to 230V power supply
