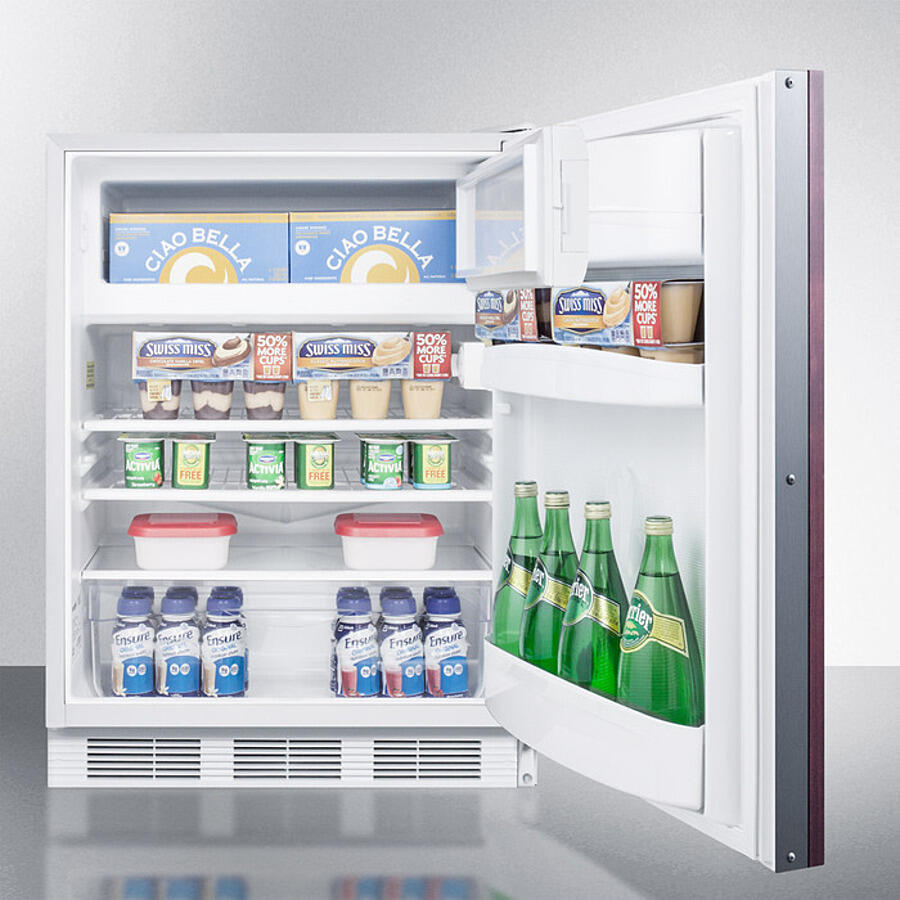

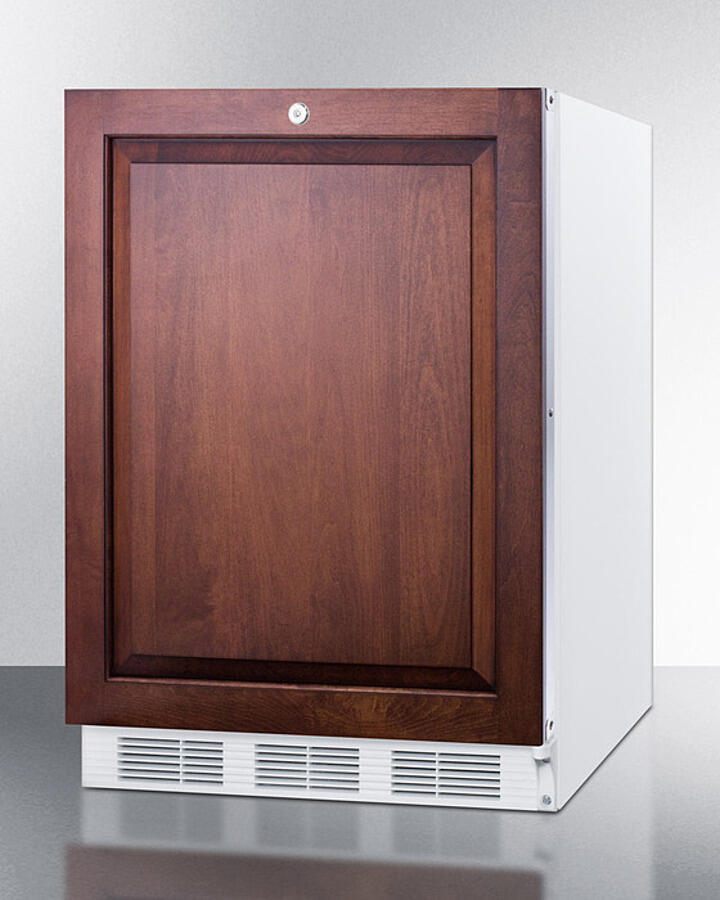

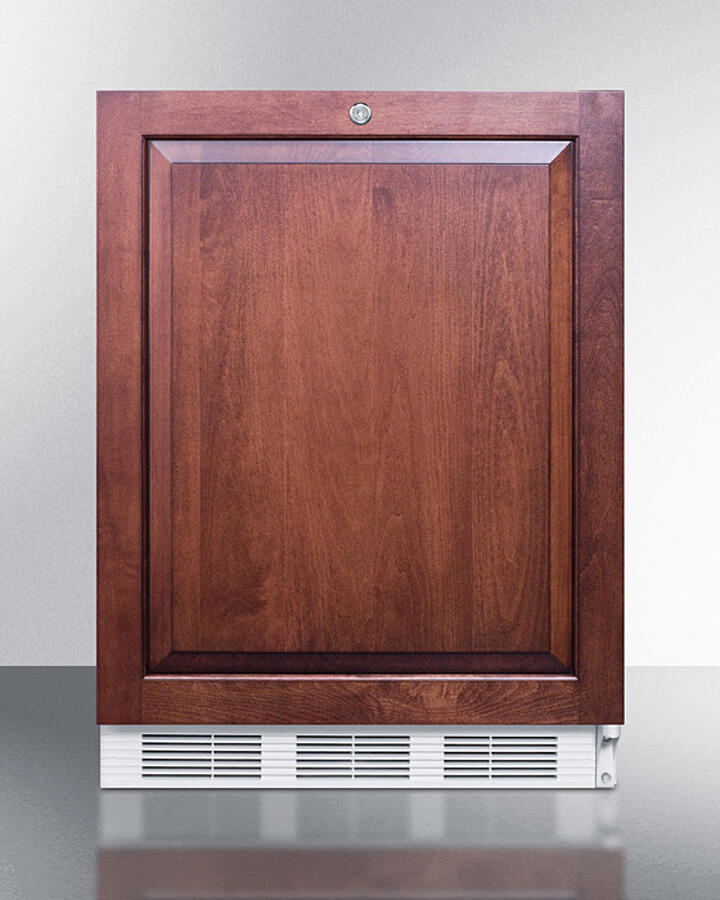

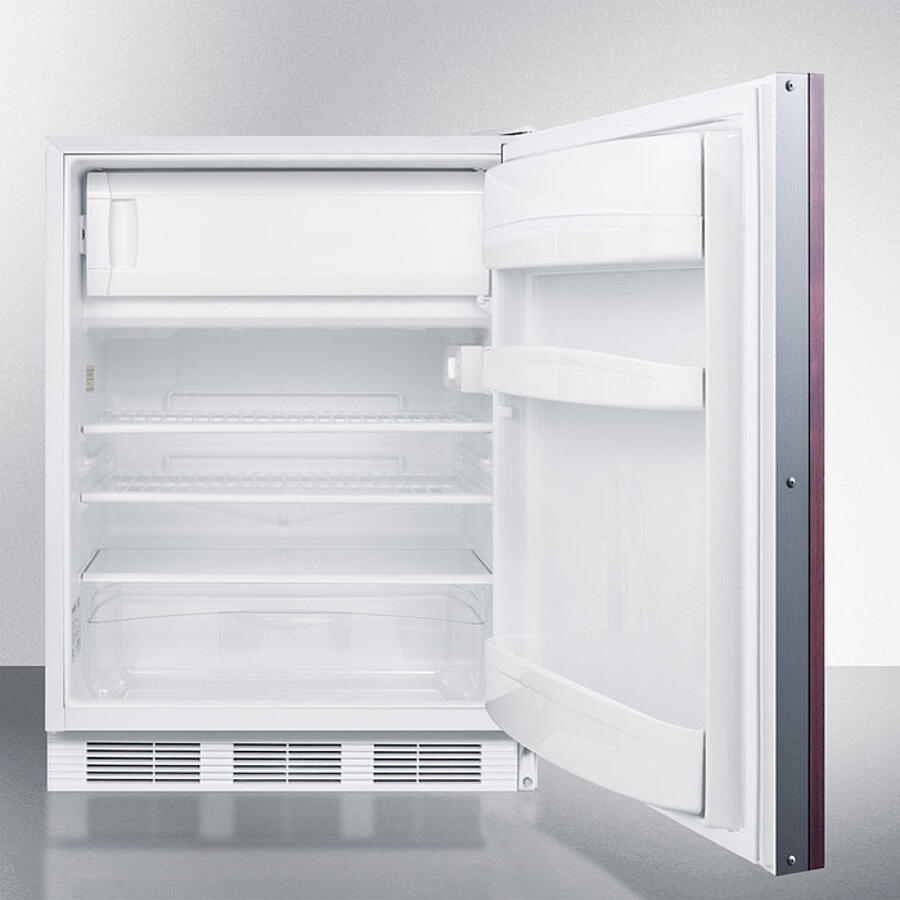

Summit CT66LWBIIFADA Built-In Undercounter Ada Compliant Refrigerator-Freezer For General Purpose Use, Cycle Defrost W/Dual Evaporators, Panel-Ready Door, Lock, And White Cabinet
Accucold By Summit Appliance Offers A Wide Range Of Undercounter Refrigeration For General Purpose Storage. The Ct66Jbiada Series Includes Refrigerator-Freezers Designed For Optimum Storage Conditions In Built-In Applications Under Lower Ada Compliant Counters. At 32" High, The Ct66Lwbiifada Can Be Used Built-In Or Freestanding In Ada Compliant Settings. The 24" Footprint Fits Many Popular Cutouts While Offering Over 5 Cu.Ft. Of Storage Capacity. This Model Has A White Cabinet. The Factory Reversible Door Includes A Lock And An Integrated Stainless Steel Frame Designed To Accept Full Overlay Panels For A Custom Look. Users Provide Their Own Handle. Inside, Our Unique Dual Evaporator System Separately Cools The Refrigerator And Freezer Sections To Ensure Proper Storage Temperature. Cycle Defrost Operation Reduces User Maintenance In The Automatic Defrost Fresh Food Section, With Static Manual Defrost Operation In The Freezer Compartment. Door Storage Provides Easy Access For Tall Bottles And Small Condiments. Additional Features Include Adjustable Shelves, A Clear Crisper, And Automatic Interior Lighting. The Ct66Lwbiifada Has Long Proven Itself To Have One Of The Best Temperature Performance Records In The Industry. To See Additional Finish Options On This Unit, Browse The Full Ct66Wbiada Series. Note: This Product Is Intended For A Wide Variety Of Basic Storage Applications. Storage Of High-Value Vaccines, Life Science Materials, And Medical/Clinical Biologicals Require A Product Offering Tighter Temperature Control And/Or Alarms, Monitoring, And Backup. For More Information, Browse Accucold'S Purpose-Built Line Or Contact Our Product Specialists At 1-888-4-Med-Lab.
- ADA compliant: 32" high to fit under lower ADA compliant counters
- Slim undercounter dimensions: Less than 24" wide with a generous storage capacity
- Built-in capable: Make the best use of space by installing your appliance under the counter
- Fully finished white cabinet: Allows the unit to be used freestanding
- Factory installed lock: Keyed security on the refrigerator door
- Integrated door frame: Stainless steel door frame accepts full overlay panels to match adjacent cabinetry (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
- Cycle defrost: This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
- Dual evaporator: Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
- Adjustable thermostat: Dial thermostat located inside for easy temperature management
- Door storage: Store tall bottles and condiments right on the door for convenient access
- Clear crisper drawer: Get the longest life and best taste out of produce by storing greens in a bottom crisper
- Interior light: Automatically illuminates when you open the door
- Adjustable shelves: Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
- 100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals
Overview | |
Height of Cabinet | 32.0' (81 cm) |
Height to Hinge Cap | 32.38' (82 cm) |
Width | 23.63' (60 cm) |
Depth | 23.5' (60 cm) |
Depth with door at 90° | 45.13' (115 cm) |
Capacity | 5.1 cu.ft. (144 L) |
Defrost Type | Cycle |
Door | Panel-Ready |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Amps | 1.4 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 100.0 lbs. (45 kg) |
Shipping Weight | 105.0 lbs. (48 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Refrigerator-Freezer | |
Door Swing | RHD |
Reversible | Factory Reversible |
Adjustable Shelves | Yes |
Crisper Qty | 1 |
Crisper Finish | Transparent |
Crisper Cover | Glass |
Interior Light | Yes |
Refrigerator - Interior Height | 19.5' (50 cm) |
Refrigerator - Interior Width | 20.5' (52 cm) |
Refrigerator - Interior Depth | 17.0' (43 cm) |
Refrigerator - Shelf Type | Wire |
Refrigerator - Shelf Qty | 2 |
Refrigerator - Full Door Shelves | 3 |
Freezer - Interior Height | 5.0' (13 cm) |
Freezer - Interior Width | 19.0' (48 cm) |
Freezer - Interior Depth | 11.5' (29 cm) |
Thermostat Type | Dial |
Fan Type | Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 0.92 oz. |
High Side PSI | 180.0 |
Low Side PSI | 80.0 |
Level Legs | 4 |
Compressor Step Height | 7.0' (18 cm) |
Compressor Step Width | 20.5' (52 cm) |
Compressor Step Depth | 5.0' (13 cm) |
Exterior | |
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout | Extra key for IF door Extra key for select IF (panel-ready) units |
TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order | Extra key Extra keys available for purchase |
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices | Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations |
ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar. | LHD - Left hand door swing Door reversal to left hand swing |
SSK Stainless steel kickplate factory installed | HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix |
DL1 | Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac |
Interior | |
FCGP internal fan with gel packs Internal fan with gel packs included for a stabilized interior | FC - Internal Fan Internal fan for even temperature distribution throughout the unit interior |
