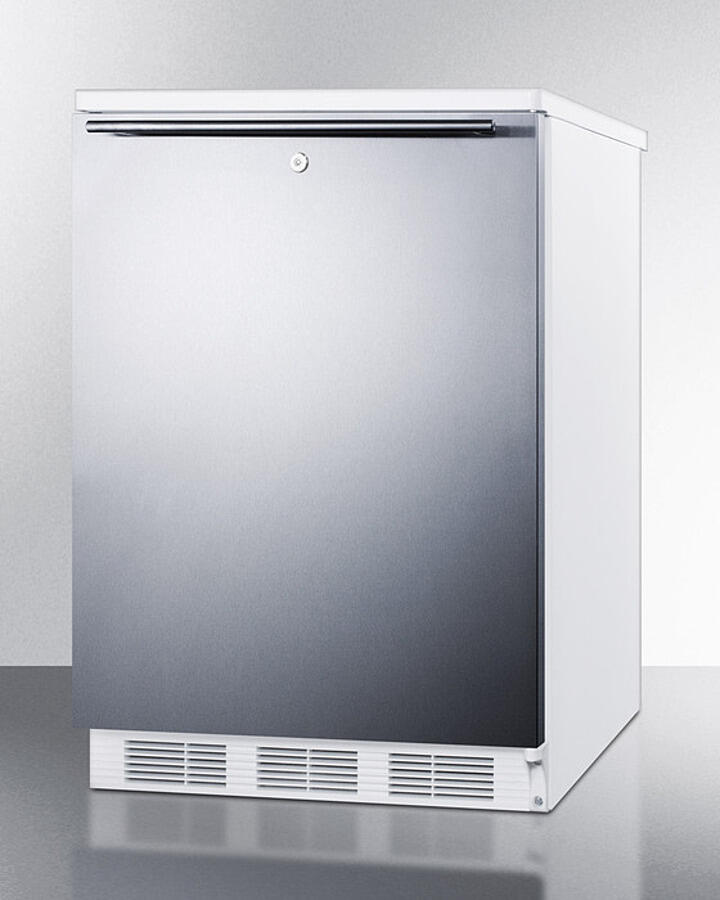

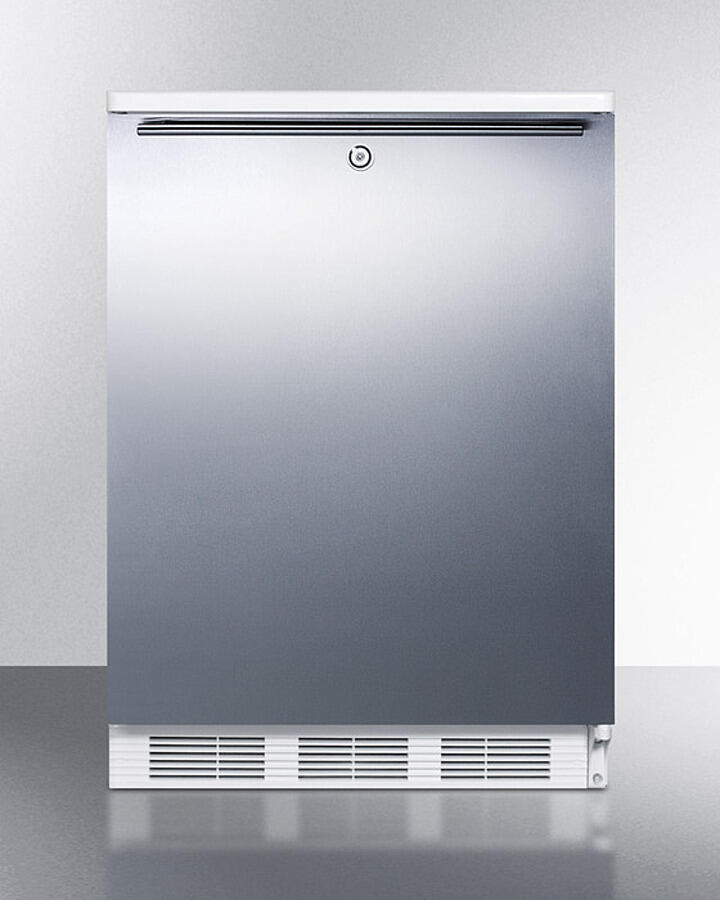

Summit CT66LWBISSHH Built-In Undercounter Refrigerator-Freezer For General Purpose Use, With Dual Evaporator Cooling, Ss Door, Lock, Horizontal Handle And White Cabinet
Accucold By Summit Appliance Offers A Wide Range Of Undercounter Refrigeration For General Purpose Storage. The Ct66Jbi Series Includes Built-In Undercounter Refrigerator-Freezers Equipped With Dual Evaporator Cooling For Optimum Storage Conditions. Sized With A 24" Footprint, The Ct66Lwbisshh Can Be Used Built-In Under Counters Or Freestanding. The Interior Offers Over 5 Cu.Ft. Of Storage Capacity. This Model Has A White Cabinet And Reversible Stainless Steel Wrapped Door With A Factory Installed Front Lock. A Thin Handle With A 14Mm Diameter Is Mounted Horizontally For A Sleek, Modern Look. Inside, Our Unique Dual Evaporator System Separately Cools The Refrigerator And Freezer Section To Ensure Proper Storage Temperature. Cycle Defrost Operation Reduces User Maintenance In The Automatic Defrost Fresh Food Section, With Static Manual Defrost Operation In The Freezer Compartment. Door Storage Provides Easy Access For Tall Bottles And Small Condiments. Additional Features Include Adjustable Shelves, A Clear Crisper, And Automatic Interior Lighting. The Ct66Lwbisshh Has Long Proven Itself To Have One Of The Best Temperature Performance Records In The Industry. To See Additional Finish Options On This Unit, Browse The Full Ct66Wbi Series. Note: This Product Is Intended For A Wide Variety Of Basic Storage Applications. Storage Of High-Value Vaccines, Life Science Materials, And Medical/Clinical Biologicals Require A Product Offering Tighter Temperature Control And/Or Alarms, Monitoring, And Backup. For More Information, Browse Accucold'S Purpose-Built Line Or Contact Our Product Specialists At 1-888-4-Med-Lab.
- Slim undercounter dimensions: Less than 24 inches wide to fit tight spaces
- Factory installed lock: Keyed lock offers added security
- Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinetry
- Fully finished white cabinet: Allows the unit to be used freestanding
- Height Adjustable: Adjustable legs allow the unit to be sized from 33 1/2" to 34 3/4" high
- Stainless steel door: Durable design with lasting elegance
- Professional horizontal handle: Thin 14mm diameter on stainless steel handle, mounted horizontally across the door
- Cycle defrost: This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
- Dual evaporator cooling: Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators

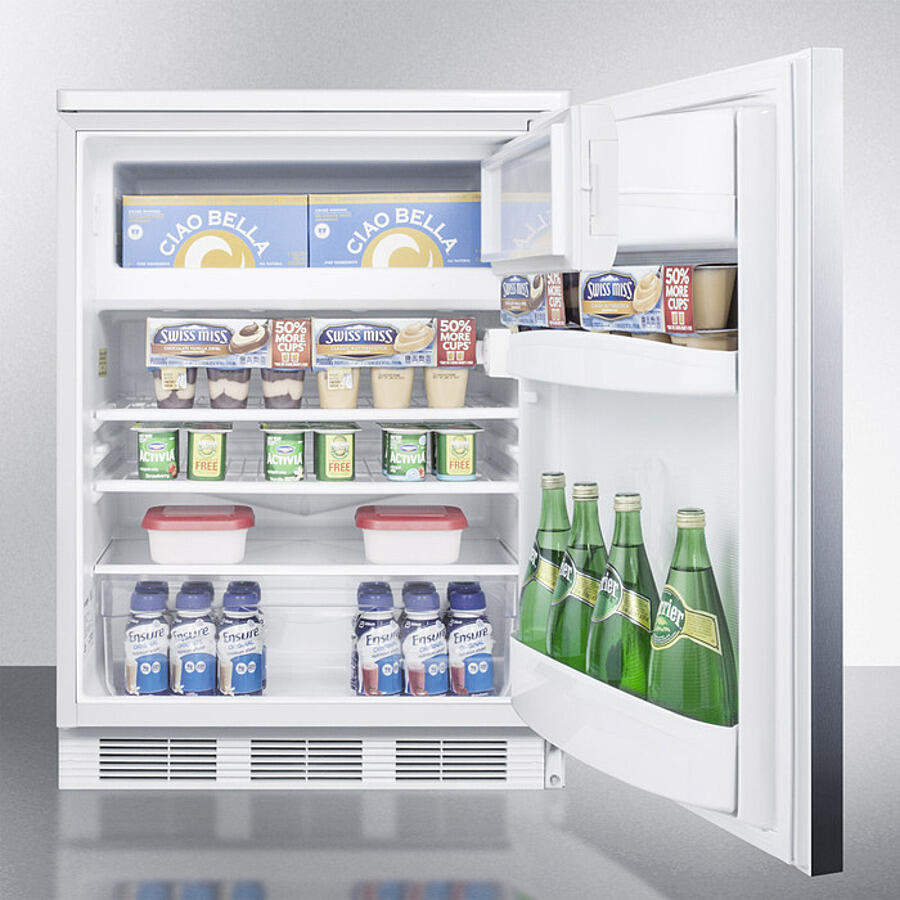

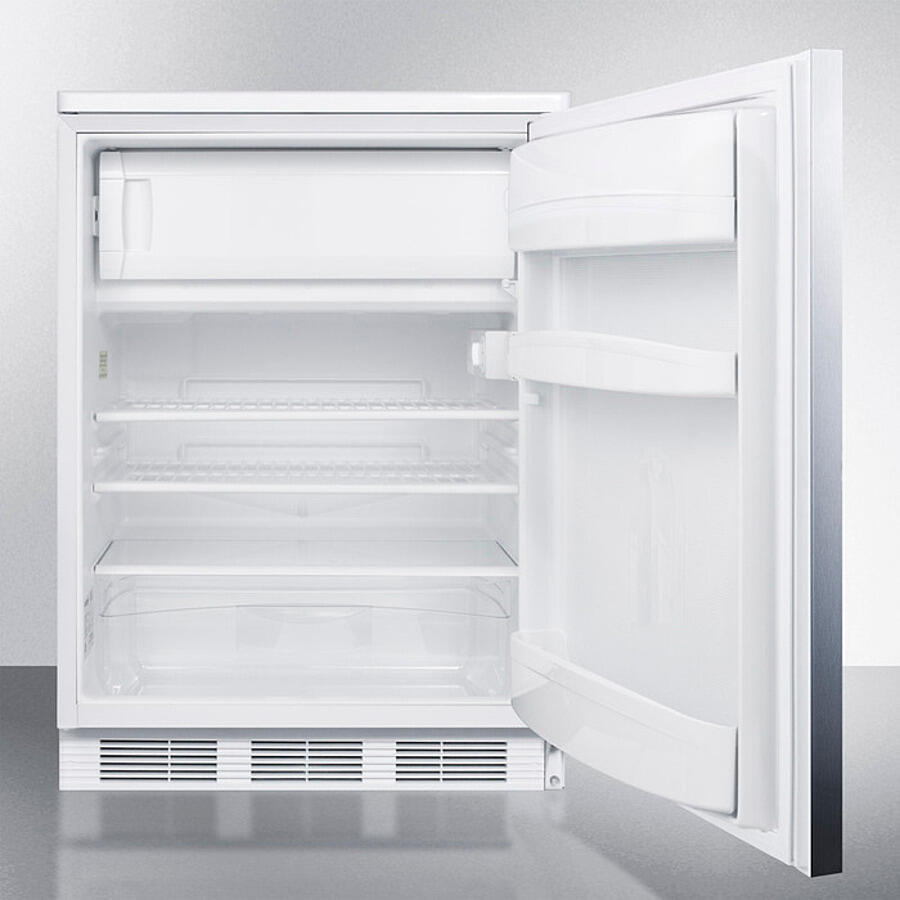

- Adjustable shelves: Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup
- Crisper drawer: Get the longest life and best taste out of produce by storing greens in lower slide drawer
- Door shelves: Store tall bottles and condiments right on the door for convenient access
- Interior light: Automatically illuminates when the door is opened
- Adjustable thermostat: Dial thermostat located inside for easy temperature management
- Reversible door: User-reversible door swing for added flexibility
- Hidden evaporator: Cold wall design with hidden evaporator and seamless interior
- 100% CFC free: Environmentally friendly design does not contain ozone-damaging chemicals
Overview | |
Height of Cabinet | 33.5' (85 cm) |
Width | 23.63' (60 cm) |
Depth | 23.5' (60 cm) |
Depth with Handle | 25.63' (65 cm) |
Depth with door at 90° | 45.63' (116 cm) |
Capacity | 5.1 cu.ft. (144 L) |
Defrost Type | Cycle |
Door | Stainless Steel |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Amps | 1.4 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 100.0 lbs. (45 kg) |
Shipping Weight | 105.0 lbs. (48 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101068862 |
Refrigerator-Freezer | |
Door Swing | RHD |
Reversible | Yes |
Adjustable Shelves | Yes |
Crisper Qty | 1 |
Crisper Finish | Transparent |
Crisper Cover | Wire |
Interior Light | Yes |
Refrigerator - Interior Height | 19.5' (50 cm) |
Refrigerator - Interior Width | 20.5' (52 cm) |
Refrigerator - Interior Depth | 17.0' (43 cm) |
Refrigerator - Shelf Type | Wire |
Refrigerator - Shelf Qty | 2 |
Refrigerator - Full Door Shelves | 3 |
Freezer - Interior Height | 5.0' (13 cm) |
Freezer - Interior Width | 19.0' (48 cm) |
Freezer - Interior Depth | 11.5' (29 cm) |
Thermostat Type | Dial |
Fan Type | Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 0.92 oz. |
High Side PSI | 180.0 |
Low Side PSI | 80.0 |
Level Legs | 4 |
Compressor Step Height | 7.0' (18 cm) |
Compressor Step Width | 20.5' (52 cm) |
Compressor Step Depth | 5.0' (13 cm) |
Exterior | |
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout | TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order |
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices | Legs to raise unit height 6' high leveling legs |
CAS6 6' casters 6' high NSF listed casters | CAS3 3' casters 3' high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish |
Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations | Extra key Extra keys available for purchase |
SS Hinges Stainless steel top and bottom hinges | SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option |
ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar. | LHD - Left hand door swing Door reversal to left hand swing |
Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. | SSK Stainless steel kickplate factory installed |
HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix | DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac |
Agion Door Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface | Agion Door Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface |
Interior | |
FCGP internal fan with gel packs Internal fan with gel packs included for a stabilized interior | FC - Internal Fan Internal fan for even temperature distribution throughout the unit interior |
Door | |
STO-Step-To-Open Door Pedal Step-to-open door pedal allows hands | free access to open the door 90 degrees |
