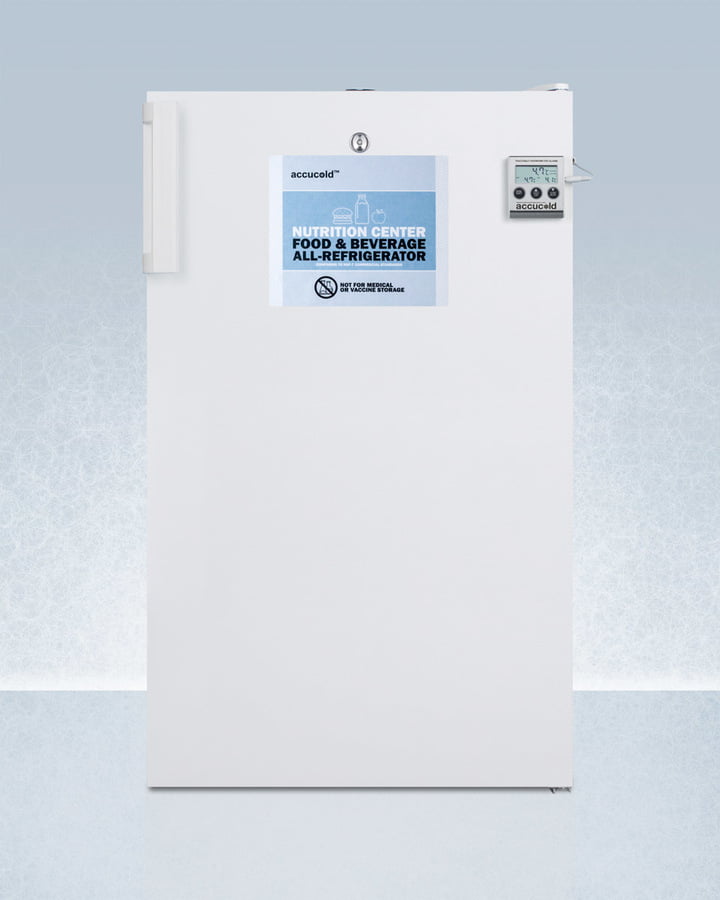

Summit FF511LBI7NZADA Commercially Approved Ada Compliant Nutrition Center Series All-Refrigerator In White For Built-In Or Freestanding Use, With Front Lock And Digital Temperature Display
(Ul)(Li)Commercially Approved To Nsf-7 Standards(/Li)(Li)Digital Temperature Display And Audible Alarm Allows Easier Temperature Monitoring As Recommended By Jcaho (/Li)(Li)Thermometer Is Nist Calibrated In Our Iso/Iec 17025:2005 Laboratory(/Li)(Li)32" Height Allows Installation Under Lower Ada Compliant Counters(/Li)(Li)Flexible Design Allows Built-In Or Freestanding Use In 20" Wide Spaces(/Li)(Li)Factory Installed Lock Located Towards The Top Of The Door For Convenient Security(/Li)(Li)Automatic Defrost Ensures Minimum User Maintenance(/Li)(/Ul) Accucold'S Nutrition Center Series Features Commercially Approved Refrigerators And Freezers Specifically Designed For The Storage Of Sealed Food And Beverages In A Variety Of Facilities, Including Break Rooms, Waiting Areas, Nurses' Stations, And More. The Ff511Lbi7Nzada Is An All-Refrigerator Sized Just Under 20" Wide. The Front-Breathing System And 32" Height Allows Built-In Installation Under Lower Ada Compliant Counters, While The Fully Finished Cabinet Also Allows Freestanding Use. This Unit Is Etl-S Listed To Nsf-7 Standards, With A Temperature Range Of 35 To 39 F Ideal For Sealed Food And Beverage Storage. The Door Includes A Digital Thermometer That Provides A Continuous External Display Of The Current And Minimum/Maximum Temperature To The Nearest Tenth Of A Degree, Making It Easier For Staff To Monitor And Record The Temperature As Needed. This Device Includes A Built-In Audible Alarm That Will Sound If The Unit Rises Or Falls Out Of The Set Temperature Range. The Temperature Probe Is Encased In A Glycol-Filled Bottle To Best Simulate The Temperature Of Stored Contents. All Temperature Display Devices Are Calibrated To Nist Standards In Our Iso/Iec 17025:2005 Laboratory And Include A Certificate Of Calibration. Inside, The Ff511Lbi7Nzada Utilizes Low Maintenance Automatic Defrost Operation. Adjustable Wire Shelves Allow Users To Reconfigure The Interior To Accommodate A Variety Of Sizes, With A Removable Crisper For Added Storage Convenience. The Flat Door Liner Helps To Maximize The Interior Depth. This Unit Includes An Interior Light On An On/Off Rocker Switch. The Ff511Lbi7Nzada Comes In A White Exterior Finish. The Factory Installed Lock Is Located Towards The Top Of The Door For Easier User Access. This Unit Includes A Hospital Grade Cord With A 'Green Dot' Plug That Stays More Securely In Wall Sockets, A Key Feature In Busy Institutional Settings. It Ships With A Standard Right Hand Door Swing, Or Can Be Ordered With Our "Lhd" Option For A Factory Reversal. This Model Can Be Paired With Our Matching Fs407Lbi7Nzada Freezer. Designed Specifically For Institutional Food And Beverage Storage, All Accucold'S Nutrition Centers Are Commercially Approved To Nsf Standards And Comply With Most Jcaho Recommendations For Safe Storage. Additional Sizes And Variations Are Available.
- Commercially approved: ETL-S listed to NSF-7 commercial standards for food and beverage storage
- ADA compliant: Sized at 32" high for use under lower ADA compliant counters
- 20" width: Uniquely slim width is ideal for facilities with limited floor space
- Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinets
- NIST calibrated temperature display: Thermometer provides continuous display of the current and high/low temperature to the nearest tenth of a degree, with a readout switchable from Celsius to Fahrenheit at the touch of a button
- High/low temperature alarm: Audible alarm sounds if the interior temperature rises or falls out of set range
- Versatile display: Temperature display can be switched from Celsius to Fahrenheit at the touch of a button
- Factory installed lock: Keyed lock conveniently located towards the top of the door for added security (2 keys included)
- Automatic defrost: Reduced maintenance with auto defrost system
- Adjustable epoxy-coated wire shelves: Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Interior light: Rocker switch light lets you turn the light on and off as needed
- Adjustable thermostat: Dial thermostat located inside for easy temperature management
- Flat door liner: Easy to clean, with more depth for storage
- Hospital grade cord with 'green dot' plug: Secure three-pronged cord for added unit safety
- Factory reversible door swing: Default door swing is RHD. For a left hand version, add option "LHD"
- Fully finished white cabinet: Allows the unit to be used freestanding
- Foamed-in-place cabinet: Designed to ensure a sufficiently insulated interior
- Magnetic door gasket: Quality door gaskets ensure a tight seal for energy savings and improved performance
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
Overview | |
Height of Cabinet | 32.0' (81 cm) |
Height to Hinge Cap | 32.25' (82 cm) |
Width | 19.25' (49 cm) |
Depth | 21.38' (54 cm) |
Depth with Handle | 23.0' (58 cm) |
Depth with door at 90° | 39.5' (100 cm) |
Capacity | 4.1 cu.ft. (116 L) |
Defrost Type | Automatic |
Door | White |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 1.4 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 65.0 lbs. (29 kg) |
Shipping Weight | 80.0 lbs. (36 kg) |
Estimated Time to Ship | 3 to 5 days |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Refrigerator Features | |
Door Swing | RHD |
Reversible | Factory Reversible |
Crisper Qty | 1 |
Crisper Finish | Transparent |
Crisper Cover | Glass |
Shelf Type | Wire |
Shelf Qty | 3 |
Adjustable Shelves | Yes |
Thermostat Type | Dial |
Refrigerant Type | R134a |
Refrigerant Amount | 1.75oz. |
High Side PSI | 205.0 |
Low Side PSI | 103.0 |
Interior Light | Yes |
Temperature Range | 35 to 39 F |
Dimensions | |
Interior Height | 28.5' (72 cm) |
Interior Width | 15.75' (40 cm) |
Interior Depth | 18.0' (46 cm) |
Compressor Step Height | 8.0' (20 cm) |
Compressor Step Width | 17.0' (43 cm) |
Compressor Step Depth | 6.75' (17 cm) |
Exterior | |
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout | DL2 - Factory installed NIST calibrated data logger USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar. | PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices |
DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management | CAS6 6' casters 6' high NSF listed casters |
Extra key Extra keys available for purchase | LHD - Left hand door swing Door reversal to left hand swing |
Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. | SSK Stainless steel kickplate factory installed |
HUM - Humidity sensor Humidity sensor with min/max readout | DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac |
Lock | |
KEYPAD Battery-powered keypad lock installed for keyless security | AC Keypad Keypad lock powered by appliance power cord for keyless security |
Interior | |
FCGP internal fan with gel packs Internal fan with gel packs included for a stabilized interior | FC - Internal Fan Internal fan for even temperature distribution throughout the unit interior |
