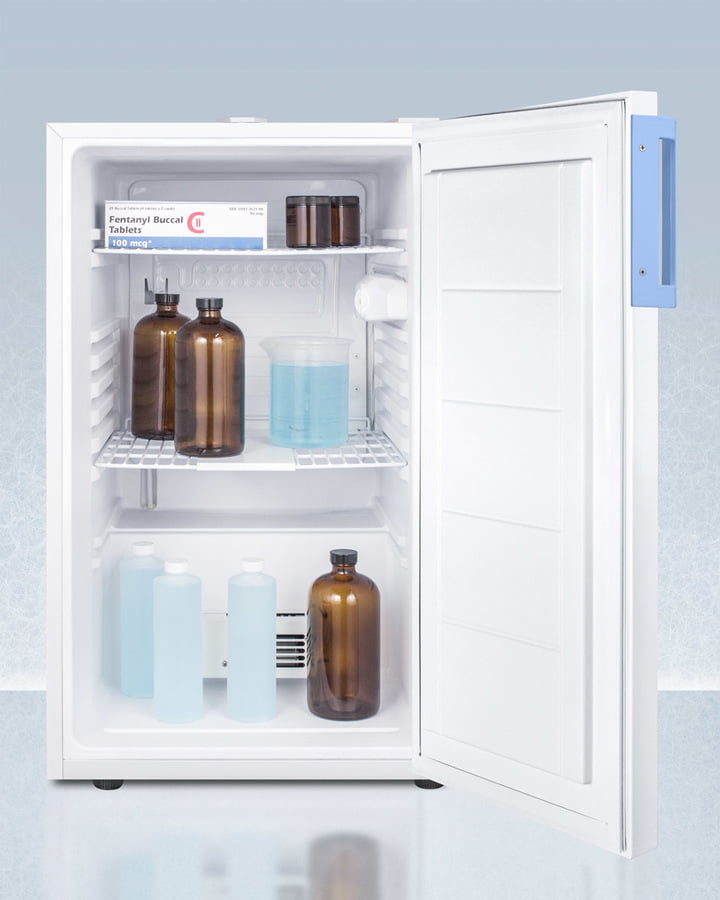

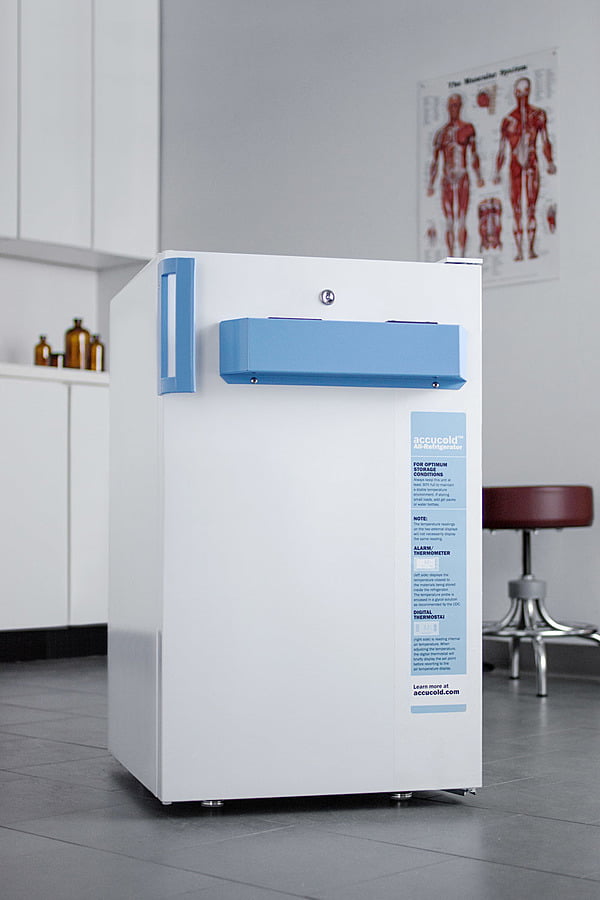

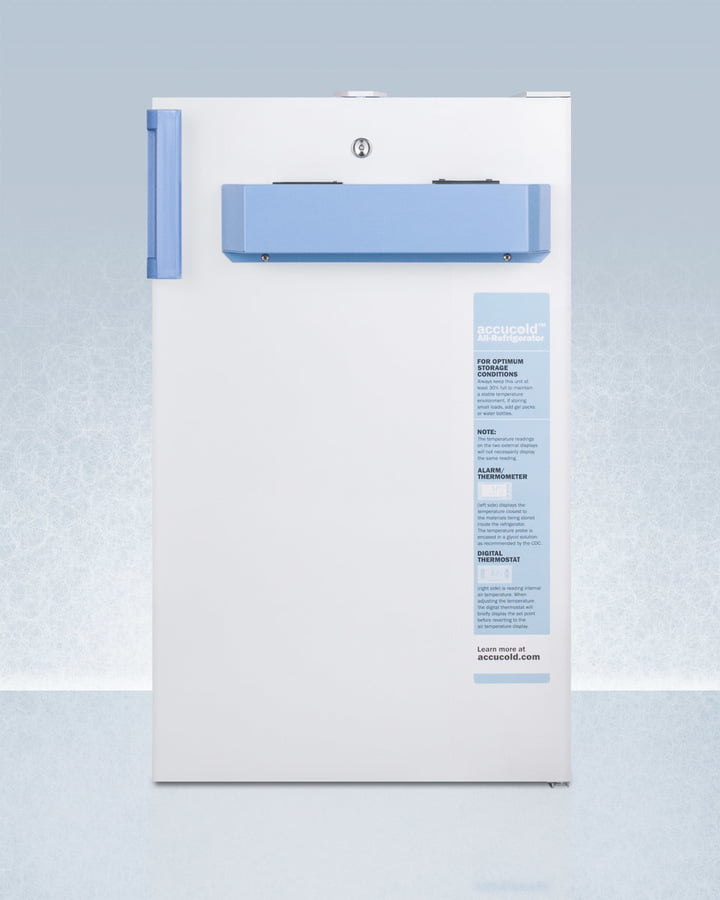

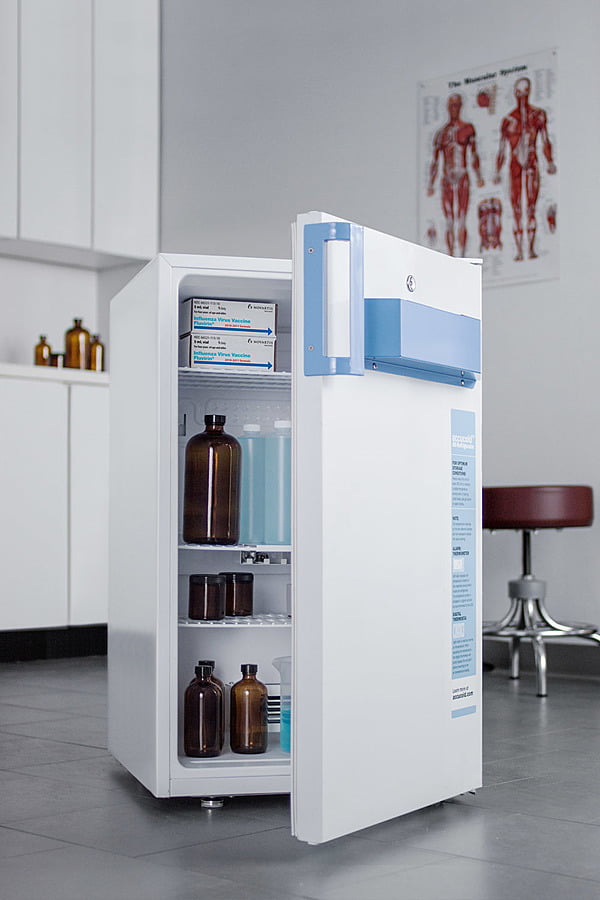

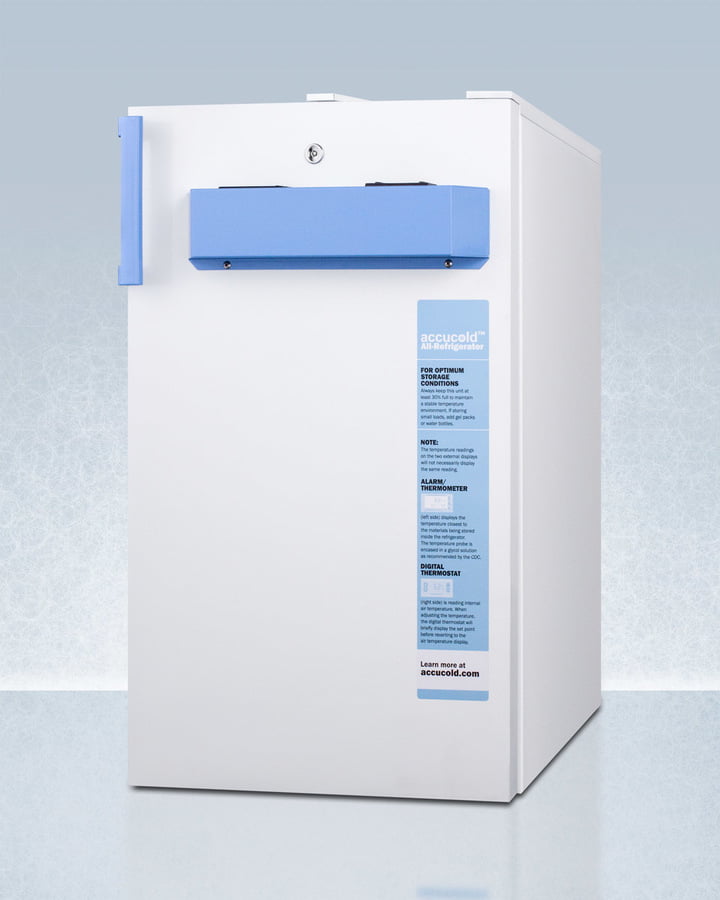

Summit FF511LBIMED2ADA Compact Refrigerator
Accucold'S Med2 Series Puts The Most Commonly Requested Features Into A Quality Line Of All-Refrigerators And Freezers Specially Designed To Store Vaccines And Other Sensitive Materials In Medical, Scientific, Pharmaceutical, And Laboratory Institutions. The Ff511Lbimed2Ada Is An All-Refrigerator Sized At 32 1/4" High And Just Under 20" Wide. The Front Breathing Design Allows Built-In Installation Under Lower Ada Compliant Counters, While The Fully Finished Cabinet In White Also Enables Freestanding Use. This Unit Is Designed With An External Front Control Panel That Allows Users To Adjust And Monitor The Temperature Without Opening The Door Or Bending Down To The Floor. The Front Keyed Lock Is Located Towards The Top Of The Door For Added Convenience. A Hospital Grade 'Green Dot' Cord Offers Added Safety In High Traffic Environments. As Recommended By The Cdc And Vfc Programs, The Ff511Bimed2Ada Is Equipped With A Nist Calibrated Thermometer That Displays The Current, Minimum, And Maximum Temperatures To The Nearest Tenth Of A Degree With A Readout Viewable In Celsius Or Fahrenheit. Each Ff511Lbimed2Ada Ships With A Certificate Of Calibration For Your Records. The Thermometer Includes An Audible Alarm To Warn Users If The Interior Has Gone Out Of The Programmed Temperature Range. The Buffered Temperature Probe Is Encased In A Glycol-Filled Bottle And Secured Inside The Center Shelf To Best Simulate The Temperature Of Other Stored Contents, Resulting In The Utmost Accuracy For Temperature Reporting. We Include A Pre-Installed 3/8" Probe Hole For Users Who Wish To Install Additional Monitoring Equipment. The Generous 4.1 Cu.Ft. Interior Capacity Includes Adjustable Wire Shelves For Optimum Circulation, With One Center Fixed Shelf To Keep The Temperature Probe In Place. This Unit Has A Flat Door Liner, Allowing You To Fit Deeper Trays Inside. An Energy Efficient Led Interior Light Offers Added Visibility And Easy Use With An On/Off Rocker Switch For Added Visibility. The Internal Fan Ensures The Interior Is Evenly Cooled From Top To Bottom. All Med2 Series Units Are Assembled In The Usa From Domestic And Imported Components. The Ff511Lbimed2Ada Can Be Paired With A Matching Low Temperature All-Freezer (Fs407Lbimed2Ada). This Unit Can Also Be Customized With Additional Features, Including A Self-Closing Door Or Usb Temperature Logger With A Digital Display. Contact Our Product Specialists To Learn More. Products In The Med2 Series Come With A Two Year Warranty On Parts And Labor And A Five Year Warranty On The Compressor. *Note: This Unit'S Thermostat Is Pre-Set For Celsius. If You Prefer Fahrenheit, Add Complimentary Option Dtmedf Or Let Your Sales Representative Know Upon Order.
- Reliable temperature stability: Designed and engineered to store vaccines and other sensitive materials under stable temperature conditions
- Built-in capable: Front-breathing system allows the unit to be used built-in
- ADA compliant: Sized at 32 1/4" high to allow installation under lower ADA compliant counters

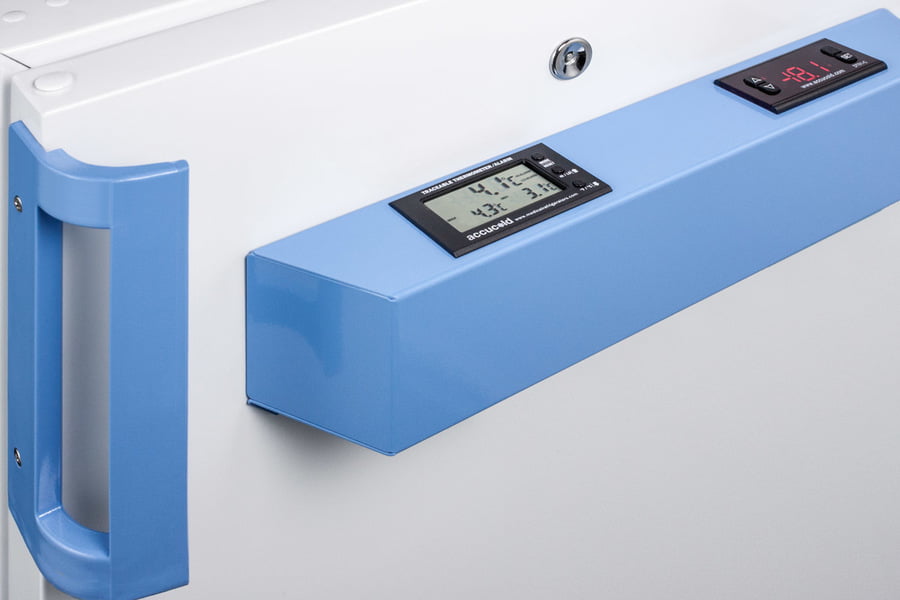

- Digital thermostat: Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience
- High/low temperature alarm: Audible alarm sounds if the interior temperature rises or falls out of set range
- NIST calibrated temperature display: Alarm includes continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button

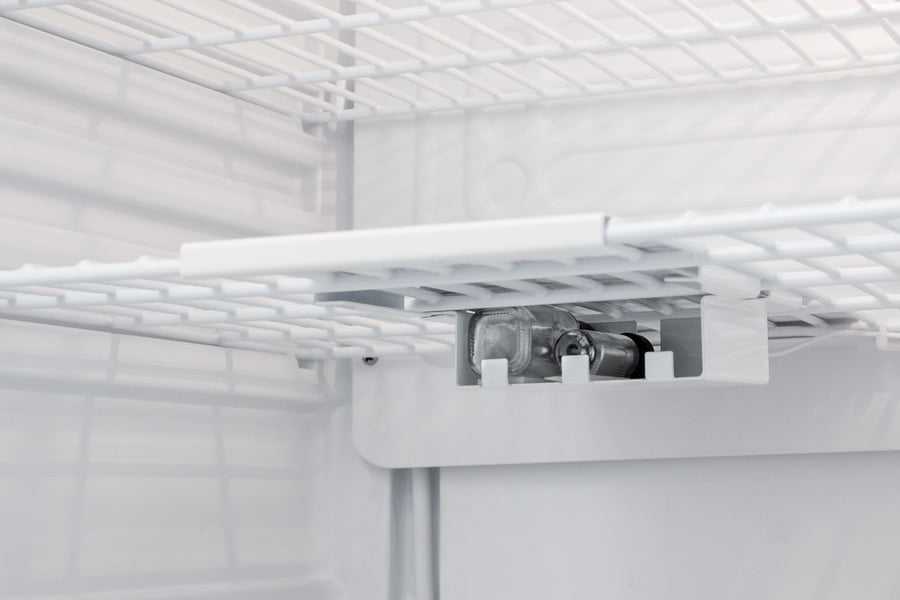

- Buffered temperature probe: Thermometer probe is encased in a glycol-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines
- Factory installed lock: Keyed lock conveniently located towards the top of the door for added security (2 keys included)
- Automatic defrost: Reduced maintenance with auto defrost system

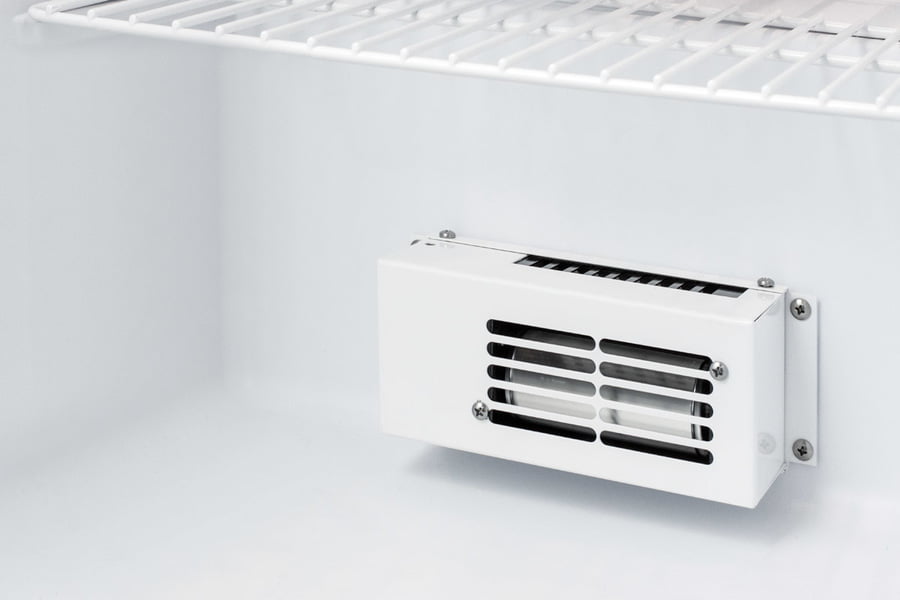

- Internal fan: Fan-forced cooling ensures the unit is evenly cooled from top to bottom
- Hospital grade cord with 'green dot' plug: Secure three-pronged cord for added unit safety in high traffic areas

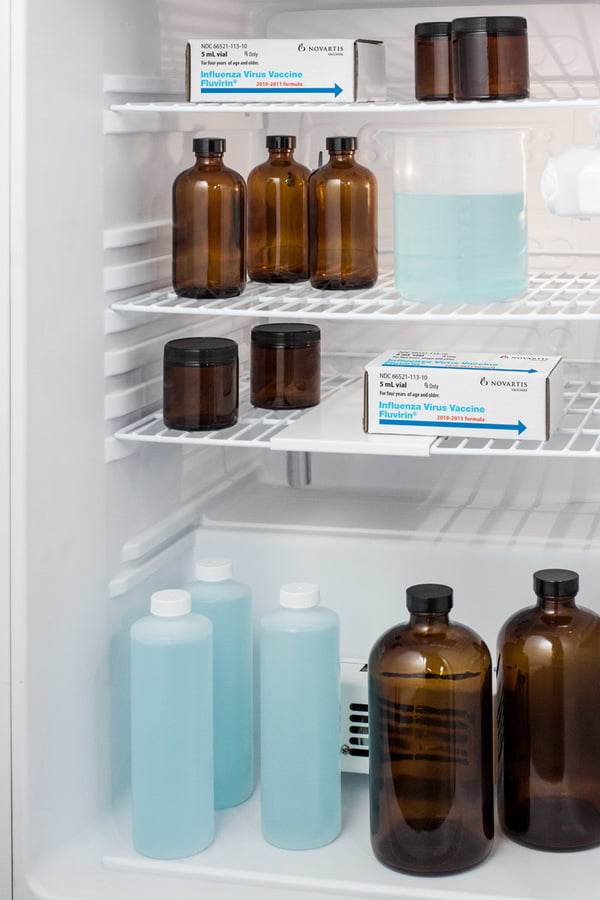

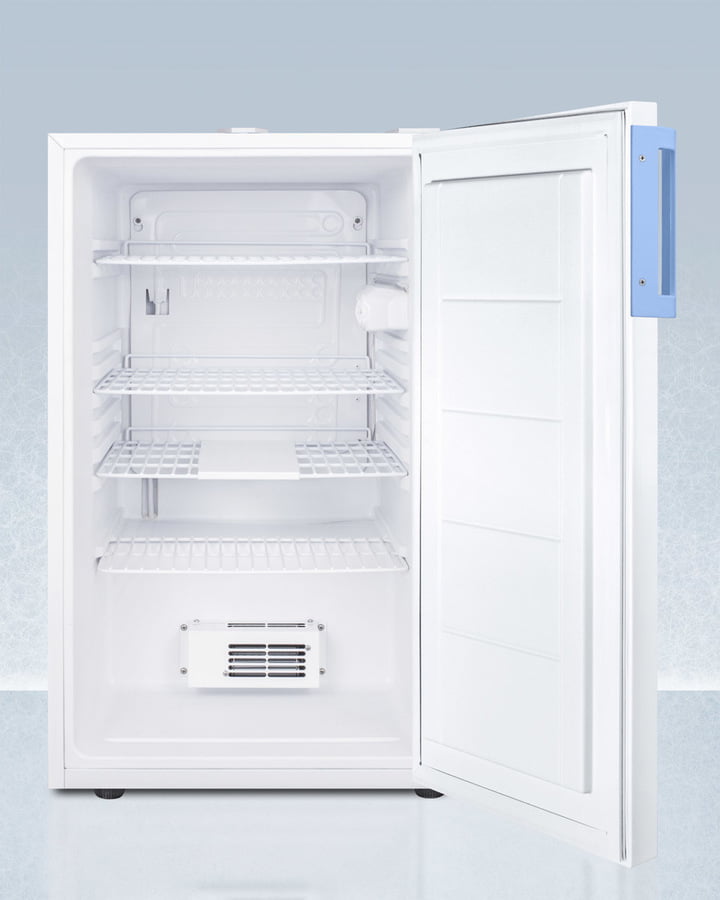

- Adjustable wire shelves: Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
- Flat door liner: Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

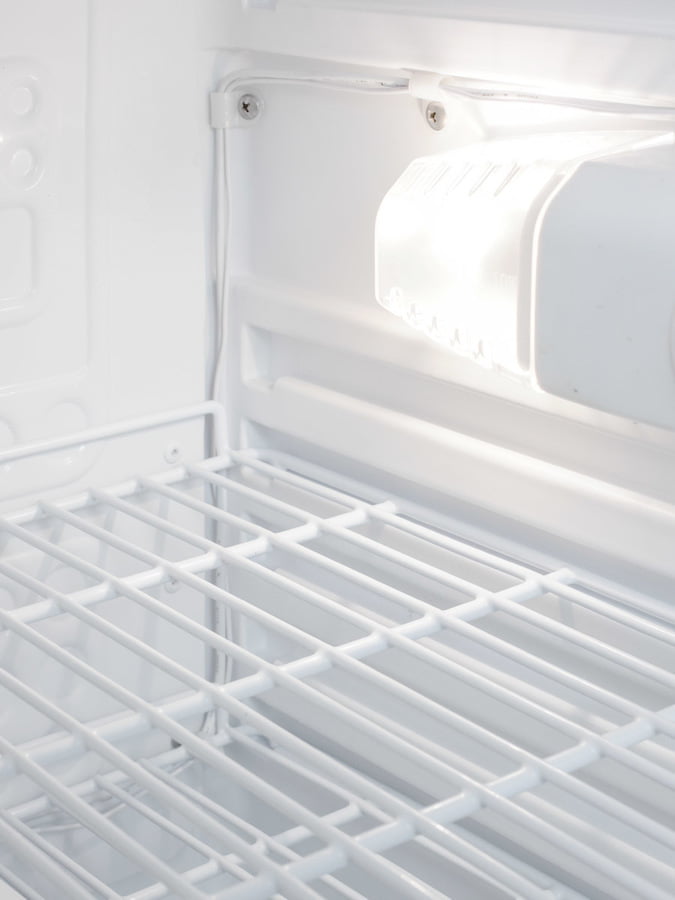

- LED lighting: Efficient lighting for the interior controlled by an on/off rocker switch that allows the user to manage the display
- 3/8" access port: Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
- Foamed-in-place cabinet: Quality design ensures efficiently insulated interior
- Fully finished white cabinet: Allows the unit to be used freestanding
- Magnetic door gasket: Quality door gaskets ensure a tight seal for energy savings and improved performance
- Matching freezer available: Pair with the FS407LBIMED2ADA to create a complete set
- Extended warranty: This unit comes with a two-year limited warranty on parts & labor and five-year warranty on the compressor
- Factory reversible door: Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)
- 100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals
Overview | |
Height of Cabinet | 32.25' (82 cm) |
Width | 19.25' (49 cm) |
Depth | 22.63' (57 cm) |
Depth with Handle | 24.63' (63 cm) |
Depth with door at 90° | 40.75' (104 cm) |
Capacity | 4.1 cu.ft. (116 L) |
Defrost Type | Automatic |
Door | White |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Amps | 1.4 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 70.0 lbs. (32 kg) |
Shipping Weight | 75.0 lbs. (34 kg) |
Parts & Labor Warranty | 2 Years |
Compressor Warranty | 5 Years |
Refrigerator Features | |
Door Swing | RHD |
Reversible | Factory Reversible |
Shelf Type | Wire |
Shelf Qty | 3 |
Adjustable Shelves | Yes |
Thermostat Type | Digital |
Fan Type | Interior and Exterior |
Refrigerant Type | R134a |
Refrigerant Amount | 1.75oz. |
High Side PSI | 205.0 |
Low Side PSI | 103.0 |
Level Legs Qty | 4 |
Interior Light | Yes |
Temperature Range | 2 to 8 C |
Dimensions | |
Interior Height | 28.5' (72 cm) |
Interior Width | 15.75' (40 cm) |
Interior Depth | 17.25' (44 cm) |
Compressor Step Height | 8.0' (20 cm) |
Compressor Step Width | 15.75' (40 cm) |
Compressor Step Depth | 6.5' (17 cm) |
Handle | |
CP Full-Length Copper Pipe Handle Factory-installed full-length handle made from pure copper for antimicrobial protection | TBC Copper Towel Bar Handle Factory-installed handle made from pure copper for antimicrobial protection |
Lock | |
KEYPAD Battery-powered keypad door lock installed for keyless security | AC Keypad Keypad door lock powered by appliance power cord for keyless security |
Exterior | |
Legs to raise unit height 6' high leveling legs | Extra key Extra keys available for purchase |
ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar. | LHD - Left hand door swing Door reversal to left hand swing |
Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. | DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac |
DTMEDF - Digital thermostat with Fahrenheit readout Change thermostat to read in Fahrenheit (no charge) | DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
