Summit FF63BBIIF Built-In Undercounter Auto Defrost All-Refrigerator For Residential Use With A Customizable Door Front To Accept Overlay Panels And Black Cabinet Finish
Flexible Design Allows Built-In Or Freestanding Use In 24" Spaces Customizable Door Front Accepts Full Overlay Panels For A Seamless Look That Can Blend Into Cabinetry Automatic Defrost Ensures Minimum User Maintenance Deluxe Interior With Glass Shelves, Door Storage, And A Scalloped Wine Shelf Made In Europe Summit Offers The Industry's Largest Selection Of Built-In Undercounter Refrigeration , With A Range Of Choices To Best Suit Any Kitchen. The Ff63Bbi Series Includes European Made All-Refrigerators Designed For Built-In Installation In Residential Settings. Sized With A 24" Footprint, The Ff63Bbiif Is Front-Breathing For Built-In Use. The Fully Finished Cabinet Also Allows Freestanding Use For Added Versatility. The Factory Reversible Door Includes An Integrated Stainless Steel Frame That Accepts Full Custom Panels (Sized 23 5/16" W X 28 1/4" H And At Least 3/4" Thick) To Create A Customized Look That Can Seamlessly Blend With Other Kitchen Cabinetry. This Model Has A Black Cabinet. Customers Provide Their Own Handle. The Ff63Bbiif Refrigerator Utilizes Automatic Defrost Operation To Ensure Minimum User Maintenance. The 5.5 Cu.Ft. Interior Offers More Storage Space Than Most Models In This Size Class. Adjustable Glass Shelves Ensure Spill-Proof Storage, While A Large Crisper Drawer Is Ideal For Keeping Produce At Its Best. A Removable Wine Shelf Lets You Keep Bottles Securely In Place. The Door Includes Three Storage Racks For Condiments And Tall Bottles. The Seamless Interior Also Features A Dial Thermostat And Automatic Light. Designed And Constructed In Europe, The Ff63Bbiif Refrigerator Offers Reliable Cold Storage For Any Home Looking To Install A Quality All-Refrigerator Under The Counter. For Additional Finish Options, Browse The Ff63Bbi Series.
- Built-in capable : Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Slim undercounter dimensions : Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit

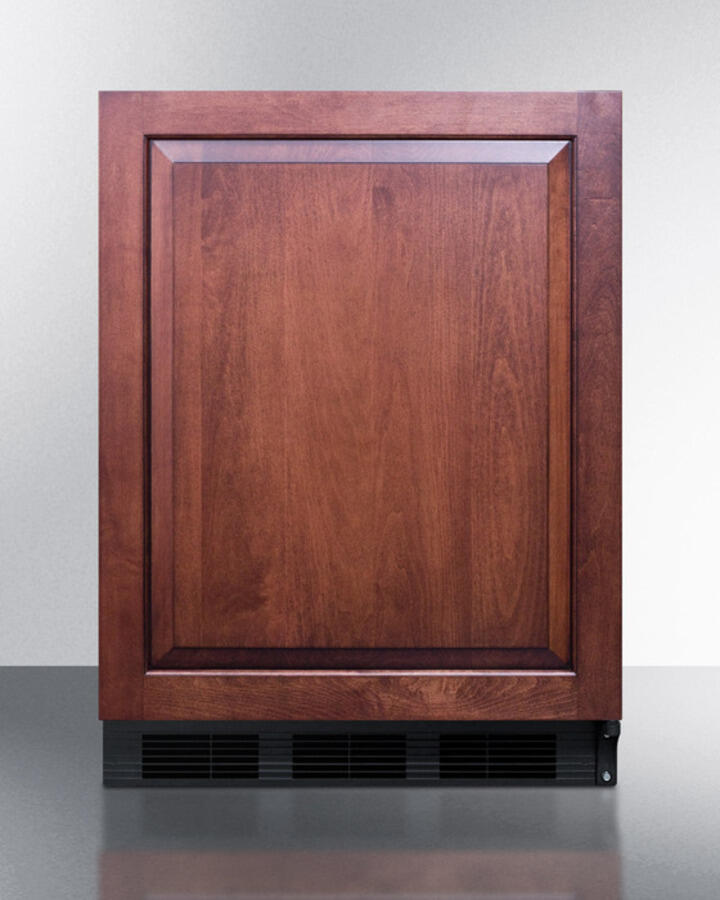

- Panel-ready door : Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
- Automatic defrost : Reduced maintenance with auto defrost system

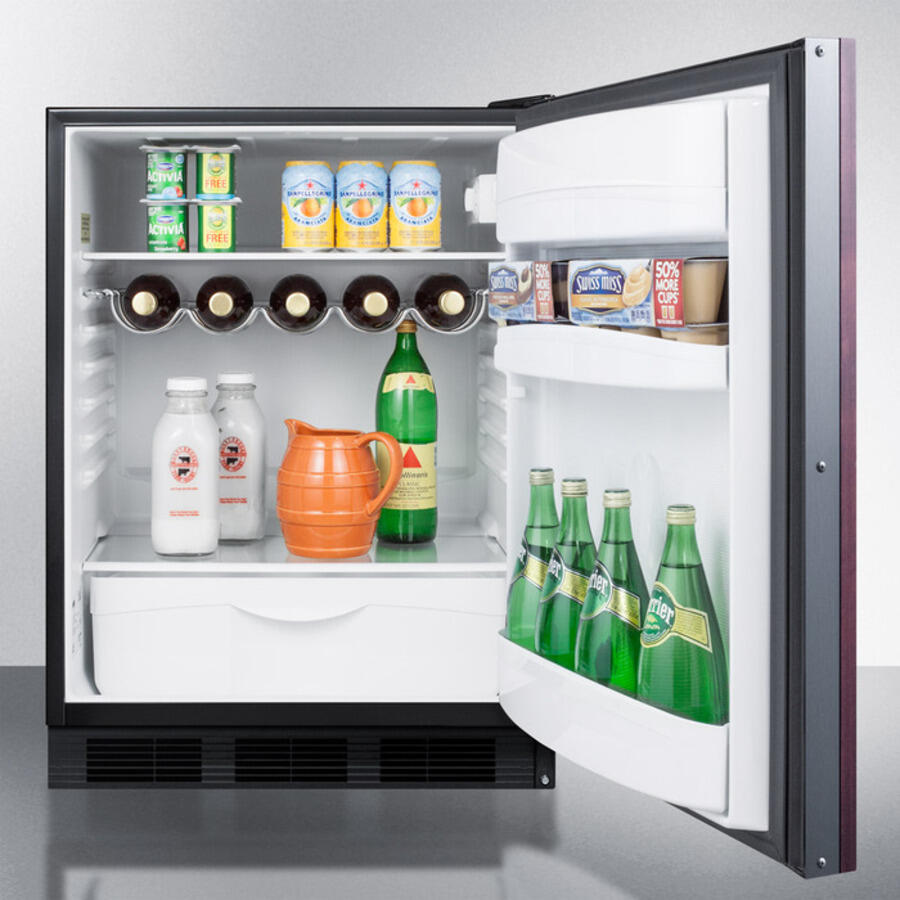

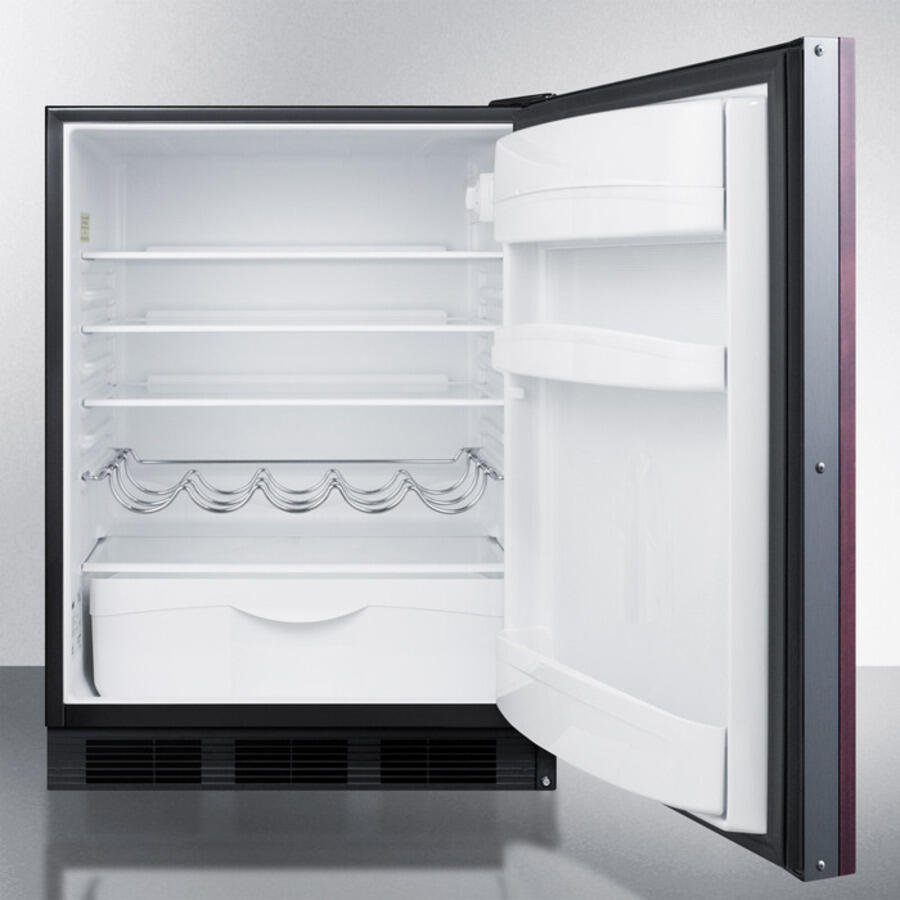

- Adjustable glass shelves : Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Door shelves : Store tall bottles and condiments right on the door for convenient access
- Wine shelf : Removable scalloped wine shelf is included to store champagne and wine bottles
- Fruit and vegetable crisper : Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
- Interior light : Automatically illuminates when you open the door
- Hidden evaporator : Cold wall design with hidden evaporator and seamless interior
- One piece interior liner : Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
- Adjustable thermostat : Dial thermostat located inside for easy temperature management

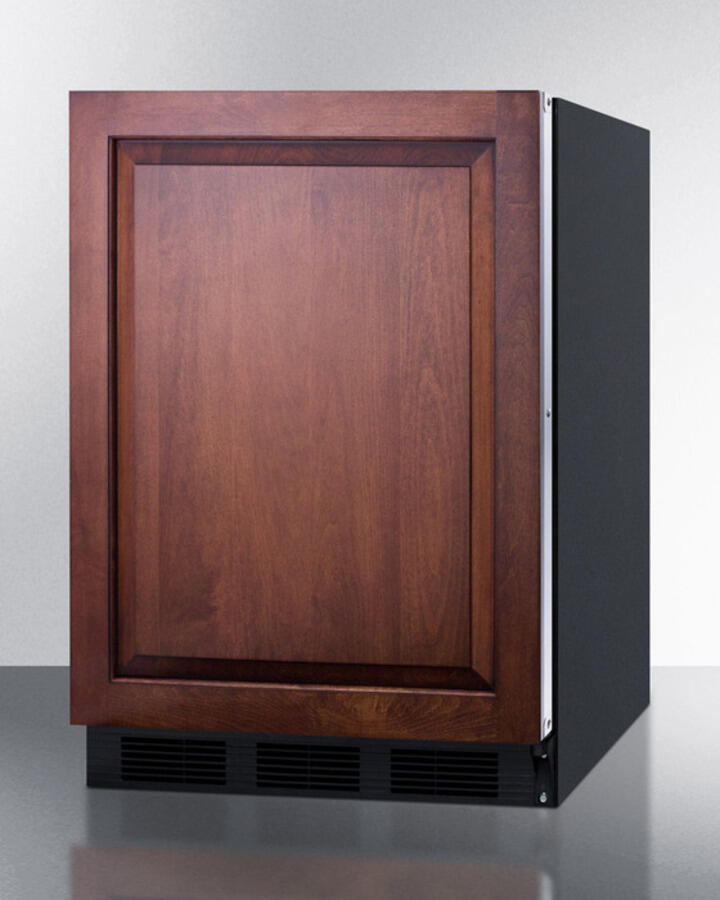

- Fully finished black cabinet : Allows the refrigerator to be used freestanding
- 100% CFC free : Environmentally friendly design without ozone-damaging chemicals
Overview | |
Height of Cabinet | 33.25' (84 cm) |
Width | 23.63' (60 cm) |
Depth | 23.0' (58 cm) |
Depth with door at 90° | 45.38' (115 cm) |
Capacity | 5.5 cu.ft. (156 L) |
Defrost Type | Automatic |
Door | Panel-Ready |
Cabinet | Black |
US Electrical Safety | UL |
Canadian Electrical Safety | ULC |
Sanitation | ETL-S |
Amps | 1.3 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 100.0 lbs. (45 kg) |
Shipping Weight | 105.0 lbs. (48 kg) |
Estimated Time to Ship | 2 to 4 days |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Refrigerator Features | |
Door Swing | RHD |
Reversible | Factory Reversible |
Crisper Qty | 1 |
Crisper Finish | Opaque |
Crisper Cover | Glass |
Shelf Type | Glass |
Shelf Qty | 3 |
Full Door Shelf Qty | 3 |
Wine Bottle Shelves | Yes |
Thermostat Type | Dial |
Fan Type | Exterior |
Refrigerant Type | R134a |
Refrigerant Amount | 1.7oz. |
High Side PSI | 285.0 |
Low Side PSI | 70.0 |
Level Legs Qty | 4 |
Interior Light | Yes |
Dimensions | |
Interior Height | 26.25' (67 cm) |
Interior Width | 21.0' (53 cm) |
Interior Depth | 18.0' (46 cm) |
Compressor Step Height | 5.5' (14 cm) |
Compressor Step Width | 21.0' (53 cm) |
Compressor Step Depth | 6.0' (15 cm) |
Exterior | |
DL2B - Factory installed NIST calibrated digital data logger (DDL) | TT - Installed thermometer |
PH - Probe Hole | Legs to raise unit height |
DT - Digital thermostat | CAS3 3' casters |
Alarm | SCD - Self-closing door |
ODA - Open door alarm | LHD - Left hand door swing |
Latch for door | SSK |
HUM - Humidity sensor | HG - Hospital grade cord |
DL1 - Factory installed data logger | - |
Lock | |
AC Keypad | KEYPAD |
Interior | |
FCGP internal fan with gel packs | FC - Internal Fan |
