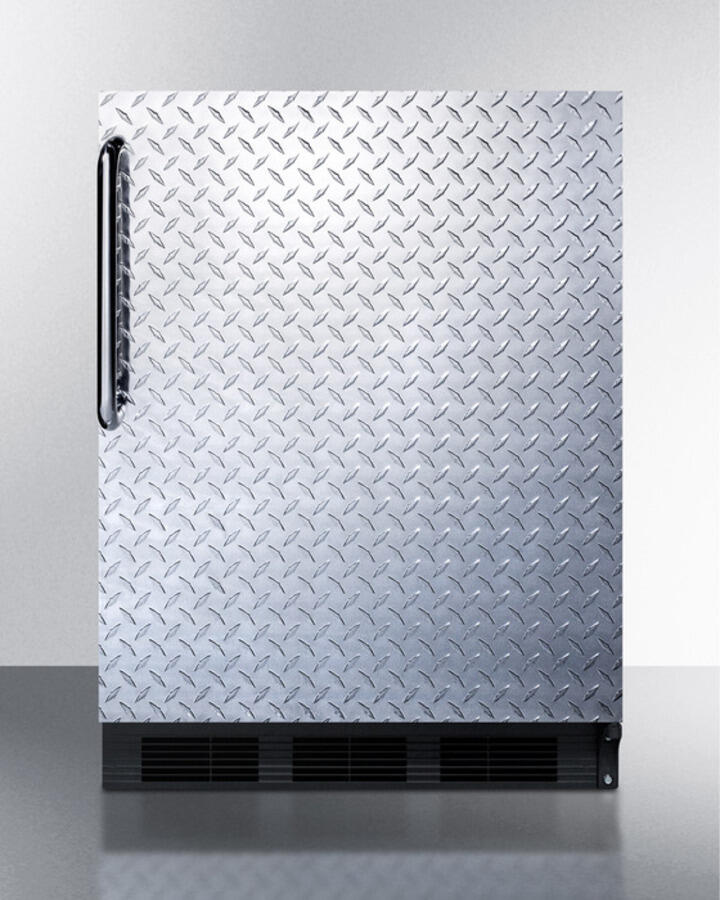

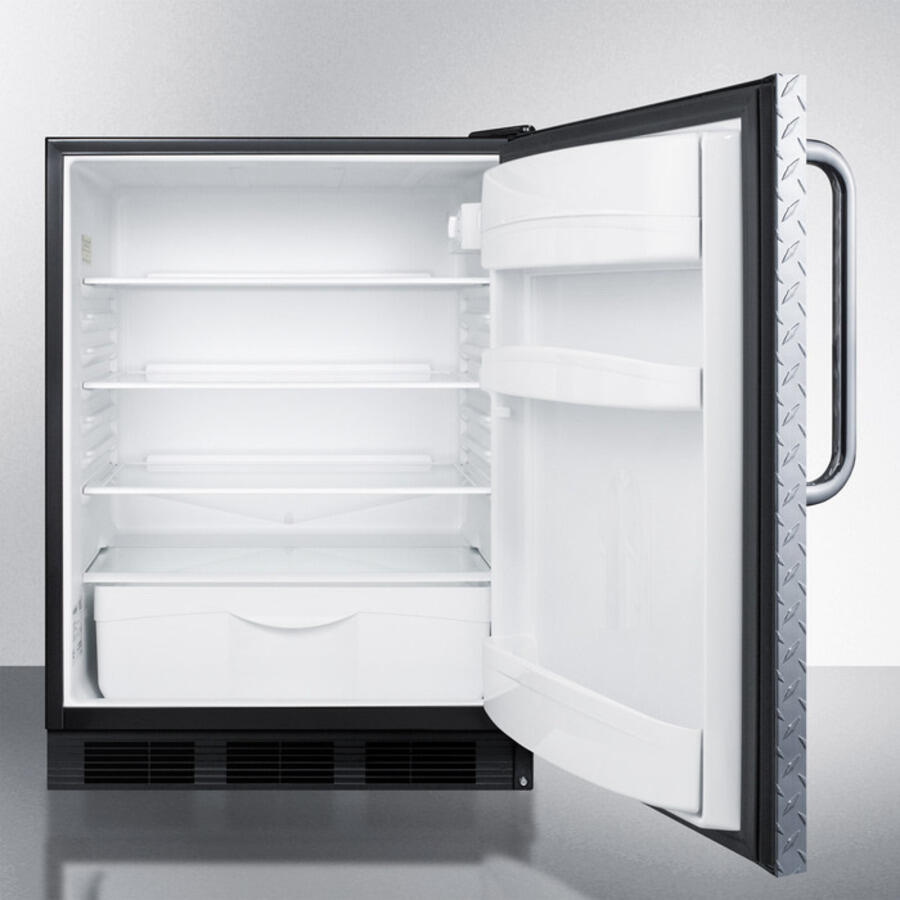

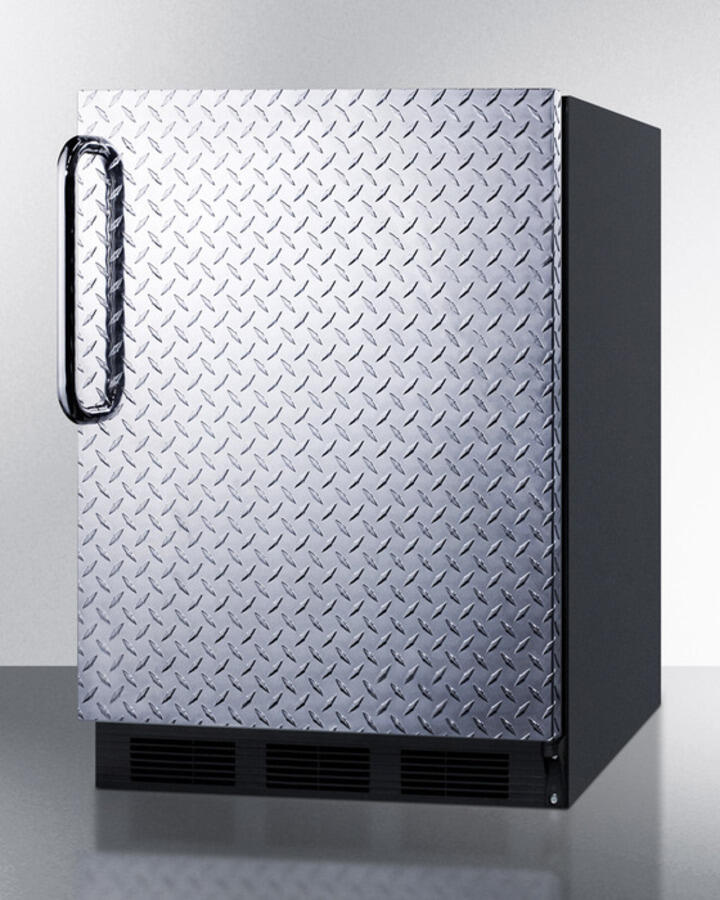

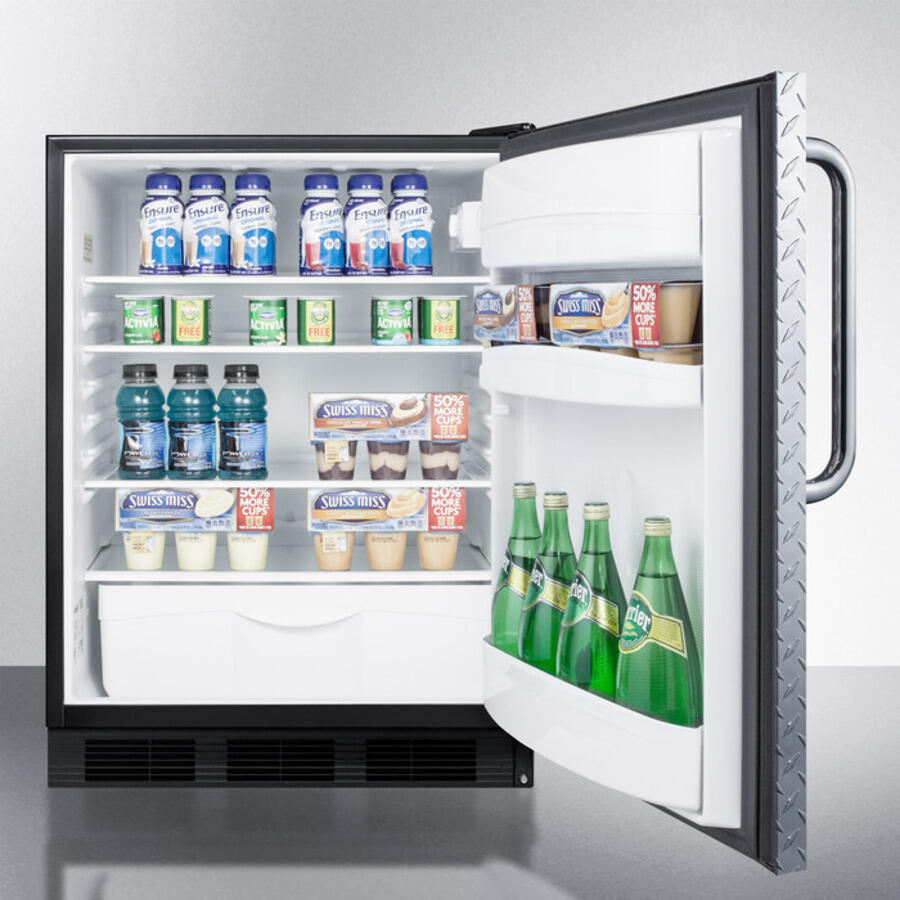

Summit FF6BBI7DPL Commercially Listed Built-In Undercounter All-Refrigerator For General Purpose Use, Auto Defrost W/Diamond Plate Door, Towel Bar Handle, And Black Cabinet
Commercially Approved For Use In Foodservice Establishments Flexible Design Allows Built-In Or Freestanding Use In 24" Spaces Includes Adjustable Glass Shelves For Flexible Storage Textured Diamond Plate Door In Aluminum With Polished Towel Bar Handle Offers An Industrial Look Automatic Defrost Ensures Minimum User Maintenance Made In Europe Accucold By Summit Appliance Offers A Wide Range Of All-Refrigerators For General Purpose Storage. The Ff6Bi7 Series Features Commercially Listed All-Refrigerators For Built-In Undercounter Installation, With Automatic Defrost And Deluxe Interiors Designed For Maximum Storage Convenience. The Ff6Bbi7Dpl Can Be Built-In Under Counters Or Used Freestanding. The 24" Footprint Is Ideal For Many Cutouts, While The Full 5.5 Cu.Ft. Interior Provides More Storage Than Most Units In This Size Class. This Unit Has Black Cabinet With A Unique Wrapped Aluminum Door With A Textured Diamond Plate Finish. A Curved Towel Bar Handle In Polished Stainless Steel Completes The Industrial Look. Inside, The Ff6Bbi7Dpl Utilizes Low Maintenance Automatic Defrost Operation. Our Unique "Hidden" Evaporator Is Set Behind The Rear Wall To Create A Seamless, Easy-To-Clean Interior That Also Maximizes Shelf Space To Provide Generous Storage. Adjustable Glass Shelves Allow Users To Reconfigure The Interior To Accommodate A Variety Of Sizes. Additional Features Include Automatic Interior Lighting, Door Storage, And A Crisper Drawer. This Unit Includes An Adjustable Dial Thermostat. The Ff6Bbi7Dpl Is Etl-S Listed To Nsf-7 Standards For Use In Commercial Establishments. For More Finish Options, Browse The Entire Ff6Bi7 Series. Note: This Unit Is Designed For General Purpose Or Commercial Applications And Does Not Meet Doe Energy Standards For Residential Use.
- Commercially approved: ETL-S Listed to ANSI-NSF Standard 7 and CalCode Compliant
- Slim undercounter dimensions: Less than 24 inches wide with a full 5.5 c.f. capacity
- Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Fully finished black cabinet: Allows the refrigerator to be used freestanding
- Height Adjustable: Adjustable legs allow the unit to be sized from 33 1/4" to 34 1/2" high
- Diamond plate door: Textured aluminum finish offers an industrial look
- Professional towel bar handle: Curved handle in polished stainless steel completes the look
- Automatic defrost: Reduced user maintenance with automatic defrost operation
- One piece interior liner: Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
- Hidden evaporator: Cold wall design with hidden evaporator and seamless interior
- Adjustable glass shelves: Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Fruit and vegetable crisper: Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
- Door shelves: Store tall bottles and condiments right on the door for convenient access
- Interior light: Automatically illuminates when you open the door
- Adjustable thermostat: Dial thermostat located inside for easy temperature management
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
Overview | |
Height of Cabinet | 33.25' (84 cm) |
Width | 23.63' (60 cm) |
Depth | 23.63' (60 cm) |
Depth with Handle | 26.13' (66 cm) |
Depth with door at 90° | 46.0' (117 cm) |
Capacity | 5.5 cu.ft. (156 L) |
Defrost Type | Automatic |
Door | Diamond Plate |
Cabinet | Black |
US Electrical Safety | UL |
Canadian Electrical Safety | ULC |
Sanitation | ETL-S |
Amps | 1.3 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 100.0 lbs. (45 kg) |
Shipping Weight | 105.0 lbs. (48 kg) |
Estimated Time to Ship | 2 to 4 days |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Refrigerator Features | |
Door Swing | RHD |
Reversible | Factory Reversible |
Crisper Qty | 1 |
Crisper Finish | Opaque |
Crisper Cover | Glass |
Shelf Type | Glass |
Shelf Qty | 3 |
Full Door Shelf Qty | 3 |
Adjustable Shelves | Yes |
Thermostat Type | Dial |
Fan Type | Exterior |
Refrigerant Type | R134a |
Refrigerant Amount | 1.8oz. |
High Side PSI | 285.0 |
Low Side PSI | 70.0 |
Level Legs Qty | 4 |
Interior Light | Yes |
Dimensions | |
Interior Height | 27.75' (70 cm) |
Interior Width | 20.0' (51 cm) |
Interior Depth | 17.5' (44 cm) |
Compressor Step Height | 7.0' (18 cm) |
Compressor Step Width | 20.0' (51 cm) |
Compressor Step Depth | 6.0' (15 cm) |
Exterior | |
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout | DL2 - Factory installed NIST calibrated data logger USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order | PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices |
Legs to raise unit height 6' high leveling legs | DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management |
CAS6 6' casters 6' high NSF listed casters | CAS3 3' casters 3' high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish |
Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations | SS Hinges Stainless steel top and bottom hinges |
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option | ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar. |
LHD - Left hand door swing Door reversal to left hand swing | Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. |
SSK Stainless steel kickplate factory installed | HUM - Humidity sensor Humidity sensor with min/max readout |
HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix | DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac |
Lock | |
L-Installed Lock Add a single key lock to the door with the L option | KEYPAD Battery-powered keypad door lock installed for keyless security |
AC Keypad Keypad door lock powered by appliance power cord for keyless security | AC Keypad Keypad door lock powered by appliance power cord for keyless security |
Interior | |
FCGP internal fan with gel packs Internal fan with gel packs included for a stabilized interior | FC - Internal Fan Internal fan for even temperature distribution throughout the unit interior |
