Summit FF6BI7IFADA Ada Compliant Commercial All-Refrigerator For Built-In General Purpose Use, Auto Defrost W/Integrated Door Frame For Overlay Panels And White Cabinet
32 Inch Height Fits Under Lower Ada Compliant Counters Commercially Approved For Use In Foodservice Establishments Customizable Door Front Accepts Full Overlay Panels For A Seamless Look That Can Blend Into Cabinetry Flexible Design Allows Built-In Or Freestanding Use In 24" Spaces Automatic Defrost Ensures Minimum User Maintenance Includes Door Storage And Adjustable Shelves Made In Europe Accucold By Summit Appliance Offers A Wide Range Of All-Refrigerators For General Purpose Storage. The Commercially Listed Ff6Bi7Ada Series Features 24" Wide All-Refrigerators Designed For Built-In Undercounter Use In Ada Compliant Settings. The Ff6Bi7Ifada Is A 32" High All-Refrigerator With A Full 5.5 Cu.Ft. Capacity Inside A Slim 24" Footprint. The Front-Breathing Design Allows Built-In Use Under Counters, While The Fully Finished Cabinet Also Lets This Unit Be Used Freestanding. This Model Has A White Cabinet. The Factory Reversible Door Features An Integrated Stainless Steel Door Frame Designed To Accept Full Overlay Panels For A Custom Look (Panel Size: 23 5/16" W X 28 1/4" H). Users Provide Their Own Handle. Inside, The Ff6Bi7Ifada Utilizes Low Maintenance Automatic Defrost Operation. Our Unique "Hidden" Evaporator Is Set Behind The Rear Wall To Create A Seamless, Easy-To-Clean Interior. Adjustable Wire Shelves Allow Users To Reconfigure The Interior For Optimum Storage. Additional Features Include Automatic Interior Lighting, Door Storage, And A Crisper Drawer. This Unit Includes An Adjustable Dial Thermostat. The Ff6Bi7Ifada Is Etl-S Listed To Nsf-7 Standards For Use In Commercial Establishments. For More Finish Options, Browse The Entire Ff6Bi7Ada Series. Note: This Unit Is Designed For General Purpose, Medical, Or Commercial Applications And Does Not Meet Doe Energy Standards For Residential Use.
- Commercially approved: ETL-S listed to NSF-7 commercial standards
- ADA compliant: 32 inch height fits under standard ADA counters
- Slim undercounter dimensions: Less than 24 inches wide with a full 5.5 c.f. capacity
- Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Fully finished white cabinet: Allows the unit to be used freestanding

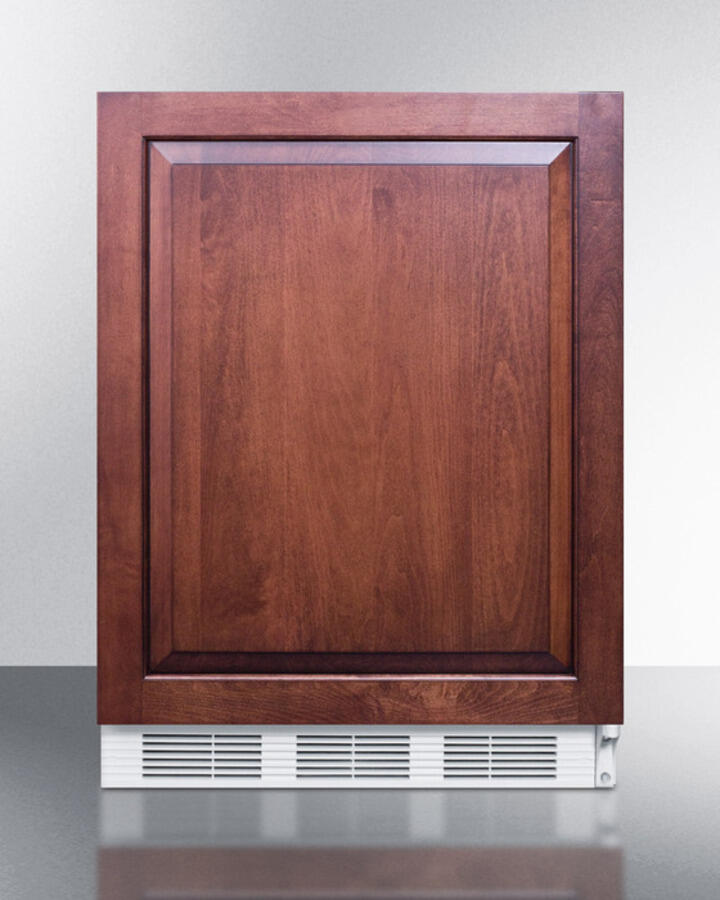

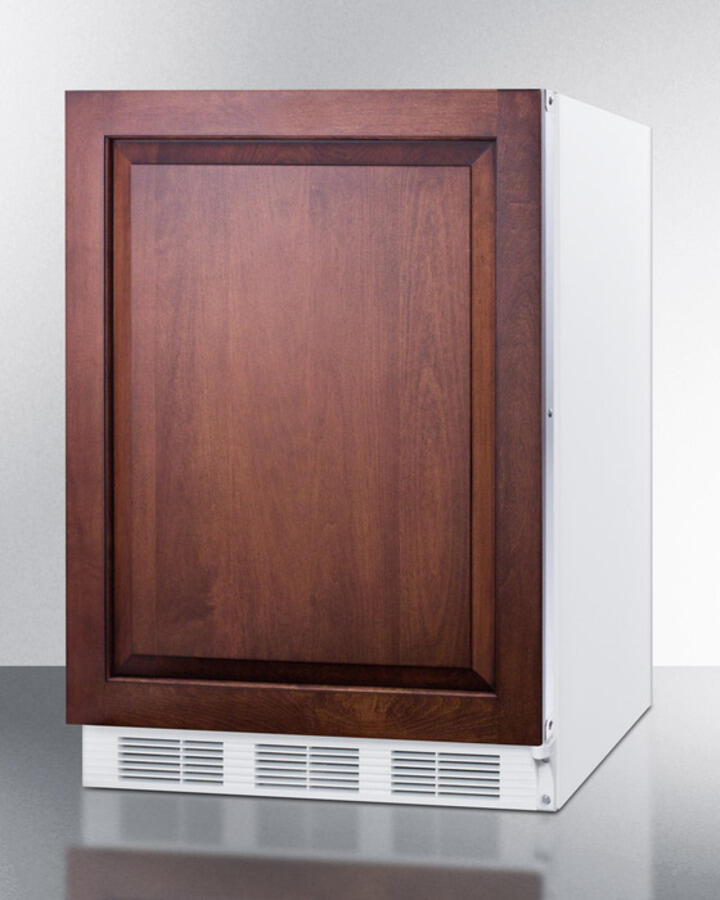

- Integrated door frame: Customize the front by mounting an overlay panel over the door; seamless look can blend into other cabinetry with no exposed frame. Handle not included (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
- Automatic defrost: Reduced maintenance with auto defrost system
- Hidden evaporator: Cold wall design with hidden evaporator and seamless interior
- One piece interior liner: Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

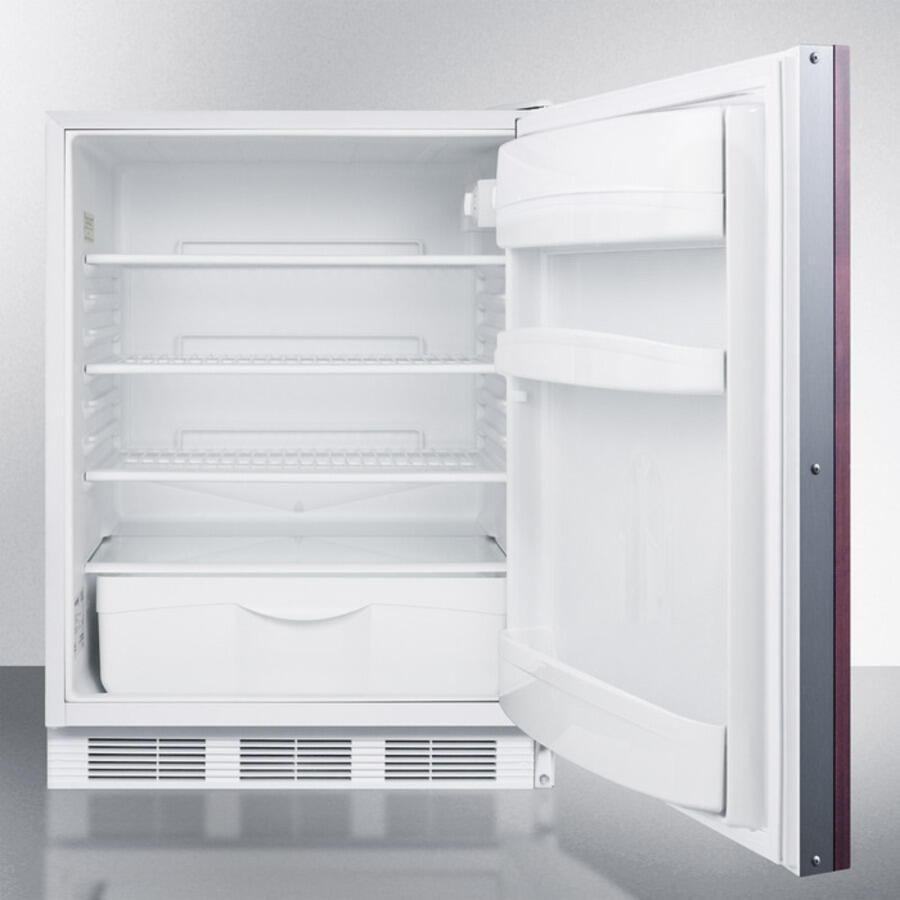

- Adjustable shelves: Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

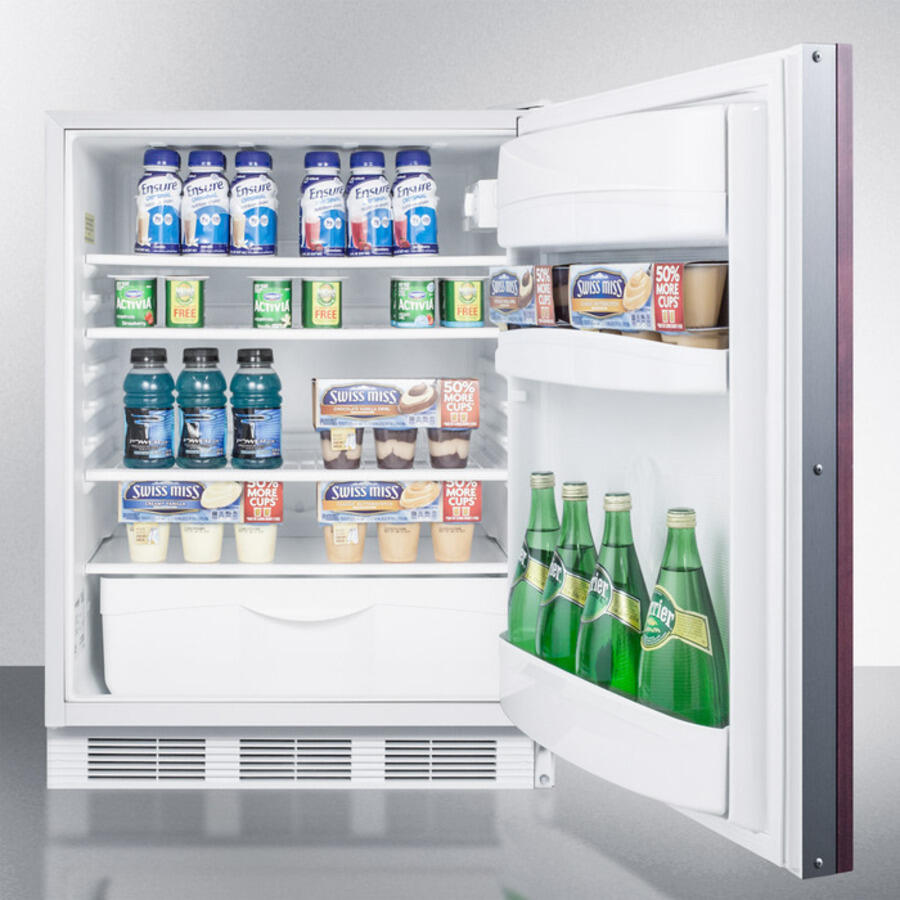

- Door shelves: Keep tall bottles and condiments right on the door for convenient access
- Fruit and vegetable crisper: Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
- Interior light: Automatically illuminates when you open the door
- Adjustable thermostat: Dial thermostat located inside for easy temperature management
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
Overview | |
Height of Cabinet | 32.0' (81 cm) |
Height to Hinge Cap | 32.25' (82 cm) |
Width | 23.63' (60 cm) |
Depth | 23.5' (60 cm) |
Depth with door at 90° | 45.63' (116 cm) |
Capacity | 5.5 cu.ft. (156 L) |
Defrost Type | Automatic |
Door | Panel-Ready |
Cabinet | White |
US Electrical Safety | UL |
Canadian Electrical Safety | ULC |
Sanitation | ETL-S |
Amps | 1.3 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 100.0 lbs. (45 kg) |
Shipping Weight | 105.0 lbs. (48 kg) |
Estimated Time to Ship | 2 to 4 days |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Refrigerator Features | |
Door Swing | RHD |
Reversible | Factory Reversible |
Crisper Qty | 1 |
Crisper Finish | Opaque |
Crisper Cover | Glass |
Shelf Type | Wire |
Shelf Qty | 3 |
Full Door Shelf Qty | 3 |
Adjustable Shelves | Yes |
Thermostat Type | Dial |
Fan Type | Exterior |
Refrigerant Type | R134a |
Refrigerant Amount | 1.8oz. |
High Side PSI | 285.0 |
Low Side PSI | 70.0 |
Level Legs Qty | 4 |
Interior Light | Yes |
Dimensions | |
Interior Height | 27.75' (70 cm) |
Interior Width | 20.0' (51 cm) |
Interior Depth | 17.5' (44 cm) |
Compressor Step Height | 7.0' (18 cm) |
Compressor Step Width | 20.0' (51 cm) |
Compressor Step Depth | 6.0' (15 cm) |
Exterior | |
DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac | HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix |
HUM - Humidity sensor Humidity sensor with min/max readout | SSK Stainless steel kickplate factory installed |
Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. | LHD - Left hand door swing Door reversal to left hand swing |
ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar. | SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option |
Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations | DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management |
TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order | PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices |
DL2 - Factory installed NIST calibrated data logger USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout | DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
Interior | |
FC - Internal Fan Internal fan for even temperature distribution throughout the unit interior | FCGP internal fan with gel packs Internal fan with gel packs included for a stabilized interior |
Lock | |
AC Keypad Keypad door lock powered by appliance power cord for keyless security | KEYPAD Battery-powered keypad door lock installed for keyless security |
L | Installed Lock Add a single key lock to the door with the L option |
