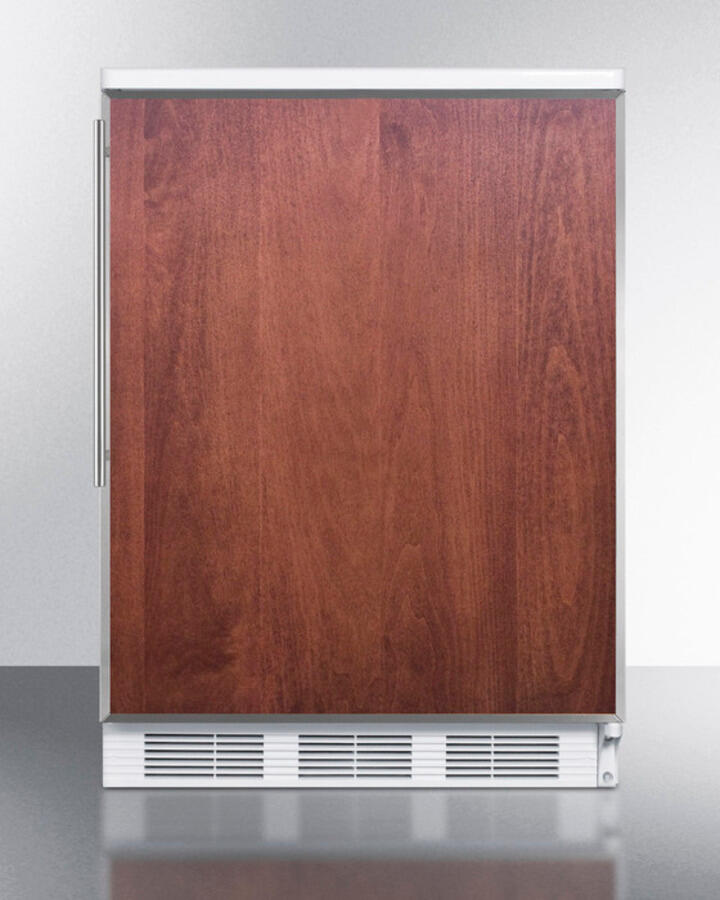

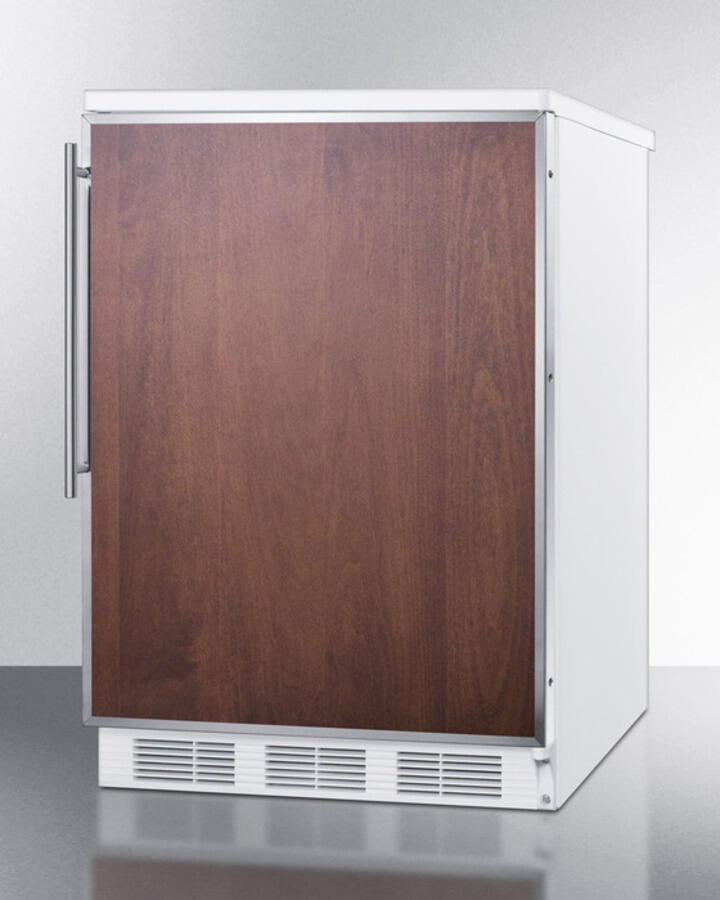

Summit FF6BIFR Built-In Undercounter All-Refrigerator For General Purpose Use, Auto Defrost W/Ss Door Frame For Slide-In Panels And White Cabinet
Flexible Design Allows Built-In Or Freestanding Use In 24" Spaces Stainless Steel Door Frame Accepts Slide-In Panels For A Custom Look Automatic Defrost Saves On User Maintenance Includes Door Storage And Adjustable Shelves Full 5.5 Cu.Ft. Capacity Inside A Convenient 24" Footprint Made In Europe Accucold By Summit Appliance Offers A Wide Range Of All-Refrigerators For General Purpose Storage. The Ff6Bi Series Features High Performing, Perfectly Sized All-Refrigerators For Built-In Undercounter Installation, With Automatic Defrost And Deluxe Interiors Designed For Maximum Storage Convenience. The Ff6Bifr Can Be Built-In Under Counters Or Used Freestanding. The 24" Footprint Is Ideal For Many Cutouts, While The Full 5.5 Cu.Ft. Interior Provides More Storage Than Most Units In This Size Class. This Unit Comes In A White Cabinet Finish. The Reversible Door Includes A Two-Piece Stainless Steel Door Frame That Accepts Slide-In Panels For A Custom Look (Size: 23" W X 28" H At Up To 1/4" Thick). A Stainless Steel Handle Is Included. Inside, The Ff6Bifr Utilizes Low Maintenance Automatic Defrost Operation. Our Unique "Hidden" Evaporator Is Set Behind The Rear Wall To Create A Seamless, Easy-To-Clean Interior That Also Maximizes Shelf Space To Provide Generous Storage. Adjustable Wire Shelves Allow Users To Reconfigure The Interior To Accommodate A Variety Of Sizes. Additional Features Include Automatic Interior Lighting, Door Storage, And A Crisper Drawer. This Unit Includes An Adjustable Dial Thermostat. With Its Ideal Size And Quality Design, The Ff6Bifr Is An Attractive And Reliable Refrigerator For A Variety Of General Purpose Applications. For More Finish Options, Browse The Entire Ff6Bi Series. Note: This Unit Is Designed For General Purpose Applications And Does Not Meet Doe Energy Standards For Residential Use.
- Slim undercounter dimensions: Less than 24 inches wide to fit tight spaces
- Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Fully finished cabinet: Allows the refrigerator to be used as a freestanding model
- Height Adjustable: Adjustable legs allow the unit to be sized from 33 1/2" to 34 3/4" high
- Stainless steel door frame: Two-piece U-shaped door frame in stainless steel accepts slide-in panels (sized 23" W x 28" H at up to 1/4" thick), allowing users to create a custom look to match or complement adjacent cabinetry
- Automatic defrost: Reduced user maintenance with automatic defrost operation
- Hidden evaporator: Cold wall design with hidden evaporator and seamless interior
- One piece interior liner: Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices

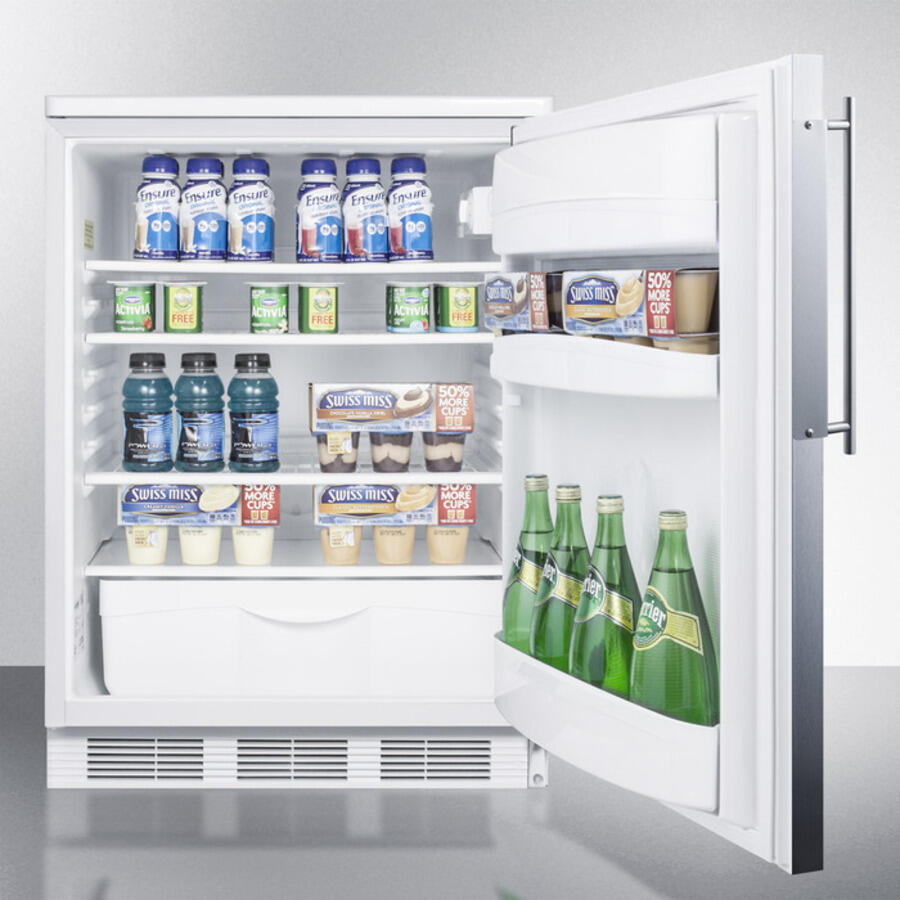

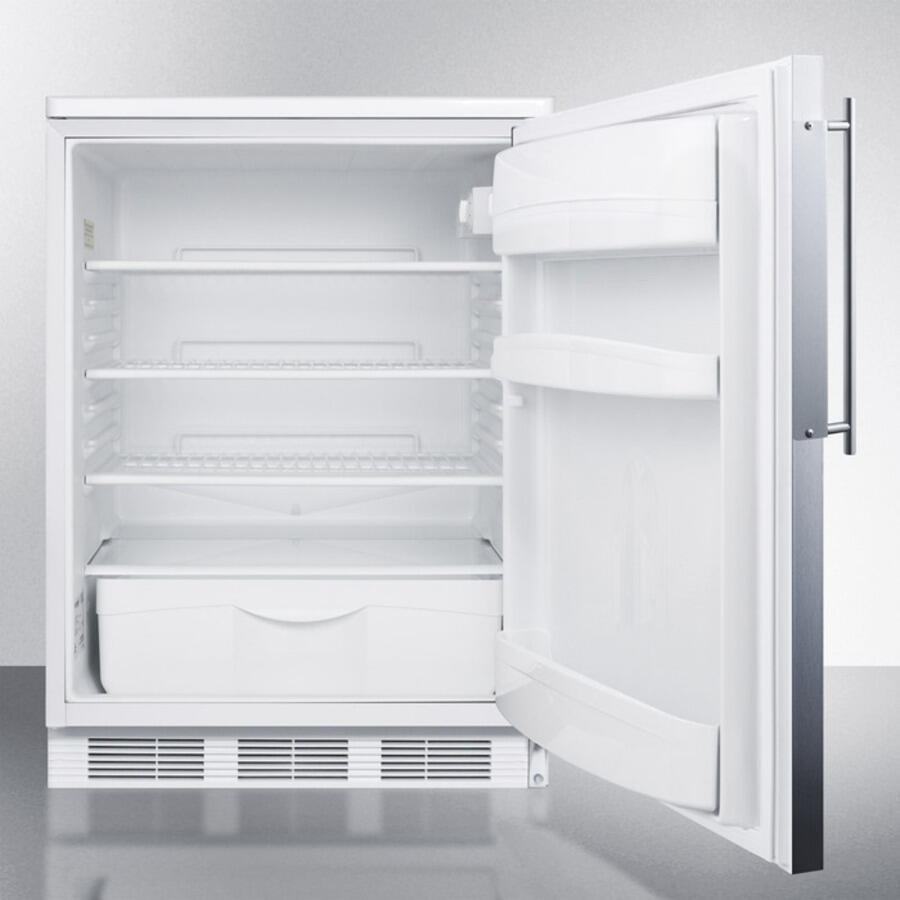

- Adjustable shelves: Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Crisper: Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
- Door storage: Store large bottles right on the door for easy access
- Adjustable thermostat: Dial thermostat located inside for easy temperature management
- Pro style handle: Stainless steel handle adds an attractive touch
- Reversible door: User-reversible door swing for added flexibility
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
Overview | |
Height of Cabinet | 33.5' (85 cm) |
Width | 23.63' (60 cm) |
Depth | 23.5' (60 cm) |
Depth with Handle | 25.13' (64 cm) |
Depth with door at 90° | 45.63' (116 cm) |
Capacity | 5.5 cu.ft. (156 L) |
Defrost Type | Automatic |
Door | Panel-Ready |
Cabinet | White |
US Electrical Safety | UL |
Canadian Electrical Safety | ULC |
Amps | 1.3 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 100.0 lbs. (45 kg) |
Shipping Weight | 105.0 lbs. (48 kg) |
Estimated Time to Ship | 2 to 4 days |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Refrigerator Features | |
Door Swing | RHD |
Reversible | Yes |
Crisper Qty | 1 |
Crisper Finish | Opaque |
Crisper Cover | Glass |
Shelf Type | Wire |
Shelf Qty | 3 |
Full Door Shelf Qty | 3 |
Adjustable Shelves | Yes |
Wine Bottle Shelves | Yes |
Thermostat Type | Dial |
Fan Type | Exterior |
Refrigerant Type | R134a |
Refrigerant Amount | 1.7oz. |
High Side PSI | 285.0 |
Low Side PSI | 70.0 |
Level Legs Qty | 4 |
Interior Light | Yes |
Dimensions | |
Interior Height | 27.75' (70 cm) |
Interior Width | 20.0' (51 cm) |
Interior Depth | 17.5' (44 cm) |
Compressor Step Height | 7.0' (18 cm) |
Compressor Step Width | 20.0' (51 cm) |
Compressor Step Depth | 6.0' (15 cm) |
Exterior | |
DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac | HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix |
HUM - Humidity sensor Humidity sensor with min/max readout | SSK Stainless steel kickplate factory installed |
Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. | LHD - Left hand door swing Door reversal to left hand swing |
ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar. | SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option |
Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations | CAS3 3' casters 3' high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish |
CAS6 6' casters 6' high NSF listed casters | DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management |
Legs to raise unit height 6' high leveling legs | PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices |
TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order | DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
Interior | |
FC - Internal Fan Internal fan for even temperature distribution throughout the unit interior | FCGP internal fan with gel packs Internal fan with gel packs included for a stabilized interior |
Lock | |
AC Keypad Keypad door lock powered by appliance power cord for keyless security | KEYPAD Battery-powered keypad door lock installed for keyless security |
L | Installed Lock Add a single key lock to the door with the L option |
