Summit FF6LBI7SSHHADA Ada Compliant Commercial All-Refrigerator For Built-In General Purpose Use, Auto Defrost W/Lock, Ss Wrapped Door, Horizontal Handle, And White Cabinet
Commercially Approved For Use In Foodservice Establishments 32 Inch Height Fits Under Lower Ada Compliant Counters Flexible Design Allows Built-In Or Freestanding Use In 24" Spaces Factory-Installed Lock Provides Security You Can Count On Stainless Steel Door Complete With Sleek Horizontal Handle Adds Luxury To Any Setting Automatic Defrost Ensures Minimum User Maintenance Full 5.5 Cu.Ft. Capacity Inside A Convenient 24" Footprint Includes Door Storage And Adjustable Shelves Made In Europe Accucold By Summit Appliance Offers A Wide Range Of All-Refrigerators For General Purpose Storage. The Commercially Listed Ff6Bi7Ada Series Features 24" Wide All-Refrigerators Designed For Built-In Undercounter Use In Ada Compliant Settings. The Ff6Lbi7Sshhada Is A 32" High All-Refrigerator With A Full 5.5 Cu.Ft. Capacity Inside A Slim 24" Footprint. The Front-Breathing Design Allows Built-In Use Under Counters, While The Fully Finished Cabinet Also Lets This Unit Be Used Freestanding. This Model Has A White Cabinet With A Reversible Stainless Steel Wrapped Door. A Thin Handle Is Mounted Horizontally For A Sleek, Modern Look And A Factory Installed Front Lock Offers Convenient Security. Inside, The Ff6Lbi7Sshhada Utilizes Low Maintenance Automatic Defrost Operation. Our Unique "Hidden" Evaporator Is Set Behind The Rear Wall To Create A Seamless, Easy-To-Clean Interior. Adjustable Wire Shelves Allow Users To Reconfigure The Interior For Optimum Storage. Additional Features Include Automatic Interior Lighting, Door Storage, And A Crisper Drawer. This Unit Includes An Adjustable Dial Thermostat. The Ff6Lbi7Sshhada Is Etl-S Listed To Nsf-7 Standards For Use In Commercial Establishments. For More Finish Options, Browse The Entire Ff6Bi7Ada Series. Note: This Unit Is Designed For General Purpose Or Commercial Applications And Does Not Meet Doe Energy Standards For Residential Use.
- Commercially approved: ETL-S listed to NSF-7 commercial standards
- ADA compliant: 32 inch height fits under standard ADA counters
- Slim undercounter dimensions: Less than 24 inches wide with a full 5.5 c.f. capacity
- Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Fully finished white cabinet: Allows the unit to be used freestanding

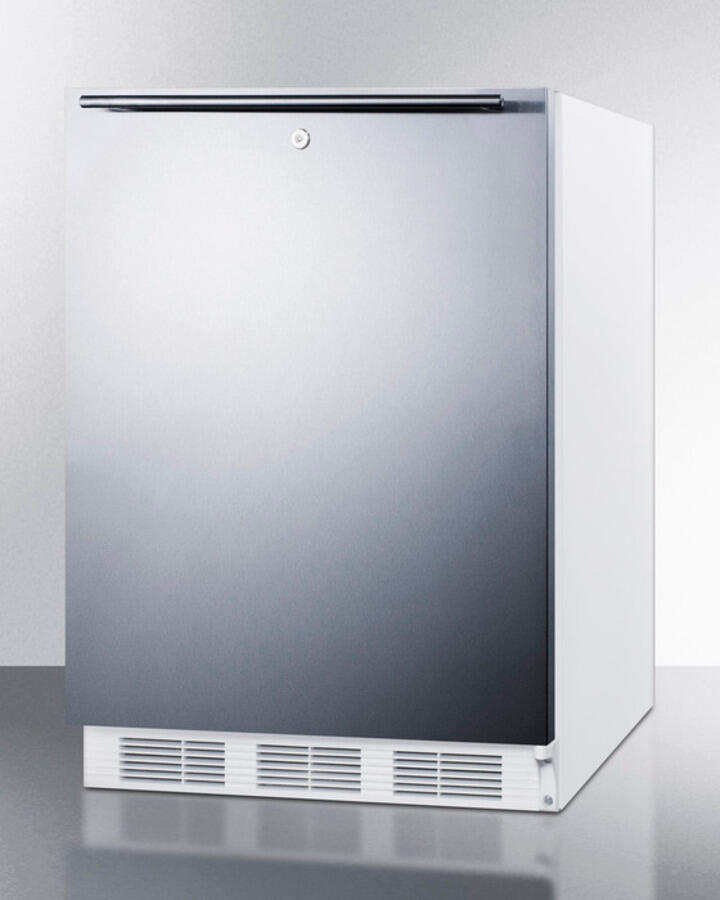

- Stainless steel wrapped door: Durable design with lasting elegance

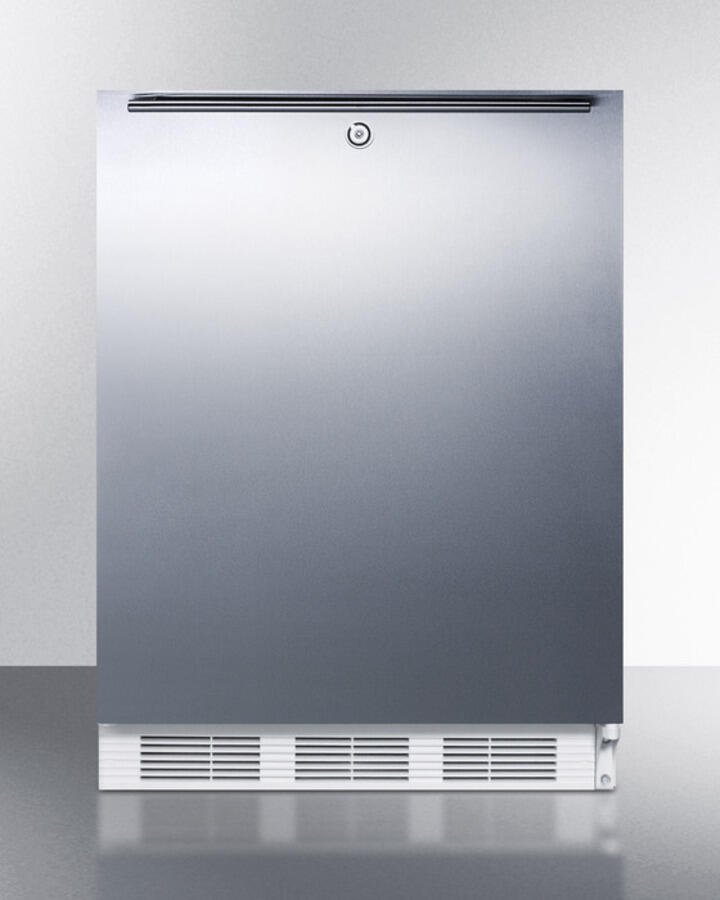

- Professional horizontal handle: Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look
- Factory installed lock: Keyed lock offers added security
- Automatic defrost: Reduced maintenance with auto defrost system
- Hidden evaporator: Cold wall design with hidden evaporator and seamless interior
- One piece interior liner: Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

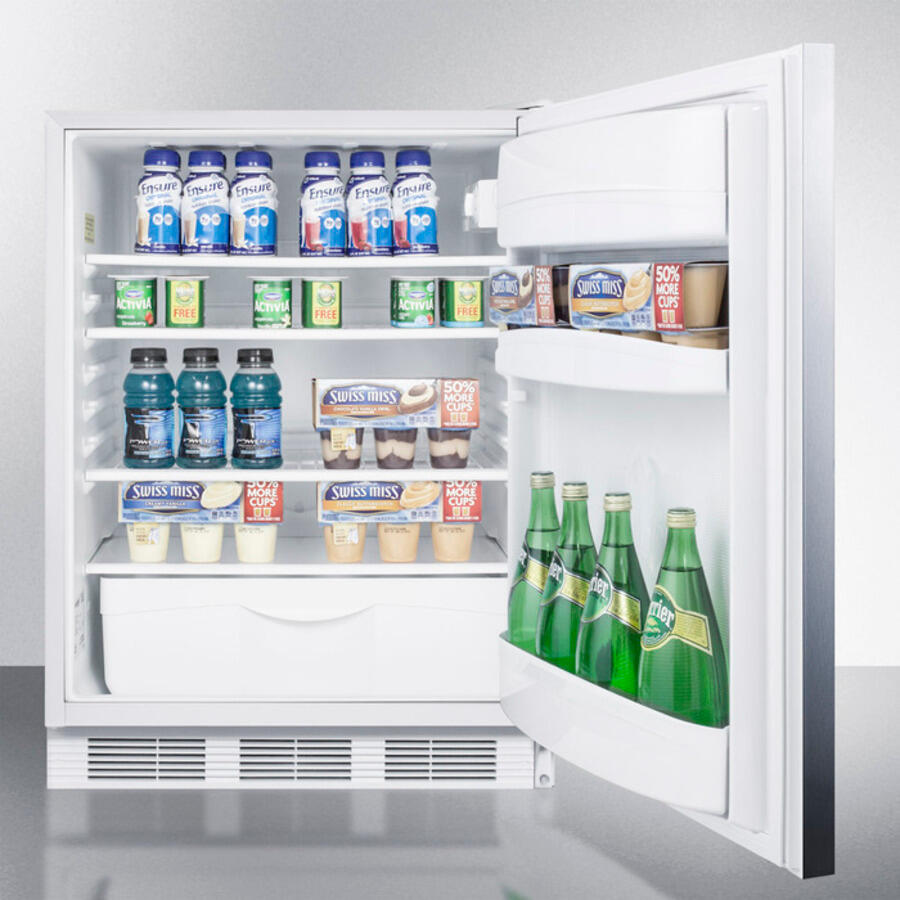

- Door shelves: Store large bottles right on the door for easy access

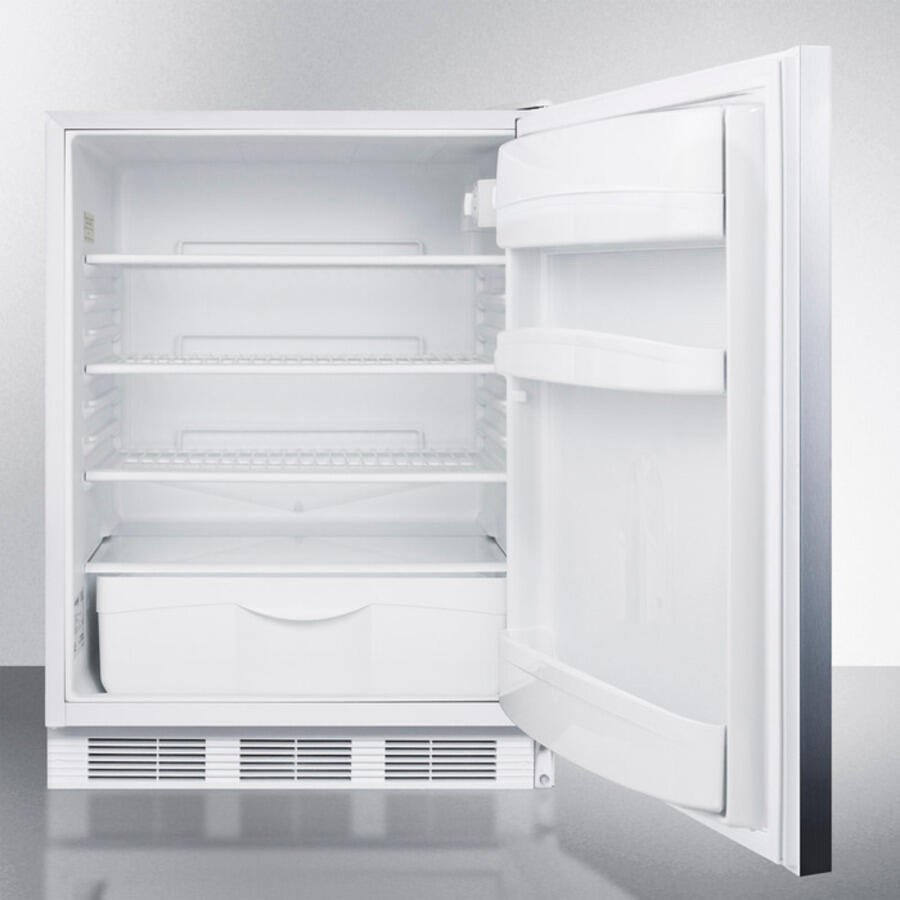

- Adjustable shelves: Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Crisper: Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
- Interior light: Automatically illuminates when you open the door
- Adjustable thermostat: Dial thermostat located inside for easy temperature management
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
- Reversible door: User-reversible door swing for added flexibility
Overview | |
Height of Cabinet | 32.0' (81 cm) |
Height to Hinge Cap | 32.25' (82 cm) |
Width | 23.63' (60 cm) |
Depth | 23.5' (60 cm) |
Depth with Handle | 25.13' (64 cm) |
Depth with door at 90° | 46.0' (117 cm) |
Capacity | 5.5 cu.ft. (156 L) |
Defrost Type | Automatic |
Door | Stainless Steel |
Cabinet | White |
US Electrical Safety | UL |
Canadian Electrical Safety | ULC |
Sanitation | ETL-S |
Amps | 1.3 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 100.0 lbs. (45 kg) |
Shipping Weight | 105.0 lbs. (48 kg) |
Estimated Time to Ship | 2 to 4 days |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Refrigerator Features | |
Door Swing | RHD |
Reversible | Yes |
Crisper Qty | 1 |
Crisper Finish | Opaque |
Crisper Cover | Glass |
Shelf Type | Wire |
Shelf Qty | 3 |
Full Door Shelf Qty | 3 |
Adjustable Shelves | Yes |
Thermostat Type | Dial |
Fan Type | Exterior |
Refrigerant Type | R134a |
Refrigerant Amount | 1.8oz. |
High Side PSI | 285.0 |
Low Side PSI | 70.0 |
Level Legs Qty | 4 |
Interior Light | Yes |
Dimensions | |
Interior Height | 27.75' (70 cm) |
Interior Width | 20.0' (51 cm) |
Interior Depth | 17.5' (44 cm) |
Compressor Step Height | 7.0' (18 cm) |
Compressor Step Width | 20.0' (51 cm) |
Compressor Step Depth | 6.0' (15 cm) |
Exterior | |
Agion Door Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface | DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac |
HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix | HUM - Humidity sensor Humidity sensor with min/max readout |
SSK Stainless steel kickplate factory installed | Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. |
LHD - Left hand door swing Door reversal to left hand swing | ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar. |
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option | SS Hinges Stainless steel top and bottom hinges |
Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations | DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management |
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices | TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order |
Extra key Extra keys available for purchase | DL2 - Factory installed NIST calibrated data logger USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user | set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
Interior | |
FCGP internal fan with gel packs Internal fan with gel packs included for a stabilized interior | FC - Internal Fan Internal fan for even temperature distribution throughout the unit interior |
Lock | |
AC Keypad Keypad door lock powered by appliance power cord for keyless security | KEYPAD Battery-powered keypad door lock installed for keyless security |
