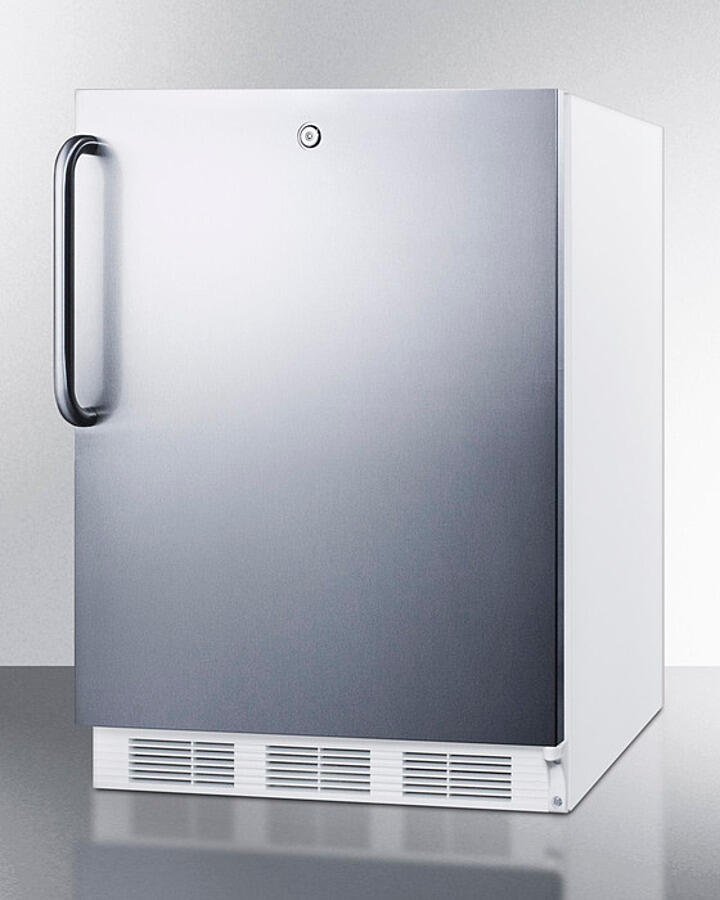

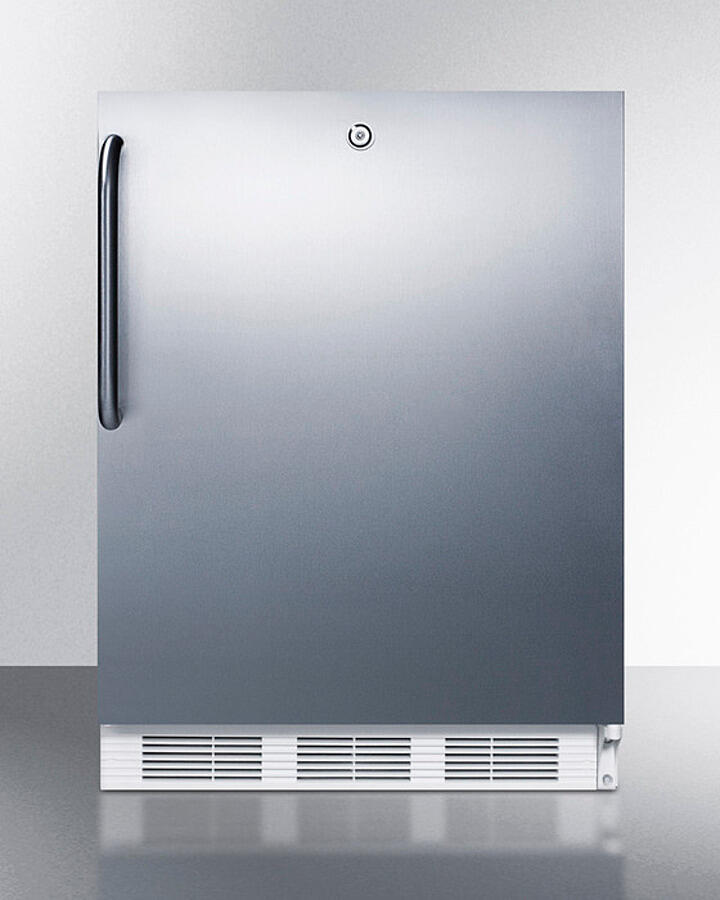

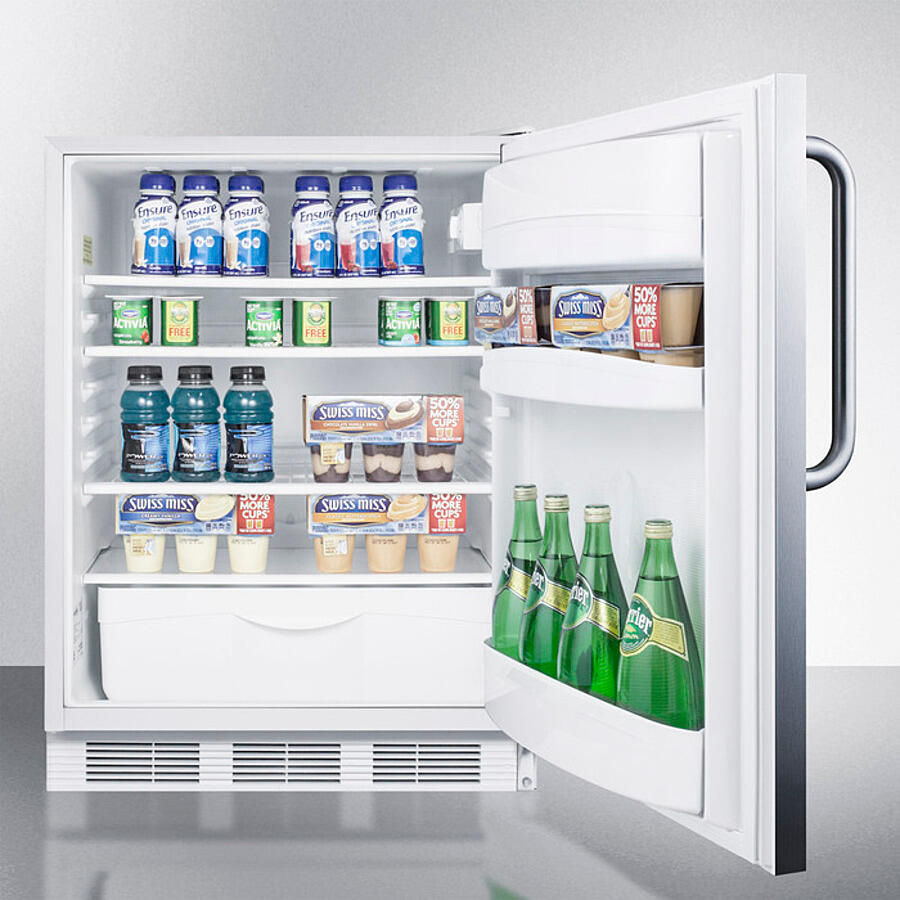

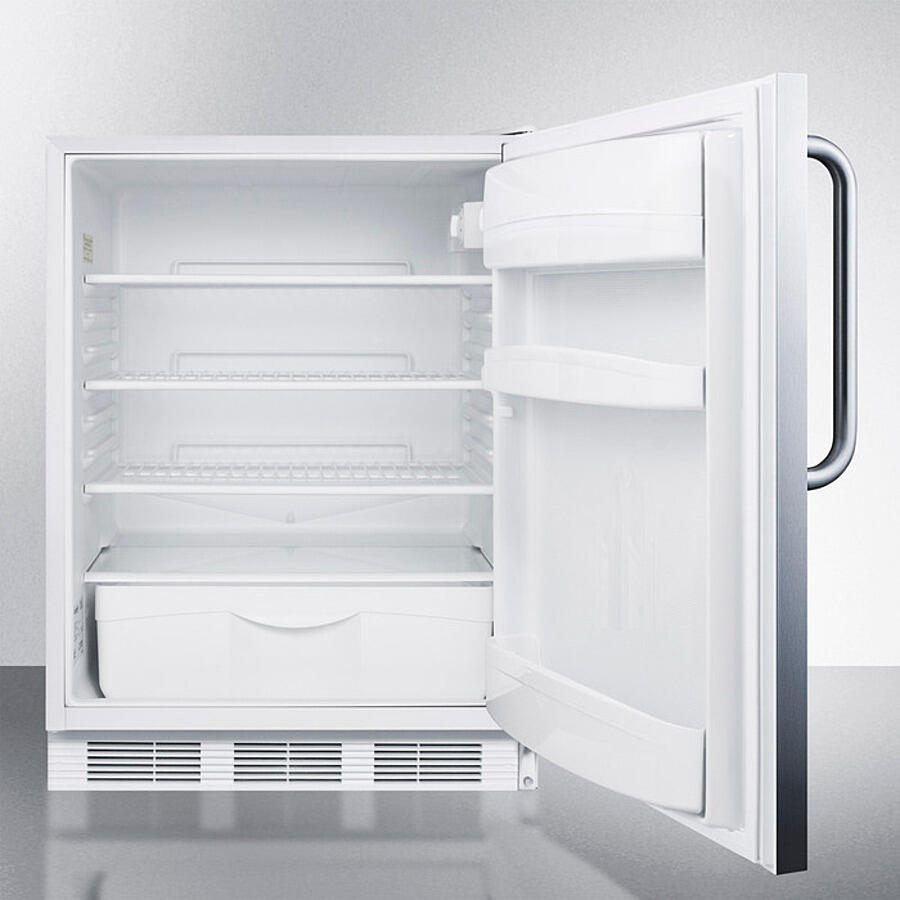

Summit FF6LWBI7SSTBADA Ada Compliant Commercial All-Refrigerator For Built-In General Purpose Use, Auto Defrost W/Lock, Ss Wrapped Door, Towel Bar Handle, And White Cabinet
Accucold By Summit Appliance Offers A Wide Range Of All-Refrigerators For General Purpose Storage. The Commercially Listed Ff6Bi7Ada Series Features 24" Wide All-Refrigerators Designed For Built-In Undercounter Use In Ada Compliant Settings. The Ff6Lwbi7Sstbada Is A 32" High All-Refrigerator With A Full 5.5 Cu.Ft. Capacity Inside A Slim 24" Footprint. The Front-Breathing Design Allows Built-In Use Under Counters, While The Fully Finished Cabinet Also Lets This Unit Be Used Freestanding. This Model Has A White Cabinet With A Stainless Steel Wrapped Door. A Curved Towel Bar Handle Completes The Professional Look And A Factory Installed Front Lock Offers Convenient Security. Inside, The Ff6Lwbi7Sstbada Utilizes Low Maintenance Automatic Defrost Operation. Our Unique "Hidden" Evaporator Is Set Behind The Rear Wall To Create A Seamless, Easy-To-Clean Interior. Adjustable Wire Shelves Allow Users To Reconfigure The Interior For Optimum Storage. Additional Features Include Automatic Interior Lighting, Door Storage, And A Crisper Drawer. This Unit Includes An Adjustable Dial Thermostat. The Ff6Lwbi7Sstbada Is Etl-S Listed To Nsf-7 Standards For Use In Commercial Establishments. For More Finish Options, Browse The Entire Ff6Bi7Ada Series. Note: This Unit Is Designed For General Purpose Storage, Including Certain Food Items, Beverages, Specimens, Reagents, Cold Packs, And Other Non-Critical Materials. For Storage Of High-Value Vaccines, Life Science Materials, And Medical Or Clinical Biologicals, Browse Accucold'S Medical & Laboratory Or Pharmacy & Vaccine Storage Categories, Or Contact Our Product Specialists To Discuss Your Options.
- Commercially approved: ETL-S listed to NSF-7 commercial standards
- ADA compliant: 32 inch height fits under standard ADA counters
- Slim undercounter dimensions: Less than 24 inches wide with a full 5.5 c.f. capacity
- Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Fully finished white cabinet: Allows the refrigerator to be used freestanding
- Stainless steel wrapped door: Durable design with lasting elegance
- Professional towel bar handle: Curved handle in brushed stainless steel offers a sturdy grip with professional elegance
- Factory installed lock: Keyed lock offers added security
- Automatic defrost: Reduced maintenance with auto defrost system
- Hidden evaporator: Cold wall design with hidden evaporator and seamless interior
- One piece interior liner: Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
- Adjustable shelves: Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Crisper: Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
- Door shelves: Store large bottles right on the door for easy access
- Adjustable thermostat: Dial thermostat located inside for easy temperature management
- Interior light: Automatically illuminates when you open the door
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
Overview | |
Height of Cabinet | 32.0' (81 cm) |
Height to Hinge Cap | 32.25' (82 cm) |
Width | 23.63' (60 cm) |
Depth | 23.5' (60 cm) |
Depth with Handle | 25.13' (64 cm) |
Depth with door at 90° | 46.0' (117 cm) |
Capacity | 5.5 cu.ft. (156 L) |
Defrost Type | Automatic |
Door | Stainless Steel |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 1.4 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 100.0 lbs. (45 kg) |
Shipping Weight | 105.0 lbs. (48 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101071602 |
Refrigerator Features | |
Door Swing | RHD |
Reversible | Factory Reversible |
Crisper Qty | 1 |
Crisper Finish | Opaque |
Crisper Cover | Glass |
Shelf Type | Wire |
Shelf Qty | 3 |
Full Door Shelf Qty | 3 |
Adjustable Shelves | Yes |
Thermostat Type | Dial |
Fan Type | Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 0.64oz. |
High Side PSI | 180.0 |
Low Side PSI | 80.0 |
Level Legs Qty | 4 |
Interior Light | Yes |
Dimensions | |
Interior Height | 27.75' (70 cm) |
Interior Width | 20.0' (51 cm) |
Interior Depth | 17.5' (44 cm) |
Compressor Step Height | 7.0' (18 cm) |
Compressor Step Width | 20.0' (51 cm) |
Compressor Step Depth | 6.0' (15 cm) |
Exterior | |
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout | TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order |
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices | DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management |
Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations | Extra key Extra keys available for purchase |
SS Hinges Stainless steel top and bottom hinges | SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option |
ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar. | LHD - Left hand door swing Door reversal to left hand swing |
Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. | SSK Stainless steel kickplate factory installed |
HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix | DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac |
Agion Door Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface | Agion Door Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface |
Lock | |
KEYPAD Battery-powered keypad door lock installed for keyless security | AC Keypad Keypad door lock powered by appliance power cord for keyless security |
Interior | |
FCGP internal fan with gel packs Internal fan with gel packs included for a stabilized interior | FC - Internal Fan Internal fan for even temperature distribution throughout the unit interior |
Handle | |
TBC Copper Towel Bar Handle Upgrade Change this handle to a 12' vertically mounted towel bar style handle made from pure copper for antimicrobial protection | TBC Copper Towel Bar Handle Upgrade Change this handle to a 12' vertically mounted towel bar style handle made from pure copper for antimicrobial protection |
Door | |
STO-Step-To-Open Door Pedal Step-to-open door pedal allows hands | free access to open the door 90 degrees |
