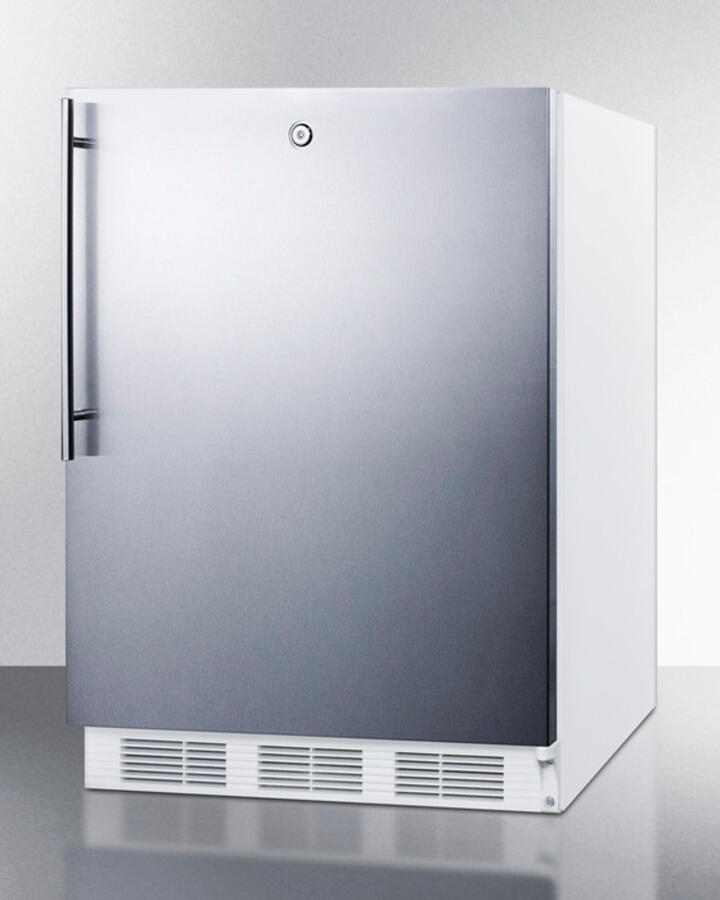

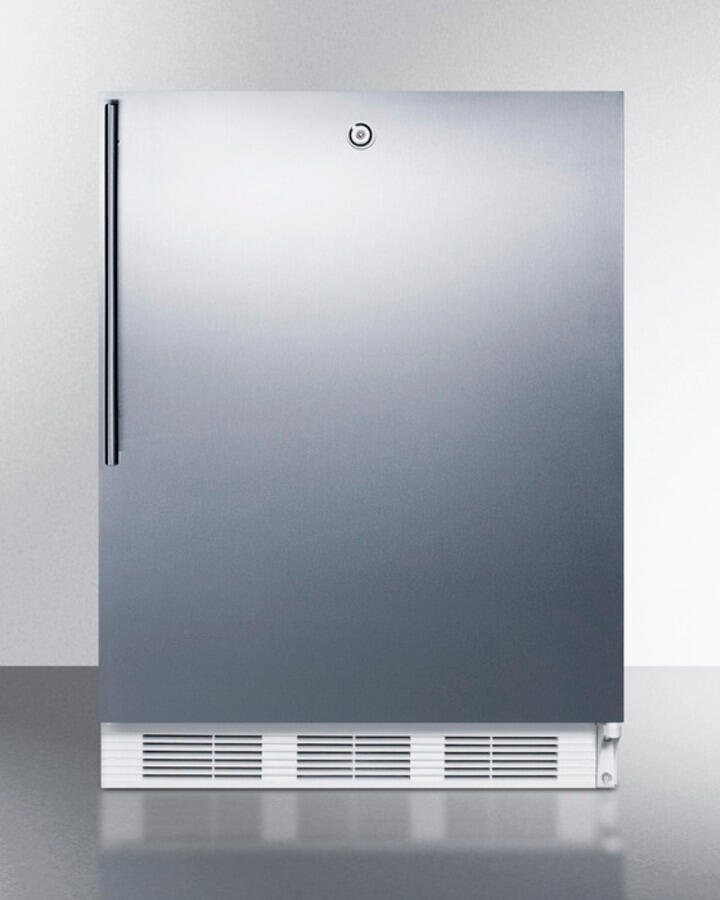

Summit FF7LBISSHVADA Ada Compliant Built-In Undercounter All-Refrigerator For General Purpose Or Commercial Use, Auto Defrost W/Lock, Ss Door, Thin Handle, And White Cabinet
32 Inch Height Fits Under Lower Ada Compliant Counters Commercially Approved For Use In Foodservice Establishments Flexible Design Allows Built-In Or Freestanding Use In 24" Spaces Stainless Steel Door And Sleek Handle Add Modern Luxury To Any Setting Factory-Installed Lock Provides Security You Can Count On Deep Shelf Space Accommodates Large Trays Automatic Defrost Ensures Minimum User Maintenance Full 5.5 Cu.Ft. Capacity Inside A Convenient 24" Footprint(/Li)(Li)Made In Europe Accucold By Summit Appliance Offers A Wide Range Of All-Refrigerators For General Purpose Storage. The Commercially Listed Ff7Biada Series Features 24" Wide All-Refrigerators Designed For Built-In Installation Under Lower Ada Compliant Counters. The Ff7Lbisshvada Is A 32" High All-Refrigerator With A Full 5.5 Cu.Ft. Capacity Inside A Slim 24" Footprint. The Front-Breathing Design Allows Built-In Use Under Counters, While The Fully Finished Cabinet Also Lets This Unit Be Used Freestanding. This Model Has A White Cabinet And Stainless Steel Wrapped Door With A Factory Installed Lock. A Thin Handle With A 14Mm Diameter Completes The Sleek, Modern Look. Inside, The Ff7Lbisshvada Utilizes Low Maintenance Automatic Defrost Operation. Our Unique "Hidden" Evaporator Is Set Behind The Rear Wall To Create A Seamless, Easy-To-Clean Interior That Also Maximizes Shelf Space. This Unit Has A Flat Door Liner That Allows It To Accept Larger Trays (Up To 19 1/2" X 16"). Adjustable Wire Shelves Allow Users To Reconfigure The Interior To Accommodate A Variety Of Sizes. The Interior Light Is Controlled By An On/Off Rocker Switch Located Behind The Thermostat Dial. The Ff7Lbisshvada Is Etl-S Listed To Nsf-7 Standards For Use In Commercial Establishments. For More Finish Options, Browse The Entire Ff7Biada Series. Note: This Unit Is Designed For General Purpose Or Commercial Applications And Does Not Meet Doe Energy Standards For Residential Use.
- ADA compliant: 32 inch height fits under standard ADA counters
- Commercially approved: ETL-S listed to NSF-7 Standards for use in commercial establishments
- Slim undercounter dimensions: Less than 24 inches wide with a full 5.5 c.f. capacity
- Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Fully finished white cabinet: Allows the refrigerator to be used freestanding
- Factory installed lock: Keyed lock for a secure interior
- Stainless steel door: Durable design with lasting elegance
- Professional thin towel bar handle: Thin 14mm diameter on vertical stainless steel handle
- Automatic defrost: Reduced user maintenance with automatic defrost
- One piece interior liner: Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

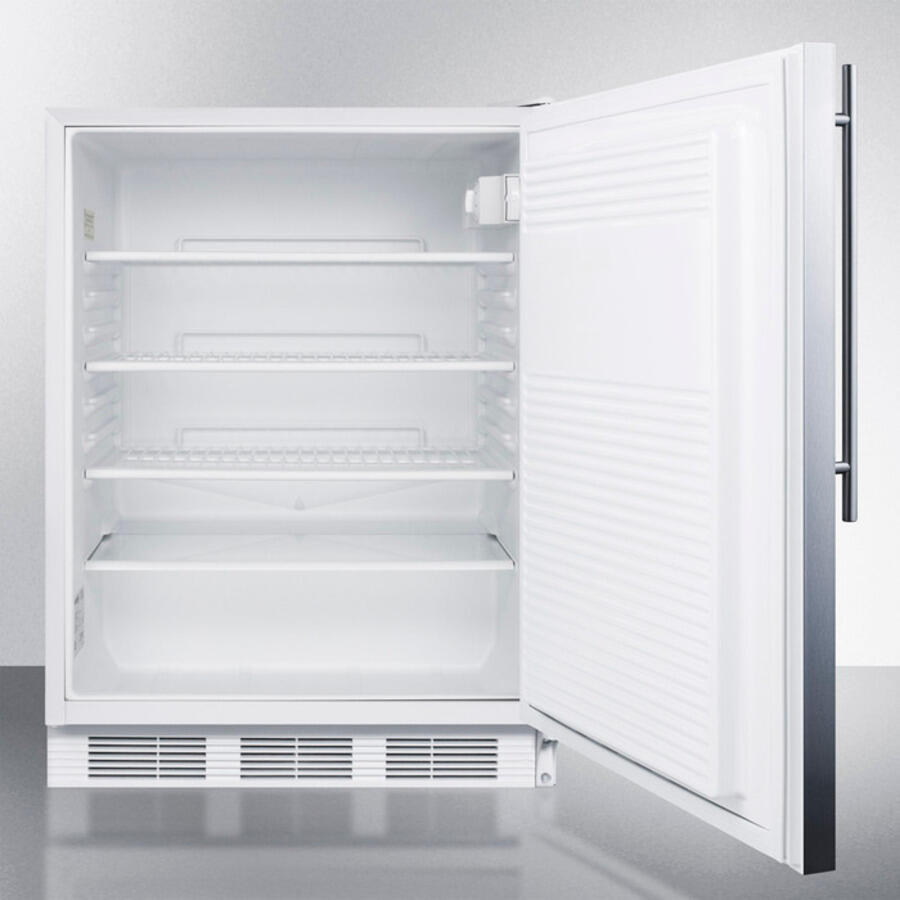

- Adjustable shelves: Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

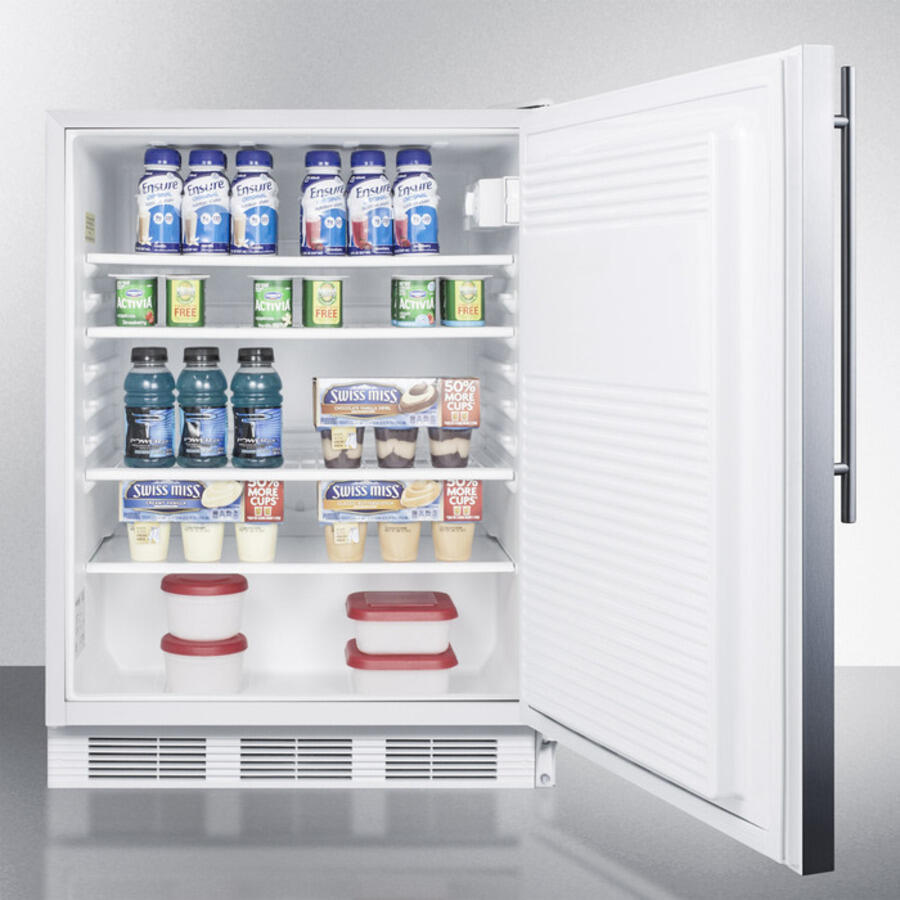

- Deep shelf space: Interior accommodates large trays up to 19 1/2" x 15 1/2"
- Adjustable thermostat: Dial thermostat located inside for easy temperature management
- Interior light on rocker switch: Turn the light on when you need it and off when you're done with a convenient rocker switch
- Hidden evaporator: Cold wall design with hidden evaporator and seamless interior
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
Overview | |
Height of Cabinet | 32.0' (81 cm) |
Height to Hinge Cap | 32.25' (82 cm) |
Width | 23.63' (60 cm) |
Depth | 23.5' (60 cm) |
Depth with Handle | 24.75' (63 cm) |
Depth with door at 90° | 45.5' (116 cm) |
Capacity | 5.5 cu.ft. (156 L) |
Defrost Type | Automatic |
Door | Stainless Steel |
Cabinet | White |
US Electrical Safety | UL |
Canadian Electrical Safety | ULC |
Sanitation | ETL-S |
Amps | 1.3 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 100.0 lbs. (45 kg) |
Shipping Weight | 105.0 lbs. (48 kg) |
Estimated Time to Ship | 2 to 4 days |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Refrigerator Features | |
Door Swing | RHD |
Reversible | Factory Reversible |
Shelf Type | Wire |
Shelf Qty | 3 |
Adjustable Shelves | Yes |
Thermostat Type | Dial |
Refrigerant Type | R134a |
Refrigerant Amount | 1.8oz. |
High Side PSI | 285.0 |
Low Side PSI | 88.0 |
Level Legs Qty | 4 |
Interior Light | Yes |
Dimensions | |
Interior Height | 26.25' (67 cm) |
Interior Width | 21.0' (53 cm) |
Interior Depth | 17.75' (45 cm) |
Compressor Step Height | 5.5' (14 cm) |
Compressor Step Width | 21.0' (53 cm) |
Compressor Step Depth | 5.5' (14 cm) |
Exterior | |
Agion Door Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface | DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac |
HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix | HUM - Humidity sensor Humidity sensor with min/max readout |
SSK Stainless steel kickplate factory installed | Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. |
LHD - Left hand door swing Door reversal to left hand swing | ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar. |
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option | SS Hinges Stainless steel top and bottom hinges |
Extra key Extra keys available for purchase | Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations |
DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management | PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices |
TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order | DL2 - Factory installed NIST calibrated data logger USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user | set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
Interior | |
FC - Internal Fan Internal fan for even temperature distribution throughout the unit interior | FCGP internal fan with gel packs Internal fan with gel packs included for a stabilized interior |
LockBox24 - Interior locking compartment Interior lift | up compartment with combination lock for use in ARS, ARG, FF7, and FFAR10 models |
Lock | |
AC Keypad Keypad door lock powered by appliance power cord for keyless security | KEYPAD Battery-powered keypad door lock installed for keyless security |
