Summit FF7LWBIPLUS2ADA 24" Wide Built-In Ada Compliant All-Refrigerator In White, Auto Defrost With A Lock, Nist Calibrated Thermometer, Digital Thermostat, And Internal Fan
The Ff7Lwbiplus2Ada Is A Commercially Approved All-Refrigerator Sized At 32" High And Just Under 24" Wide. Made In Europe, It Comes In A White Exterior Finish With A Keyed Lock Located Towards The Top Of The Door For Convenient Security. The Front-Breathing System Allows Built-In Installation Under Lower Ada Compliant Counters, While The Fully Finished Cabinet Also Enables Freestanding Use. A Digital Thermostat Is Located In The Kickplate For Easy And Precise Temperature Management. The Unit Uses Automatic Defrost Operation And Includes An Internal Fan For Stabilized Cooling. Adjustable Wire Shelves Offer Flexible Storage Inside The 5.5 Cu.Ft. Interior, With A Flat Door Liners As Recommended By The Cdc. The Ff7Lwbiplus2Ada Includes A Thermometer Calibrated To Nist Standards In Our Iso/Iec 17025:2005 Laboratory. It Displays The Current, Minimum, And Maximum Temperature To The Nearest Tenth Degree Viewable In Celsius Or Fahrenheit. The Buffered Temperature Probe Is Stored In A Glycol-Filled Bottle To Ensure The Temperature Reading Best Reflects The Temperature Of Other Stored Freezer Contents. The Ff7Lwbiplus2Ada Is Etl-S Listed To Nsf-7 Commercial Standards. It Can Be Further Customized With A Variety Of Options, Including Data Loggers, Alarms, And More. Contact Our Sales Team For More Information. Accucold's Plus2 Series Refrigerators Are Intended For A Wide Variety Of Basic Storage Only. Storage Of High-Value Vaccines, Life Science Materials, Medical, Or Clinical Biologicals Require A Product With Design Features Including, But Not Limited To Tighter Temperature Controls, Monitoring, And/Or Back-Up. *Note: This Unit's Thermostat Is Pre-Set For Celsius. If You Prefer Fahrenheit, Add Complimentary Option Dtmedf Or Let Your Sales Representative Know Upon Order.
- ADA compliant: 32" high to fit under lower ADA compliant counters
- Built-in capable: Make the best use of space by installing your appliance under the counter
- Commercially approved: ETL-S listed to NSF standards for commercial use
- NIST calibrated temperature display: Thermometer provides continuous display of the current and high/low temperature to the nearest tenth of a degree, with a readout switchable from Celsius to Fahrenheit at the touch of a button
- Buffered temperature probe: Thermometer probe is encased in a glycol-filled bottle to better simulate the temperature of stored contents instead of refrigerator air temperature
- Digital thermostat: Electronic controls ensure easy and intuitive temperature management
- Factory installed lock: Keyed security on the refrigerator door
- Internal fan: Fan-forced cooling ensures the unit is evenly cooled from top to bottom
- Automatic defrost: Reduced maintenance with auto defrost system
- Adjustable wire shelves: Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
- Interior light: Turn the light on and off with a convenient rocker switch
- Flat door liner: Easy to clean, with more depth for storage
- Magnetic door gasket: Quality door gaskets ensure a tight seal for energy savings and improved performance
- Foamed-in-place cabinet: Designed to ensure a sufficiently insulated interior
- Approved for use in the USA and Canada: ETL and ETL-C listed for North American sales
- Fully finished white cabinet: Allows the unit to be used freestanding
- Factory reversible door: Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)
- 100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals
Overview | |
Height of Cabinet | 32.0' (81 cm) |
Height to Hinge Cap | 32.25' (82 cm) |
Width | 23.63' (60 cm) |
Depth | 23.5' (60 cm) |
Depth with Handle | 24.0' (61 cm) |
Depth with door at 90° | 45.13' (115 cm) |
Capacity | 5.5 cu.ft. (156 L) |
Defrost Type | Automatic |
Door | White |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 1.4 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 100.0 lbs. (45 kg) |
Shipping Weight | 105.0 lbs. (48 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101072487 |
Refrigerator Features | |
Door Swing | RHD |
Reversible | Factory Reversible |
Shelf Type | Wire |
Shelf Qty | 3 |
Adjustable Shelves | Yes |
Thermostat Type | Digital |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 0.64oz. |
High Side PSI | 180.0 |
Low Side PSI | 80.0 |
Level Legs Qty | 4 |
Interior Light | Yes |
Temperature Range | 2 to 8 C / 36 to 46 F |
Dimensions | |
Interior Height | 26.25' (67 cm) |
Interior Width | 21.0' (53 cm) |
Interior Depth | 17.75' (45 cm) |
Compressor Step Height | 5.5' (14 cm) |
Compressor Step Width | 21.0' (53 cm) |
Compressor Step Depth | 5.5' (14 cm) |
Interior | |

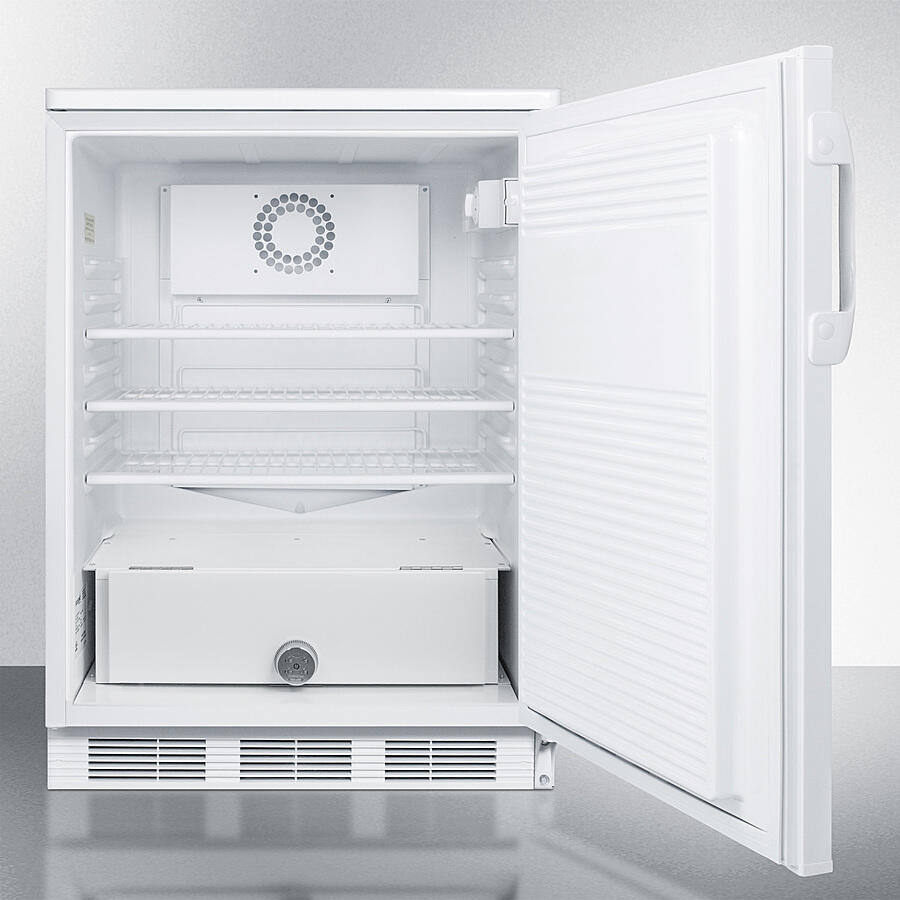

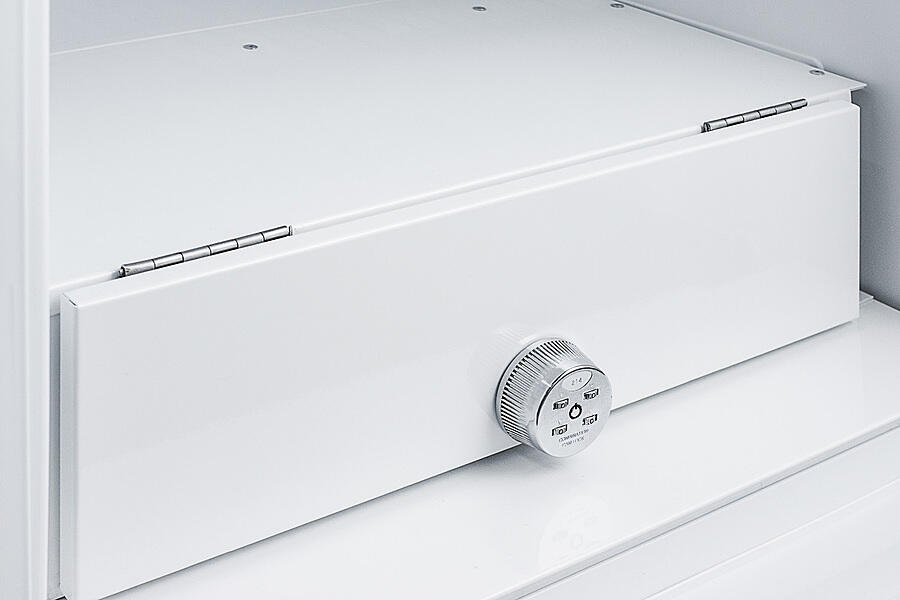

LockBox24 - Interior locking compartment Interior lift | up compartment with combination lock for use in ARS, ARG, FF7, and FFAR10 models |
Door | |
MEDLINE SSTB Stainless steel wrapped door finish with curved towel bar style handle | STO-Step-To-Open Door Pedal Step-to-open door pedal allows hands-free access to open the door 90 degrees |
Exterior | |
MEDLINE CSS Stainless steel wrapped cabinet and door with curved towel bar handle (specify RHD or LHD) | Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations |
Extra key Extra keys available for purchase | SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option |
ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar. | LHD - Left hand door swing Door reversal to left hand swing |
Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. | SSK Stainless steel kickplate factory installed |
DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac | PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices |
DTMEDF - Digital thermostat with Fahrenheit readout Change thermostat to read in Fahrenheit (no charge) | DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
Lock | |
KEYPAD Battery-powered keypad door lock installed for keyless security | AC Keypad Keypad door lock powered by appliance power cord for keyless security |
Handle | |
TBC Copper Towel Bar Handle Factory-installed handle made from pure copper for antimicrobial protection | CP Full-Length Copper Pipe Handle Factory-installed full-length handle made from pure copper for antimicrobial protection |
