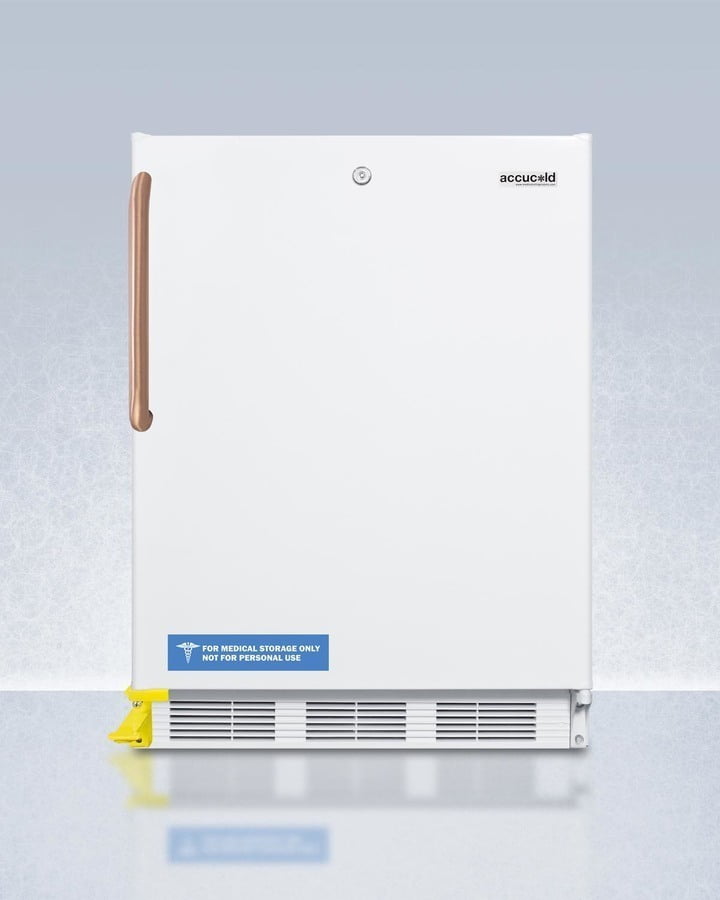

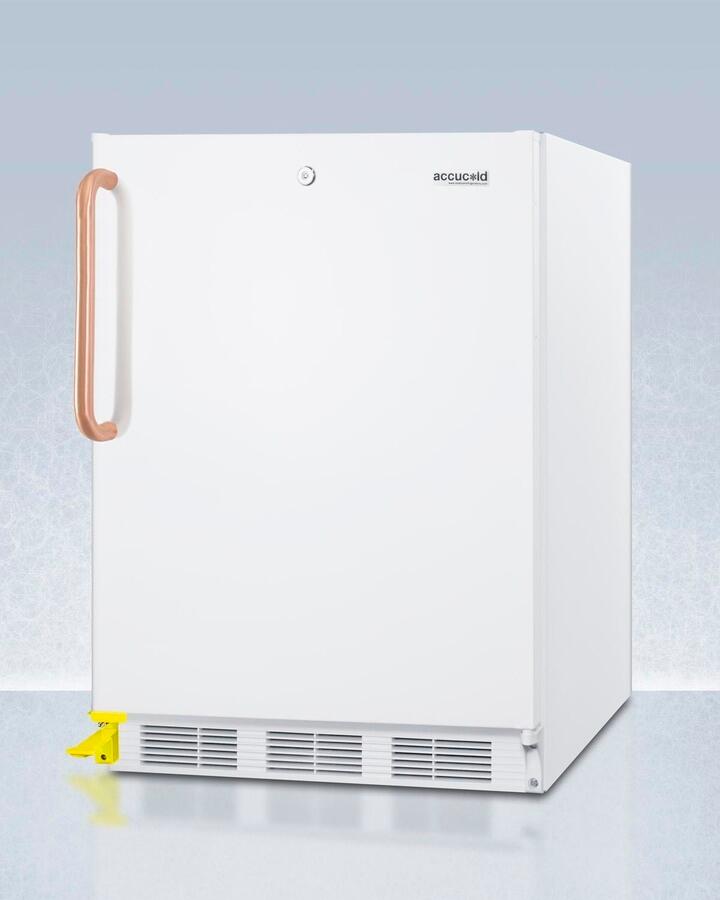

Summit FF7LWBITBCSTOADA Ada Compliant Built-In Undercounter All-Refrigerator For General Purpose Or Commercial Use, With Pure Copper Handle, Step-To-Open Foot Pedal, Lock, Auto Defrost Operation, And White Exterior
Accucold By Summit Appliance Offers A Quality Line Of Refrigeration Designed For General Purpose Healthcare Applications, With Pure Copper Handles And Step-To-Open Foot Pedals That Help To Reduce Germ Transfer In High-Traffic Environments. The Ff7Lwbitbcstoada Is A 32" High All-Refrigerator With A Full 5.5 Cu.Ft. Capacity Inside A Slim 24" Footprint. The Front-Breathing Design Allows Built-In Use Under Lower Ada Compliant Counters, While The Fully Finished Cabinet Also Lets This Unit Be Used Freestanding. This Model Has A White Exterior And Right-Hand Door Swing (For A Left Hand Version, Add Option "Lhd"). The Front Lock Is Located Towards The Top Of The Door For Easier Access. The Ff7Lwbitbcstoada Includes A Factory-Installed Towel Bar Style Handle Made From Pure Copper. Through Its Natural Antimicrobial Properties, Copper Will Kill Microbes, Including Viruses, In A Shorter Timeframe Than Most Other Metal Surfaces Allowing For A Safer, Cleaner User Experience. Additionally, This Unit Includes A Factory-Installed Step-To-Open Foot Pedal. Its Hands-Free Design Helps To Lessen Germ Spread On High Touch Surfaces While Also Providing Convenient, Easy Access For Staff. Using Spring-Loaded Operation, A Gentle Step Opens The Door To A Full 90(Degree), While The Yellow Finish Stands Out To Prevent Accidents In High-Traffic Environments. Please Note The Foot Pedal Adds 2" Of Depth Under The Door. Inside, The Ff7Lwbitbcstoada Utilizes Low Maintenance Automatic Defrost Operation. Our Unique "Hidden" Evaporator Is Set Behind The Rear Wall To Create A Seamless, Easy-To-Clean Interior That Also Maximizes Shelf Space. This Unit Has A Flat Door Liner That Allows It To Accept Larger Trays (Up To 19 1/2" X 16"). Adjustable Wire Shelves Allow Users To Reconfigure The Interior To Accommodate A Variety Of Sizes. The Interior Light Is Controlled By An On/Off Rocker Switch Located Behind The Thermostat Dial. The Ff7Lwbitbcstoada Is Etl-S Listed To Nsf-7 Commercial Standards. For More Finish Options, Browse The Entire Ff7Biada Series. Note: This Unit Is Designed For General Purpose Storage, Including Certain Food Items, Beverages, Specimens, Reagents, Cold Packs, And Other Non-Critical Materials. For Storage Of High-Value Vaccines, Life Science Materials, And Medical Or Clinical Biologicals, Browse Accucold'S Medical & Laboratory Or Pharmacy & Vaccine Storage Categories, Or Contact Our Product Specialists To Discuss Your Options.
- ADA compliant: 32" height allows installation under lower ADA compliant counters

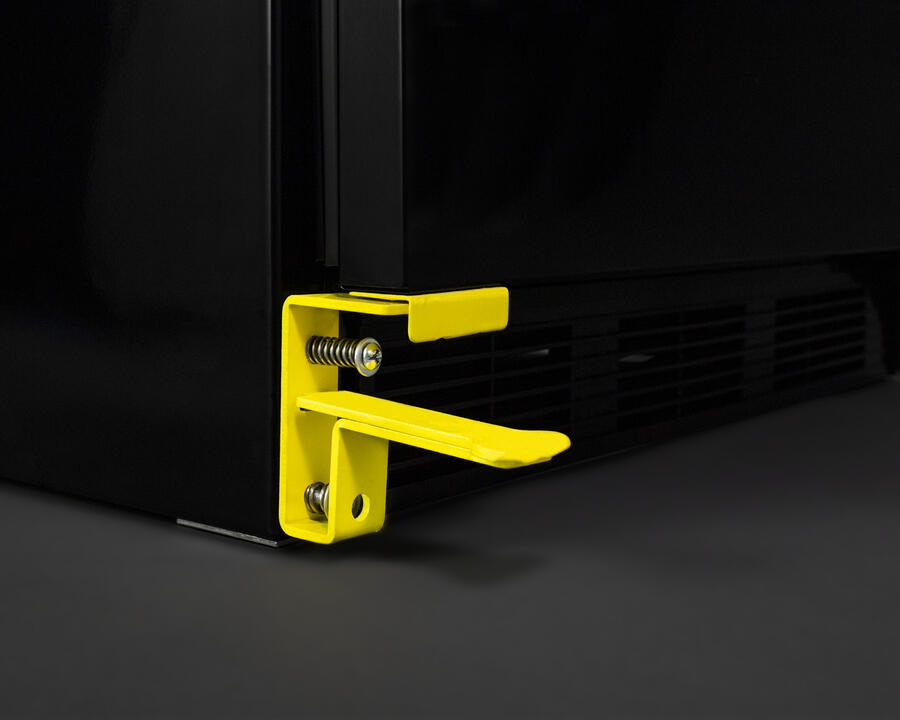

- Step-to-open foot pedal: Helps lessen germ spread by providing a more sanitary method of opening appliance doors, while allowing efficient access to the unit's interior for added convenience
- Copper handle: Pure copper towel bar handle is naturally antimicrobial to protect against microbes for added safety and cleanliness
- Commercially approved: ETL-S listed to NSF-7 Standards for use in commercial establishments
- Slim undercounter dimensions: Less than 24 inches wide with a full 5.5 c.f. capacity
- Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Factory installed lock: Keyed lock for a secure interior (2 keys included)
- Automatic defrost: Reduced user maintenance with automatic defrost
- One piece interior liner: Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices
- Hidden evaporator: Cold wall design with hidden evaporator and seamless interior

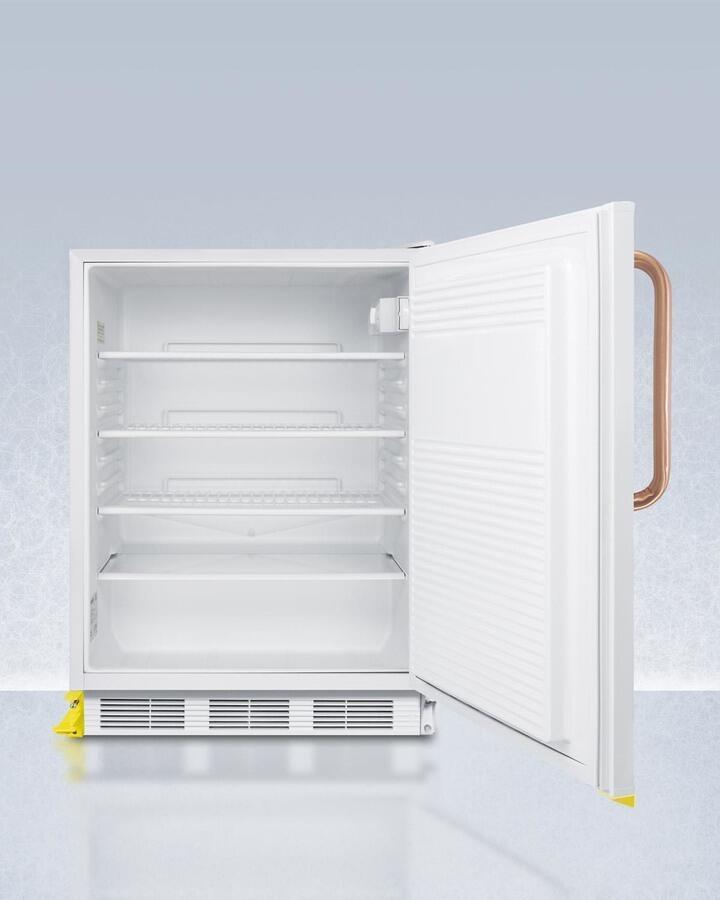

- Adjustable shelves: Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

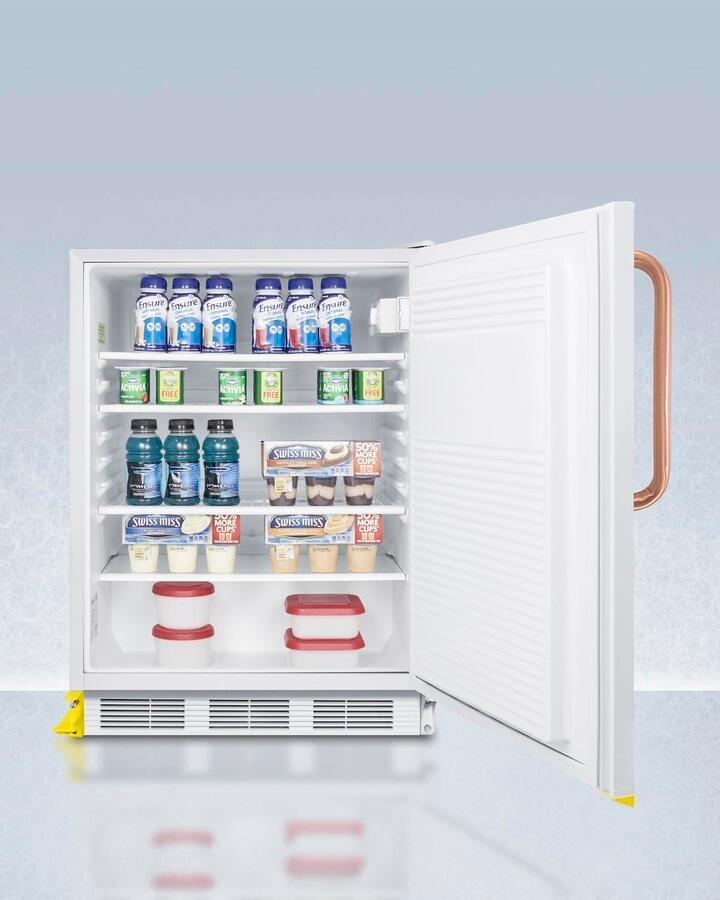

- Deep shelf space: Interior accommodates trays up to 19 1/2" x 15 1/2"
- Adjustable thermostat: Dial thermostat located inside for easy temperature management
- Interior light on rocker switch: Turn the light on when you need it and off when you're done with a convenient rocker switch
- Right hand door swing: For this unit with the door opening from the other side, add option "LHD"
- Fully finished white cabinet: Allows the unit to be used freestanding
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
Overview | |
Height of Cabinet | 32.0' (81 cm) |
Height to Hinge Cap | 32.25' (82 cm) |
Width | 23.63' (60 cm) |
Depth | 25.5' (65 cm) |
Depth with Handle | 28.0' (71 cm) |
Depth with door at 90° | 45.13' (115 cm) |
Capacity | 5.5 cu.ft. (156 L) |
Defrost Type | Automatic |
Door | White |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 1.4 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 100.0 lbs. (45 kg) |
Shipping Weight | 105.0 lbs. (48 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101075693 |
Refrigerator Features | |
Door Swing | RHD |
Reversible | Factory Reversible |
Shelf Type | Wire |
Shelf Qty | 3 |
Adjustable Shelves | Yes |
Thermostat Type | Dial |
Fan Type | Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 0.64oz. |
High Side PSI | 180.0 |
Low Side PSI | 80.0 |
Level Legs Qty | 4 |
Interior Light | Yes |
Dimensions | |
Interior Height | 26.25' (67 cm) |
Interior Width | 21.0' (53 cm) |
Interior Depth | 17.75' (45 cm) |
Compressor Step Height | 5.5' (14 cm) |
Compressor Step Width | 21.0' (53 cm) |
Compressor Step Depth | 5.5' (14 cm) |
Exterior | |
Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations | HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix |
SSK Stainless steel kickplate factory installed | Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. |
LHD - Left hand door swing Door reversal to left hand swing | Extra key Extra keys available for purchase |
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices | TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order |
ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar. | DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management |
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user | set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
Interior | |
FC - Internal Fan Internal fan for even temperature distribution throughout the unit interior | FCGP internal fan with gel packs Internal fan with gel packs included for a stabilized interior |
LockBox24 - Interior locking compartment Interior lift | up compartment with combination lock for use in ARS, ARG, FF7, and FFAR10 models |
Lock | |
AC Keypad Keypad door lock powered by appliance power cord for keyless security | KEYPAD Battery-powered keypad door lock installed for keyless security |
