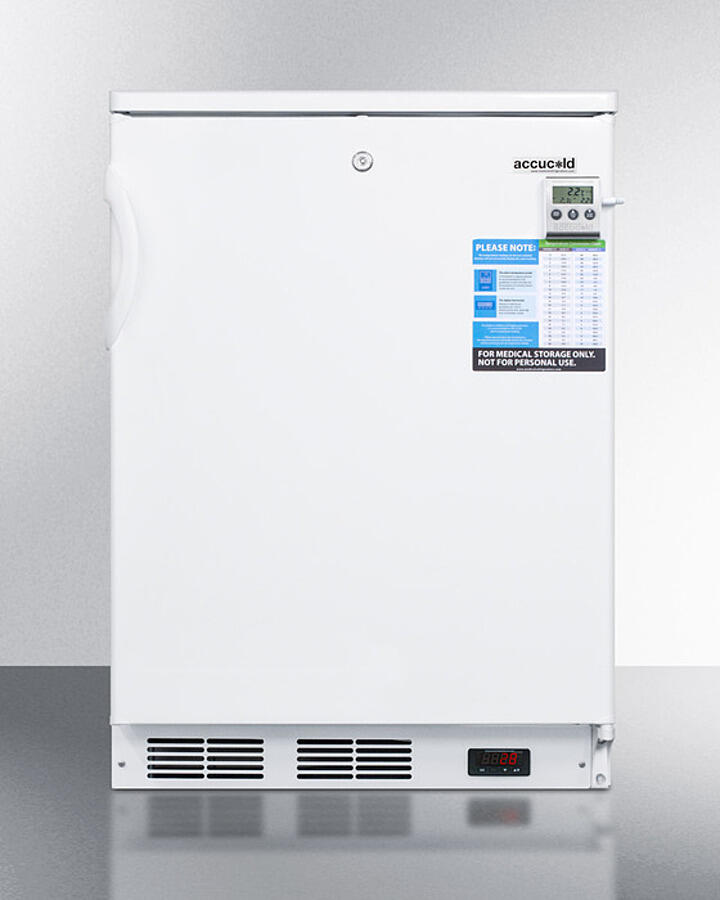

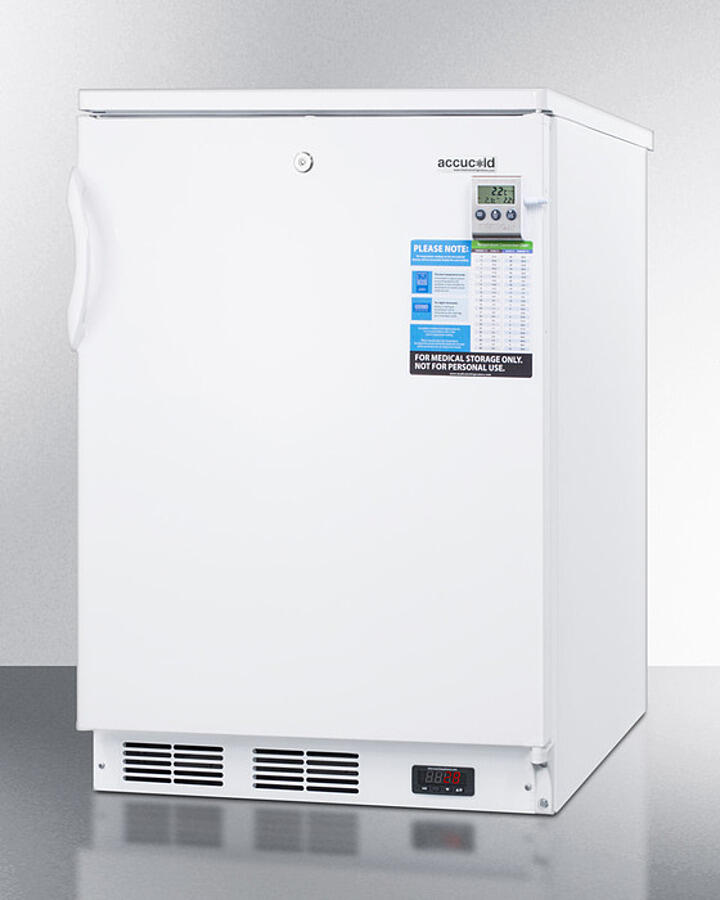

Summit FF7LWBIVAC Built-In Undercounter Medical All-Refrigerator For Temperature Stable Medical Storage, With Interior Basket Drawers, Internal Fan, Lock, And More
The Accucold® Vac Series Refrigerators Are Specially Designed To Store Sensitive Medical And Pharmaceutical Materials Under The Proper Conditions, With Innovative Construction For Temperature Stability And User-Friendly Features For Added Convenience. Sized With A 24" Footprint, The Ff7Lwbivac Is An All-Refrigerator That Can Be Used Built-In Or Freestanding. The Automatic Defrost Interior Is Equipped With Fan-Forced Cooling To Ensure Even Temperature Distribution From Top To Bottom. Three Slide-Out Wire Basket Drawers Make It Easy To Organize The Interior While The Plastic Drawer Fronts Help To Shield Stored Contents From Being Exposed To Room Temperature When The Door Is Open. As Recommended By The Cdc For Vaccine Storage, This Unit Has A Flat Interior Door Liner. The Ff7Lwbivac Includes A Factory Installed Front Lock For Added Security. The Self-Closing Door Is An Ideal Feature For Lab Or Medical Settings, Helping To Protect Valuable Samples And Vaccines When A Busy Staff May Not Always Have Time To Ensure A Tight Seal. The Hospital Grade 'Green Dot' Cord Offers Added Safety In High-Traffic Locations. For Temperature Precision, The Ff7Lwbivac Includes A Digital Thermostat. A High/Low Temperature Alarm Sends An Audible Alert If The Unit Is Out Of Set Range, While Also Displaying A Nist Calibrated Temperature Readout To The Nearest Tenth Of A Degree. An Access Port With A Contact Is Pre-Installed, Allowing Users To Install Additional Monitoring Equipment. Customers Can Specify The Access Port Location Upon Order. In Addition To The Standard Features Of The Vac Line, The Ff7Lwbivac Can Be Further Customized To Your Exact Specifications. Additional Options Include Temperature Loggers, Keypad Locks, Open Door Alarms, Door Reversals, And More. For More Information, Call Our Office To Discuss Your Complete Medical Refrigeration Needs With Our Sales Team. This Unit Is Also Available In A 32" Height For Use Under Lower Counters Complying With Ada Guidelines (See The Ff7Lwbivacada).
- Improved temperature stability: Interior is designed to operate within 2 C of set temperature performance

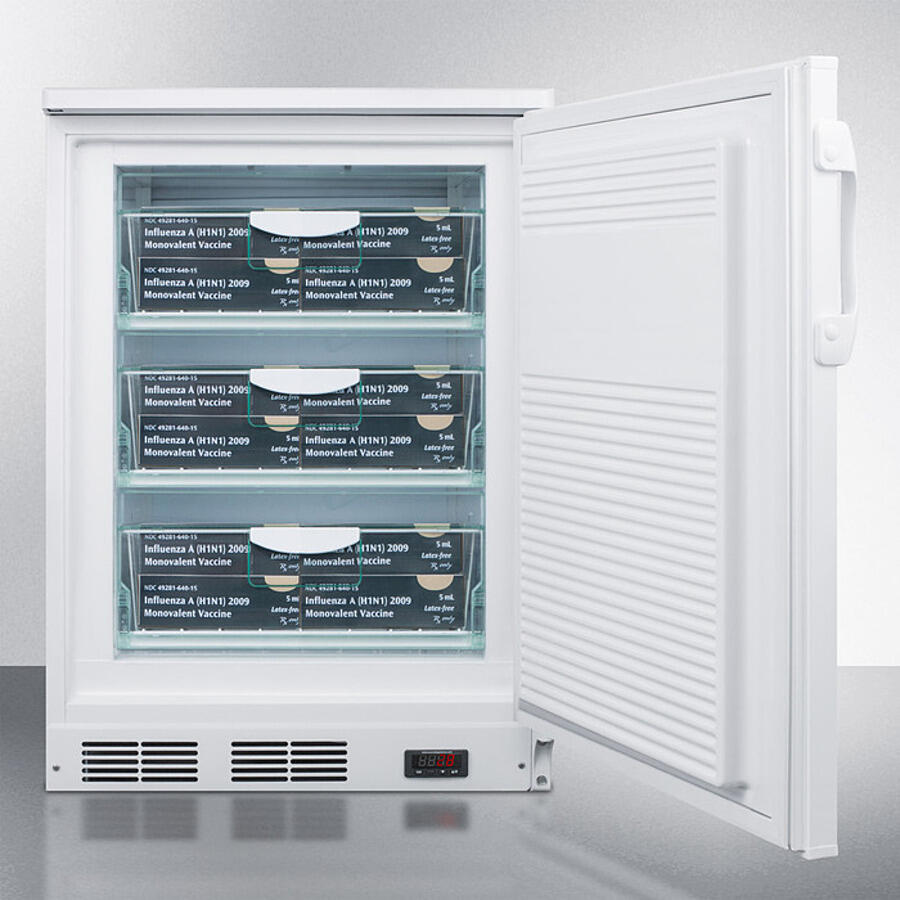

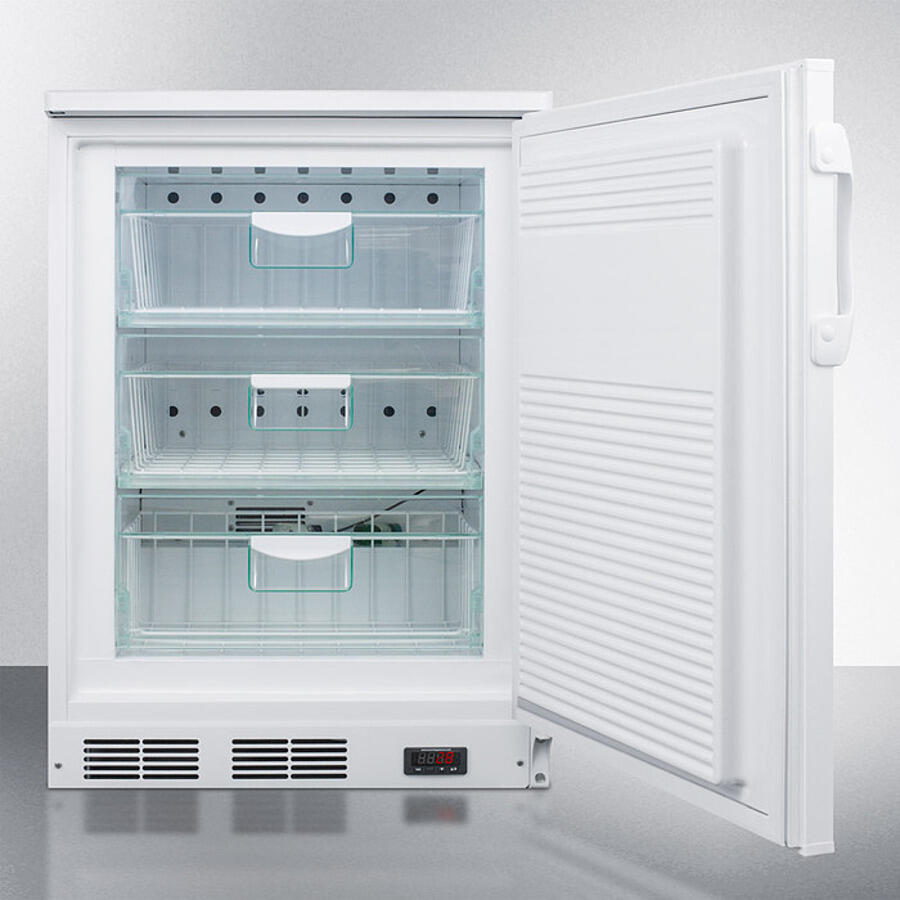

- Interior basket drawers: Three slide-out wire baskets with plastic fronts offer convenient storage solutions while protecting stored items when the door is open
- Digital thermostat: Electronic controls ensure precise and intuitive temperature management
- High/low temperature alarm: Audible alarm sounds if the interior temperature rises or falls out of set range
- NIST calibrated temperature display: Alarm includes NIST calibrated display of the current interior and high/low temperature
- Self-closing door: Door closes automatically when opened at angles less than 90
- Access port with contact: Pre-installed probe with contact allows users to install their own monitoring equipment; customers can specify placement of the access port upon order
- Hospital grade cord and plug: Secure three-pronged 'green dot' cord for added unit safety in high traffic settings
- Automatic defrost: Reduced user maintenance with automatic defrost
- Factory installed lock: Keyed lock for a secure interior
- Flat door liner: Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
- Internal fan: Fan-cooled interior maintains a consistent temperature from top to bottom
- Built-in capable: Front-breathing design allows built-in installation under counters
- Fully finished white cabinet: Allows the unit to be used freestanding
- Height Adjustable: Adjustable legs allow the unit to be sized from 33 1/2" to 34 3/4" high
- Factory reversible door: Standard unit ships RHD but can be ordered LHD
- 100% CFC free: Environmentally friendly design does not contain ozone-damaging chemicals
Overview | |
Height of Cabinet | 33.75' (86 cm) |
Width | 23.63' (60 cm) |
Depth | 23.75' (60 cm) |
Depth with Handle | 25.63' (65 cm) |
Depth with door at 90° | 46.25' (117 cm) |
Capacity | 2.6 cu.ft. (74 L) |
Defrost Type | Automatic |
Door | White |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Amps | 1.4 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 100.0 lbs. (45 kg) |
Shipping Weight | 105.0 lbs. (48 kg) |
Parts & Labor Warranty | 2 Years |
Compressor Warranty | 5 Years |
UPC | 761101072555 |
Refrigerator Features | |
Door Swing | RHD |
Reversible | Factory Reversible |
Height Adjustable | 1 |
Thermostat Type | Digital |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 0.64oz. |
High Side PSI | 180.0 |
Low Side PSI | 80.0 |
Level Legs Qty | 4 |
Interior Drawers | Yes |
Interior Drawers Qty | 3 |
Temperature Range | 2 to 8 C |
Dimensions | |
Interior Height | 22.5' (57 cm) |
Interior Width | 17.25' (44 cm) |
Interior Depth | 15.0' (38 cm) |
Exterior | |
DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac | Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. |
LHD - Left hand door swing Door reversal to left hand swing | ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar. |
Extra key Extra keys available for purchase | CAS3 3' casters 3' high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish |
CAS6 6' casters 6' high NSF listed casters | DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
Lock | |
AC Keypad Keypad door lock powered by appliance power cord for keyless security | KEYPAD Battery-powered keypad door lock installed for keyless security |
Door | |
MEDLINE SSTB Stainless steel wrapped door finish with curved towel bar style handle | STO-Step-To-Open Door Pedal Step-to-open door pedal allows hands-free access to open the door 90 degrees |
Handle | |
TBC Copper Towel Bar Handle Factory-installed handle made from pure copper for antimicrobial protection | CP Full-Length Copper Pipe Handle Factory-installed full-length handle made from pure copper for antimicrobial protection |
