Summit FF7WBIIF Commercially Listed Built-In Undercounter All-Refrigerator For General Purpose Use, Auto Defrost W/Integrated Door Frame For Overlay Panels And White Cabinet
Accucold By Summit Appliance Offers A Wide Range Of All-Refrigerators For General Purpose Storage. The Commercially Listed Ff7Bi Series Features High Performing, Perfectly Sized All-Refrigerators Designed For Built-In Use Under Counters. The Ff7Wbiif Features A Front-Breathing Design That Allows Built-In Installation Under Counters, While The Fully Finished Cabinet Also Enables Freestanding Use. The 24" Footprint Is Ideal For Many Common Cutouts, While The Full 5.5 Cu.Ft. Interior Provides More Storage Than Most Units In This Size Class. This Model Has A White Cabinet. The Door Includes An Integrated Door Frame Designed To Accept Full Overlay Panels For A Custom Look. Users Provide Their Own Handle. Inside, The Ff7Wbiif Utilizes Low Maintenance Automatic Defrost Operation. Our Unique "Hidden" Evaporator Is Set Behind The Rear Wall To Create A Seamless, Easy-To-Clean Interior That Also Maximizes Shelf Space. This Unit Has A Flat Door Liner That Allows It To Accept Larger Trays (Up To 19 1/2" X 16"). Adjustable Wire Shelves Allow Users To Reconfigure The Interior To Accommodate A Variety Of Sizes. The Interior Light Is Controlled By An On/Off Rocker Switch Located Behind The Thermostat Dial. The Ff7Wbiif Is Etl-S Listed To Nsf-7 Standards For Use In Commercial Establishments. For More Finish Options, Browse The Entire Ff7Bi Series. Note: This Unit Is Designed For General Purpose Storage, Including Certain Food Items, Beverages, Specimens, Reagents, Cold Packs, And Other Non-Critical Materials. For Storage Of High-Value Vaccines, Life Science Materials, And Medical Or Clinical Biologicals, Browse Accucold's Medical & Laboratory Or Pharmacy & Vaccine Storage Categories, Or Contact Our Product Specialists To Discuss Your Options.
- Commercially approved: ETL-S listed to NSF-7 Standards for use in commercial establishments
- Slim undercounter dimensions: Less than 24 inches wide, with a generous 5.5 c.f. of storage capacity
- Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinetry

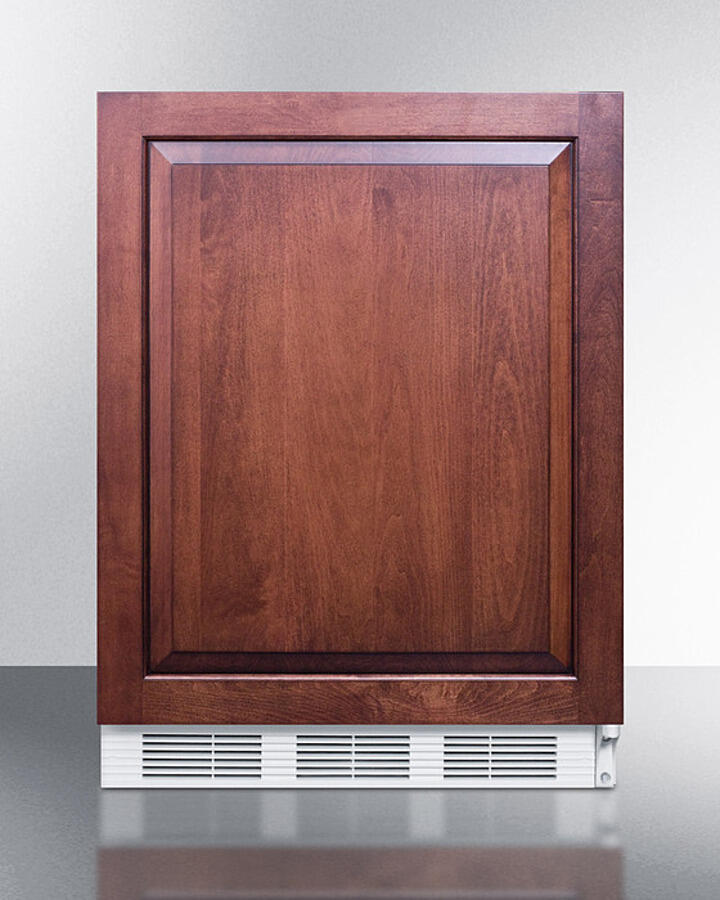

- Integrated door frame: Customize the front by mounting an overlay panel over the door; seamless look can blend into other cabinetry with no exposed frame. Handle not included (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)

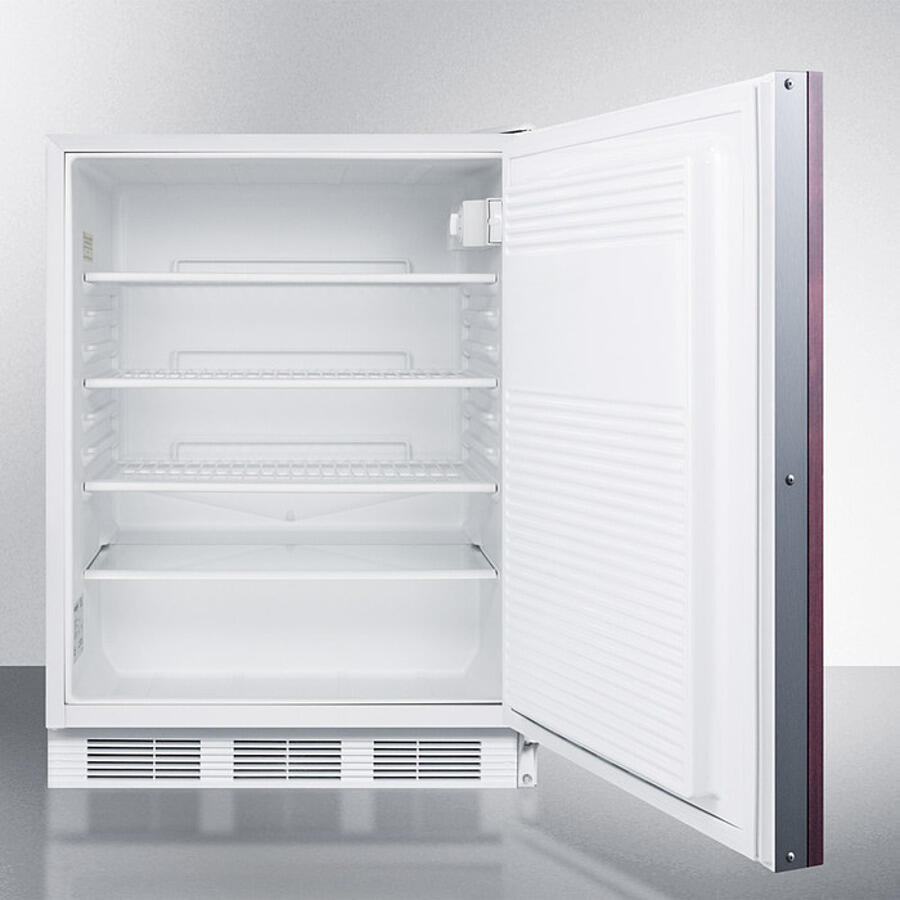

- Adjustable shelves: Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Automatic defrost: Reduced user maintenance with automatic defrost
- Deep shelf space: Interior can accommodate large trays up to 19 1/2" x 15 1/2"
- One piece interior liner: Simple cleanup with a seamless liner that won't hold a mess in hidden crevices
- Hidden evaporator: Cold wall design with hidden evaporator and seamless interior
- Interior light on rocker switch: Turn the light on when you need it and off when you're done with a a convenient switch located behind the thermostat
- Adjustable thermostat: Dial thermostat located inside for easy temperature management
- Fully finished white cabinet: Allows the unit to be used freestanding
- Height Adjustable: Adjustable legs allow the unit to be sized from 33 1/4" to 34 1/2" high
- 100% CFC free: Environmentally friendly design does not contain ozone-damaging chemicals
Overview | |
Height of Cabinet | 32.63' (83 cm) |
Height to Hinge Cap | 33.25' (84 cm) |
Width | 23.63' (60 cm) |
Depth | 23.5' (60 cm) |
Depth with door at 90° | 46.0' (117 cm) |
Capacity | 5.5 cu.ft. (156 L) |
Defrost Type | Automatic |
Door | Panel-Ready |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 1.4 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 100.0 lbs. (45 kg) |
Shipping Weight | 105.0 lbs. (48 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101072296 |
Refrigerator Features | |
Door Swing | RHD |
Reversible | Factory Reversible |
Shelf Type | Wire |
Shelf Qty | 3 |
Adjustable Shelves | Yes |
Thermostat Type | Dial |
Fan Type | Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 0.64oz. |
High Side PSI | 180.0 |
Low Side PSI | 80.0 |
Level Legs Qty | 4 |
Interior Light | Yes |
Dimensions | |
Interior Height | 27.75' (70 cm) |
Interior Width | 20.0' (51 cm) |
Interior Depth | 17.5' (44 cm) |
Compressor Step Height | 7.0' (18 cm) |
Compressor Step Width | 20.0' (51 cm) |
Compressor Step Depth | 6.0' (15 cm) |
Exterior | |
DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac | HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix |
SSK Stainless steel kickplate factory installed | LHD - Left hand door swing Door reversal to left hand swing |
ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar. | Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations |
CAS3 3' casters 3' high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish | CAS6 6' casters 6' high NSF listed casters |
DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management | Legs to raise unit height 6' high leveling legs |
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices | TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order |
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user | set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
Interior | |
FC - Internal Fan Internal fan for even temperature distribution throughout the unit interior | FCGP internal fan with gel packs Internal fan with gel packs included for a stabilized interior |
LockBox24 - Interior locking compartment Interior lift | up compartment with combination lock for use in ARS, ARG, FF7, and FFAR10 models |
