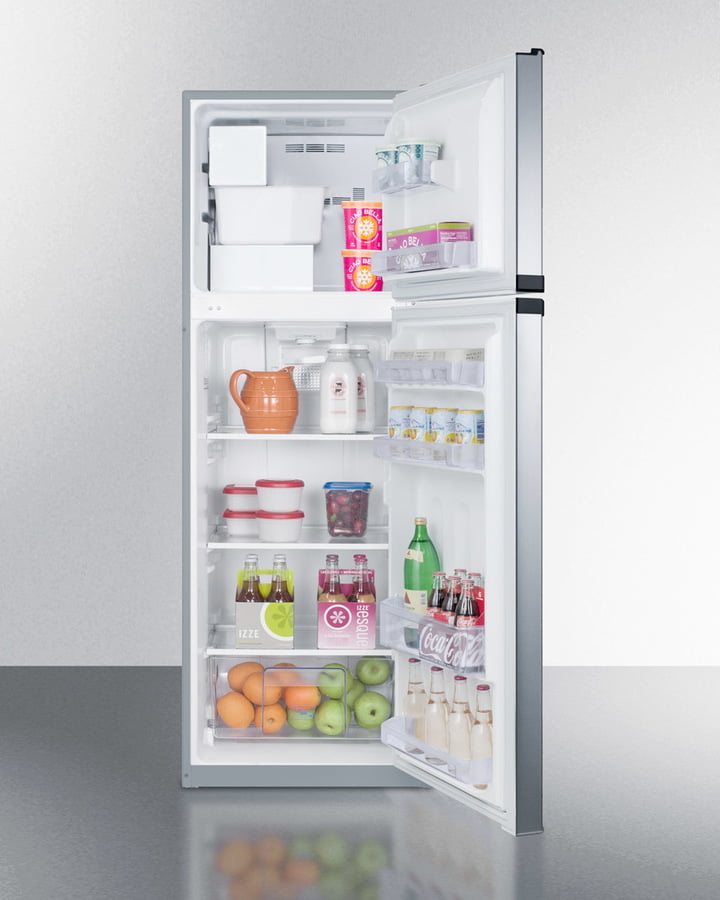

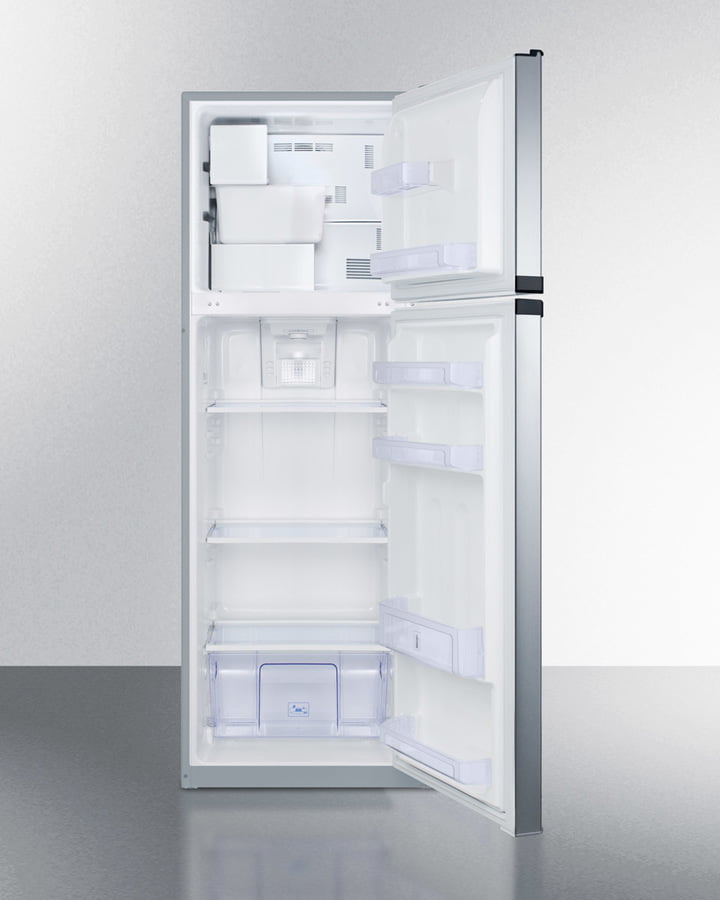

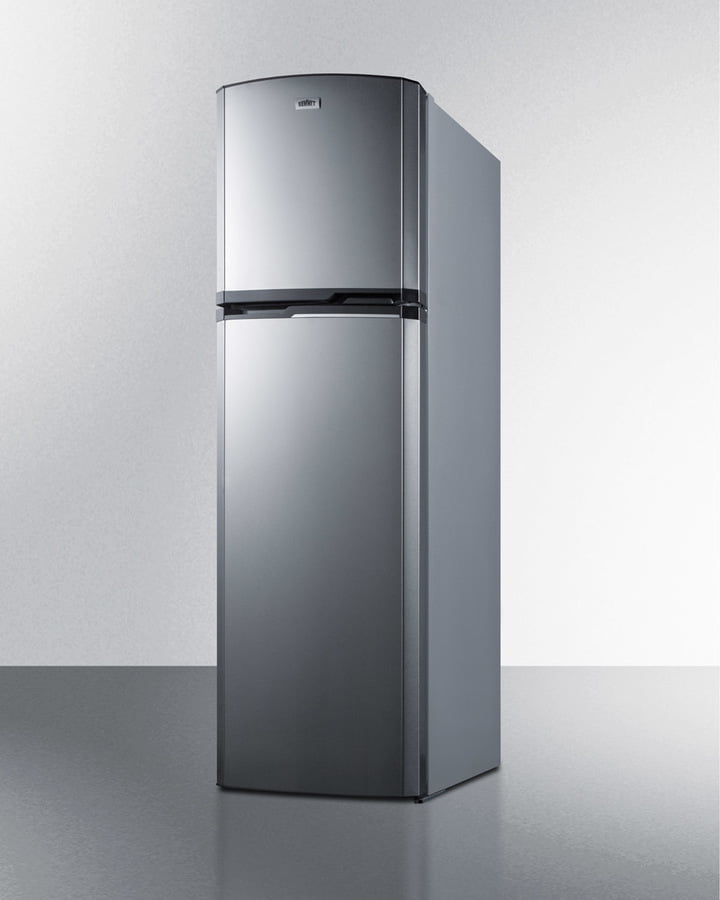

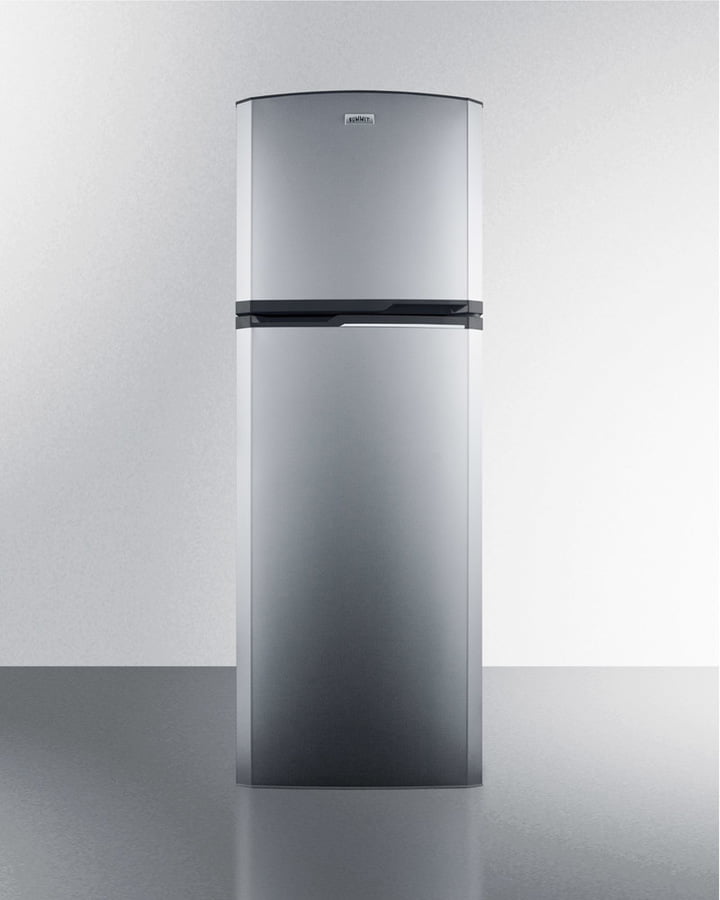

Summit FF948SSIM 22" Wide Top Mount Refrigerator-Freezer With Icemaker
Unique 22" Width Is Ideal For Apartment And Space-Challenged Kitchens While Still Offering Nearly 9 Cu.Ft. Of Storage True Frost-Free Operation Saves You Maintenance By Preventing Icy Buildup Fully Featured Interior With A Crisper, Adjustable Shelves, And More Door Shelves Offer Convenient Storage Solutions Stainless Steel Doors And Platinum Cabinet Bring A Professional Look To Small Kitchens Factory Installed Icemaker For Added Convenience Made In North America Summit's Thin-Line Collection Of Frost-Free Refrigerator-Freezers Brings Quality And Convenience To Even The Smallest Kitchen Space. The Ff948Ssim Offers A Full 8.8 Cu.Ft. Capacity Inside A Slim Fit, With A Unique Curved Door Design For Added Style. The Fresh Food Section Includes Adjustable Glass Shelves For Spill-Proof Storage And Easy Cleaning, With A Large Tilt-Out Crisper And Four Door Racks To Help Keep Your Refrigerator Organized. The Large Freezer Section Includes A Removable Wire Shelf And Two Door Racks For Added Convenience. A Factory Installed Icemaker Offers A Steady Supply Of Ice Cubes. Made In North America, The Ff948Ssim Includes Reversible Stainless Steel Doors And A Platinum Cabinet. For This Unit In White, See The Ff946Wim. Note: Because Of This Unit's Curved Door Style, The Ff948Ssim Requires An Additional 1 3/4" Of Width To Open The Doors To A Full 90 . If Placing This Unit Against A Right Angle Wall, Be Sure To Accommodate This Extra Space.
- Thin-line design : Limited space is no problem for our thin-line models, designed specifically for those hard-to-fit spots
- Frost-free operation : No-frost convenience for reduced user maintenance
- Adjustable glass shelves : Spill-proof shelves made from solid safety glass offer convenient and flexible storage in the refrigerator section
- Factory installed icemaker : Produces a steady of supply of ice in the freezer section
- Door storage : Refrigerator door includes four racks ideal for storing condiments and tall bottles. Freezer door includes one full and one half shelf
- Clear crisper : Get the longest life and best taste out of produce by storing greens in a convenient slide drawer that tilts out for easy loading and unloading
- Reversible stainless steel doors : User-reversible door swing for added flexibility
- Interior light : Automatically illuminates when you open the refrigerator door
- Platinum cabinet : Professional style offers the look of stainless steel
- 100% CFC free : Environmentally friendly design without ozone-damaging chemicals
Overview | |
Height of Cabinet | 64.75' (164 cm) |
Height to Hinge Cap | 65.75' (167 cm) |
Width | 22.0' (56 cm) |
Width with Door Open | 23.75' (60 cm) |
Depth | 26.0' (66 cm) |
Depth with door at 90° | 44.25' (112 cm) |
Capacity | 8.8 cu.ft. (249 L) |
Defrost Type | Frost-Free |
Door | Stainless Steel |
Cabinet | Platinum |
US Electrical Safety | UL |
Canadian Electrical Safety | ULC |
Energy Usage/Year | 400.0kWh/year |
Amps | 0.82 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 125.0 lbs. (57 kg) |
Shipping Weight | 130.0 lbs. (59 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Refrigerator-Freezer | |
Door Swing | RHD |
Reversible | Yes |
Crisper Qty | 1 |
Crisper Finish | Transparent |
Crisper Cover | Glass |
Interior Light | Yes |
Refrigerator - Interior Height | 40.5' (103 cm) |
Refrigerator - Interior Width | 17.0' (43 cm) |
Refrigerator - Interior Depth | 17.0' (43 cm) |
Refrigerator - Capacity | 6.67 cu.ft |
Refrigerator - Shelf Type | Glass |
Refrigerator - Shelf Qty | 2 |
Refrigerator - Full Door Shelves | 4 |
Freezer - Interior Height | 16.0' (41 cm) |
Freezer - Interior Width | 16.25' (41 cm) |
Freezer - Interior Depth | 13.25' (34 cm) |
Freezer - Capacity | 2.1 cu.ft |
Freezer - Shelf Type | Wire |
Freezer - Shelf Qty | 1 |
Freezer - Full Door Shelves | 1 |
Freezer - Half Door Shelves | 1 |
Thermostat Type | Dial |
Fan Type | Interior |
Refrigerant Type | R134a |
Refrigerant Amount | 3.53 oz. |
Level Legs | 2 |
Compressor Step Height | 9.75' (25 cm) |
Compressor Step Width | 17.0' (43 cm) |
Compressor Step Depth | 4.0' (10 cm) |
Handle | |
CP Full-Length Copper Pipe Handles | TBC Copper Towel Bar Handles |
Exterior | |
LHD - Left hand door swing | - |
