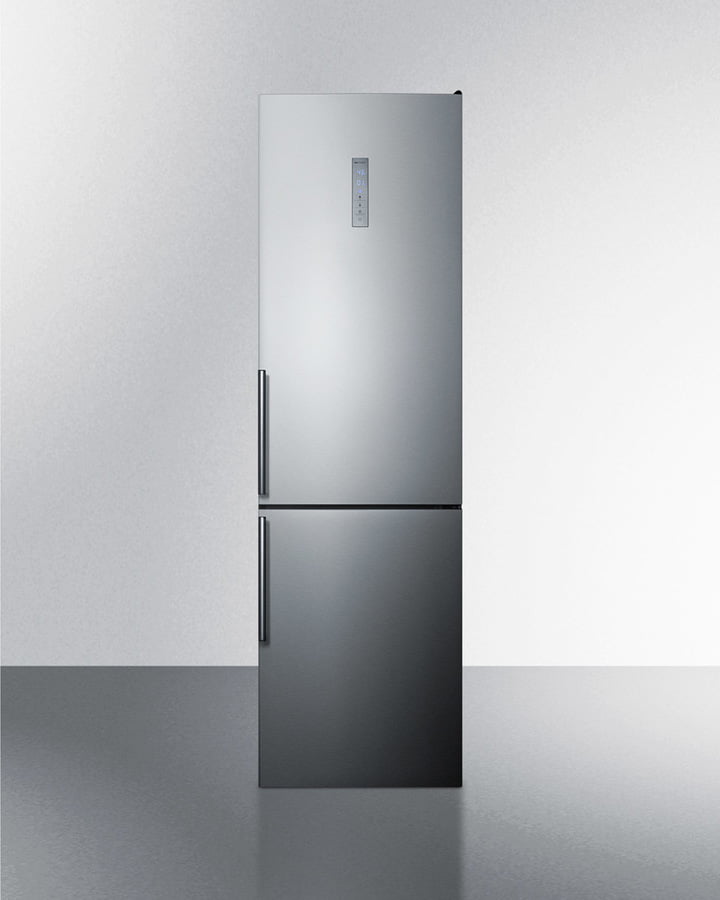

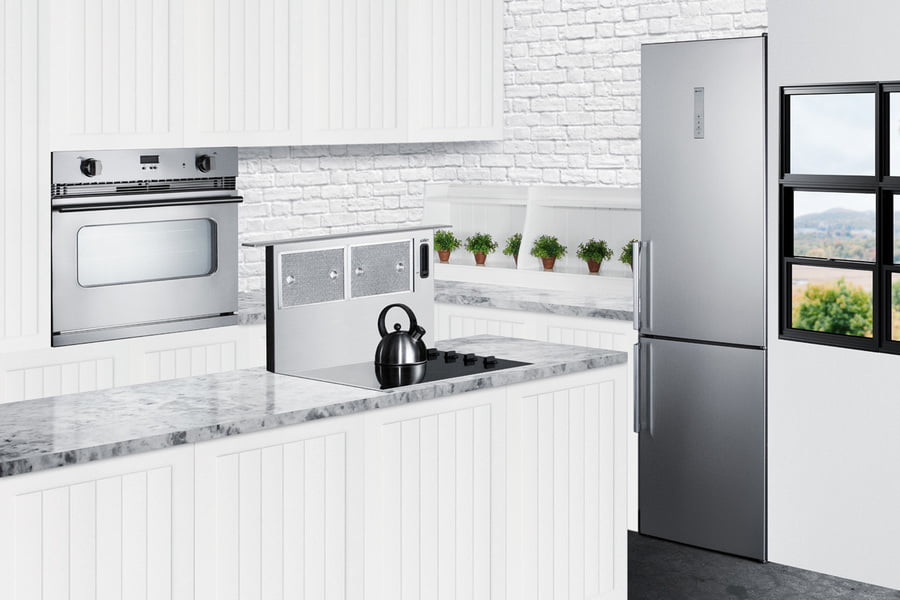

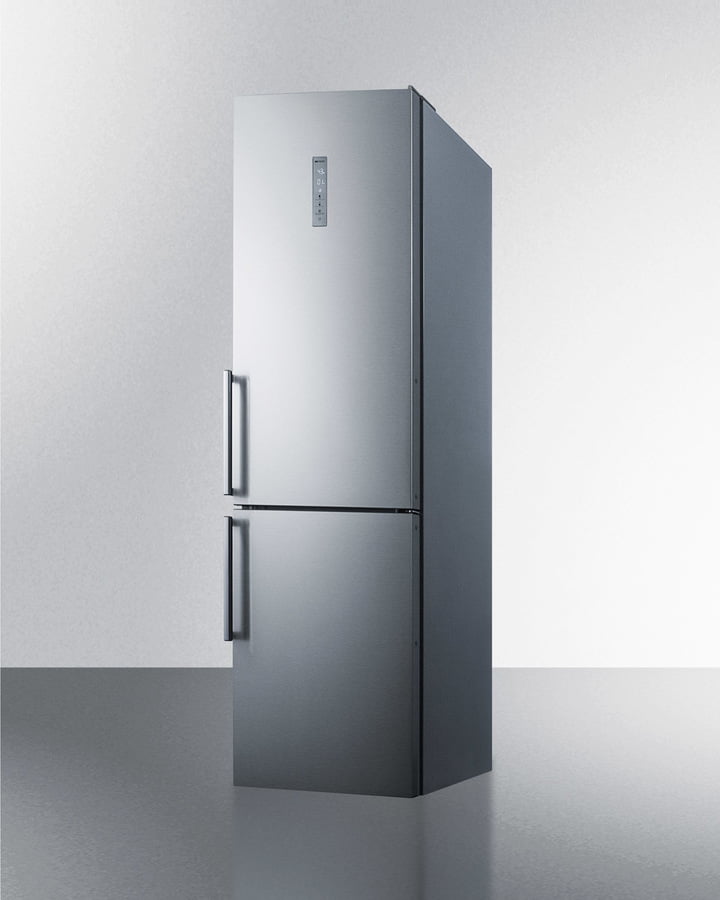

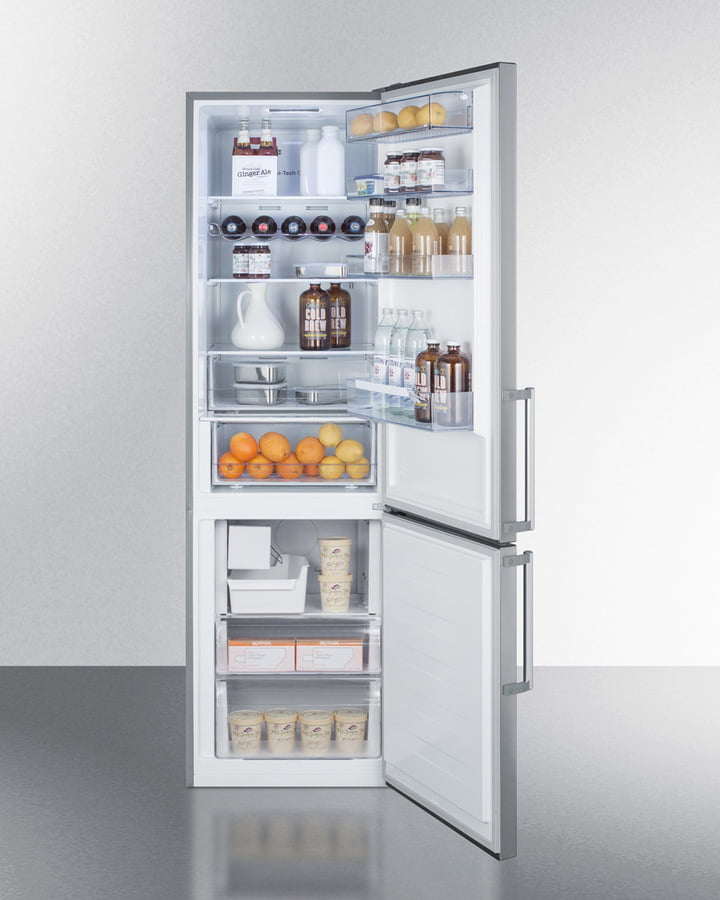

Summit FFBF192SSIM 24" Wide Bottom Freezer Refrigerator With Icemaker
Fingerprint Resistant Finish Offers The Look Of Stainless Steel Without The Constant Cleanup Full 12.5 Cu.Ft. Capacity In A Slim Counter Depth Fit Bottom Freezer Design Allows Easier Access To The Refrigerator Added Convenience With A Factory Installed Icemaker Fully Frost-Free In Both Compartments For Low Maintenance Use Deluxe Interior Includes Door Storage, Adjustable Glass Shelves, A Crisper, And Led Lighting Digital Temperature Controls For Both The Refrigerator And Freezer Sections Summit's Collection Of Frost-Free Refrigerator-Freezers Provides An Attractive And User-Friendly Solution To Small Kitchen Spaces. The Counter Depth Ffbf192Ssim Is A Bottom Freezer Refrigerator Sized With A Unique 24" Width That Offers A Generous 12.5 Cu.Ft. Storage Capacity. It Comes With A Textured Platinum Cabinet And Sealed Back Design. The Doors Feature A Gentle Curve And The Look Of Stainless Steel In A Fingerprint-Resistant Alternative Finish. Pro Style Handles Complete The Modern Look. Note: This Unit Ships With A Right Hand Door Swing. For A Left Version, Order With Suffix "Lhd." The Ffbf192Ssim Includes An External Digital Control Panel In A Sleek Mirror Finish, Allowing You To Manage The Interior Without Exposing Stored Contents To Room Temperature. The Refrigerator And Freezer Temperature Settings Can Be Viewed In Celsius Or Fahrenheit. The Control Panel Also Includes A "Super Cool" And "Super Freeze" Option To Cool The Interior Quickly, A Great Feature When Loading Groceries. A "Holiday" Setting Allows You To Reduce Energy Consumption In The Refrigerator Section While Still Safely Storing Items In The Freezer Compartment, While The "Eco" Setting Lets You Save Even More Energy For Longer Term Vacations. This Also Includes An Open Door Alarm That Will Sound If Either Door Is Left Open For Over Two Minutes. Inside, The Ffbf192Ssim Utilizes Frost-Free Operation For Minimum User Maintenance In Both Compartments. The Refrigerator Section Includes Spill-Proof Glass Shelves And Removable Door Racks. This Unit Comes With A Clear Crisper For Produce Storage, As Well As A Slide-Out Storage Drawer Designed To Keep Meats And Certain Other Items At A Slightly Colder Temperature. An Led Light Offers An Attractive And Energy Efficient Interior View. The Lower Freezer Section Features A Factory-Installed Icemaker For A Steady Supply Of Crescent Ice Cubes. Two Clear Slide-Out Drawers Provide A Convenient Way To Organize Your Freezer Storage. With Its Unique Size, Modern Style, And User-Friendly Features, The Ffbf192Ssim Is The Perfect Choice For Smaller Homes Looking To Bring Luxury To The Kitchen.
- Counter depth : Sized at 25" deep for an easier fit in space-challenged kitchens
- Bottom freezer : Convenient design keeps all refrigerated storage at eye level for easier use
- Full capacity in slim fit : Unique size offers a full 12.5 cu.ft. capacity in less than 24" of width

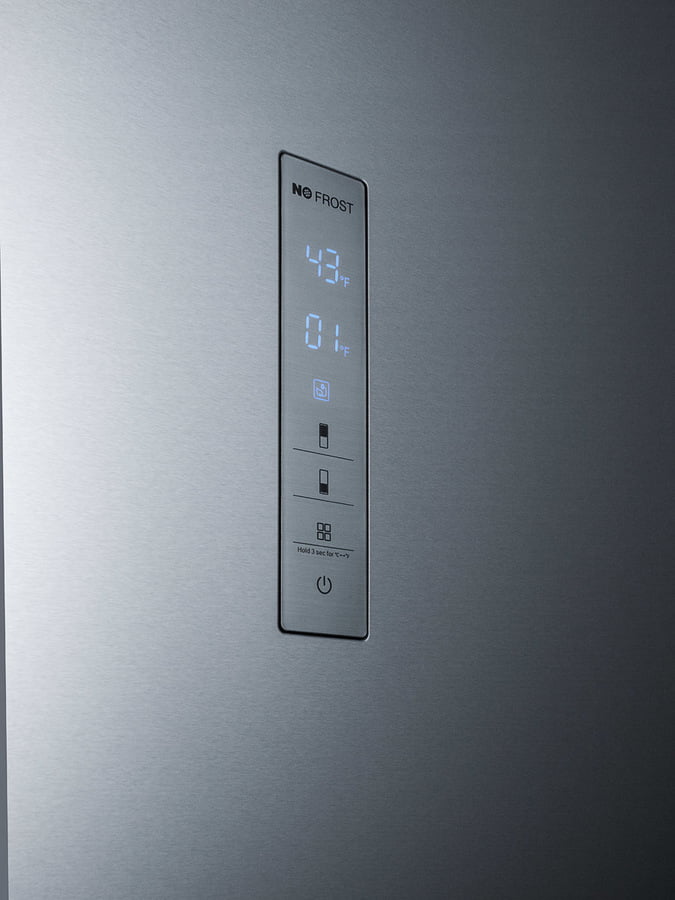

- Digital thermostats : Separate digital controls let you adjust the refrigerator and freezer sections, with a digital display viewable in Celsius or Fahrenheit
- Frost-free operation : Eliminates the need to manually defrost the refrigerator or freezer section
- Factory installed icemaker : Freezer includes an icemaker that produces up to 8 lbs. of crescent ice

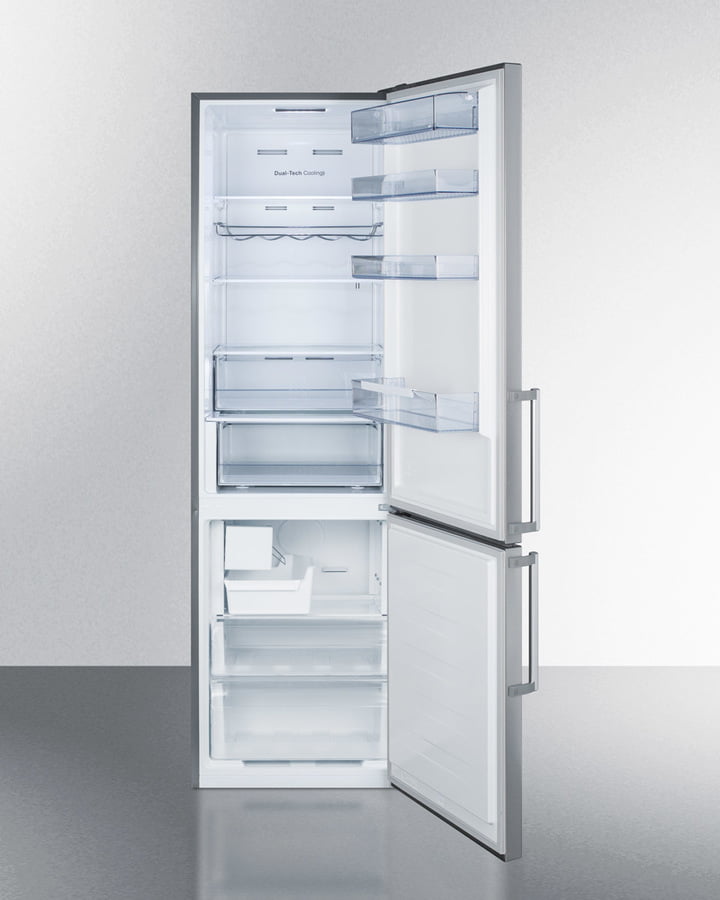

- Adjustable glass shelves : Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Door storage : Store tall bottles and condiments right on the door for convenient access
- Crisper drawer : Get the longest life and best taste out of produce by storing it in a convenient slide drawer
- Meat & fish drawer : Slide-out drawer maintains a slightly colder temperature to create the right conditions for defrosting meat and keeping items in a semi-frozen state
- Space-saving design : Crisper drawers slide out with the doors open at 90 for easier use in smaller kitchens

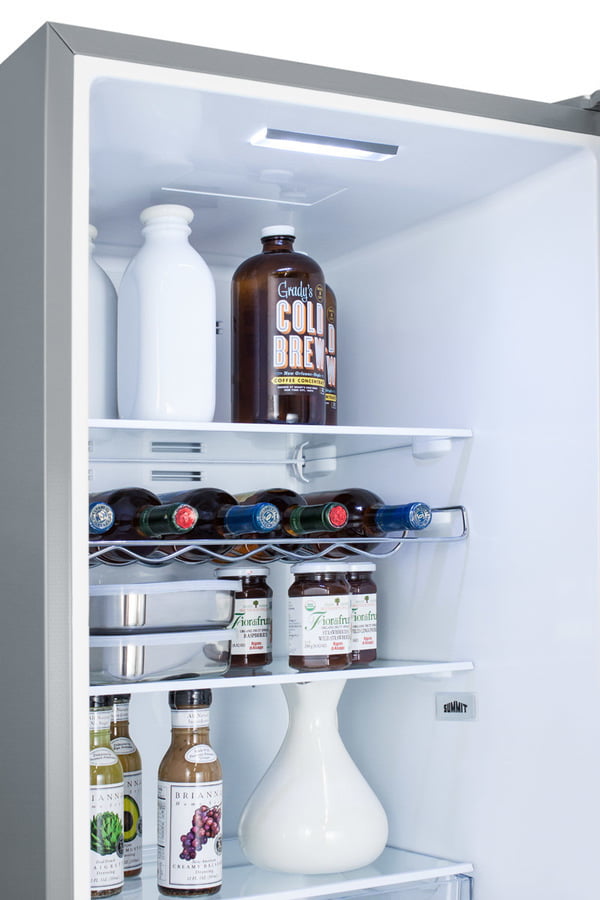

- LED lighting : Automatically illuminates when you open the door

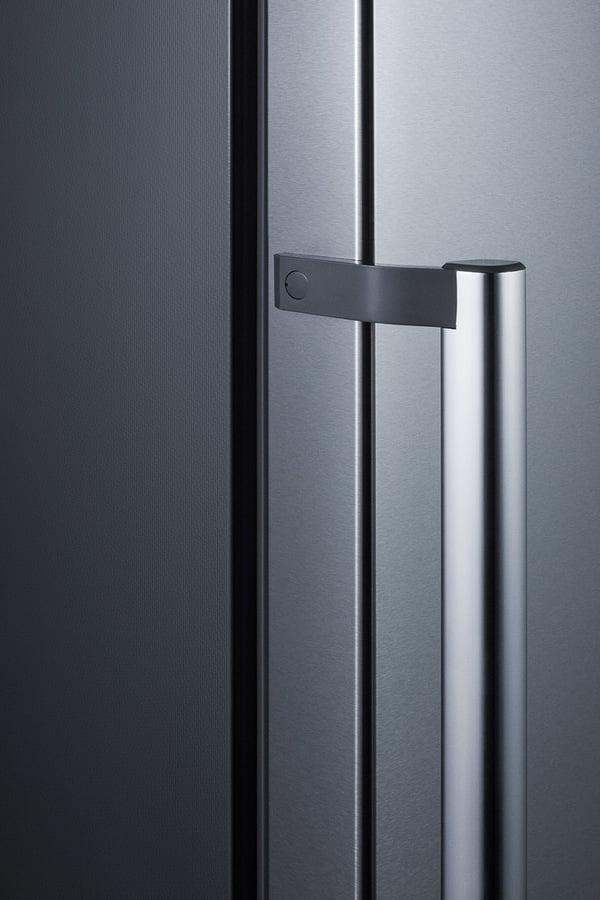

- Stainless steel look : Doors offer the look of stainless steel complete with a horizontal grain, but the easier cleanability of a fingerprint-resistant steel finish
- Removable transparent freezer drawers : Unique freezer design keeps the cold inside, even when the door is opened
- Open door alarm : Audible alarm will sound if either door is left ajar for over two minutes
- Super Cool function : Allows you to rapidly cool the refrigerator section to 35.6 F. Ideal for bringing newly loaded groceries to a safer storage temperature
- Super Freeze function : Allows you to rapidly cool the freezer to -12 F as needed
- Bottle holder : Includes a scalloped shelf ideal for storing wine and other bottled beverages horizontally
- Holiday setting : Allows you to disable the refrigerator while keeping the freezer functioning, perfect for use during vacation or downtime when you may want to keep items frozen but save on energy usage in the fresh food section
- Sealed back : Easier cleanup with a flat back design
- Fully finished cabinet : Textured cabinet in an attractive deep gray finish
- 100% CFC free : Environmentally friendly design without ozone-damaging chemicals
Overview | |
Height of Cabinet | 78.0' (198 cm) |
Height to Hinge Cap | 78.63' (200 cm) |
Width | 23.63' (60 cm) |
Depth | 25.0' (64 cm) |
Depth with Handle | 27.0' (69 cm) |
Depth with door at 90° | 46.63' (118 cm) |
Capacity | 12.5 cu.ft. (354 L) |
Defrost Type | Frost-Free |
Door | Stainless Look |
Cabinet | Platinum |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Energy Usage/Year | 489.0kWh/year |
Amps | 1.3 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 183.0 lbs. (83 kg) |
Shipping Weight | 190.0 lbs. (86 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Refrigerator-Freezer | |
Door Swing | RHD |
Reversible | Factory Reversible |
Interior Drawers | Yes |
Drawer Qty | 5 |
Crisper Qty | 2 |
Crisper Finish | Transparent |
Crisper Cover | Glass |
Wine Bottle Shelving | Yes |
Interior Light | Yes |
Refrigerator - Interior Height | 42.0' (107 cm) |
Refrigerator - Interior Width | 19.25' (49 cm) |
Refrigerator - Interior Depth | 19.0' (48 cm) |
Refrigerator - Capacity | 8.9 cu.ft |
Refrigerator - Shelf Type | Glass |
Refrigerator - Shelf Qty | 2 |
Refrigerator - Full Door Shelves | 4 |
Refrigerator - Temperature Range | 2 to 8 C |
Freezer - Interior Height | 24.63' (63 cm) |
Freezer - Interior Width | 16.5' (42 cm) |
Freezer - Interior Depth | 14.63' (37 cm) |
Freezer - Capacity | 3.6 cu.ft |
Thermostat Type | Digital |
Fan Type | Interior |
Refrigerant Type | R600a |
Refrigerant Amount | 1.6 oz. |
High Side PSI | 250.0 |
Low Side PSI | 88.0 |
Level Legs | 2 |
Freezer - Temperature Range | -15 to -25 C |
Exterior | |
LHD - Left hand door swing | - |
Overview | |
Height of Cabinet | 78.0' (198 cm) |
Height to Hinge Cap | 78.63' (200 cm) |
Width | 23.63' (60 cm) |
Depth | 25.0' (64 cm) |
Depth with Handle | 27.0' (69 cm) |
Depth with door at 90° | 46.63' (118 cm) |
Capacity | 12.5 cu.ft. (354 L) |
Defrost Type | Frost-Free |
Door | Stainless Look |
Cabinet | Platinum |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Energy Usage/Year | 489.0kWh/year |
Amps | 1.3 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 183.0 lbs. (83 kg) |
Shipping Weight | 190.0 lbs. (86 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Refrigerator-Freezer | |
Door Swing | RHD |
Reversible | Factory Reversible |
Interior Drawers | Yes |
Drawer Qty | 5 |
Crisper Qty | 2 |
Crisper Finish | Transparent |
Crisper Cover | Glass |
Wine Bottle Shelving | Yes |
Interior Light | Yes |
Refrigerator - Interior Height | 42.0' (107 cm) |
Refrigerator - Interior Width | 19.25' (49 cm) |
Refrigerator - Interior Depth | 19.0' (48 cm) |
Refrigerator - Capacity | 8.9 cu.ft |
Refrigerator - Shelf Type | Glass |
Refrigerator - Shelf Qty | 2 |
Refrigerator - Full Door Shelves | 4 |
Refrigerator - Temperature Range | 2 to 8 C |
Freezer - Interior Height | 24.63' (63 cm) |
Freezer - Interior Width | 16.5' (42 cm) |
Freezer - Interior Depth | 14.63' (37 cm) |
Freezer - Capacity | 3.6 cu.ft |
Thermostat Type | Digital |
Fan Type | Interior |
Refrigerant Type | R600a |
Refrigerant Amount | 1.6 oz. |
High Side PSI | 250.0 |
Low Side PSI | 88.0 |
Level Legs | 2 |
Freezer - Temperature Range | -15 to -25 C |
Exterior | |
LHD - Left hand door swing | - |
