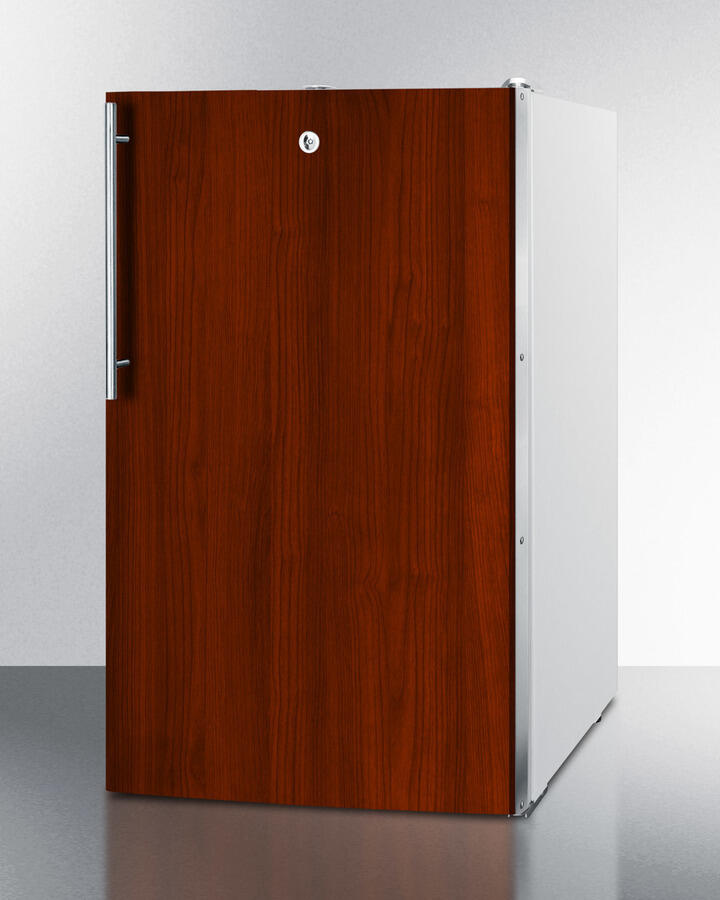

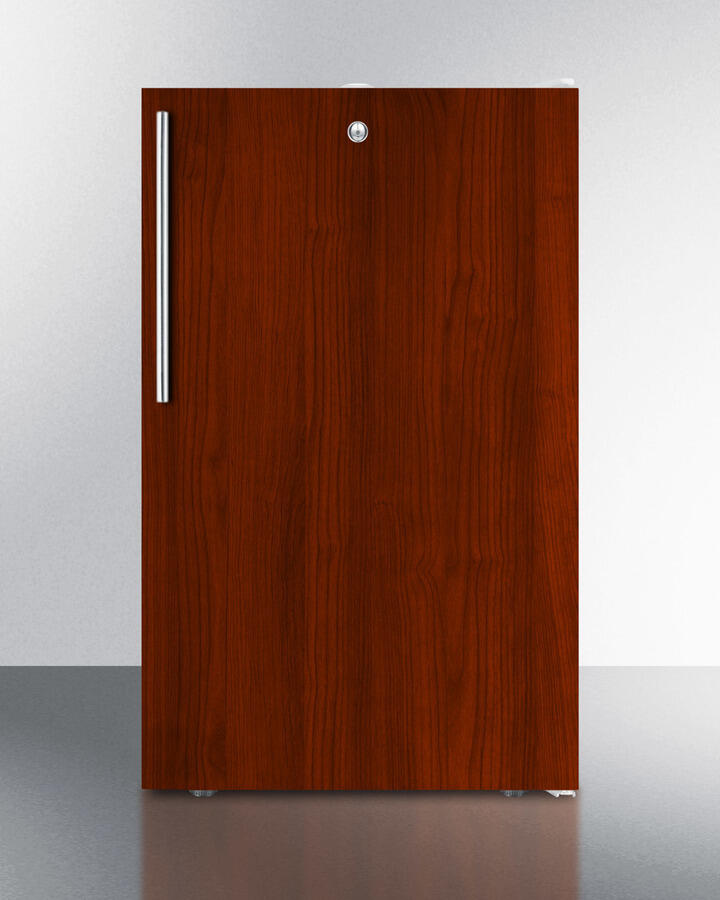

Summit FS407LBI7IFADA Commercially Listed Ada Compliant 20" Wide Built-In Undercounter All-Freezer, -20 C Capable With A Lock And Integrated Door Frame For Full Overlay Panels
Summit FS407LBI7IFADA Commercially Listed Ada Compliant 20" Wide Built-In Undercounter All-Freezer, -20 C Capable With A Lock And Integrated Door Frame For Full Overlay Panels
SKU: FS407LBI7IFADA
UPC: 761101036540
x
Installation and Removal
x
When Will I Get My Order?
x
THIS ITEM QUALIFIES FOR FREE DELIVERY!
Our Price: $1,099.85
EXTENDED PROTECTION
3 year plan
$120.995 year plan
$228.99Couldn't load pickup availability
x
Installation and Removal
x
When Will I Get My Order?
x
Summit FS407LBI7IFADA Commercially Listed Ada Compliant 20" Wide Built-In Undercounter All-Freezer, -20 C Capable With A Lock And Integrated Door Frame For Full Overlay Panels
32" Height Fits Under Lower Ada Compliant Counters Etl-S Listed For Commercial Use Flexible Design Allows Built-In Or Freestanding Use In 20" Wide Spaces -20 C Capable With Interior Slide-Out Drawers For Easy Storage Factory Installed Lock Provides Security You Can Count On Door Can Accept A Full Overlay Panel For A Seamless Look That Blends Into Cabinetry Includes A Hospital Grade Cord With A 'Green Dot' Plug Accucold By Summit Appliance Fs407Lbi7Ada Series Offers A Quality Selection Of 20" Wide Commercial All-Freezers For Built-In Use Under Ada Compliant Counters. The Etl-S Listed Fs407Lbi7Ifada Is A White All-Freezer With Manual Defrost Operation And 2.8 Cu.Ft. Capacity. Four Pull-Out Drawers With Clear Fronts Offer Convenient Storage Solutions. The Adjustable Thermostat Is Located In The Rear Of The Model And A Hospital Grade (Green Dot) Cord Offers Additional Safety In High Traffic Areas. An Integrated Door Frame Lets You Mount Full Overlay Panels For A Seamless Custom Look. This Model Has A Factory-Installed Lock, Top-Mounted For Added Convenience. Sized At 32" High And Just Under 20" Wide, The Fs407Lbi7Ifada Is Designed To Fit Under Lower Ada Compliant Counters. This Unit Can Be Used Built-In Or Freestanding And Can Be Perfectly Paired With Our Auto Defrost Ff511Lbi7Ifada All-Refrigerator.
- ADA compliant: 32" high to fit under lower ADA compliant counters
- Commercially listed: ETL-S listed to NSF standards for commercial use
- Slim 20" width: 2.8 cu.ft. capacity inside a slim footprint
- Built-in capable: Make the best use of space by installing your appliance under the counter
- Fully finished white cabinet: Allows the unit to be used freestanding
- Factory installed lock: Top-mounted for convenient security
- Integrated door frame: Stainless steel door frame accepts overlay panels for users to create a custom look over the front (panel size: 19 1/2" W x 31 1/2" H and at least 3/4" thick; maximum weight: 10 lbs.)
- Hospital grade cord with 'green dot' plug: Secure three-pronged cord for added unit safety
- Manual defrost: Efficient performance with reliable temperature stability
- -20 capable: Low temperature capability ideal for certain sensitive items

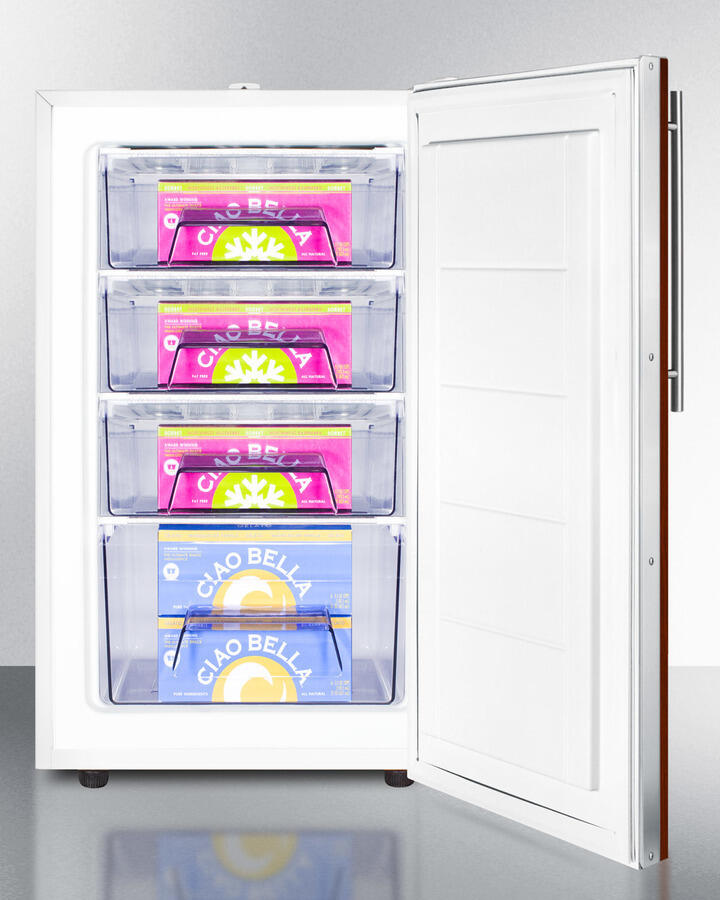

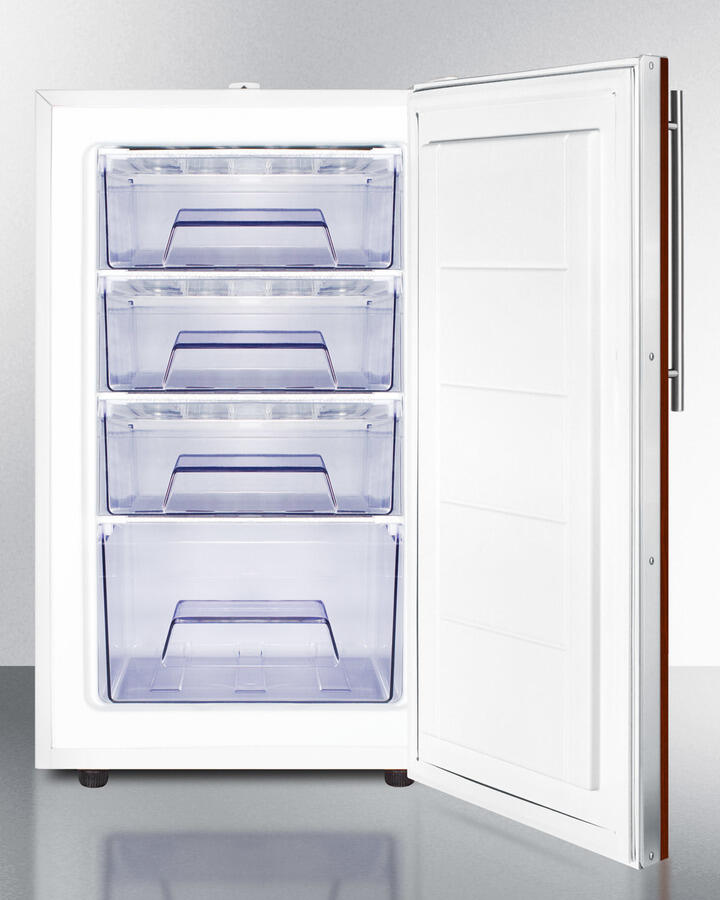

- Pull-out drawers: Four clear baskets for convenient and separated storage
- Adjustable thermostat: Rear mounted to prevent accidental adjustments
- Flat door liner: Easy to clean, with more depth for storage
- 100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals
- Matching refrigerator available: Pair with FF511LBIIFADA for a complete ADA compliant set
| Overview | |
| Height of Cabinet | 32.0' (81 cm) |
| Height to Hinge Cap | 32.5' (83 cm) |
| Width | 19.25' (49 cm) |
| Depth | 21.38' (54 cm) |
| Depth with door at 90° | 39.5' (100 cm) |
| Capacity | 2.8 cu.ft. (79 L) |
| Defrost Type | Manual |
| Door | Panel-Ready |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.6 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 64.0 lbs. (29 kg) |
| Shipping Weight | 67.0 lbs. (30 kg) |
| Estimated Time to Ship | 2 to 4 days |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| Freezer | |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Interior Height | 26.38' (67 cm) |
| Interior Width | 14.0' (36 cm) |
| Interior Depth | 16.75' (43 cm) |
| Thermostat Type | Dial |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 3.0 oz. |
| High Side PSI | 210.0 |
| Low Side PSI | 105.0 |
| Level Legs | 2 |
| Interior Drawers | Yes |
| Drawers Qty | 4 |
| Exterior | |
| DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout | DL2 - Factory installed NIST calibrated data logger USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
| SCD - Self | closing door Protect interior contents and reduce energy waste with the Self Closing Door Option |
