Summit FS407LBI7SSTBADA Commercially Listed Ada Compliant 20" Wide Built-In Undercounter All-Freezer W/Lock, Stainless Steel Door, Towel Bar Handle And White Cabinet
Etl-S Listed For Commercial Use 32" Height Fits Under Lower Ada Compliant Counters Flexible Design Allows Built-In Or Freestanding Use In 20" Wide Spaces Factory Installed Lock Provides Security You Can Count On -20 C Capable With Interior Slide-Out Drawers For Easy Storage Professional Style With 304 Grade Stainless Steel Wrapped Door And Curved Towel Bar Handle��Includes A Hospital Grade Cord With A 'Green Dot' Plug Accucold By Summit Appliance Fs407Lbi7Ada Series Offers A Quality Selection Of 20" Wide All-Freezers For Built-In Use Under Ada Compliant Counters. The Etl-S Listed Fs407Lbi7Sstbada Is A Manual Defrost All-Freezer With 2.8 Cu.Ft. Capacity. Four Pull-Out Drawers With Clear Fronts Offer Convenient Storage Solutions. The Adjustable Thermostat Is Located In The Rear Of The Model And A Hospital Grade (Green Dot) Cord Offers Additional Safety In High Traffic Areas. This Model Has A White Cabinet With A 304 Grade Stainless Steel Wrapped Door And Curved Towel Bar Handle. A Top-Mounted Lock Adds Convenient Security. Sized At 32" High And Just Under 20" Wide, The Fs407Lbi7Sstbada Is Designed To Fit Under Lower Ada Compliant Counters. This Unit Can Be Used Built-In Or Freestanding And Can Be Paired With Our Auto Defrost Ff511Lbi7Sstbada All-Refrigerator.
- ADA compliant: 32" high to fit under lower ADA compliant counters
- Commercially listed: ETL-S listed to NSF standards for commercial use
- Slim 20" width: 2.8 capacity inside a slim footprint
- Built-in capable: Make the best use of space by installing your appliance under the counter
- Fully finished white cabinet: Allows the unit to be used freestanding

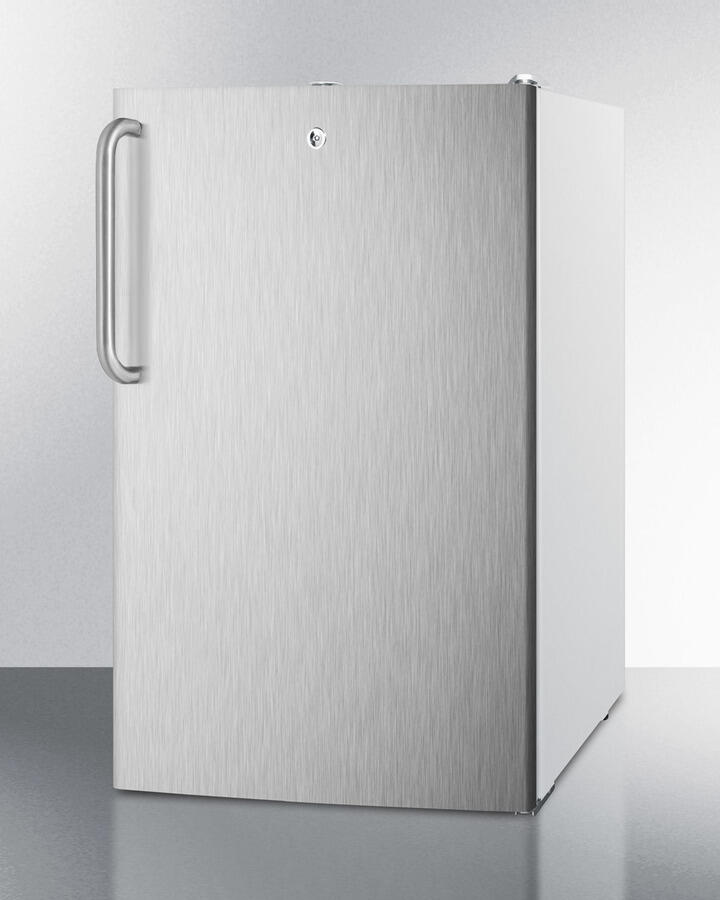

- Stainless steel wrapped door: Durable 304 grade wrapping
- Professional towel bar handle: A curved stainless steel handle provides generous room for a comfortable grip
- Factory installed lock: Top-mounted for convenient security
- Hospital grade cord with 'green dot' plug: Secure three-pronged cord for added unit safety
- Manual defrost: Efficient performance with reliable temperature stability
- -20 capable: Low temperature capability ideal for certain sensitive items

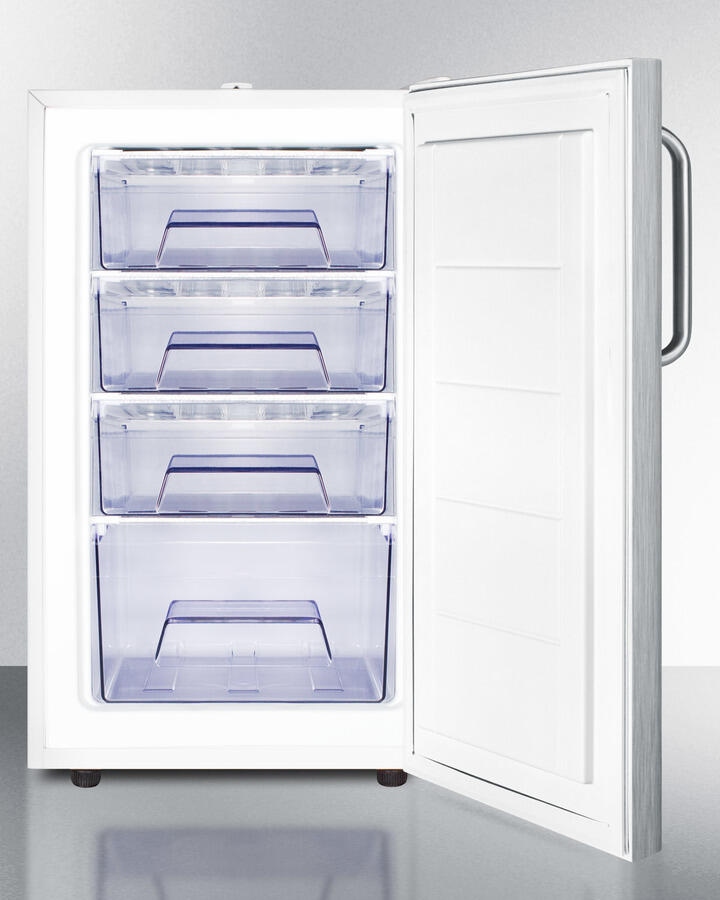

- Pull-out drawers: Four clear baskets for convenient and separated storage
- Flat door liner: Easy to clean, with more depth for storage
- Adjustable thermostat: Rear mounted to prevent accidental adjustments
- Matching refrigerator available: Pair with FF511LBI7SSTBADA for a complete ADA compliant set
- 100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals
Overview | |
Height of Cabinet | 32.0' (81 cm) |
Height to Hinge Cap | 32.5' (83 cm) |
Width | 19.25' (49 cm) |
Depth | 21.38' (54 cm) |
Depth with door at 90° | 39.5' (100 cm) |
Capacity | 2.8 cu.ft. (79 L) |
Defrost Type | Manual |
Door | Stainless Steel |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 1.6 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 64.0 lbs. (29 kg) |
Shipping Weight | 67.0 lbs. (30 kg) |
Estimated Time to Ship | 2 to 4 days |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Freezer | |
Door Swing | RHD |
Reversible | Factory Reversible |
Interior Height | 26.38' (67 cm) |
Interior Width | 14.0' (36 cm) |
Interior Depth | 16.75' (43 cm) |
Thermostat Type | Dial |
Fan Type | Exterior |
Refrigerant Type | R134a |
Refrigerant Amount | 3.0 oz. |
High Side PSI | 210.0 |
Low Side PSI | 105.0 |
Level Legs | 2 |
Interior Drawers | Yes |
Drawers Qty | 4 |
Exterior | |
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout | DL2 - Factory installed NIST calibrated data logger USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
SCD - Self | closing door Protect interior contents and reduce energy waste with the Self Closing Door Option |
