Summit FS407LBIIF 20" Wide Built-In Undercounter All-Freezer For General Purpose Use, -20 C Capable With A Lock And Integrated Door Frame For Full Overlay Panels
Summit FS407LBIIF 20" Wide Built-In Undercounter All-Freezer For General Purpose Use, -20 C Capable With A Lock And Integrated Door Frame For Full Overlay Panels
SKU: FS407LBIIF
UPC: 761101025599
x
Installation and Removal
x
When Will I Get My Order?
x
Our Price: $902.06
EXTENDED PROTECTION
3 year plan
$120.995 year plan
$228.99Couldn't load pickup availability
x
Installation and Removal
x
When Will I Get My Order?
x

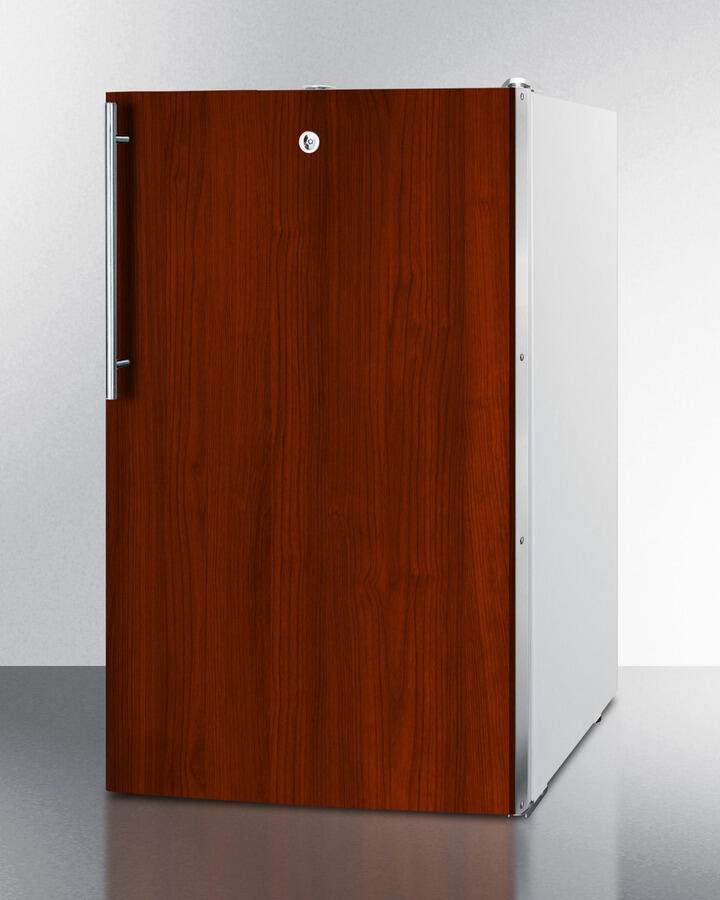

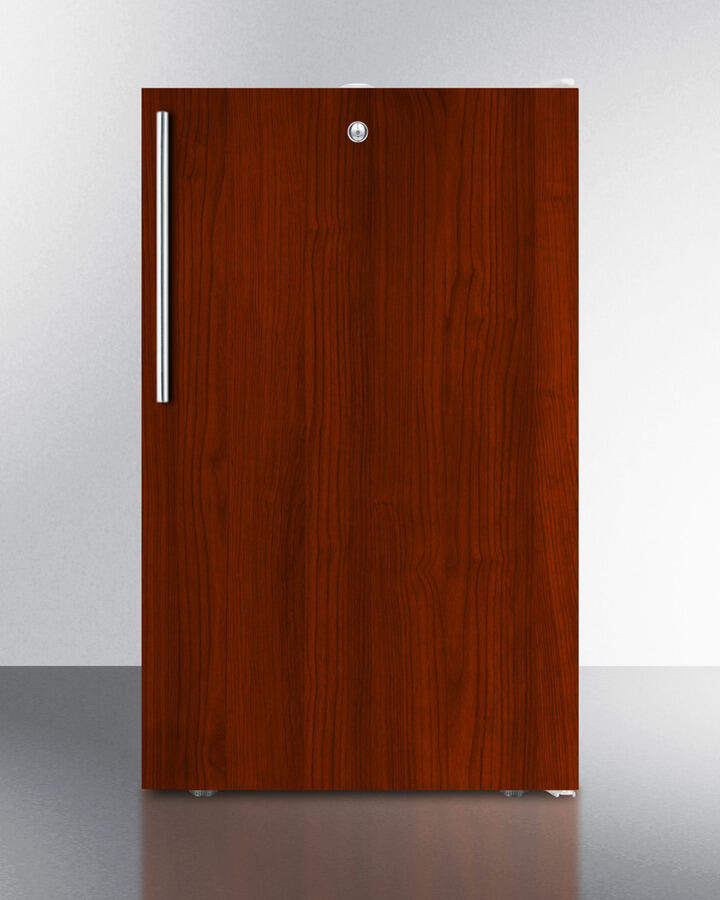

Summit FS407LBIIF 20" Wide Built-In Undercounter All-Freezer For General Purpose Use, -20 C Capable With A Lock And Integrated Door Frame For Full Overlay Panels
Flexible Design Allows Built-In Or Freestanding Use In 20" Wide Spaces Door Can Accept A Full Overlay Panel For A Seamless Look That Blends Into Cabinetry Factory Installed Lock Provides Security You Can Count On -20 C Capable With Interior Slide-Out Drawers For Easy Storage Accucold By Summit Appliance's Fs407Lbi Series Features A Quality Selection Of 20" Wide General Purpose All-Freezers For Built-In Installation Under Counters. The Fs407Lbiif Is A White All-Freezer With Manual Defrost Operation And 2.8 Cu.Ft. Capacity. Four Pull-Out Drawers With Clear Fronts Offer Convenient Storage Solutions. The Adjustable Thermostat Is Located In The Rear Of The Model. An Integrated Door Frame Lets You Mount Full Overlay Panels For A Seamless Custom Look. This Model Has A Factory-Installed Lock, Top-Mounted For Added Convenience. Sized Just Under 20" Wide, The Fs407Lbiif Can Be Used As A Built-In Or Freestanding Unit. For A Complete Refrigerator/Freezer Set, Pair This Model With Our Auto Defrost Ff511Lbiif All-Refrigerator.
- Slim 20" width: 2.8 capacity inside a slim footprint
- Built-in capable: Make the best use of space by installing your appliance under the counter
- Fully finished white cabinet: Allows the unit to be used freestanding
- Factory installed lock: Top-mounted for convenient security
- Integrated door frame: Stainless steel door frame accepts overlay panels for users to create a custom look over the front (panel size: 19 1/2" W x 31 1/2" H and at least 3/4" thick; maximum weight: 10 lbs.)
- Manual defrost: Efficient performance with reliable temperature stability
- -20 capable: Low temperature capability ideal for certain sensitive items

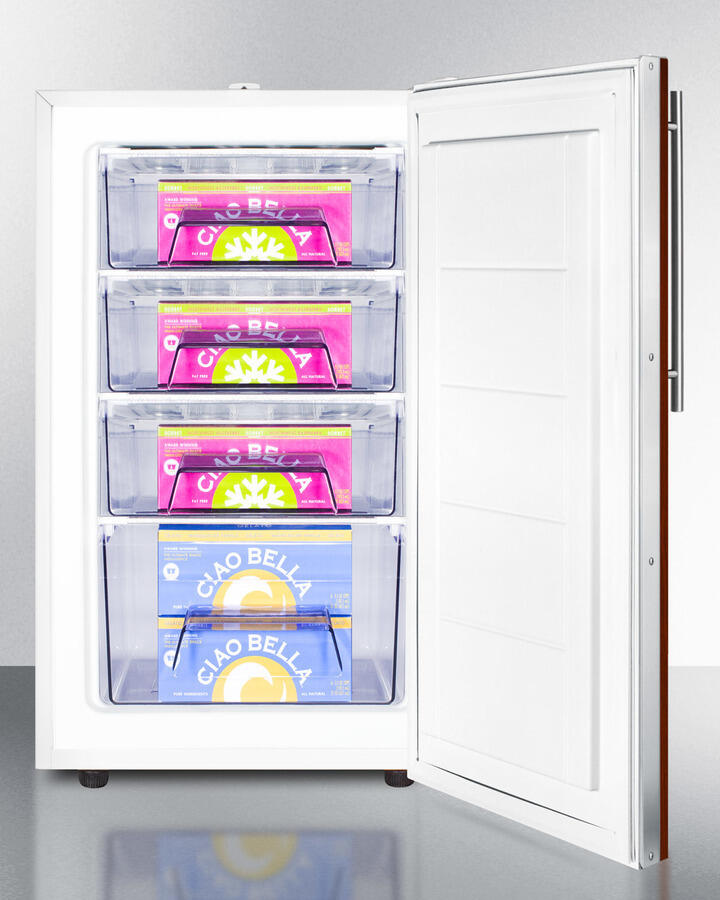

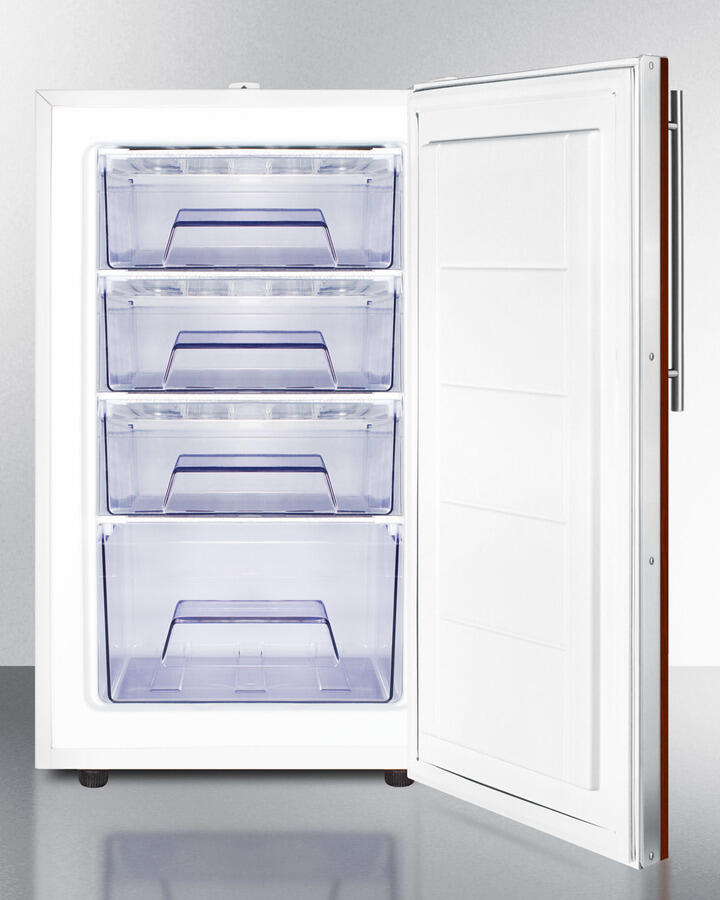

- Pull-out drawers: Four clear baskets for convenient and separated storage
- Adjustable thermostat: Rear mounted to prevent accidental adjustments
- Flat door liner: Easy to clean, with more depth for storage
- 100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals
- Matching refrigerator available: Pair with FF511LBIIF for a complete undercounter set
| Overview | |
| Height of Cabinet | 33.5' (85 cm) |
| Height to Hinge Cap | 34.0' (86 cm) |
| Width | 19.25' (49 cm) |
| Depth | 21.38' (54 cm) |
| Depth with door at 90° | 39.5' (100 cm) |
| Capacity | 2.8 cu.ft. (79 L) |
| Defrost Type | Manual |
| Door | Panel-Ready |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.6 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 64.0 lbs. (29 kg) |
| Shipping Weight | 67.0 lbs. (30 kg) |
| Estimated Time to Ship | 2 to 4 days |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| Freezer | |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Interior Height | 26.38' (67 cm) |
| Interior Width | 14.0' (36 cm) |
| Interior Depth | 16.75' (43 cm) |
| Thermostat Type | Dial |
| Refrigerant Type | R134a |
| Refrigerant Amount | 3.0 oz. |
| High Side PSI | 210.0 |
| Low Side PSI | 105.0 |
| Level Legs | 2 |
| Interior Drawers | Yes |
| Drawers Qty | 4 |
| Exterior | |
| DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout | DL2 - Factory installed NIST calibrated data logger USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
| TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order | PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices |
| DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management | CAS6 6' casters 6' high NSF listed casters |
| CAS3 3' casters 3' high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish | Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations |
| Extra key Extra keys available for purchase | SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option |
| LHD - Left hand door swing Door reversal to left hand swing | Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. |
| HUM - Humidity sensor Humidity sensor with min/max readout | DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac |
| Lock | |
| KEYPAD Battery-powered keypad door lock installed for keyless security | AC Keypad Keypad door lock powered by appliance power cord for keyless security |
