Summit FS407LBIMED2ADA Built-In Undercounter Medical/Scientific All-Freezer In Ada Height, With Front Control Panel Equipped With A Digital Thermostat And Nist Calibrated Thermometer/Alarm
(Ul)(Li)Sized At 32 1/4" High To Allow Installation Under Lower Ada Compliant Counters(/Li)(Li)Specially Designed And Featured To Meet The Cdc And Vfc'S Guidelines For Safe Vaccine Storage (/Li)(Li)User-Friendly Front Control Panel Keeps The Thermostat And Alarm In Reach Without Having To Open The Door (/Li)(Li)Assembled In The Usa From Domestic And Imported Components (/Li)(Li)Interior Drawers Ensure Stored Items Are Not Exposed To Room Temperature When The Door Is Open(/Li)(Li)High Temperature Alarm Includes Nist Calibrated External Temperature Readout (Nist Certificate Included) (/Li)(Li)Flexible Design Allows Built-In Or Freestanding Use In 20" Wide Spaces(/Li)(/Ul) Accucold'S Med2 Series Puts The Most Commonly Requested Features Into A Quality Line Of All-Refrigerators And Freezers Specially Designed To Store Vaccines And Other Sensitive Materials In Medical, Scientific, Pharmaceutical, And Laboratory Institutions. The Fs407Lbimed2Ada Is A Manual Defrost All-Freezer Sized In A Uniquely Slim 20" Width And 32 1/4" Height. The Front Breathing Design Allows Built-In Installation Under Lower Ada Compliant Counters, While The Fully Finished Cabinet In White Also Enables Freestanding Use. This Unit Is Designed With An External Front Control Panel That Allow Users To Adjust And Monitor The Temperature Without Opening The Door Or Bending Down To The Floor. The Front Keyed Lock Is Located Towards The Top Of The Door For Added Convenience. A Hospital Grade 'Green Dot' Cord Offers Added Safety In High Traffic Environments. As Recommended By The Cdc And Vfc Programs, The Fs407Lbimed2Ada Is Equipped With A Nist Calibrated Thermometer That Displays The Current, Minimum, And Maximum Temperatures To The Nearest Tenth Of A Degree With A Readout Viewable In Celsius Or Fahrenheit. Each Fs407Lbimed2Ada Ships With A Certificate Of Calibration For Your Records. The Thermometer Includes An Audible Alarm To Warn Users If The Interior Has Gone Out Of The Programmed Temperature Range. The Buffered Temperature Probe Is Encased In A Glycol-Filled Bottle To Best Simulate The Temperature Of Other Stored Contents, Resulting In The Utmost Accuracy For Temperature Reporting. We Include A Pre-Installed 3/8" Probe Hole For Users Who Wish To Install Additional Monitoring Equipment. The Fs407Lbimed2Ada Features A 2.8 Cu.Ft. Interior Capacity. Four Plastic Baskets With Clear Fronts Allows Users To View Stored Contents Without Exposing Them To Room Temperature Every Time The Door Is Opened. This Unit'S Thermostat Comes Pre-Set At -18 C. It Has A Flat Door Liner As Recommended By The Cdc. All Med2 Series Units Are Assembled In The Usa From Domestic And Imported Components. The Fs407Lbimed2Ada Can Be Paired With A Matching All-Refrigerator (Ff511Lbimed2Ada). This Unit Can Also Be Customized With Additional Features, Including A Power-Out Alarm Or Usb Temperature Logger With A Digital Display. Contact Our Product Specialists To Learn More. Products In The Med2 Series Come With A Two Year Warranty On Parts And Labor And A Five Year Warranty On The Compressor. *Note: This Unit'S Thermostat Is Pre-Set For Celsius. If You Prefer Fahrenheit, Add Complimentary Option Dtmedf Or Let Your Sales Representative Know Upon Order.
- Reliable temperature stability: Designed and engineered to store vaccines and other sensitive materials under stable temperature conditions
- ADA compliant design: 32 1/4" height allows installation under lower ADA compliant counters
- Built-in capable: Front-breathing design allows built-in installation under counters

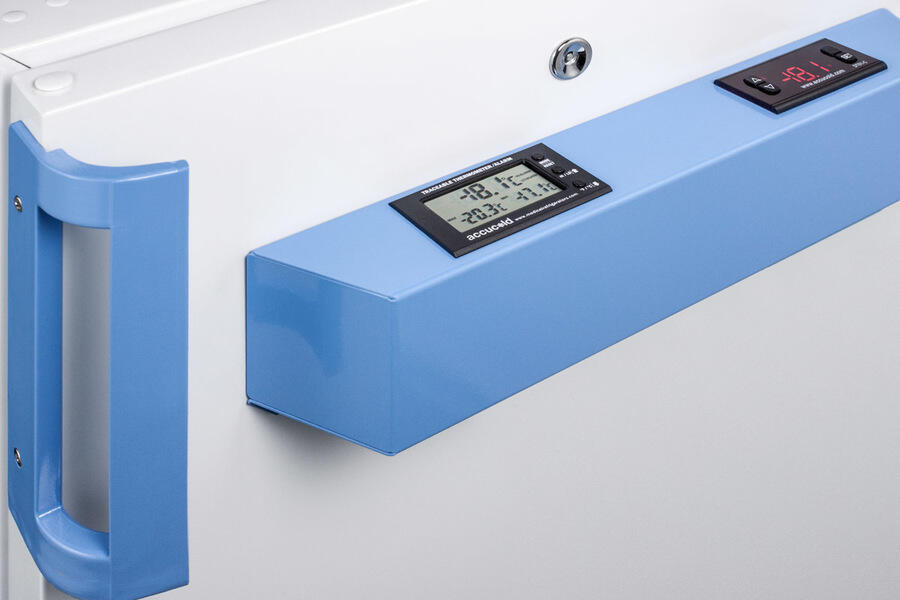

- Digital thermostat: Electronic controls for more precise temperature management, with temperature readout and controls externally located for added convenience
- High/low temperature alarm: Audible alarm sounds if the interior temperature rises or falls out of set range
- NIST calibrated temperature display: Alarm includes continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
- Buffered temperature probe: Thermometer probe is encased in a glycol-filled bottle to maintain temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines
- Factory installed lock: Keyed lock conveniently located towards the top of the door for added security (2 keys included)
- Manual defrost: Static cooling system for reduced temperature fluctuations
- Hospital grade cord and plug: Secure three-pronged cord for added unit safety
- 3/8" access port: Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

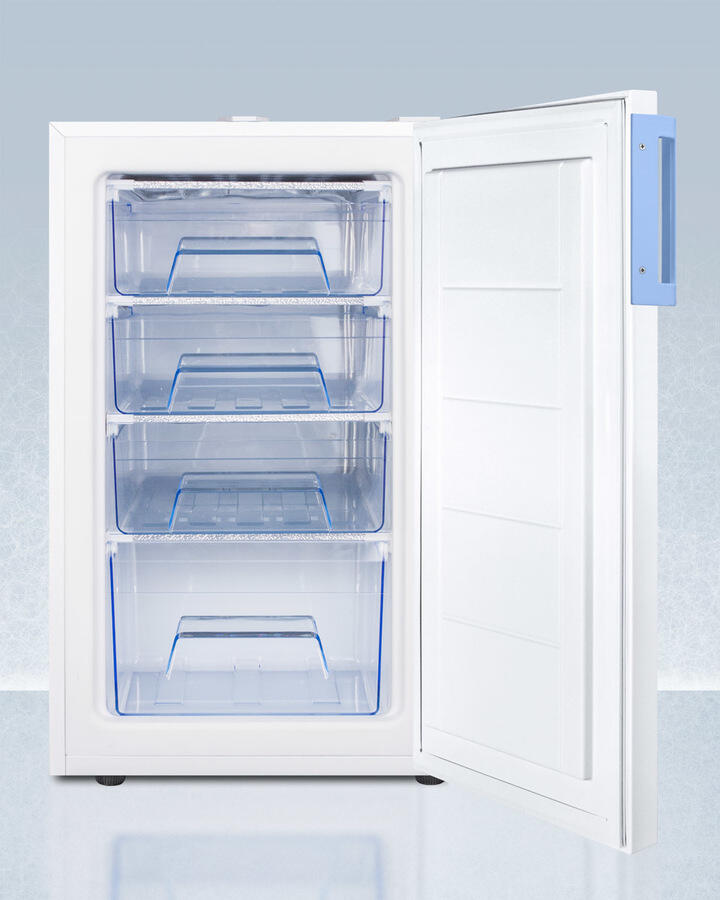

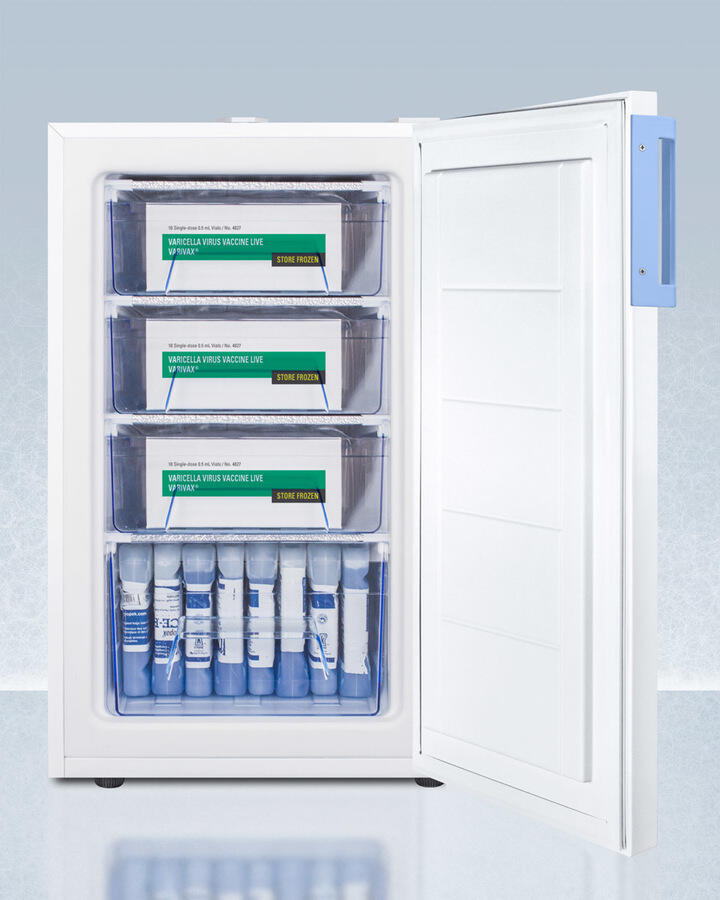

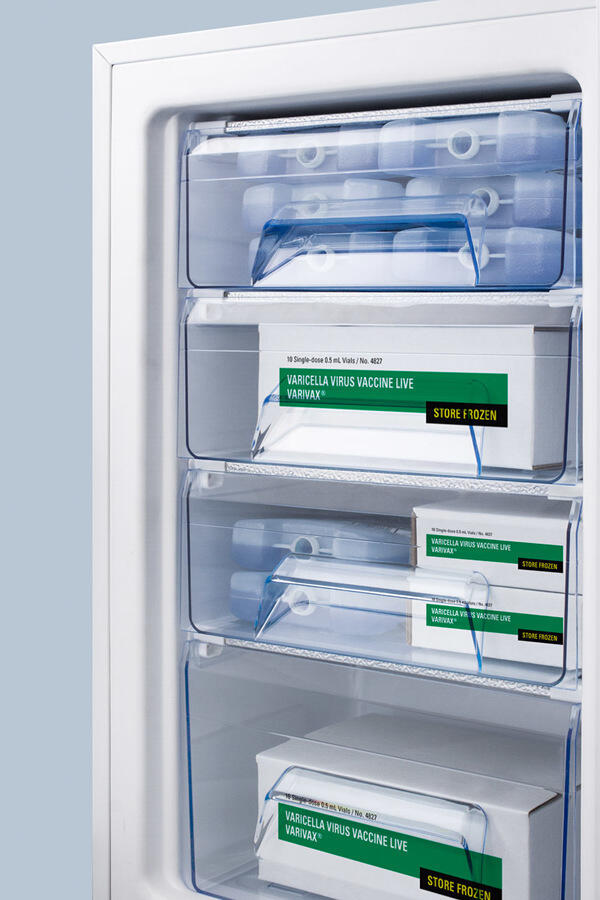

- Four slide-out drawers: Slide-out plastic baskets offer convenient storage solutions while protecting stored items when the door is open
- Flat door liner: Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
- Fully finished white cabinet: Allows the unit to be used freestanding
- Foamed-in-place cabinet: Quality design ensures efficiently insulated interior
- Magnetic door gasket: Quality door gaskets ensure a tight seal for energy savings and improved performance
- Matching refrigerator available: Pair with the FF511LBIMED2A to create a complete set
- Factory reversible door: Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)
- Extended warranty: This unit comes with a two-year limited warranty on parts & labor and five-year warranty on the compressor
- Approved for use in the USA and Canada: ETL and ETL-C listed for North American sales
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
Overview | |
Height of Cabinet | 32.25' (82 cm) |
Width | 19.25' (49 cm) |
Depth | 22.63' (57 cm) |
Depth with Handle | 24.63' (63 cm) |
Depth with door at 90° | 39.5' (100 cm) |
Capacity | 2.8 cu.ft. (79 L) |
Defrost Type | Manual |
Door | White |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Amps | 1.6 |
Weight | 70.0 lbs. (32 kg) |
Shipping Weight | 73.0 lbs. (33 kg) |
Estimated Time to Ship | 5 to 7 days |
Parts & Labor Warranty | 2 Years |
Compressor Warranty | 5 Years |
Freezer | |
Door Swing | RHD |
Reversible | Factory Reversible |
Interior Height | 26.5' (67 cm) |
Interior Width | 14.0' (36 cm) |
Interior Depth | 16.75' (43 cm) |
Thermostat Type | Digital |
Fan Type | Exterior |
Refrigerant Type | R134a |
Refrigerant Amount | 3.0 oz. |
High Side PSI | 210.0 |
Low Side PSI | 105.0 |
Level Legs | 2 |
Interior Drawers | Yes |
Drawers Qty | 4 |
Compressor Step Height | 8.63' (22 cm) |
Compressor Step Width | 14.0' (36 cm) |
Compressor Step Depth | 7.0' (18 cm) |
Exterior | |
Extra key Extra keys available for purchase | ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar. |
LHD - Left hand door swing Door reversal to left hand swing | Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. |
DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac | DL2 - Factory installed NIST calibrated data logger USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
DTMEDF - Digital thermostat with Fahrenheit readout Change thermostat to read in Fahrenheit (no charge) | DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
