Summit FS407LBISSTB 20" Wide Built-In Undercounter All-Freezer For General Purpose Use, -20 C Capable With A Lock, Stainless Steel Door, Towel Bar Handle And White Cabinet
Summit FS407LBISSTB 20" Wide Built-In Undercounter All-Freezer For General Purpose Use, -20 C Capable With A Lock, Stainless Steel Door, Towel Bar Handle And White Cabinet
x
Installation and Removal
x
When Will I Get My Order?
x
EXTENDED PROTECTION
3 year plan
$120.995 year plan
$228.99Couldn't load pickup availability
x
Installation and Removal
x
When Will I Get My Order?
x
Summit FS407LBISSTB 20" Wide Built-In Undercounter All-Freezer For General Purpose Use, -20 C Capable With A Lock, Stainless Steel Door, Towel Bar Handle And White Cabinet
(Ul)(Li)Flexible Design Allows Built-In Or Freestanding Use In 20" Wide Spaces(/Li)(Li)Factory Installed Lock Provides Security You Can Count On(/Li)(Li)-20 C Capable With Interior Slide-Out Drawers For Easy Storage(/Li)(Li)Professional Style With 304 Grade Stainless Steel Wrapped Door And Curved Towel Bar Handle(/Li)(/Ul) Accucold By Summit Appliance'S Fs407Lbi Series Features A Quality Selection Of 20" Wide All-Freezers For Built-In Installation Under Counters. The Fs407Lbisstb Is A Manual Defrost All-Freezer With 2.8 Cu.Ft. Capacity. Four Pull-Out Drawers With Clear Fronts Offer Convenient Storage Solutions. The Adjustable Thermostat Is Located In The Rear Of The Model. Designed For Built-In Or Freestanding Use, The Fs407Lbisstb Has A White Cabinet With A Professional Style Stainless Steel Wrapped Door And Curved Towel Bar Handle. A Top-Mounted Lock Adds Convenient Security. Sized Just Under 20" Wide, The Fs407Lbisstb Can Be Paired With The Matching Auto Defrost Ff511Lbisstb All-Refrigerator.
- Slim 20" width: 2.8 capacity inside a slim footprint
- Built-in capable: Make the best use of space by installing your appliance under the counter
- Fully finished white cabinet: Allows the unit to be used freestanding
- Factory installed lock: Top-mounted for convenient security
- Stainless steel wrapped door: Durable 304 grade wrapping
- Professional towel bar handle: A curved stainless steel handle provides generous room for a comfortable grip
- Manual defrost: Efficient performance with reliable temperature stability
- -20 capable: Low temperature capability ideal for certain sensitive items

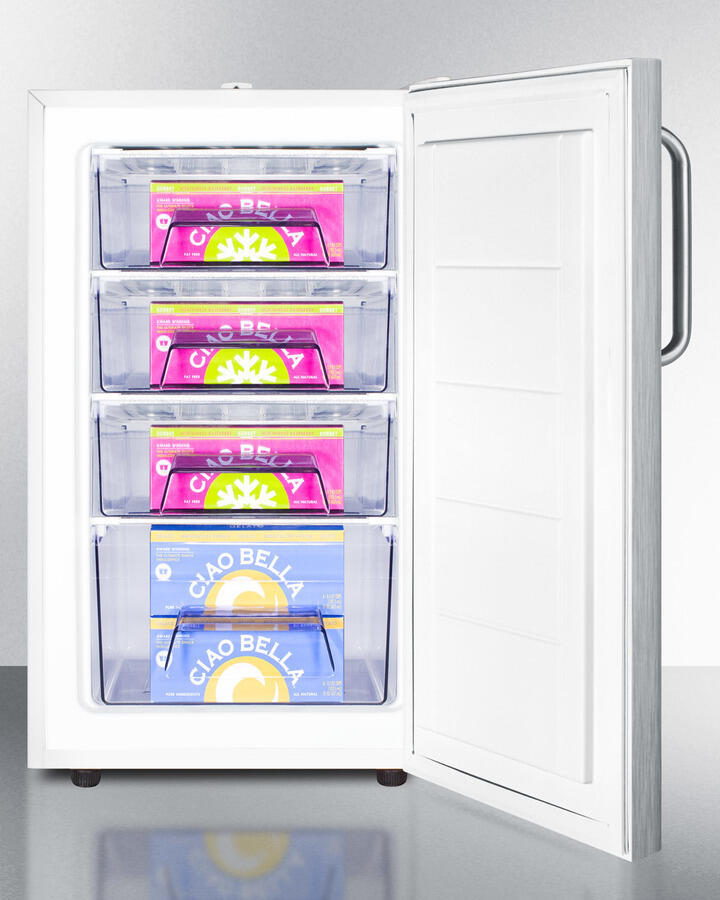

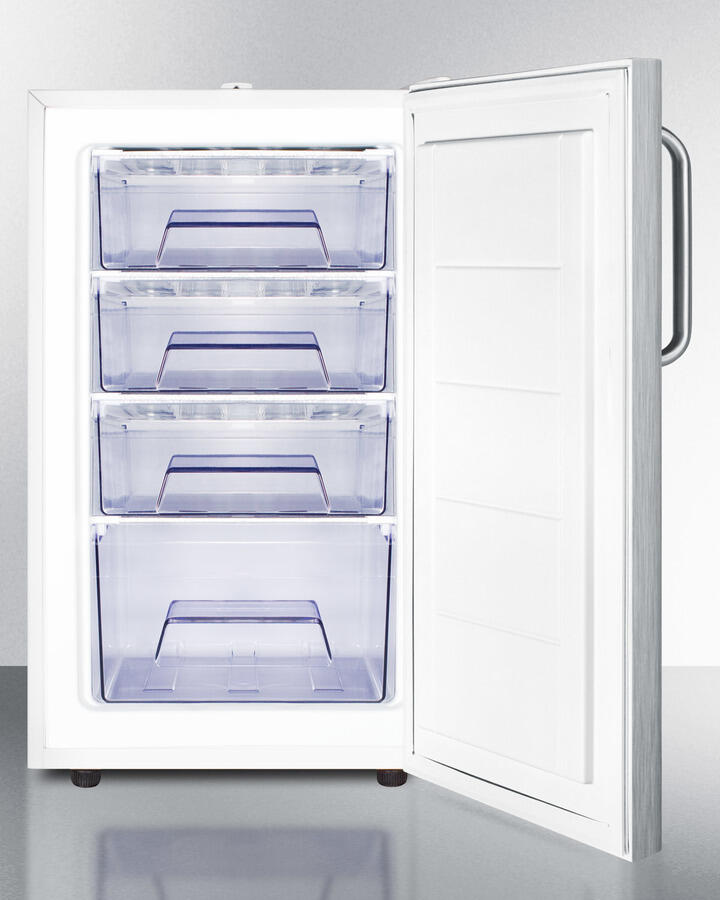

- Pull-out drawers: Four clear baskets for convenient and separated storage
- Adjustable thermostat: Rear mounted to prevent accidental adjustments
- Flat door liner: Easy to clean, with more depth for storage
- 100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals
- Matching refrigerator available: Pair with FF521BLBISSTB for a complete undercounter set
| Overview | |
| Height of Cabinet | 33.5' (85 cm) |
| Height to Hinge Cap | 34.0' (86 cm) |
| Width | 19.25' (49 cm) |
| Depth | 21.38' (54 cm) |
| Depth with door at 90° | 39.5' (100 cm) |
| Capacity | 2.8 cu.ft. (79 L) |
| Defrost Type | Manual |
| Door | Stainless Steel |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.6 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 64.0 lbs. (29 kg) |
| Shipping Weight | 67.0 lbs. (30 kg) |
| Estimated Time to Ship | 2 to 4 days |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| Freezer | |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Height Adjustable | 1 |
| Interior Height | 26.38' (67 cm) |
| Interior Width | 14.0' (36 cm) |
| Interior Depth | 16.75' (43 cm) |
| Thermostat Type | Dial |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 3.0 oz. |
| High Side PSI | 210.0 |
| Low Side PSI | 105.0 |
| Level Legs | 2 |
| Interior Drawers | Yes |
| Drawers Qty | 4 |
| Exterior | |
| DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout | DL2 - Factory installed NIST calibrated data logger USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
| TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order | PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices |
| DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management | CAS6 6' casters 6' high NSF listed casters |
| CAS3 3' casters 3' high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish | Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations |
| Extra key Extra keys available for purchase | SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option |
| LHD - Left hand door swing Door reversal to left hand swing | Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. |
| HUM - Humidity sensor Humidity sensor with min/max readout | DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac |
| Agion Door Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface | Agion Door Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface |
| Lock | |
| KEYPAD Battery-powered keypad door lock installed for keyless security | AC Keypad Keypad door lock powered by appliance power cord for keyless security |
