Summit FS408BLBI7FRADA Commercially Listed Ada Compliant 20" Wide Built-In Undercounter All-Freezer, -20 C Capable W/Lock And Stainless Steel Door Frame For Slide-In Panels
32" Height Fits Under Lower Ada Compliant Counters Flexible Design Allows Built-In Or Freestanding Use In 20" Wide Spaces Etl-S Listed For Commercial Use -20 C Capable With Interior Slide-Out Drawers For Easy Storage Factory Installed Lock Provides Security You Can Count On Slide Your Own Panel Into The Door Frame For An Easy Custom Look Includes A Hospital Grade Cord With A 'Green Dot' Plug Accucold By Summit Appliance's Fs408Blbi7Ada Series Offers A Quality Selection Of 20" Wide Commercial All-Freezers For Built-In Use Under Ada Compliant Counters. The Etl-S Listed Fs408Blbi7Frada Is A Black All-Freezer With Manual Defrost Operation And 2.8 Cu.Ft. Capacity. Four Pull-Out Drawers With Clear Fronts Offer Convenient Storage Solutions. The Adjustable Thermostat Is Located In The Rear Of The Model And A Hospital Grade (Green Dot) Cord Offers Additional Safety In High Traffic Areas. A Two-Piece Stainless Steel Door Frame Lets You Slide In Your Own Door Panel To Create A Custom Look. This Model Has A Reversible Door With A Factory-Installed Lock, Top-Mounted For Added Convenience. Sized At 32" High And Just Under 20" Wide, The Fs408Blbi7Frada Is Designed To Fit Under Lower Ada Compliant Counters. This Unit Can Be Used Built-In Or Freestanding And Can Be Perfectly Paired With Our Auto Defrost Ff521Blbi7Frada All-Refrigerator.
- ADA compliant: 32" high to fit under lower ADA compliant counters
- Commercially listed: ETL-S listed to NSF standards for commercial use
- Slim 20" width: 2.8 capacity inside a slim footprint
- Built-in capable: Make the best use of space by installing your appliance under the counter
- Fully finished black cabinet: Allows the unit to be used freestanding
- Factory installed lock: Top-mounted for convenient security

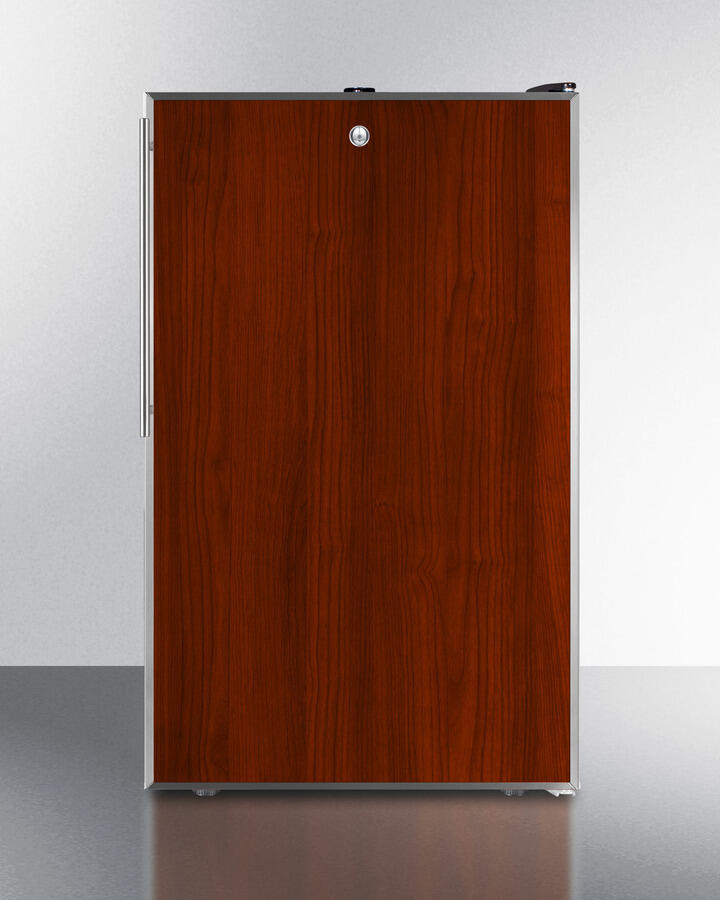

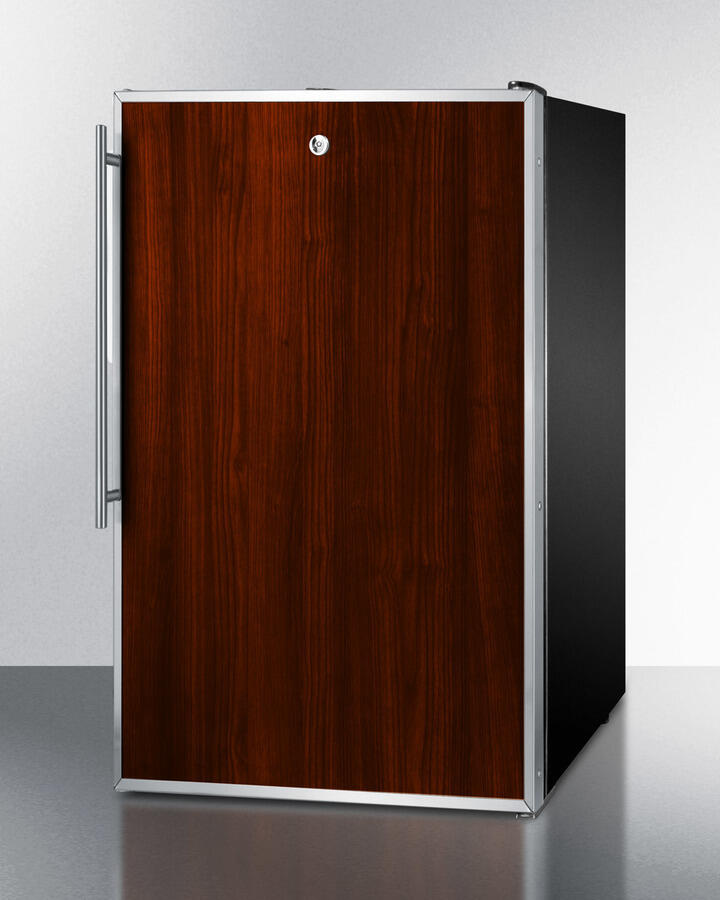

- Stainless steel door frame: Two-piece "U"-shaped door frame accepts slide-in custom panels (panel size: 19 1/4" W x 31 1/4" H at up to 1/4" thick)
- Reversible door: Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
- Hospital grade cord with 'green dot' plug: Secure three-pronged cord for added unit safety
- Manual defrost: Efficient performance with reliable temperature stability
- -20 capable: Low temperature capability ideal for certain sensitive items

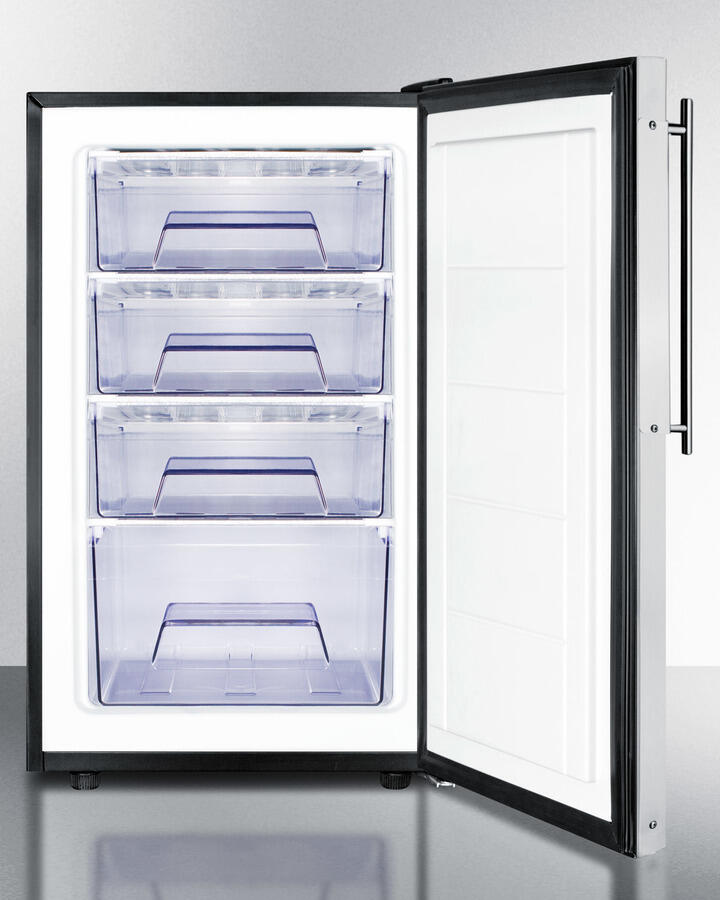

- Pull-out drawers: Four clear baskets for convenient and separated storage
- Adjustable thermostat: Rear mounted to prevent accidental adjustments
- Flat door liner: Easy to clean, with more depth for storage
- Matching refrigerator available: Pair with FF521BLBI7FRADA for a complete ADA compliant set
- 100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals
Overview | |
Height of Cabinet | 32.0' (81 cm) |
Height to Hinge Cap | 32.5' (83 cm) |
Width | 19.25' (49 cm) |
Depth | 21.38' (54 cm) |
Depth with door at 90° | 39.5' (100 cm) |
Capacity | 2.8 cu.ft. (79 L) |
Defrost Type | Manual |
Door | Panel-Ready |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 1.6 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 64.0 lbs. (29 kg) |
Shipping Weight | 67.0 lbs. (30 kg) |
Estimated Time to Ship | 2 to 4 days |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Freezer | |
Door Swing | RHD |
Reversible | Yes |
Interior Height | 26.38' (67 cm) |
Interior Width | 14.0' (36 cm) |
Interior Depth | 16.75' (43 cm) |
Thermostat Type | Dial |
Refrigerant Type | R134a |
Refrigerant Amount | 3.0 oz. |
High Side PSI | 210.0 |
Low Side PSI | 105.0 |
Level Legs | 2 |
Interior Drawers | Yes |
Drawers Qty | 4 |
Exterior | |
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout | DL2 - Factory installed NIST calibrated data logger USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
SCD - Self | closing door Protect interior contents and reduce energy waste with the Self Closing Door Option |
