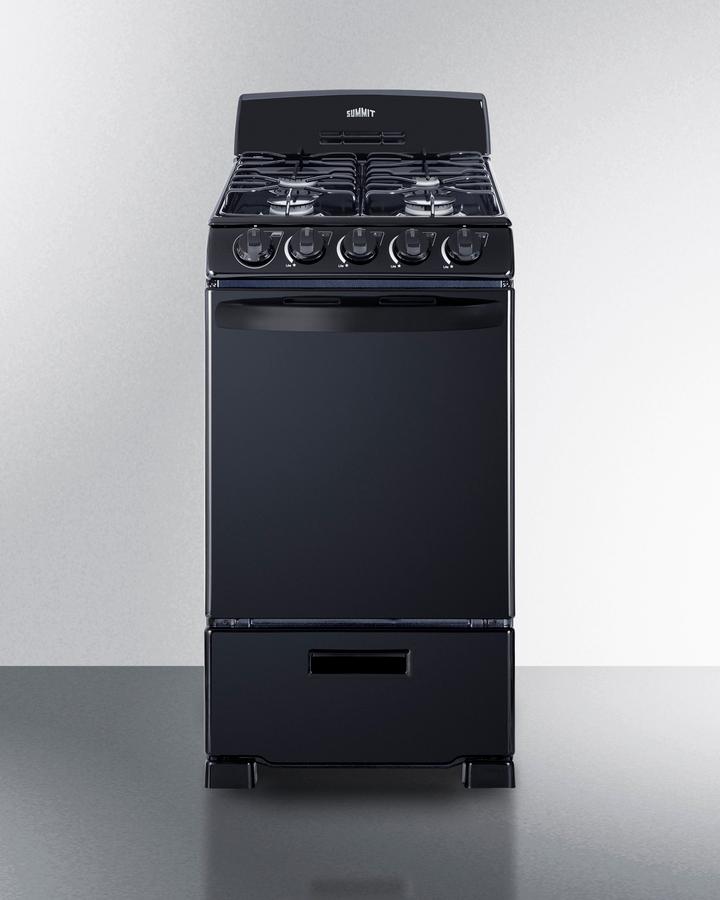

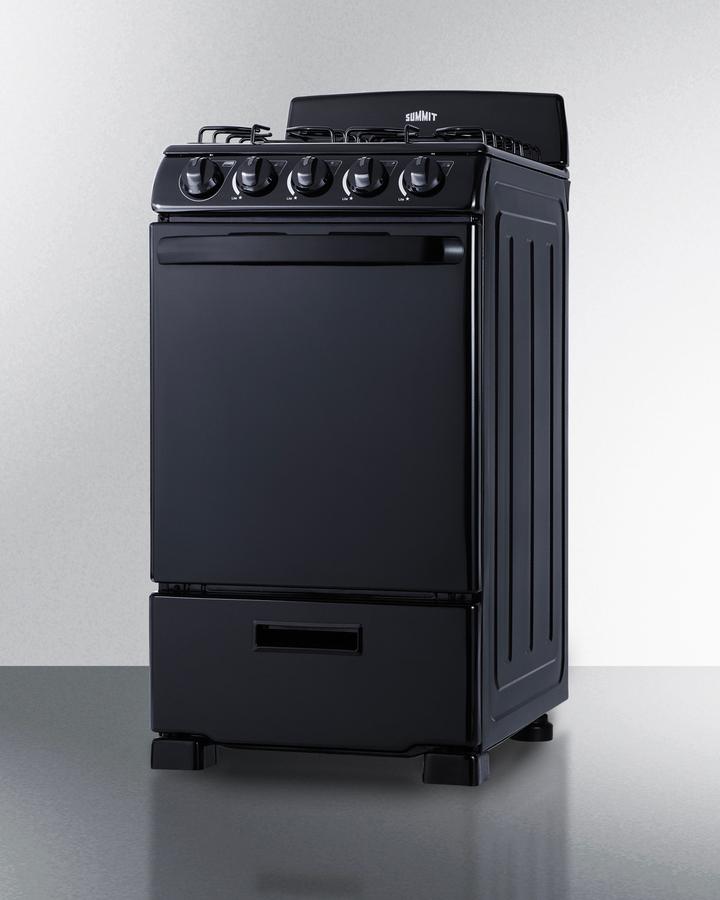

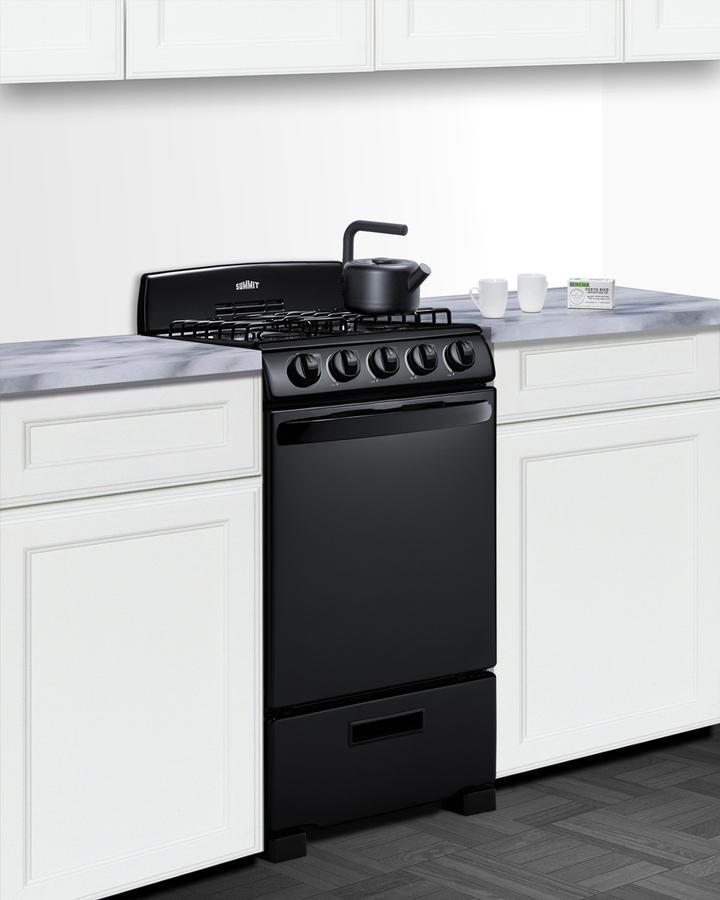

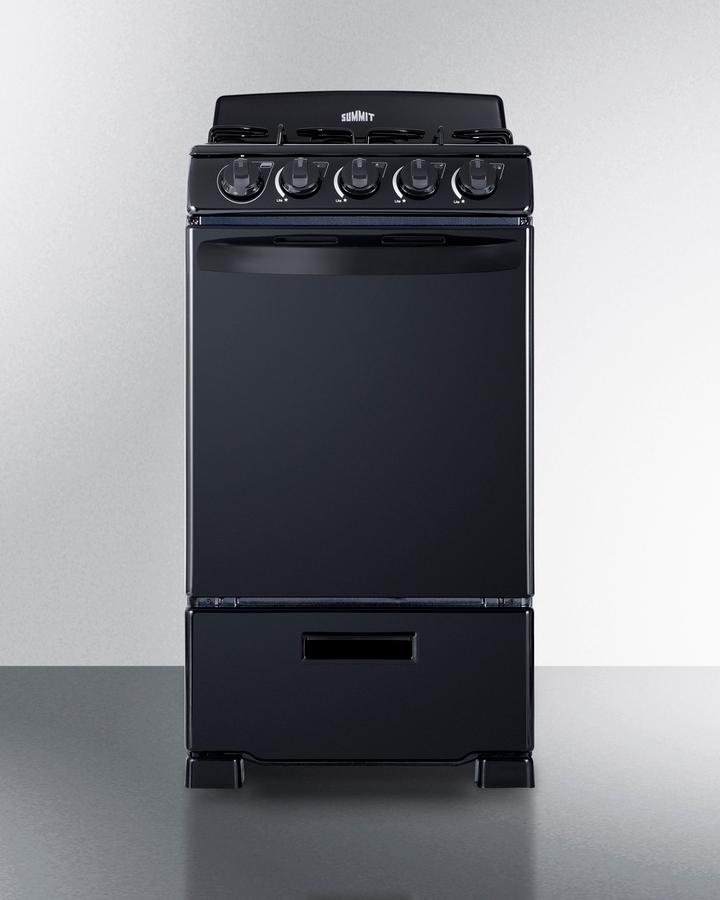

Summit RG201B 20" Wide Gas Range
Summit'S Line Of Slim-Fitting Gas Ranges Made In North America Brings Quality And Value To Space-Challenged Kitchens. The Rg201B Is A 20" Wide Gas Range Designed For An Easy Fit In Smaller Kitchen Spaces. The 2.3 Cu.Ft. Oven Includes Two Slide-Out Racks With A Safety Brake System, With Four Position Options To Let You Accommodate All Sizes And Shapes. The Broiler Is Located In A Lower Drop-Down Compartment. The Rg201B Comes In A Jet Black Finish, With Color-Matched Push-To-Turn Knobs And An Easy-To-Grab Handle. This Model Utilizes Electronic Spark Ignition And Features Four Sealed Burners For Safer, Cleaner Cooking. One 12,000 Btu Burner Offers Faster Cooking For Larger Vessels, With Two Standard 9,500 Btu Burners And A Smaller 5,000 Btu Burner For Lower Heating Needs. The High Backguard Helps To Protect Your Walls From Spills, With Enamel Grates For Lasting Durability. The Unit Ships Set For Natural Gas But Includes Its Own Lp Kit For Aftermarket Conversion. With Its Clean Look And Unique Size, The Rg201B S The Ideal Gas Range For Apartment And Small Home Kitchens. For This Unit In A White Finish, See Model Rg200Ws.
- Featuring four sealed burners and a large oven to meet all cooking needs in smaller kitchens

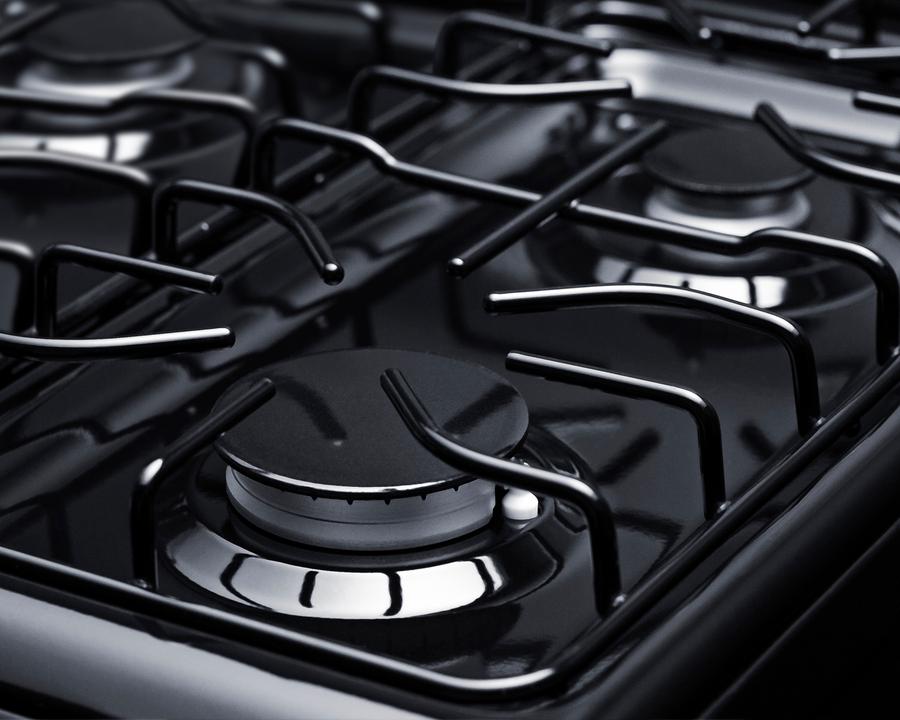

- Four sealed burners with removable cast iron tops ensure safer, cleaner cooking
- Unit is set for natural gas but can be converted aftermarket with the included LP kit
- Full 2.3 cu.ft. interior in slim 20" width
- Front left burner features 12,500 BTU output for powerful cooking
- Two right burners operate at 9,500 BTU to handle most heating needs
- Rear left burner reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items
- Two sets of grates are removable for easy cleaning, with solid construction to support large pots and pans
- Drop-down lower compartment offers the ideal conditions for broiling
- Safety knobs help prevent accidents from turning on the oven or burners
- Added safety with spark ignition system

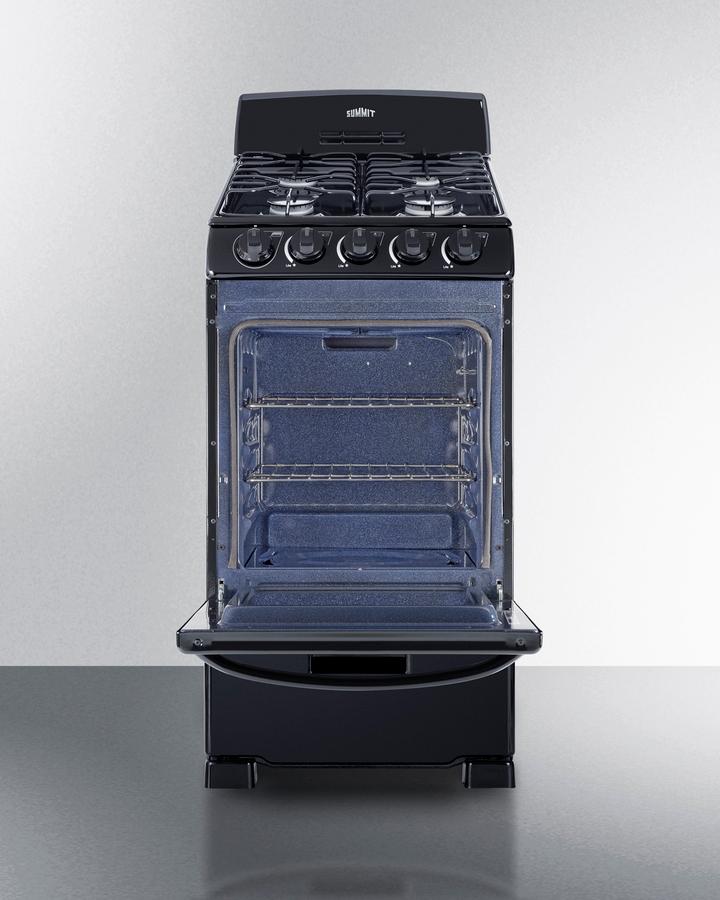

- Sliding racks will stay in your oven with special brake mechanism
- Two-piece broiler pan with lid included with each range
- Solid backing prevents stovetop contents from splashing up or boiling over and staining walls
- Standard 3-pronged 115V cord included for the electronic ignition
- Ideal for GSA contracts and other applications requiring a unit to have been manufactured in a TAA designated country

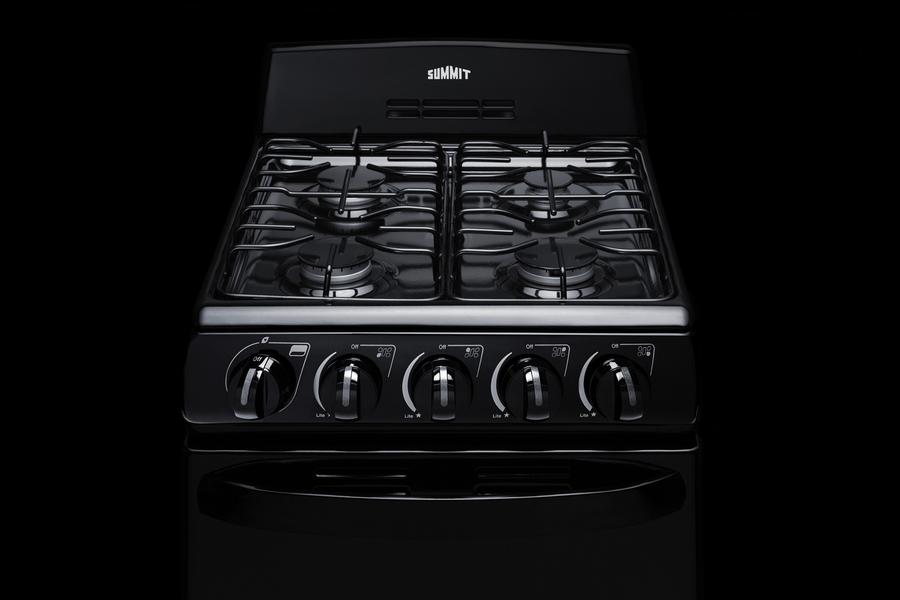

- Upfront controls and easy-to-operate knobs offer easier accessibility
- Included for user installation to help prevent accidents

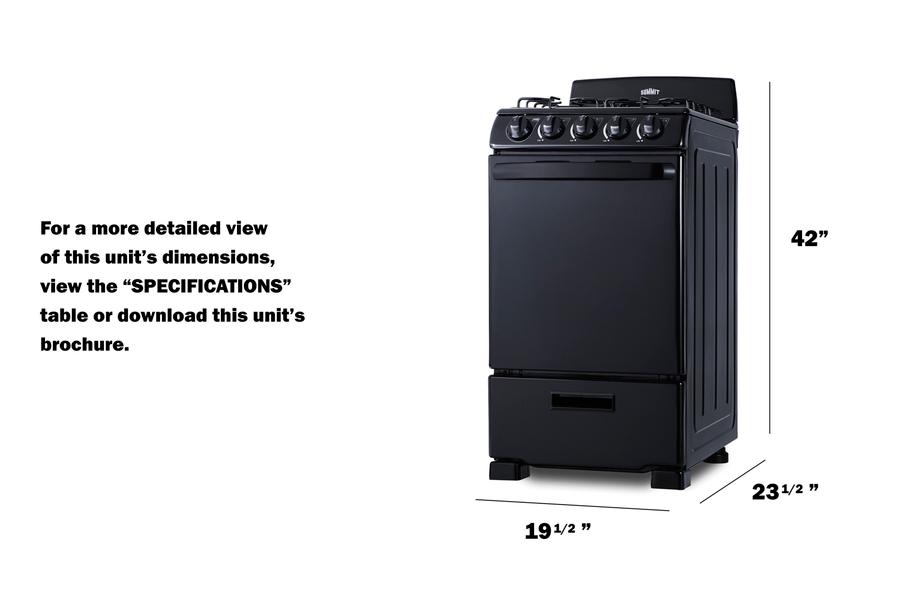

Overview | |
Nominal Height | 42.0' (107 cm) |
Height of Cabinet | 42.0' (107 cm) |
Nominal Width | 20.0' (51 cm) |
Width | 19.5' (50 cm) |
Nominal Depth | 24.0' (61 cm) |
Depth | 23.5' (60 cm) |
Depth with Handle | 25.75' (65 cm) |
Depth with door at 90° | 43.25' (110 cm) |
Door | Black |
Cabinet | Black |
US Electrical Safety | CSA |
Canadian Electrical Safety | CSA-C |
Amps | 5.0 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 130.0 lbs. (59 kg) |
Parts & Labor Warranty | 1 Year |
UPC | 761101103761 |
Gas Range | |
Ignition | Spark |
LP Convertible | Yes |
Oven Capacity | 2.3 cu.ft |
Cooktop Surface | Metal |
Burner Type | Sealed |
Number of Burners | 4 |
Burner #1 BTU | 12000.0 |
Burner #2 BTU | 9500.0 |
Burner #3 BTU | 9500.0 |
Burner #4 BTU | 5000.0 |
Burner Controls | Dial |
Oven Controls | Dial |
Backguard | Yes |
Cleaning Type | Manual |
Oven Rack Qty | 2 |
Oven Interior Height | 15.25' (39 cm) |
Oven Interior Width | 14.5' (37 cm) |
Oven Interior Depth | 17.5' (44 cm) |
Broiler Location | Below Oven |
