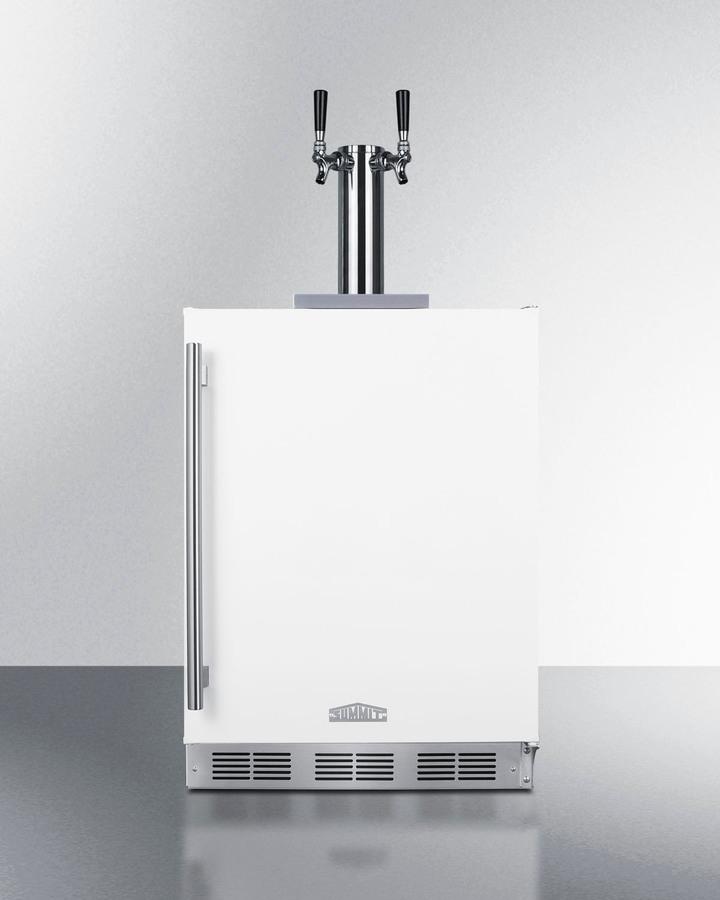

Summit SBC58WHBIADACFTWIN 24" Wide Built-In Cold Brew Coffee Kegerator, Ada Compliant
Summit Commercial Brings Unique Appliance Choices To Ada Compliant Settings With A New Line Of Commercial Coffee Dispensers Made In Europe. Sized At 32 Inches High, The Sbc58Whbiadacftwin Is Designed To Fit Under Lower Ada Compliant Counters. The Front-Breathing Design Allows Built-In Installation, While The Fully Finished Cabinet Also Enables Freestanding Use. This Unit Comes In A Clean White Finish Accented By A Stainless Steel Kickplate And Pro Style Handle. We Include A Removable Two-Piece Stainless Steel Drip Tray For Cleaner Service. This Unit Ships With An Nsf-Listed Stainless Steel Tap Kit That Includes Everything You Need To Serve Iced Coffee, Including A Standard Dual Tap Draft Tower, Regulator, And Nitrogen Tank. Inside, The Sbc58Whbiadacftwin Is Designed To Hold Two 1/6 (Sixtel) Kegs (Note: Interior Does Not Accommodate A Standard Half Barrel). Automatic Defrost Ensures Easy User Maintenance, With A Seamless Interior For Easier Cleaning. The Stainless Steel Floor Offers Added Durability When Loading Kegs. This Unit Includes An Interior Light With An On/Off Rocker Switch And A Dial Thermostat For Easy And Intuitive Temperature Management. The Nitrogen Tank Bracket Is Located Inside, Allowing You To Keep The Tank Inside And Save On Exterior Depth. The Sbc58Whbiadacftwin Is Etl-S Listed To Nsf-7 Commercial Standards. Additional Ada Compliant European Kegerators Are Available With Stainless Steel, Panel-Ready, Or Glass Doors, As Well As Alternate Tap Kits For Nitro-Infused Coffee And Kombucha. Browse Our Complete Line For More Choices.
- Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters
- ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings
- Front-breathing design allows fully recessed installation under counters
- Commercial grade tap kit includes a dual tap stainless steel draft tower, Nitrogen tank, regulator, and connections for ball lock cornelius kegs
- Classic and clean look suits any setting
- Solid tube style handle in brushed stainless steel offers a modern accent to the white door finish
- Interior dial thermostat ensures easy temperature management
- No-frost operation for minimum user maintenance
- Removable two-piece drip tray included for added convenience
- Turn the light on when you need it and off when you're done with a convenient rocker switch
- 5 lb. tank packaged with tapping kit (ships unfilled)
- Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
- Interior includes steel cover to protect the floor when loading kegs
- Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
- Cold wall design with hidden evaporator and seamless interior
- Allows the unit to be used freestanding
- Environmentally friendly design without ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Overview | |
Height of Cabinet | 32.0' (81 cm) |
Height to Hinge Cap | 32.25' (82 cm) |
Width | 23.63' (60 cm) |
Depth | 22.75' (58 cm) |
Depth with Handle | 24.75' (63 cm) |
Depth with door at 90° | 45.0' (114 cm) |
Capacity | 5.5 cu.ft. (156 L) |
Defrost Type | Automatic |
Door | White |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 1.2 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 110.0 lbs. (50 kg) |
Shipping Weight | 125.0 lbs. (57 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101086569 |
Kegerator | |
Door Swing | RHD |
Reversible | Factory Reversible |
Tap Kit | Yes |
Height with Tap | 47.5' (121 cm) |
Number of Taps | 2 |
Thermostat Type | Dial |
Interior Light | Yes |
Fan Type | Exterior |
Refrigerant | R600a |
Refrigerant Amount | 0.64 oz. |
High Side PSI | 180.0 |
Low Side PSI | 80.0 |
Inter Height | 25.75' (65 cm) |
Interior Width | 21.0' (53 cm) |
Interior Depth | 17.75' (45 cm) |
Compressor Step Height | 6.5' (17 cm) |
Compressor Step Width | 21.0' (53 cm) |
Compressor Step Depth | 5.5' (14 cm) |
Temperature Range | 34 to 43 F |
