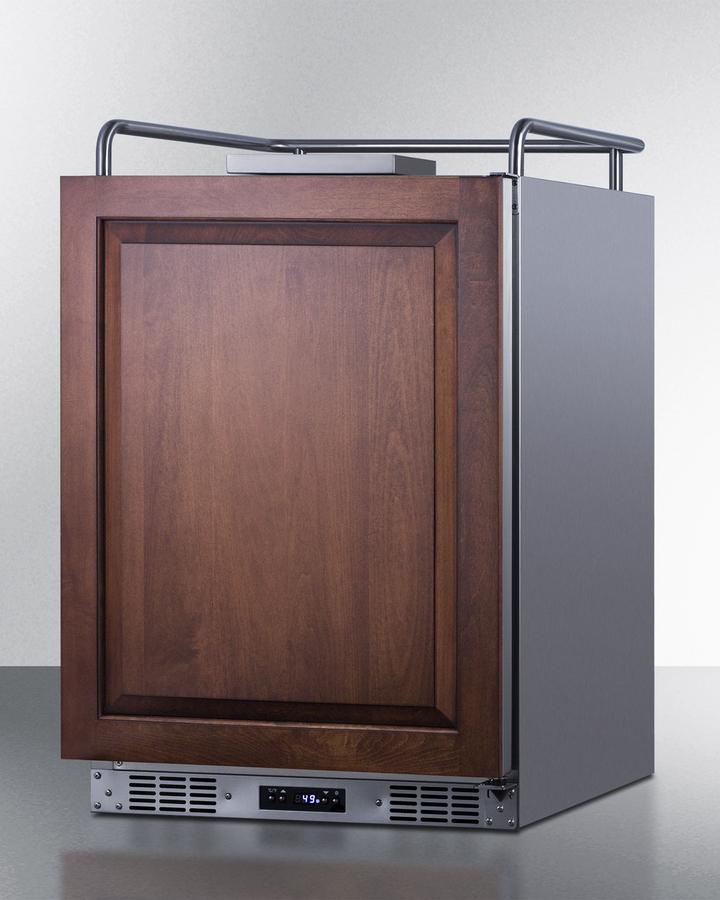

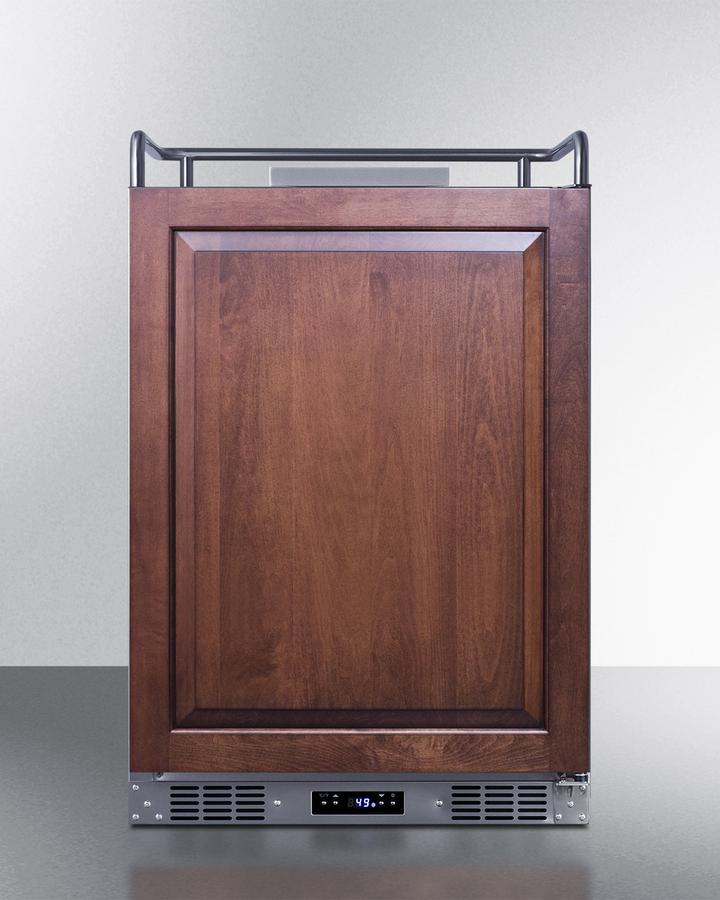

Summit SBC682NKPNR 24" Wide Built-In Kegerator (Panel Not Included)
Summit Offers A Complete Line Of Built-In Kegerators Designed For Indoor/Outdoor Use In Commercial Or Residential Settings. The Sbc682Nkpnr Is A Full-Sized Kegerator Approved For Both Residential Or Commercial Use. Sized At Just 24" Wide, It Features A Front-Breathing System For Built-In Installation And A Fully-Finished Cabinet That Also Allows Freestanding Use, With An Included Caster Set For Optional Mobility. The Exterior Features 304 Grade Stainless Steel Construction For Safe, Weatherproof Use In The Outdoors. The Door Is Designed To Accept Overlay Panels (Sized At 29 3/4" H X 23 5/16" W At A 3/4" Thickness) To Allow You To Create A Custom Look To Best Suit Your Own Kitchen Design. This Unit Ships With A Right Hand Door Swing. For A Left Hand Version, Add Option "Lhdhinge." Additional Features Include A Removable Two-Piece Stainless Steel Drip Tray To Collect Spills And A Chrome Guard Rail To Help Keep Glasses And Mugs In Place. This Unit Has A Sealed Rear For Added Protection From The Elements. Inside, The 5.6 Cu. Ft. Interior Can Accommodate A Full Half Keg, Two Slim Quarter Kegs, Or Up To Three Cornelius Or Sixth Barrel Kegs. Two Chrome Shelves, With Six Placement Options, Allow The Kegerator To Also Function As A Beverage Refrigerator. A Digital Thermostat Makes It Easy To Manage The Temperature, While The External Digital Display Has A Readout In Celsius Or Fahrenheit. Automatic Defrost Operation Ensures Minimal User Maintenance. A Tap Cool System Keeps Your Beer Cold As It Goes Through Your Tower, And A Velcro Strap Holds The Co2 Tank In Place. A Stainless Steel Floor Plate Provides Added Protection When Placing And Removing Kegs. The Memory Ic Function Recovers The Unit'S Last Settings In The Case Of A Power Outage Or Disruption. This Unit Can Accommodate A Tap Kit, Purchased By The User Or Through Summit, For Dispensing Beer, Wine, Coffee, Or Nitro Coffee. Browse The Full Summit Line To Explore All Of Your Options.

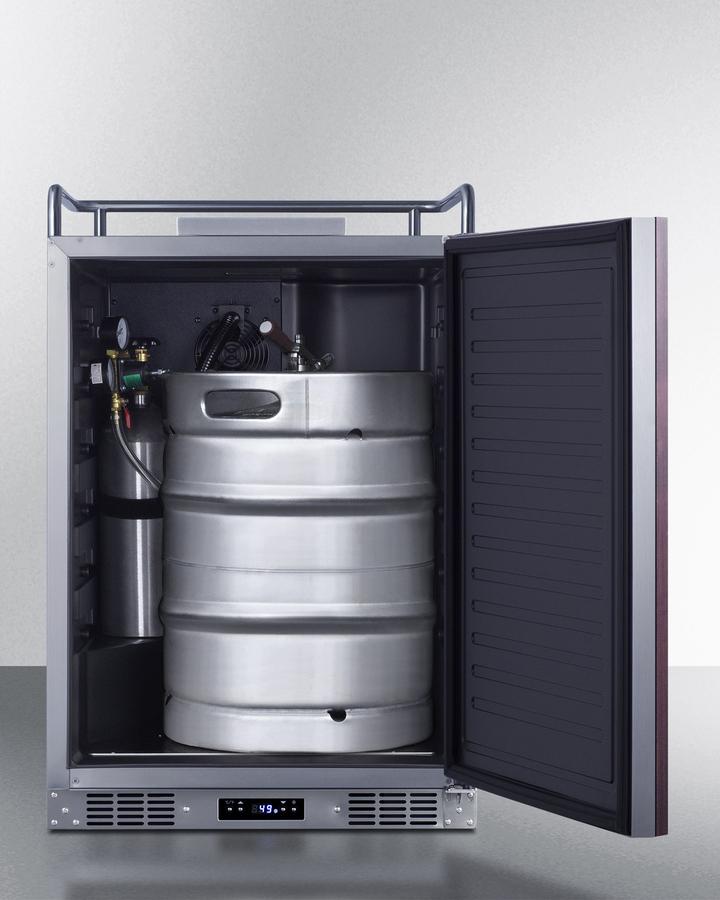

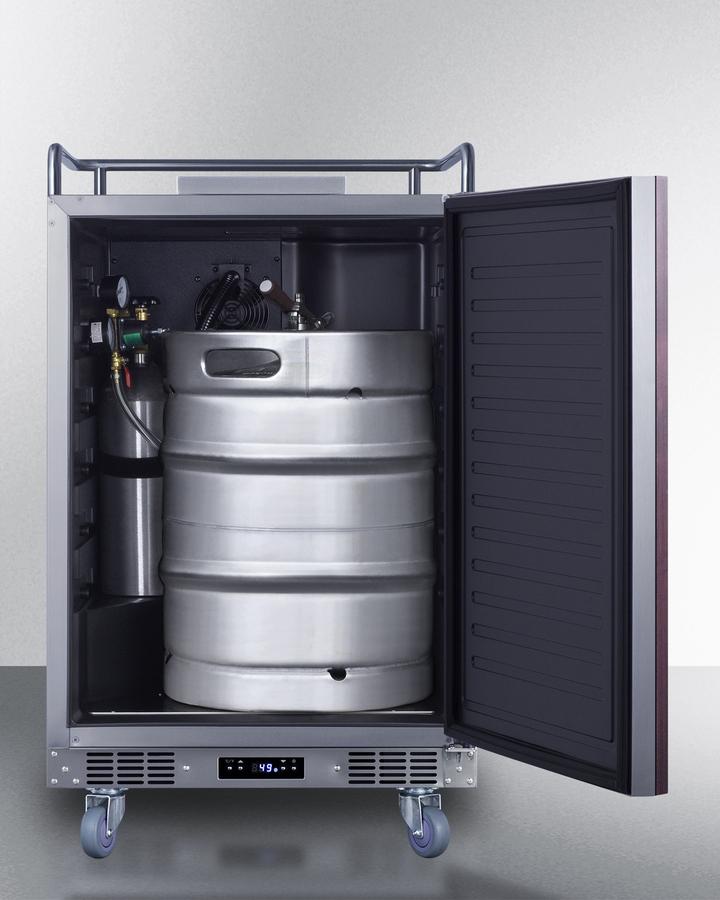

- 5.6 cu.ft. interior can accept a full half barrel keg, two slim quarter kegs, or up to three sixth barrel or Cornelius style kegs; compatible with beer, wine, coffee, or nitro coffee tap systems
- ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
- Solid 304 grade stainless steel construction allows placement in the outdoors
- Front-breathing design allows fully recessed installation under counters

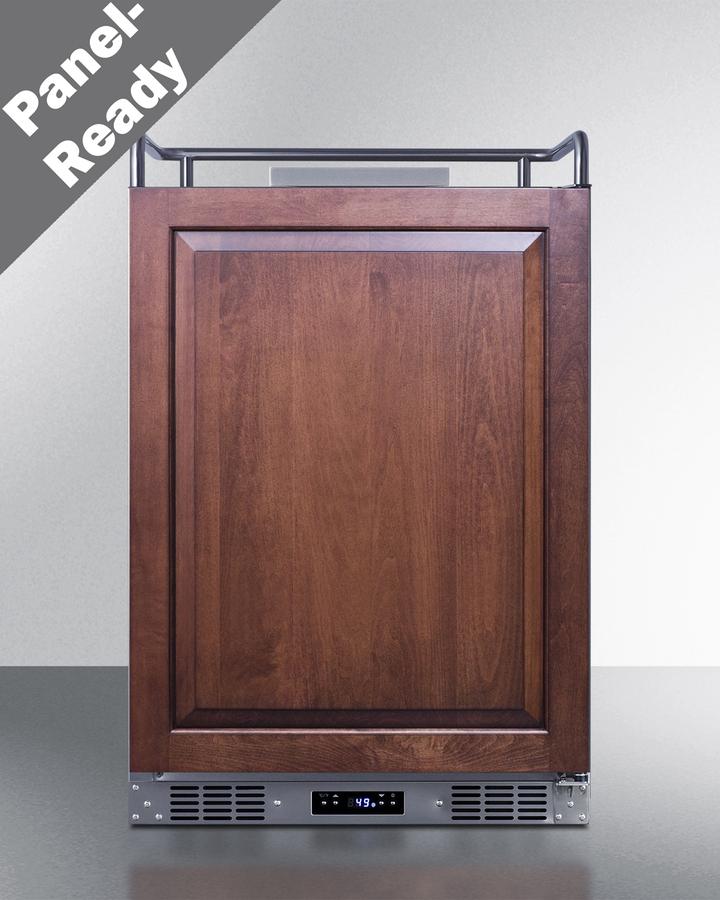

- Extended hinging allows you to install your own panel overlay on the door, creating a custom look to complement or blend into your own cabinetry (panel size: 29 3/4" H x 23 5/16" W at a 3/4" thickness)
- Reduced user maintenance with auto defrost operation
- Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit
- Keeps cold air flowing to the tower for consistently cold beer

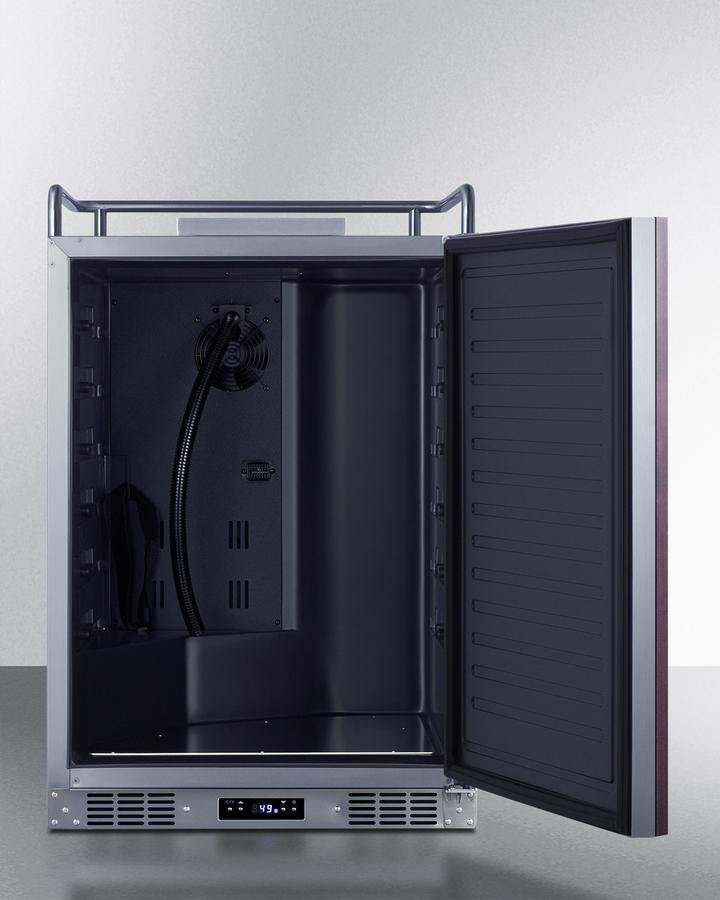

- Interior includes steel cover to protect the floor when loading kegs
- Attractive chrome guard rail helps to reduce spills and neaten service
- Removable two-piece drip tray catches spills to help contain the mess
- 2 wire shelves (with six placement options) allow unit to also function as a beverage refrigerator
- Recovers the unit's last settings in the case of a power outage or disruption

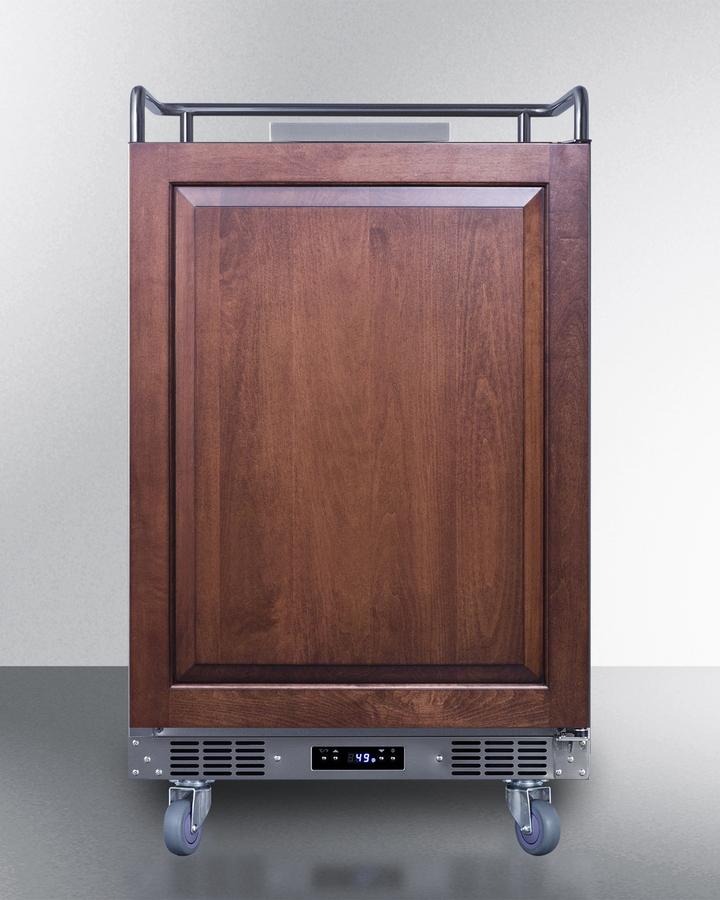

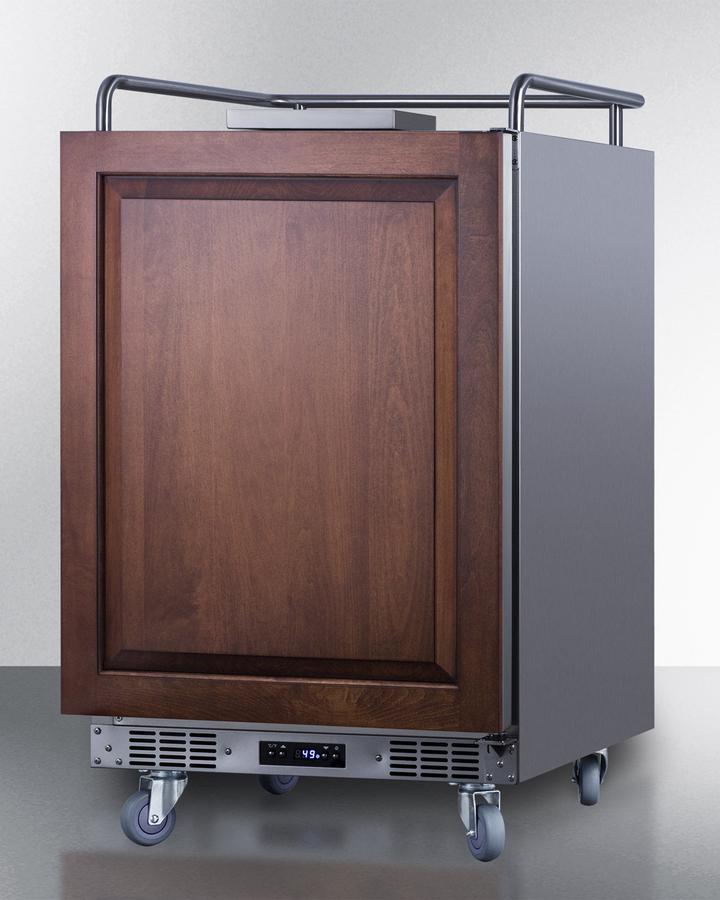

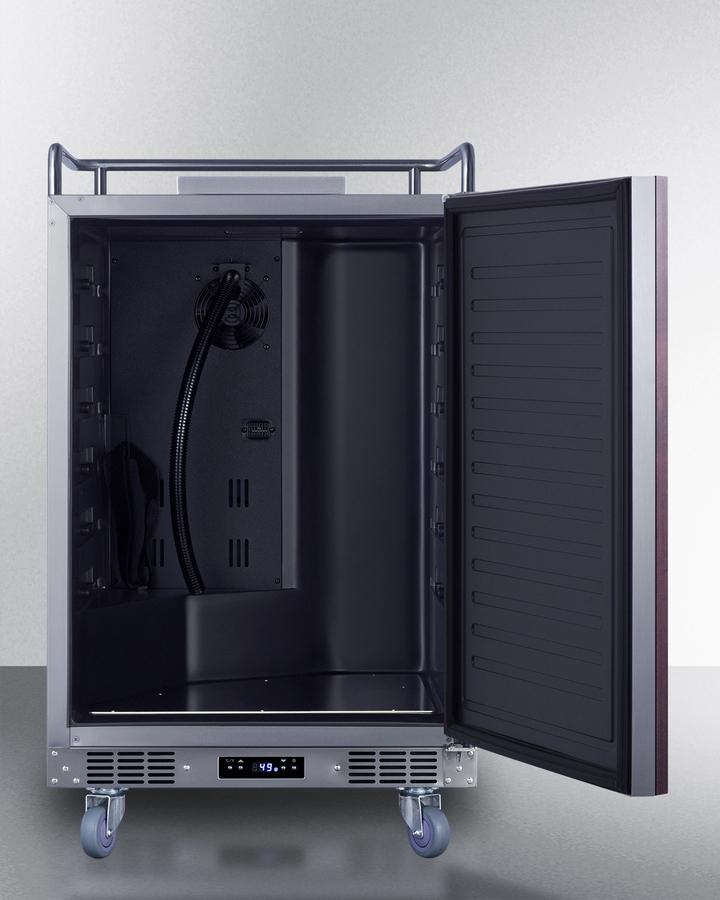

- Four casters (two locking) afford easy portability
- Allows the dispenser to be used freestanding
- Space saving design with easier cleanability
- Environmentally friendly design without ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Overview | |
Height of Cabinet | 33.63' (85 cm) |
Width | 23.75' (60 cm) |
Depth | 24.25' (62 cm) |
Depth with door at 90° | 46.75' (119 cm) |
Capacity | 5.6 cu.ft. (159 L) |
Defrost Type | Automatic |
Door | Panel-Ready |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Energy Usage/Year | 305.0kWh/year |
Amps | 1.25 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 120.0 lbs. (54 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101087450 |
Kegerator | |
Door Swing | RHD |
Reversible | Factory Reversible |
Adjustable Shelves | Yes |
Shelf Type | Chrome |
Shelf Qty | 2 |
Thermostat Type | Digital |
Fan Type | Interior |
Refrigerant | R600a |
Refrigerant Amount | 1.06 oz. |
High Side PSI | 150.0 |
Low Side PSI | 50.0 |
Level Legs Qty | 4 |
Wheel Qty | 4 |
Temperature Range | 34°F to 68°F (1°C to 20°C) |
Sound Level | 34.0 db |
