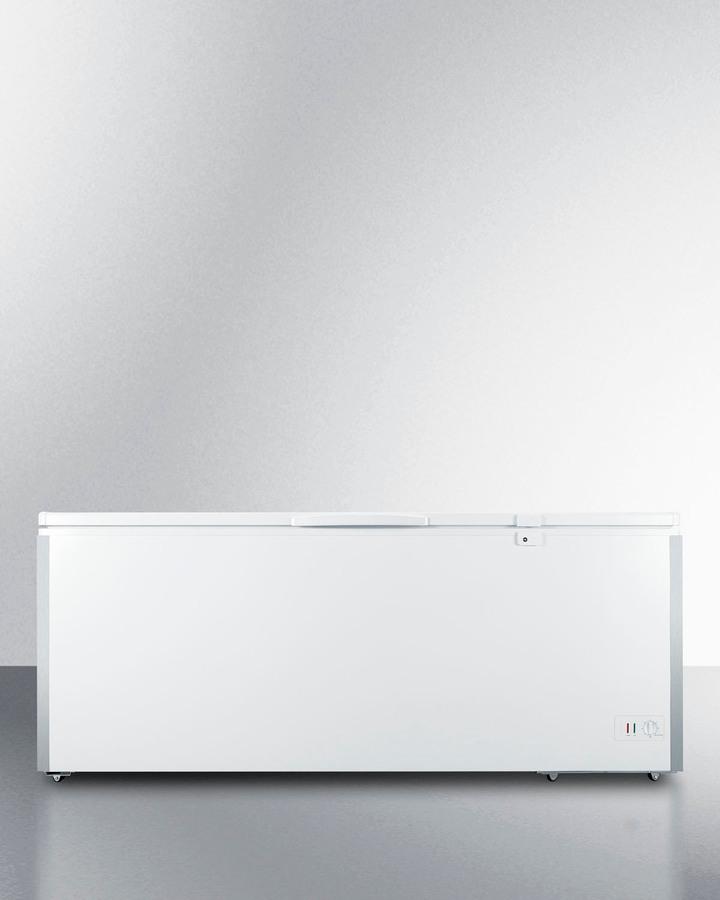

Summit SCFM203 19.8 Cu.Ft. Chest Freezer
Summit Commercial Offers A Quality Selection Of Manual Defrost Chest Freezers Designed For A Variety Of Storage Applications In Commercial Establishments. The Scfm203 Is Etl-S Listed To Nsf-7 Standards For Commercial Use. The Large Interior Offers Nearly 20 Cu.Ft. Of Storage Capacity. The Lift-Up Lid Includes An Easy-Grab Handle, Factory-Installed Lock, And Counterbalanced Hinges To Stay Open For Easier Loading. We Include Two Stainless Steel Corner Protectors To Help Shield The Freezer'S Sides In Busy Environments (Minor Assembly Required). Six Pre-Installed Wheels Make It Easy To Move The Unit From Side To Side As Needed. Inside, The Scfm203 Features A Hammered Aluminum Interior For Lasting Durability In Commercial Settings. Four Sliding Wire Baskets Offer Easy Storage, With A Slide-Out Divider To Help Separate Items Stored On The Right Side. This Unit Utilizes Static Manual Defrost Cooling, With A Defrost Drain Located In The Rear. The Cord Is Installed In The Right Side Of The Unit And Features A Right Angle Plug For A Better Fit Into Your Wall Outlet. The Dial Thermostat Is Located In The Front Corner, With A Power Indicator And An Alarm Light That Will Illuminate If The Unit Is Operating Warmer Than -11 C (12.2 F). We Include A Removable Thermometer That Conveniently Hooks Onto A Basket For A Quick Temperature Reference. In Addition To This Unit, Summit Commerical Offers Additional Sizes Of Commercially Listed Manual Defrost Freezers, As Well As Frost-Free Choices And Low Temperature Freezers All Approved To Nsf Commercial Standards. Browse Our Full Lineup To Find The Right Storage Solution For Your Needs.
- 19.8 cu.ft. of interior storage
- ETL-S listed to ANSI-NSF Standard 7 for commercial use
- Keyed lock for a secure interior (2 keys included)
- Static cooling system with a rear-mounted drain for easier defrosting as needed
- The lid will remain open once lifted for safer loading
- 3 1/2" thick walls ensure proper insulation for reliable storage
- External "bumpers" included for easy installation to help protect the corners in high traffic environments
- Solid construction for durable storage in busy settings
- External handle for easy opening
- Dial thermostat ensures intuitive temperature management
- Four removable wire baskets included
- Slide-out wire divider lets you separate storage being kept on the right side of the freezer
- Located in the front control area, the alarm light displays if the interior temperature rises above -11 C
- Portable thermometer latches onto a basket for a quick temperature reference
- 6 pre-installed gliding wheels make it easier to move the large freezer from side to side
- Clean white finish fits well in any establishment
- Cord features a space-saving right angle plug design to not protrude when plugged into an outlet
- Environmentally friendly design without ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Overview | |
Height of Cabinet | 32.63' (83 cm) |
Width | 76.0' (193 cm) |
Depth | 28.25' (72 cm) |
Depth with Handle | 30.0' (76 cm) |
Capacity | 19.8 cu.ft. (561 L) |
Defrost Type | Manual |
Door | White |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 3.6 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 205.0 lbs. (93 kg) |
Shipping Weight | 210.0 lbs. (95 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101080802 |
Freezer | |
Door Swing | Lift-Up |
Interior Height | 24.25' (62 cm) |
Interior Width | 70.25' (178 cm) |
Interior Depth | 20.75' (53 cm) |
Thermostat Type | Dial |
Refrigerant Type | R290a |
Refrigerant Amount | 3.03 oz. |
High Side PSI | 400.0 |
Low Side PSI | 200.0 |
Wheels | 6 |
Compressor Step Height | 10.25' (26 cm) |
Compressor Step Width | 11.75' (30 cm) |
Compressor Step Depth | 20.75' (53 cm) |
Temperature Range | -10 to -26 C |
