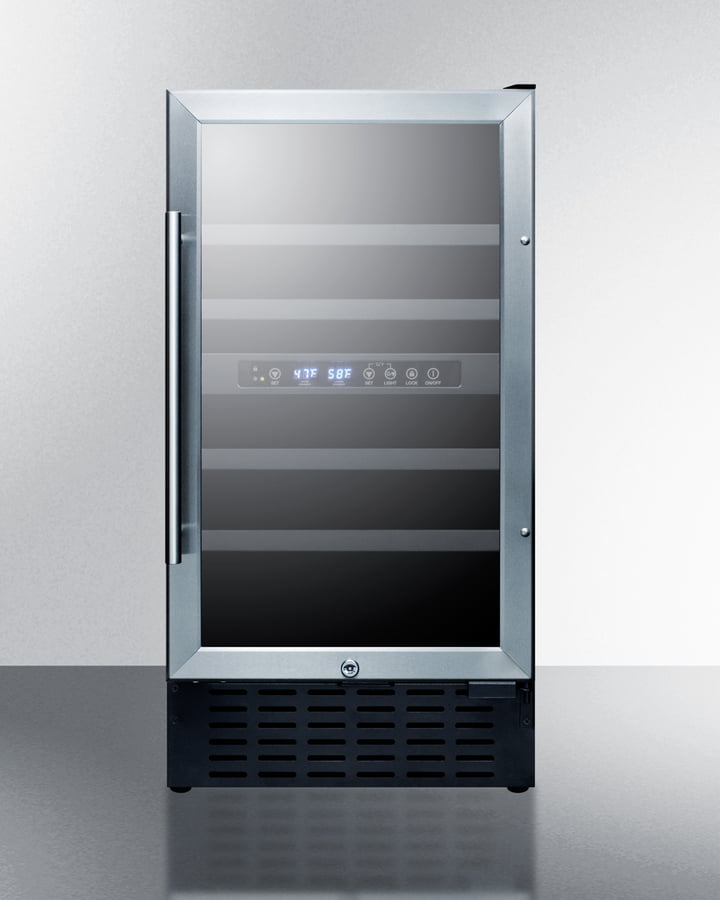

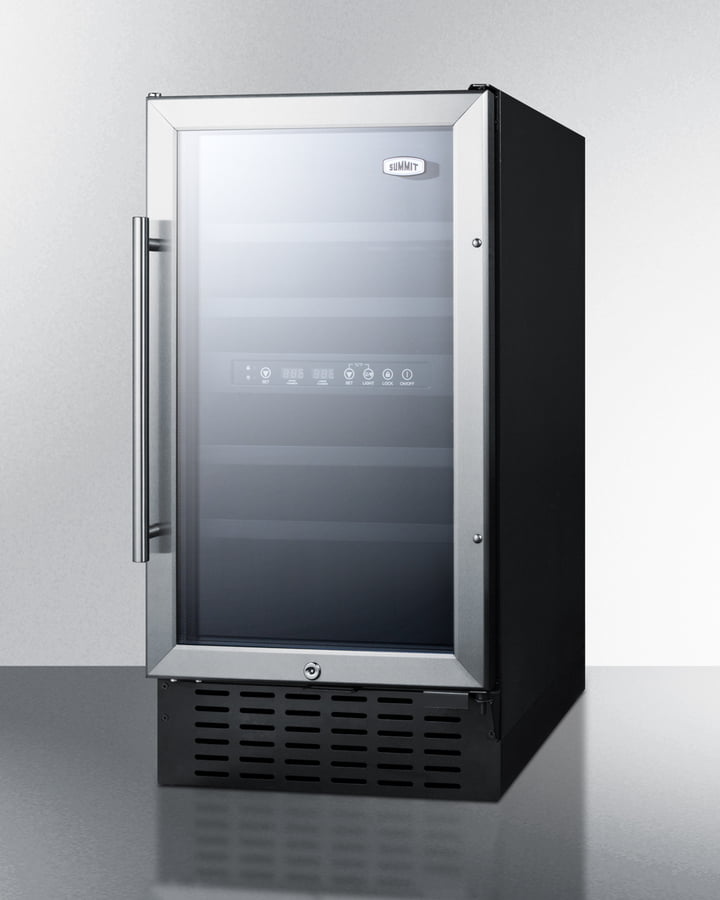

Summit SWC182Z 18" Wide Built-In Wine Cellar
Chill White And Sparkling Wine While Preserving Red In Two Distinct Temperature Zones (Bull)Commercially Approved To Nsf-7 Standards (Bull)Less Than 18" Wide For A Perfect Fit In Smaller Kitchen And Wet Bar Spaces (Bull)Flexible Design Allows Built-In Or Freestanding Use Under Counters (Bull)Digital Thermostat Offers Precise And Convenient Temperature Control (Bull)Factory-Installed Lock Provides Security You Can Count On Summit'S Collection Of Built-In Wine Cellars Offers Fully Featured Choices In Slim Fits, Allowing Smaller Kitchens To Bring Convenient And Reliable Wine Storage For Every Undercounter Space. Sized Just Under 18" Wide, The Swc182Z Is Front-Breathing For Built-In Installation Under Counters, While The Fully Finished Black Cabinet Also Allows Freestanding Use. The Reversible Glass Door Features An Elegant Stainless Steel Trim And Professional Handle. A Factory Installed Lock Offers Added Security, With Two Keys Included. Two Separate Zones Allow You To Store Your Reds And Whites At Their Own Temperature, Ensuring Each Bottle Is Kept Under The Proper Conditions. This Unit Can Hold Up To 28 Standard Bordeaux Style Bottles Or 22 Wider Burgundy Style Bottles. The Wooden Shelves Feature A Black Finish For A Modern Look, With Recessed Led Lighting To Provide An Attractive And Efficient Presentation. The Digital Controls Are Located In The Center For Easy Temperature Management. With Its Slim Fit And Convenient Design, The Swc182Z Makes An Attractive Addition To Any Room. For This Unit In A 32" Ada Compliant Height, See The Swc182Zada.
- Dual zone storage : Keep white wine in the upper compartment stored between 41 and 50 F and red wine at a warmer 50 to 64 F range in the lower chamber
- Commercially Approved : ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
- Built-in capable : Make the best use of space by installing your appliance under the counter

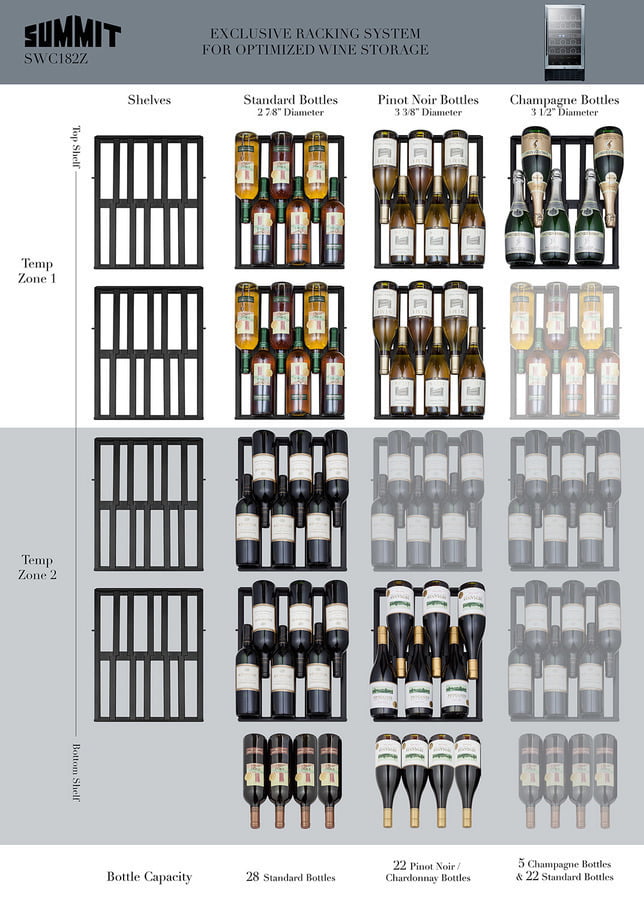

- 28 bottle capacity : Versatile interior can store up to 28 standard 750ml Bordeaux style or 22 wider Burgundy style bottles

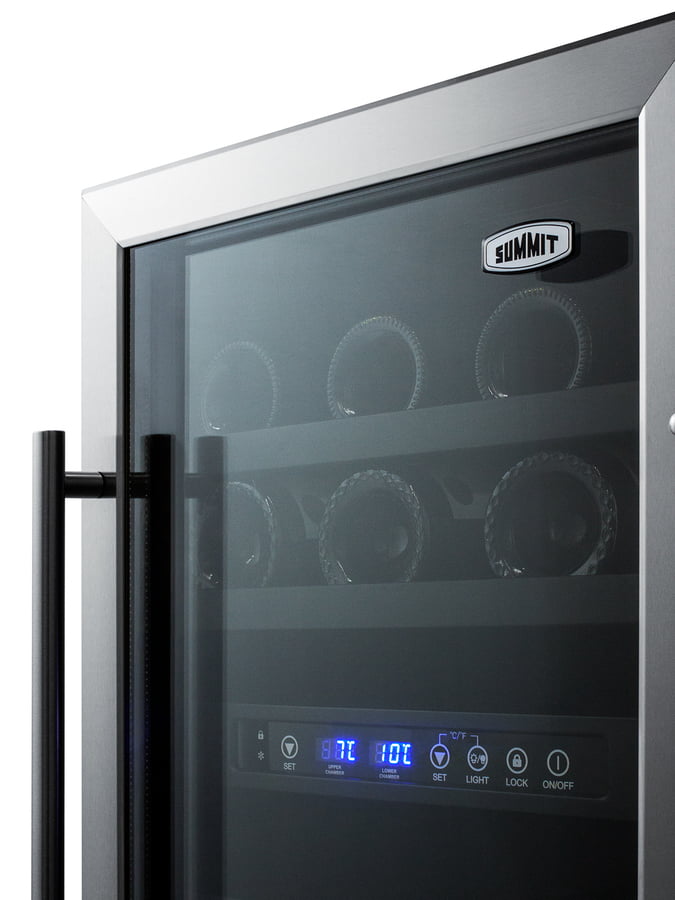

- Glass door with stainless steel trim : Provides a full display of stored contents with a heat-safe double tempered design
- Factory installed lock : Keyed lock for a secure interior, with 2 keys included

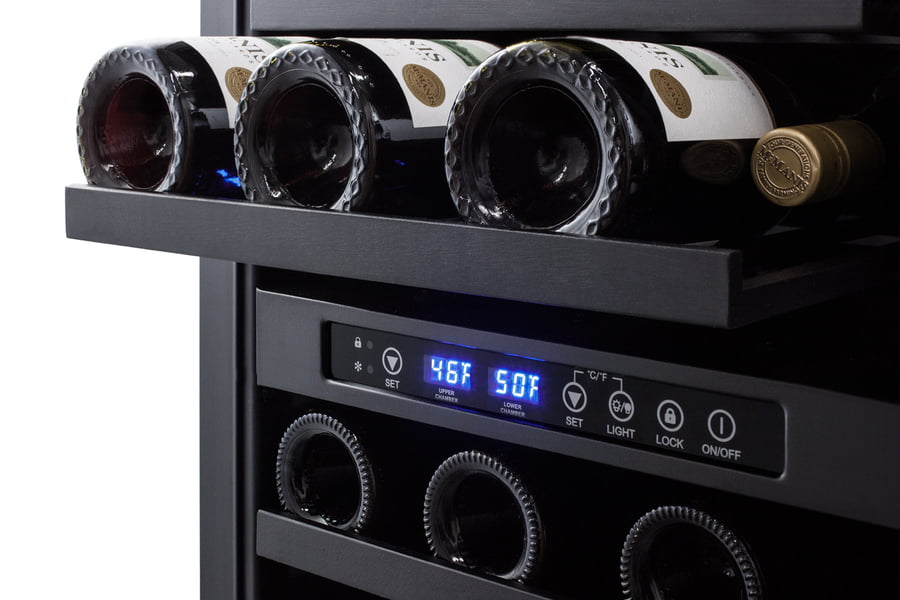

- Digital thermostat : Electronic controls for precise temperature management.
- Digital display : Temperature readout can be shown in Celsius or Fahrenheit
- LED lighting : Gentle illumination for each temperature zone for an elegant presentation
- Wooden shelves : 4 wooden shelves in a painted black finish offer the perfect storage for wine bottles in a classic wooden finish
- Automatic defrost : Reduced maintenance with the convenience of auto defrost
- Reversible door : Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
- Professional handle : Stainless steel handle completes the look
- Integrated door hinge : Hinge is flush with cabinet, adding no height to the unit
- Fully finished black cabinet : Allows the unit to be used freestanding
- 100% CFC Free : Environmentally friendly design with no ozone-damaging chemicals
Overview | |
Height of Cabinet | 34.25' (87 cm) |
Width | 17.75' (45 cm) |
Depth | 23.5' (60 cm) |
Depth with door at 90° | 39.75' (101 cm) |
Capacity | 3.3 cu.ft. (93 L) |
Bottles | 28 bottles |
Defrost Type | Automatic |
Door | Glass |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 1.25 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 95.0 lbs. (43 kg) |
Shipping Weight | 98.0 lbs. (44 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Wine Cellar | |
Number of Zones | 2 |
Door Swing | RHD |
Reversible | Yes |
Shelf Type | Wood |
Shelf Qty | 4 |
Thermostat Type | Digital |
Interior Light | Yes |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 1.23 oz. |
High Side PSI | 150.0 |
Low Side PSI | 50.0 |
Interior Height 1 | 10.63' (27 cm) |
Interior Width 1 | 14.25' (36 cm) |
Interior Depth 1 | 18.0' (46 cm) |
Compressor Step Height | 5.25' (13 cm) |
Compressor Step Width | 14.25' (36 cm) |
Compressor Step Depth | 5.0' (13 cm) |
Level Legs | 4 |
Temperature Range | 41 to 64 F |
Interior Height 2 | 12.25' (31 cm) |
Interior Width 2 | 14.25' (36 cm) |
Interior Depth 2 | 18.0' (46 cm) |
Exterior | |
Latch for door | LHD - Left hand door swing |
Extra key | SSK |
Door | |
T1 Door Tint | T1S Door Tint |
T2 Door Tint | T3 Door Tint |
T4 Door Tint | - |
