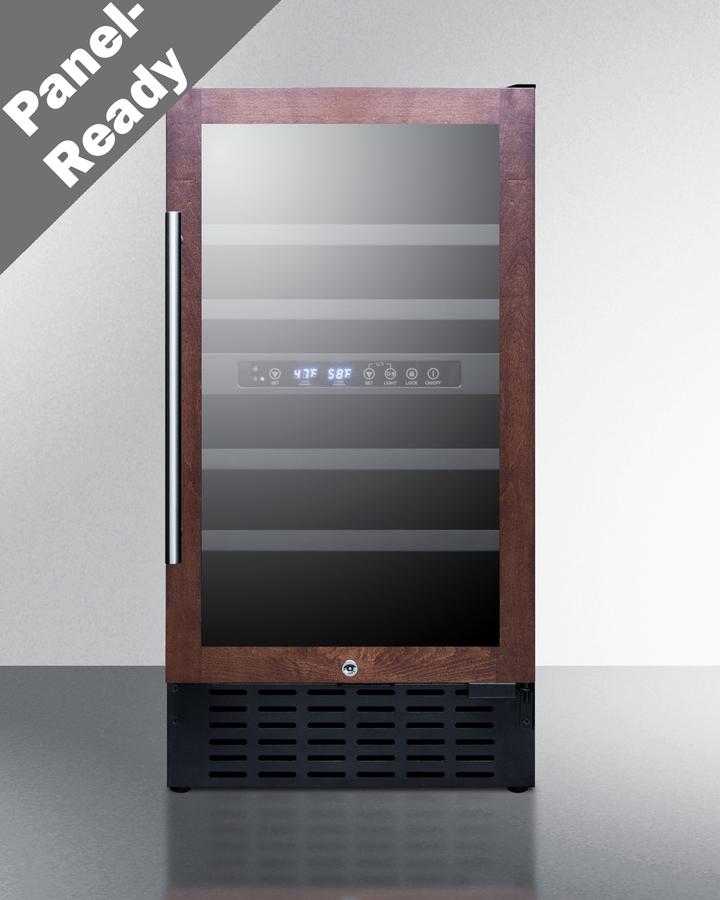

Summit SWC182ZPNR 18" Wide Built-In Wine Cellar (Panel Not Included)

Summit SWC182ZPNR 18" Wide Built-In Wine Cellar (Panel Not Included)

When Will I Get My Order?

x

THIS ITEM QUALIFIES FOR FREE DELIVERY!

EXTENDED PROTECTION

3 year plan

$120.99

5 year plan

$228.99
Shipping calculated at checkout.
View full details

When Will I Get My Order?

x

Summit SWC182ZPNR 18
Summit SWC182ZPNR 18" Wide Built-In Wine Cellar (Panel Not Included)

Summit'S Collection Of Built-In Wine Cellars Offers Fully Featured Choices In Slim Fits, Allowing Smaller Kitchens To Bring Convenient And Reliable Wine Storage For Every Undercounter Space. Sized Just Under 18" Wide, The Swc182Zpnr Is Front-Breathing For Built-In Installation Under Counters, While The Fully Finished Black Cabinet Also Allows Freestanding Use. The Glass Door Features A Panel-Ready Stainless Steel Door Trim That Lets You Customize The Look To Best Match Adjacent Cabinetry (Panel Dimensions: 27 5/8" H X 17 3/8" W At 3/4" Minimum Thickness). Note: This Unit Ships With A Right Hand Door Swing. For A Left Hand Version, Add Option Lhd. Users Provide Their Own Handle. Two Separate Zones Allow You To Store Your Reds And Whites At Their Own Temperature, Ensuring Each Bottle Is Kept Under The Proper Conditions. This Unit Can Hold Up To 28 Standard Bordeaux Style Bottles Or 22 Wider Burgundy-Style Bottles. The Wooden Shelves Feature A Black Finish For A Modern Look, With Recessed Led Lighting To Provide An Attractive And Efficient Presentation. The Digital Controls Are Located In The Center For Easy Temperature Management. With Its Slim Fit And Convenient Design, The Swc182Zpnr Makes An Attractive Addition To Any Room. For This Unit In A 32" Ada Compliant Height, See The Swc182Zpnrada. Note: Panel Is Not Included. The Images Provided Are Meant Only To Be Suggestive Of What The Product With A Wood Panel Installed Could Look Like. Users Must Supply Their Own Wood Panel.


  • ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
  • Keep white wine in the upper compartment stored between 41 and 50 F and red wine at a warmer 50 to 64 F range in the lower chamber
  • Make the best use of space by installing your appliance under the counter
  • Versatile interior can store up to 28 standard 750ml Bordeaux style or 22 wider Burgundy style bottles
  • Door frame can be customized with a custom overlay panel (panel frame dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness)
  • Double pane tempered glass to provide an elegant display with added protection
  • Keyed lock for a secure interior, with 2 keys included
  • Electronic controls for precise temperature management.
  • Temperature readout can be shown in Celsius or Fahrenheit
  • Gentle illumination for each temperature zone for an elegant presentation
  • 4 wooden shelves in a painted black finish offer the perfect storage for wine bottles in a classic wooden finish
  • Reduced maintenance with the convenience of auto defrost
  • Hinge is flush with cabinet, adding no height to the unit
  • Allows the unit to be used freestanding
  • Environmentally friendly design with no ozone-damaging chemicals
  • Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Overview
Height of Cabinet 34.25' (87 cm)
Width 17.75' (45 cm)
Depth 23.5' (60 cm)
Depth with door at 90° 39.75' (101 cm)
Capacity 3.3 cu.ft. (93 L)
Bottles 28 bottles
Defrost Type Automatic
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 98.0 lbs. (44 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101073736
Wine Cellar
Number of Zones 2
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wood
Shelf Qty 4
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23 oz.
High Side PSI 150.0
Low Side PSI 50.0
Interior Height 1 10.63' (27 cm)
Interior Width 1 14.25' (36 cm)
Interior Depth 1 18.0' (46 cm)
Compressor Step Height 5.25' (13 cm)
Compressor Step Width 14.25' (36 cm)
Compressor Step Depth 5.0' (13 cm)
Level Legs 4
Temperature Range 41 to 64 F
Interior Height 2 12.25' (31 cm)
Interior Width 2 14.25' (36 cm)
Interior Depth 2 18.0' (46 cm)
