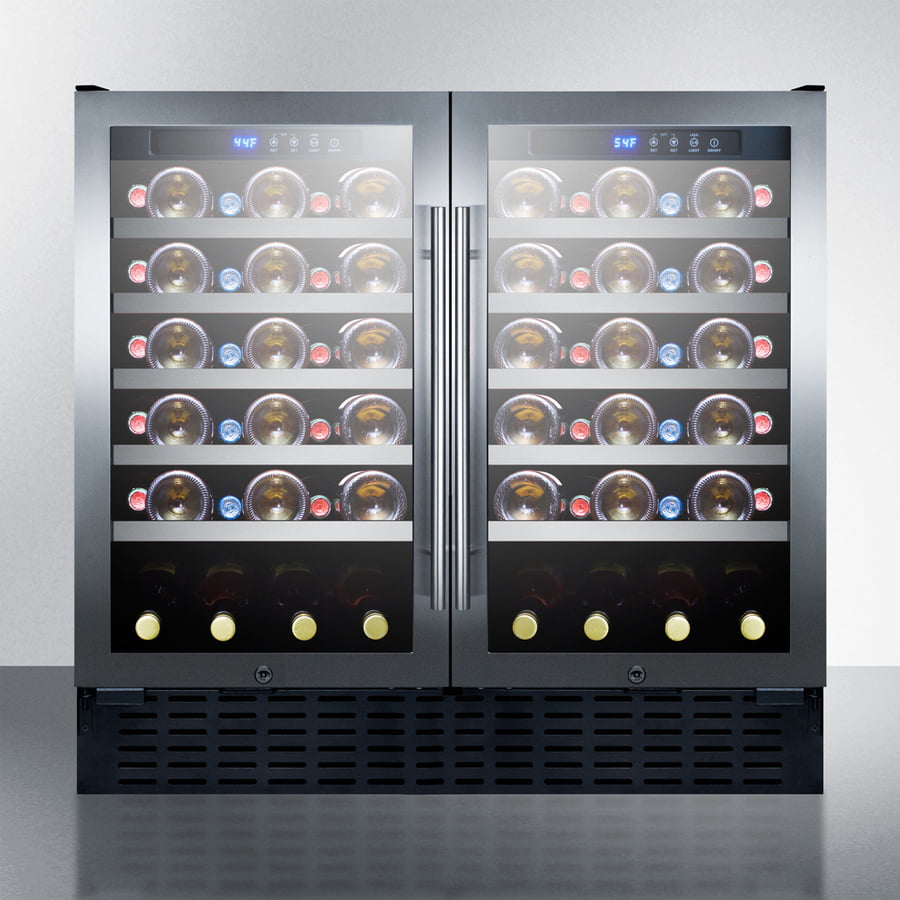

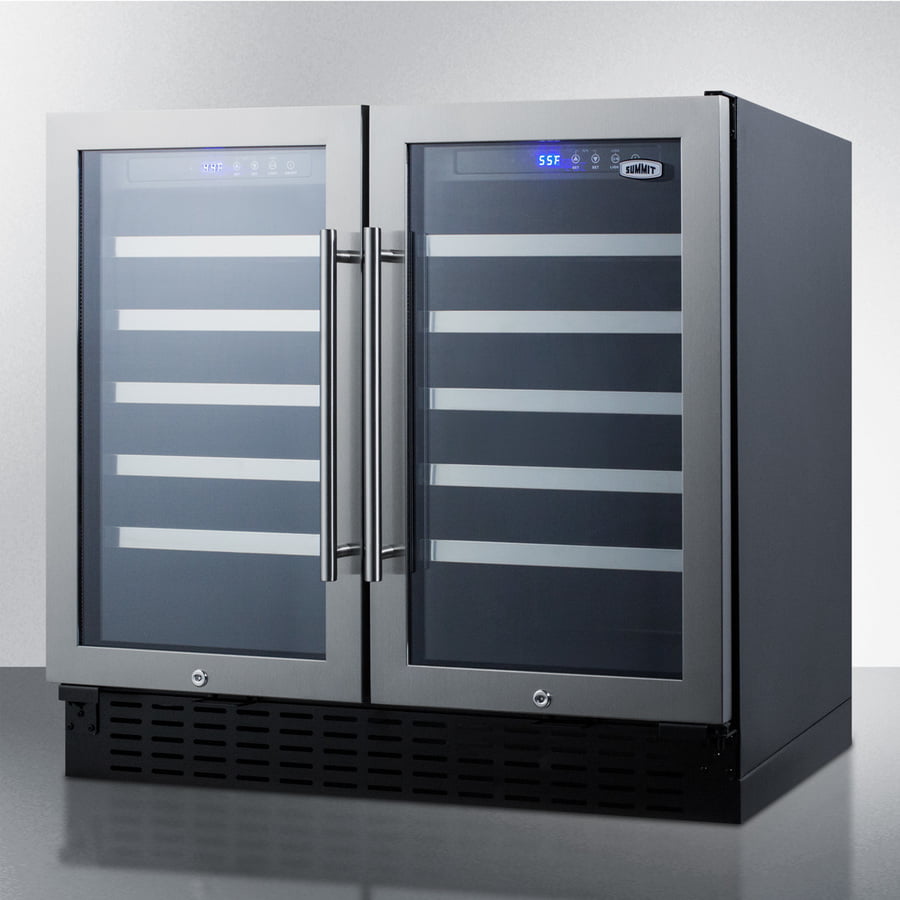

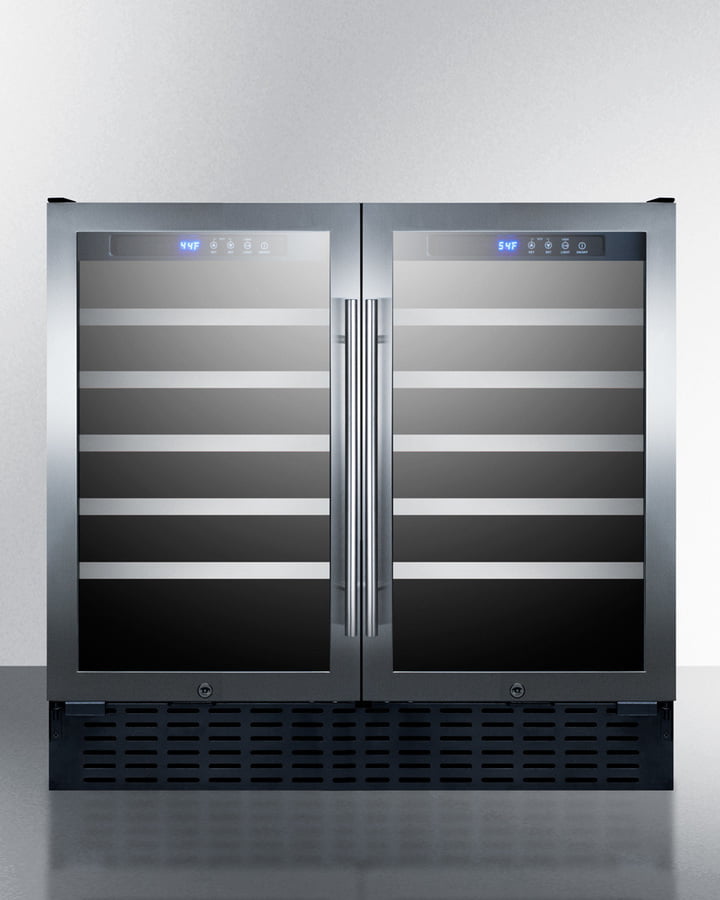

Summit SWC3668 36" Wide Built-In Wine Cellar
Dual Zone Design Lets You Store Red And White Wine In Separate Compartments Under The Appropriate Temperature Conditions (Bull)Flexible Design Allows Built-In Or Freestanding Use In 36" Wide Spaces (Bull)Versatile Interior Can Store Both Slim Bordeaux Bottles And Wider Burgundy Style Wine Bottles (Bull)Seamless Stainless Steel Trimmed Glass Doors Feature A Modern French Door Swing (Bull)Digital Controls Offer Easy And Intuitive Temperature Management (Bull)Factory Installed Locks Provide Added Security To Both Sections Summit'S Collection Of Built-In Undercounter Wine Cellars Offers Quality Storage With User-Friendly Convenience And Elegant Style. The Swc3668 Is A 36" Wide Wine Cellar Designed For Built-In Installation Under Counters. The Fully Finished Black Cabinet Also Allows Freestanding Use. This Unit Includes Two Seamless Stainless Steel Trimmed Glass Doors With A Unique French Door Swing. Both Include Factory Installed Locks For Added Security And Professional Handles To Finish The Modern Look. Two Separate Zones Feature Independent Digital Thermostats, Letting You Chill White And Sparkling Wine In One Section While Preserving Reds Under Warmer Temperatures In The Other. Both Zones Include Five Wooden Shelves In A Jet Black Finish With Stainless Steel Trim, As Well As Slotted Floors To Accommodate Champagne Bottles. The Interior Can Store Up To 68 Standard 750Ml Bordeaux Bottles. Alternatively, You Can Fit Up To 56 Wider "Burgundy" Style Bottles (Often Used For Chardonnay And Pinot Noir). Recessed Led Lighting Offers An Attractive View To Let You Display Your Wine Collection In Style. With A Professional Look And Innovative Design, Summit Swc3668 Is A Unique Addition To Any Home. For This Unit Sized For Lower Ada Compliant Counters, See The Swc3668Ada.
- Built-in capable : Make the best use of space by installing this unit under the counter and flush with other cabinetry
- Commercially approved : ETL-S listed to ANSI-NSF Standard 7 and meets UL-471
- Dual zone design : Two distinct temperature zones let you store white wine at colder temperature and red wine under warmer conditions
- 68 bottle capacity : Interior can hold 68 standard 750ml Bordeaux style bottles, or 56 wider Burgundy bottles
- Recessed LED lighting : Gentle and energy efficient LED lighting offers an elegant view of your collection

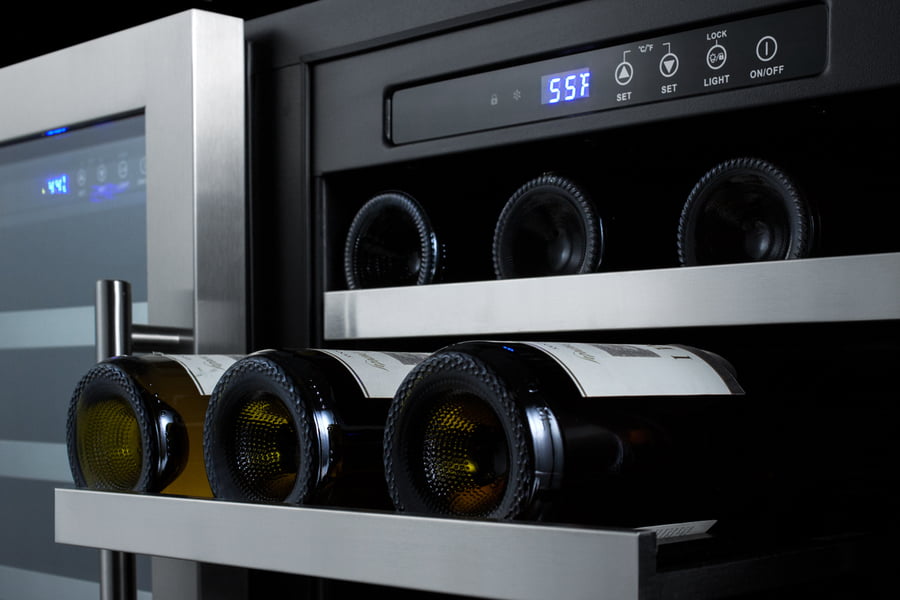

- Digital thermostats : Each zone is equipped with electronic temperature controls for easy and intuitive temperature management
- Wooden shelves : Stainless steel trimmed wooden shelves with a jet black finish for a modern look
- Professional handles : Sleek stainless steel handles add an elegant touch to any setting
- Glass doors : French door swing for a more dramatic presentation
- Seamless stainless steel trim : Door trim is completely seamless for a more luxurious look
- Factory installed locks : Keyed locks on both zones offer separate security for interior contents
- Automatic defrost : Reduced user maintenance with automatic defrost
- Fan-forced cooling : Internal fans ensure both interiors have a consistent temperature from top to bottom
- Fully finished cabinet : Allows the unit to be used freestanding
- Sealed back : Space-saving design that ensures easier cleanup
- 100% CFC free : Environmentally friendly design without ozone-damaging chemicals
Overview | |
Height of Cabinet | 34.25' (87 cm) |
Width | 35.38' (90 cm) |
Depth | 23.5' (60 cm) |
Depth with Handle | 25.25' (64 cm) |
Depth with door at 90° | 39.75' (101 cm) |
Bottles | 68 bottles |
Defrost Type | Automatic |
Door | Glass |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 1.25 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 151.0 lbs. (68 kg) |
Shipping Weight | 158.0 lbs. (72 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Wine Cellar | |
Number of Zones | 2 |
Door Swing | French |
Shelf Type | Wood |
Shelf Qty | 10 |
Thermostat Type | Digital |
Interior Light | Yes |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 1.06 oz. |
High Side PSI | 150.0 |
Low Side PSI | 50.0 |
Interior Height 1 | 23.0' (58 cm) |
Interior Width 1 | 14.0' (36 cm) |
Interior Depth 1 | 18.0' (46 cm) |
Compressor Step Height | 5.0' (13 cm) |
Compressor Step Width | 14.0' (36 cm) |
Compressor Step Depth | 5.0' (13 cm) |
Level Legs | 4 |
Temperature Range | 40 to 72 F |
Interior Height 2 | 23.0' (58 cm) |
Interior Width 2 | 14.0' (36 cm) |
Interior Depth 2 | 18.0' (46 cm) |
Door | |
T4F Door Tint | T3F Door Tint |
T2F Door Tint | T1SF Door Tint |
Exterior | |
Extra key | SSK |
